Option & Equipment
SiriusXM delete

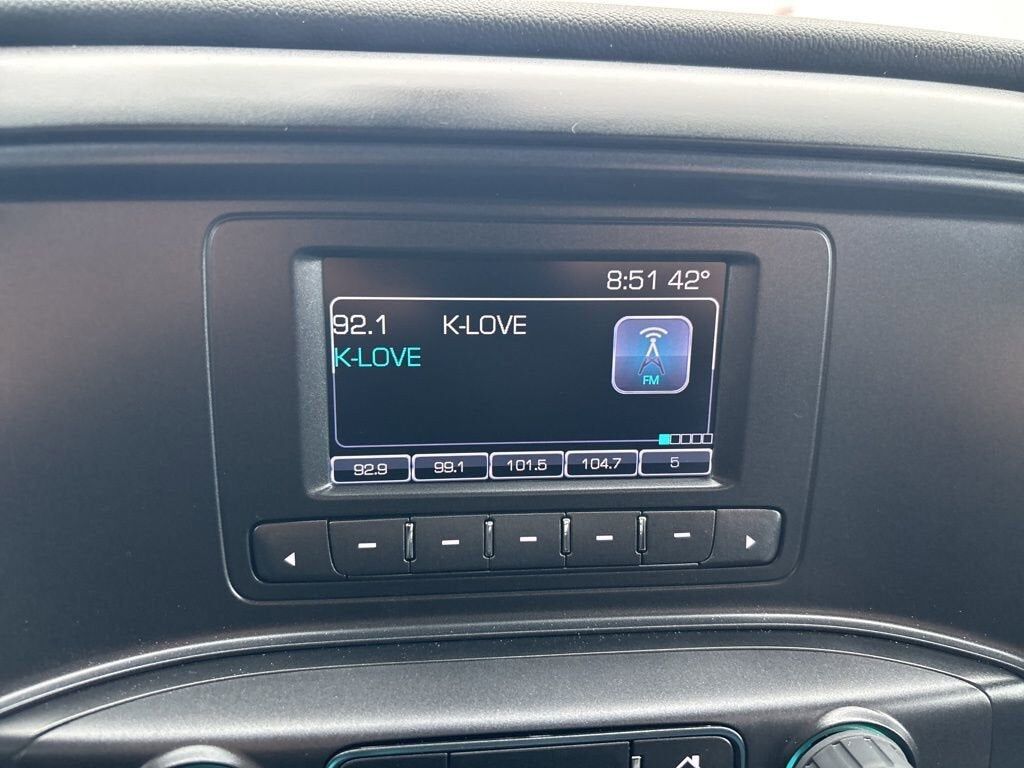

Audio system 4.2" diagonal color display AM/FM stereo with USB port and auxiliary jack (Requires (AE7) front 40/20/40 split-bench seat. Not available with (UE1) OnStar services capable or (U2K) SiriusXM Trial Subscription.) (STD)
6-speaker audio system
Audio system 4.2" diagonal color display AM/FM stereo with USB port and auxiliary jack (STD)
Lamps Smoked Amber roof marker
Headlamps halogen projector-beam
Lamps rear stop/turn/backup (1-piece assembly) with license plate light
Grille guard screen insect protection (mounted behind grille)
Antenna fixed mast
Spare tire delete (STD)
Wheel spare delete
Door handles Black
Front fender extension painted body color
Lamps cargo area cab mounted with switch on center switch bank

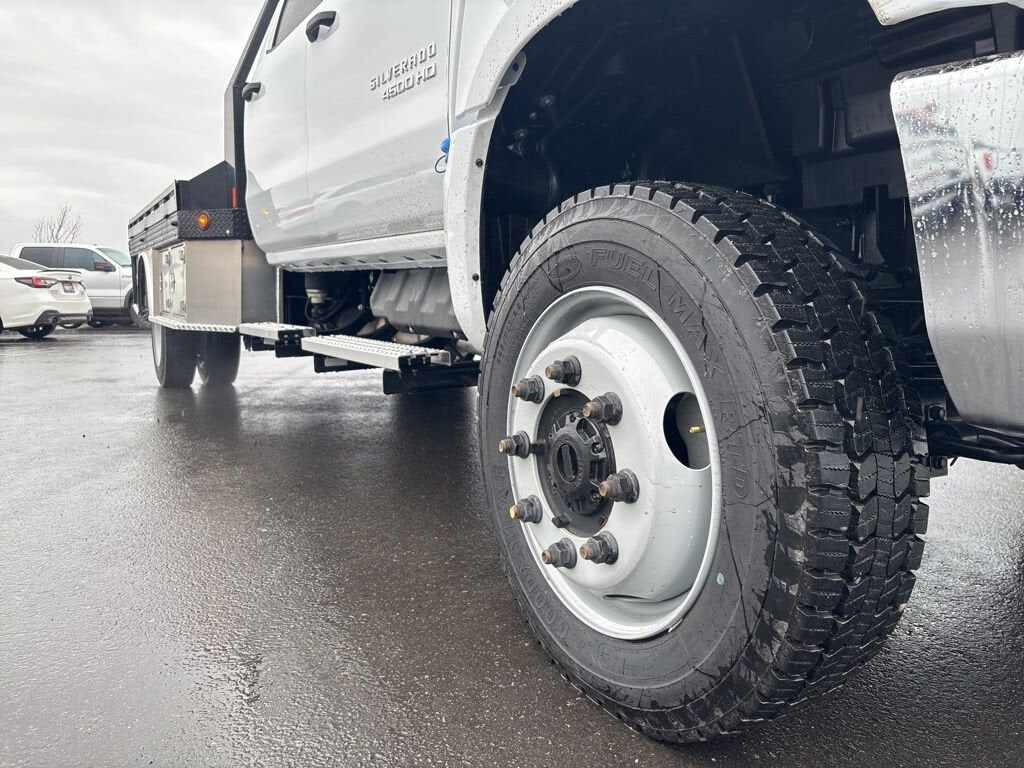

Wheels 19.5" x 6.75" steel Grey painted 8-holes hub piloted
Glass deep-tinted
Paint solid
Assist Steps aluminum
Tires rear 225/70R19.5G traction blackwall Goodyear Max Axle Load: 15000 lbs.
Air Dryer heated

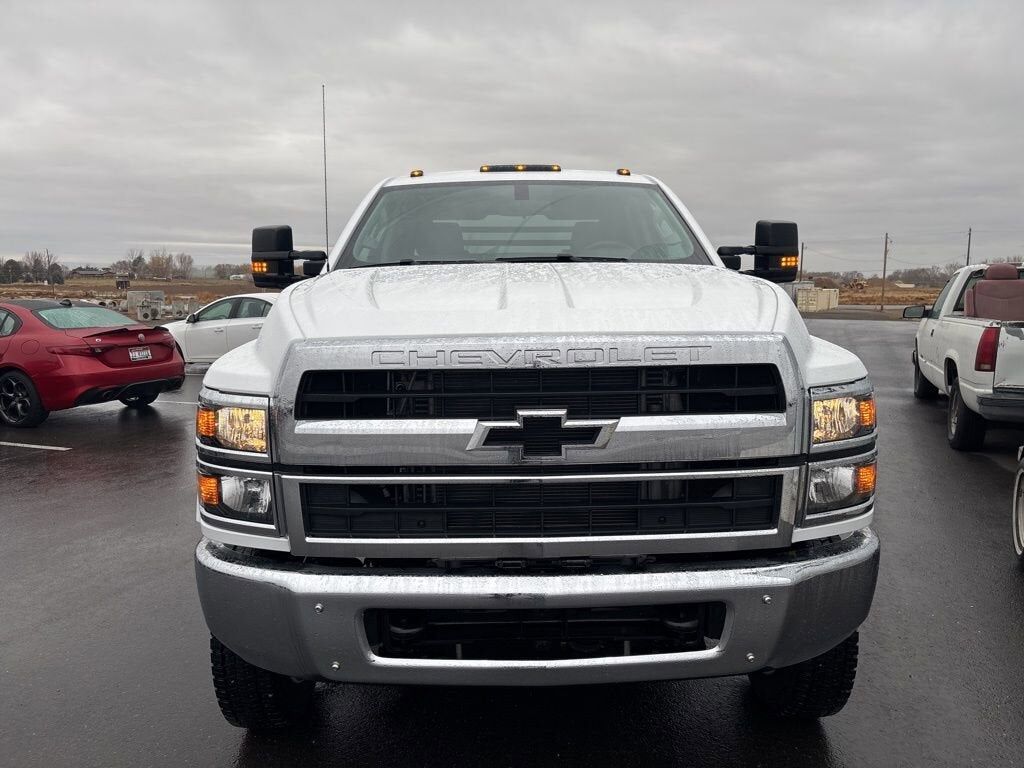

Grille chrome
Air Compressor Accessory Drive
Bumper front chrome
Provision for cab roof-mounted lamp/beacon provides an overhead console mounted switch and electrical wiring tucked beneath the headliner for a body upfitter to connect a body-mounted warning or emergency lamp
Tires front 225/70R19.5G traction blackwall Goodyear Max Axle Load: 7940 lbs.
Auxiliary harness 3' for headlamps and turn signals
Mirrors outside heated power-adjustable vertical trailering upper glass manual-folding and extending black. Includes integrated turn signal indicators consisting of 51 square inch flat mirror surface positioned over a 24.5 square inch convex mirror surface with a common head and lower convex spotter glass (convex glass is not heated and not power adjustable) and addition of Auxiliary cargo lamp for backing up (helps to see trailer when backing up with a trailer) and amber auxiliary clearance lamp
Summit White
Oil seal for front hub Chicago Rawhide Nitrile for oil lubricated wheel bearings
License plate kit front
Seat Belt Black
Visors driver and front passenger vinyl

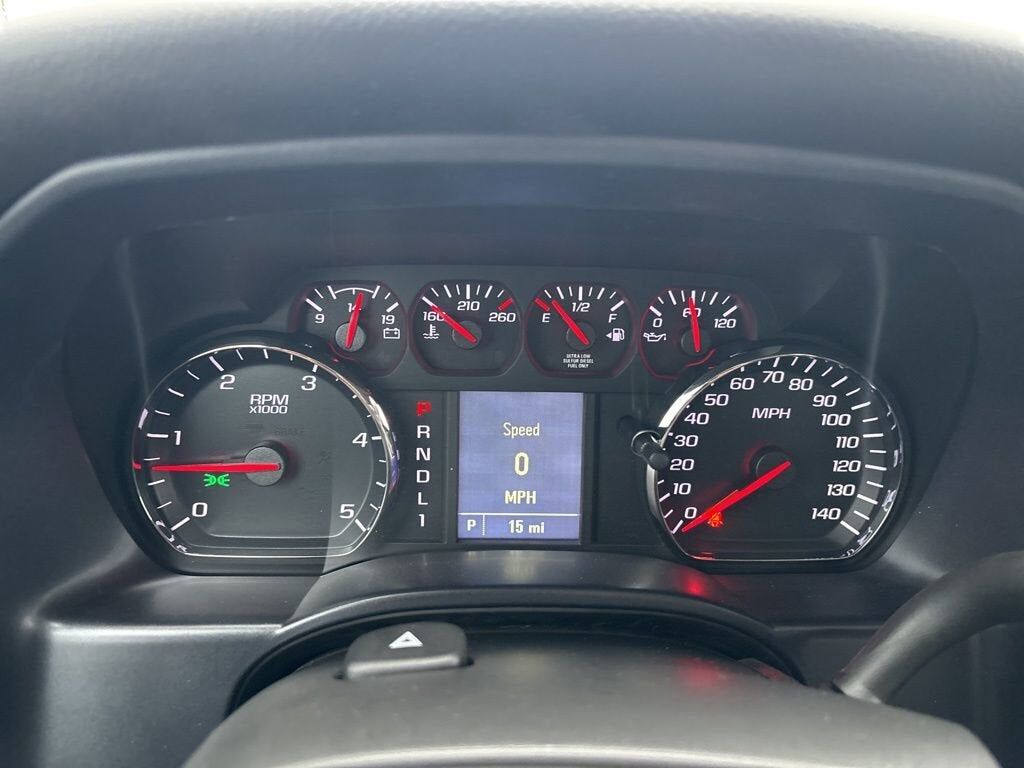

Driver Information Center 3.5" diagonal monochromatic display provides warning messages and basic vehicle information
Seat trim Vinyl

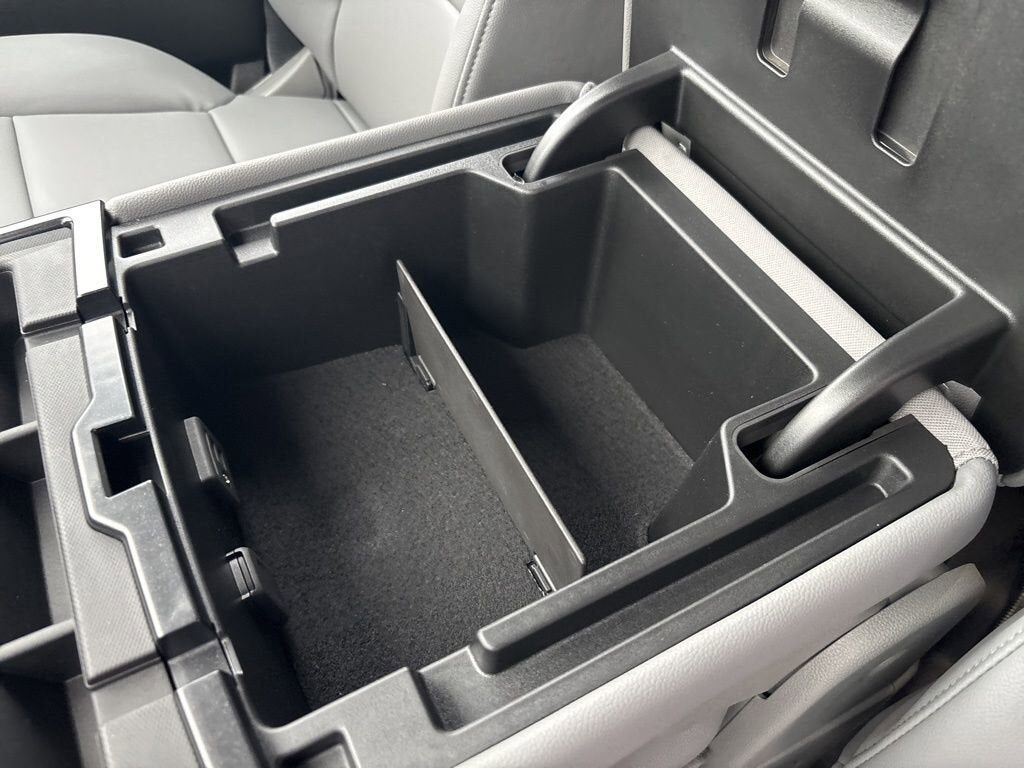

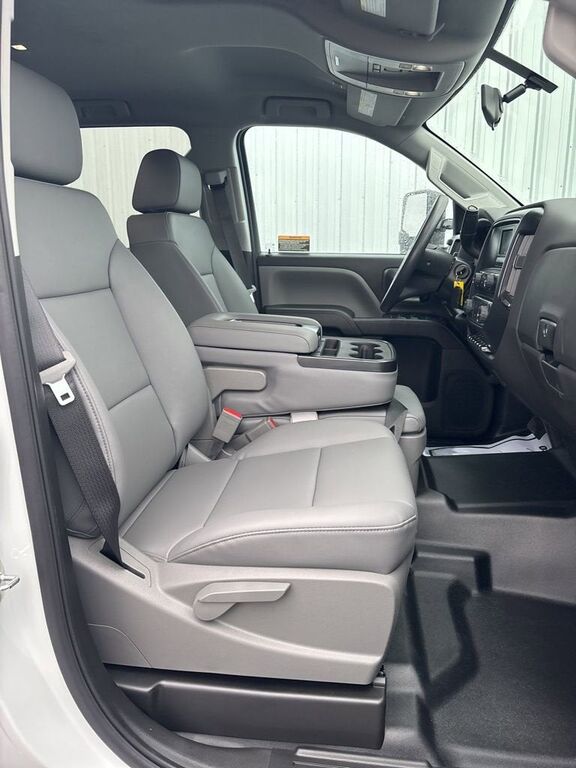

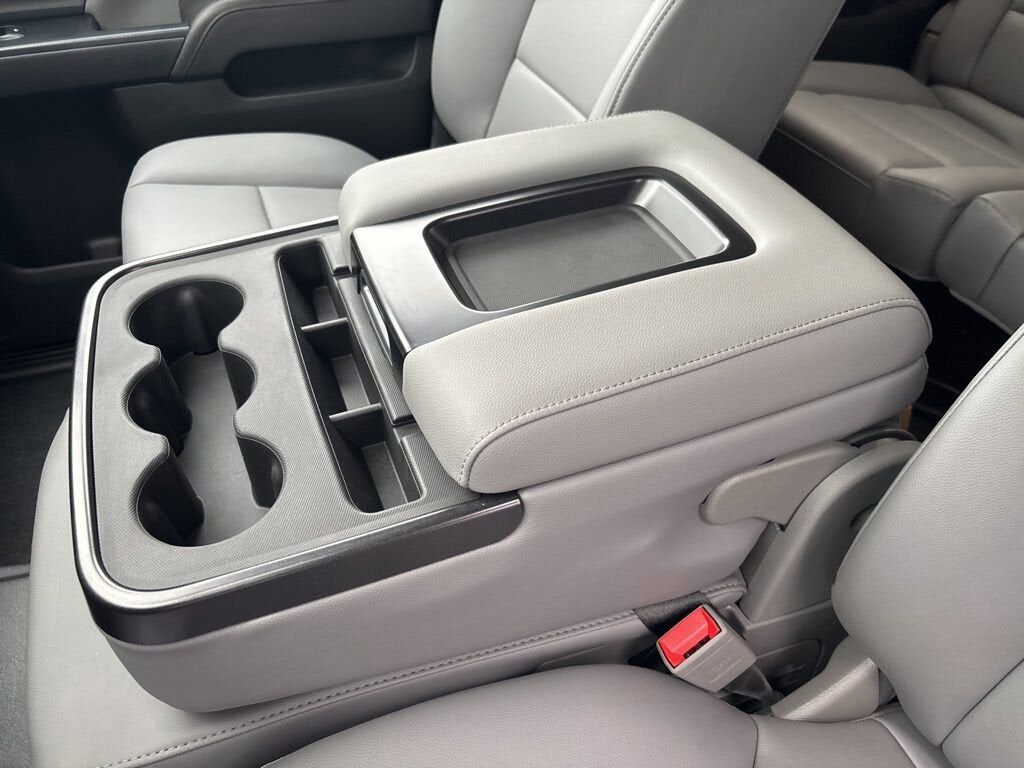

Seats front 40/20/40 split-bench 3-passenger driver and front passenger recline with outboard head restraints and center fold-down armrest with storage. Vinyl has fixed lumbar and cloth has manually adjustable driver lumbar. (Not available with (H0U) Jet Black Interior.) (STD)

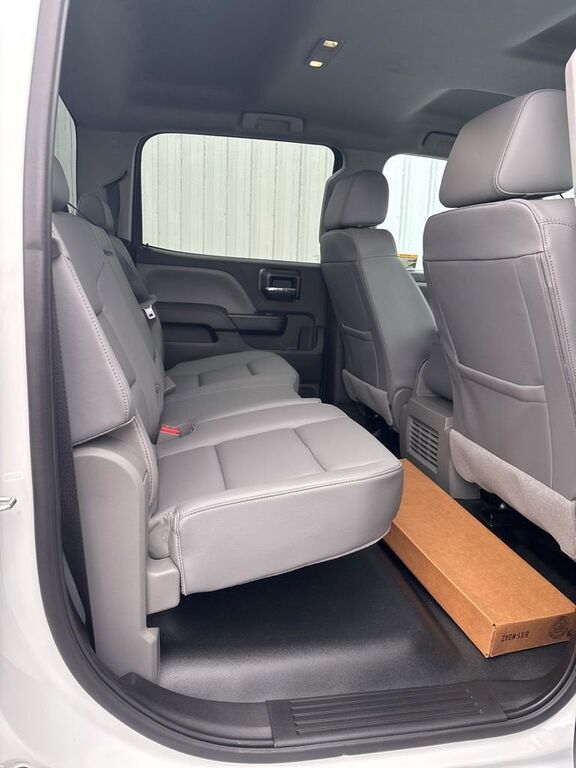

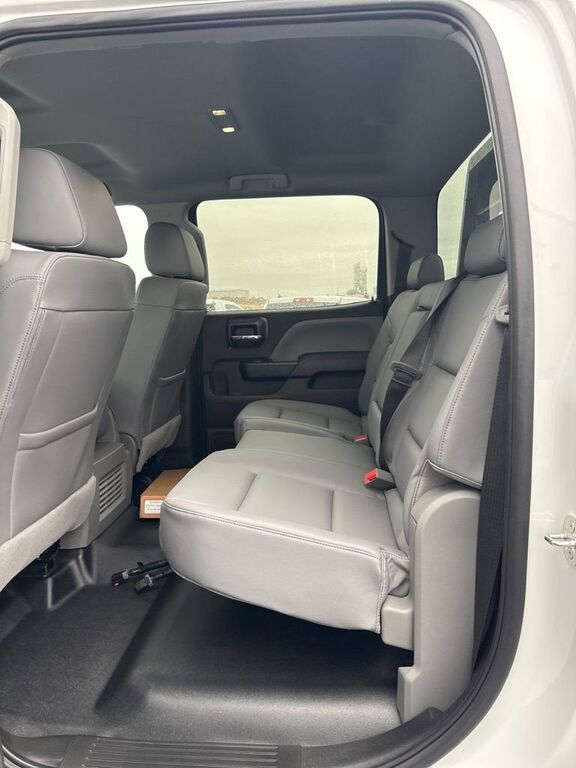

Seat rear 60/40 folding bench (folds up) 3-passenger (includes child seat top tether anchor)

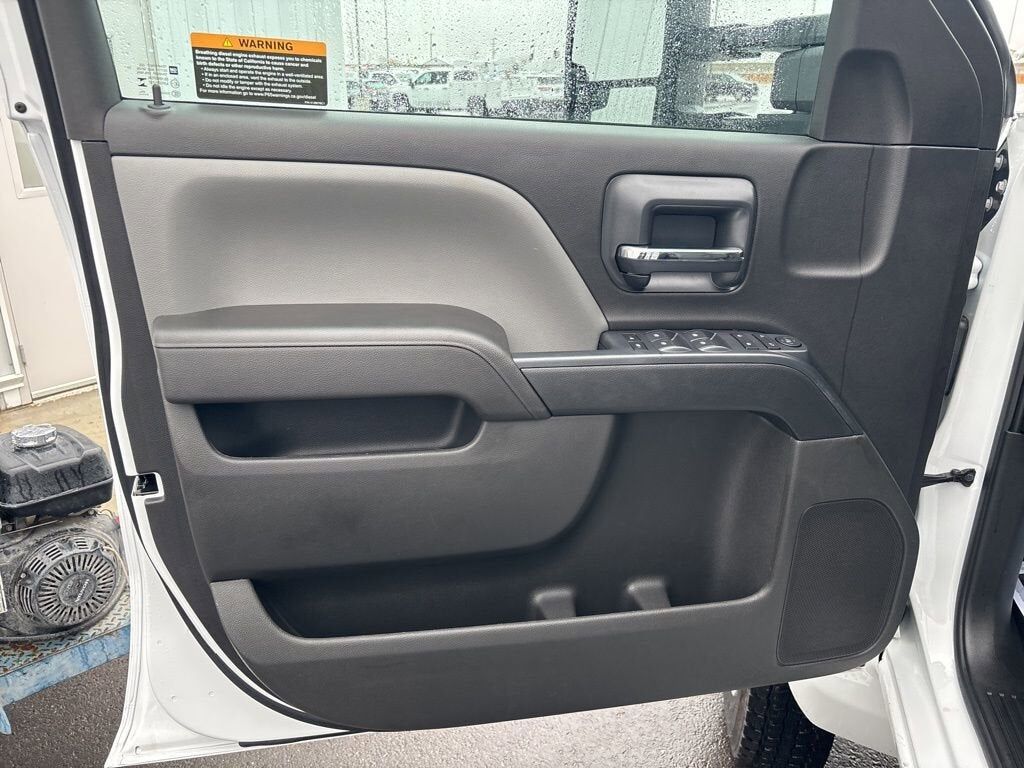

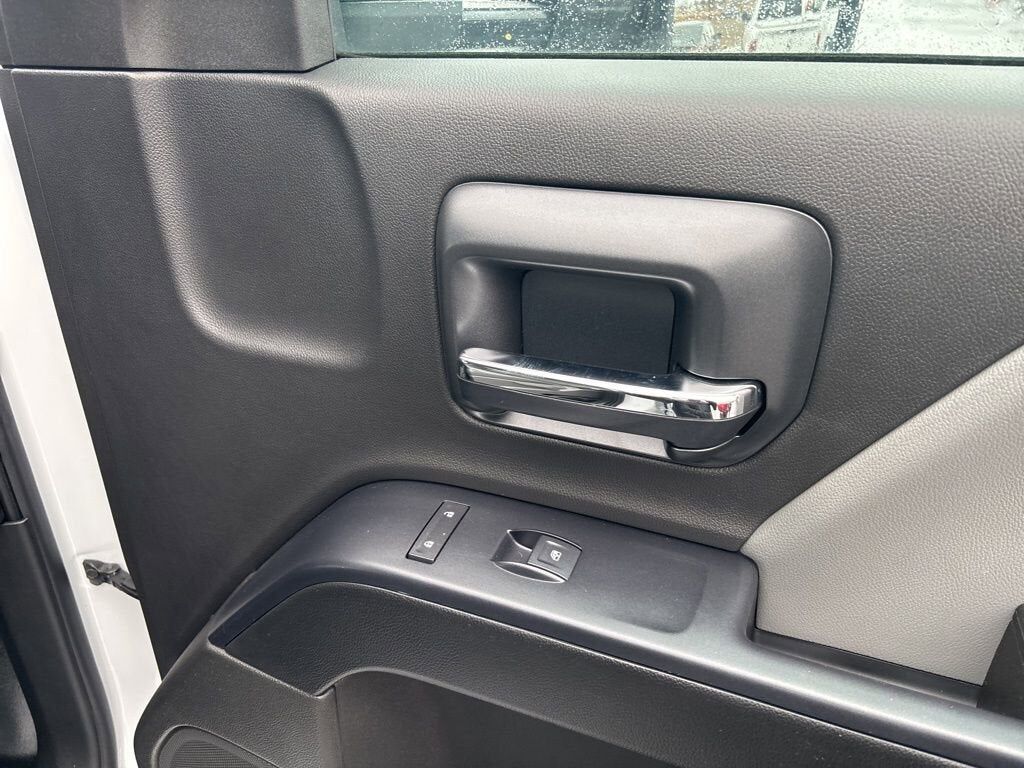

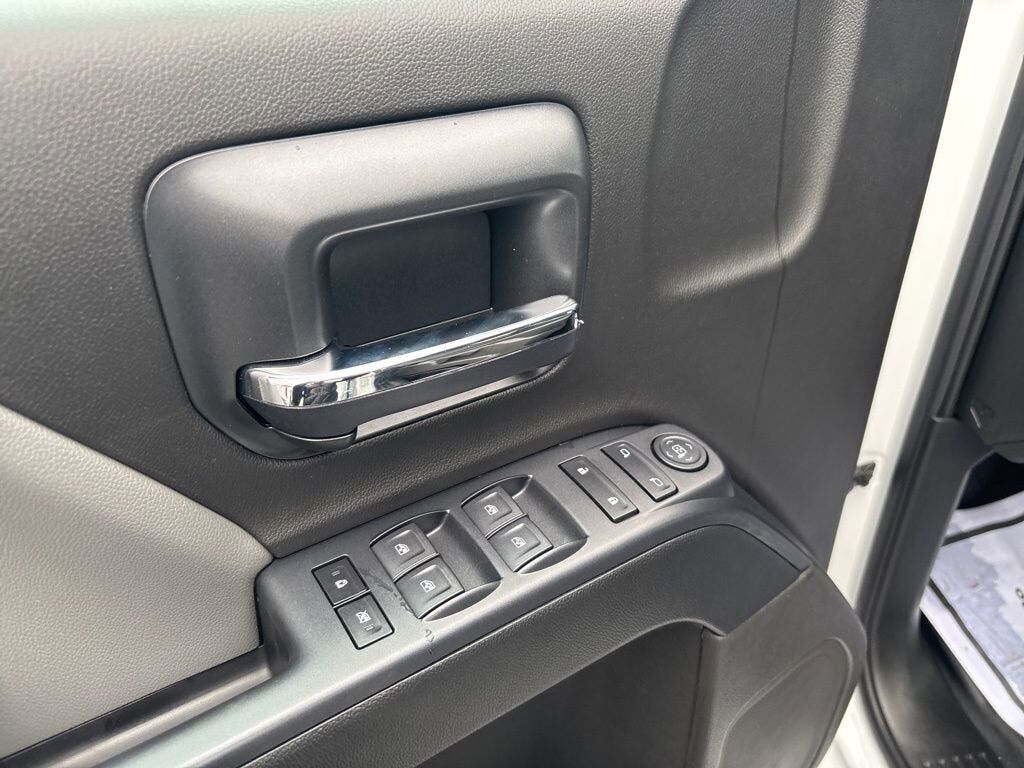

Windows power with driver express up and down and express down on all other windows
Speedometer miles/kilometers
Interior trim Jet Black/Dark Ash (Required and only available with (H2Q/H2R) Dark Ash seats with Jet Black interior accents.)

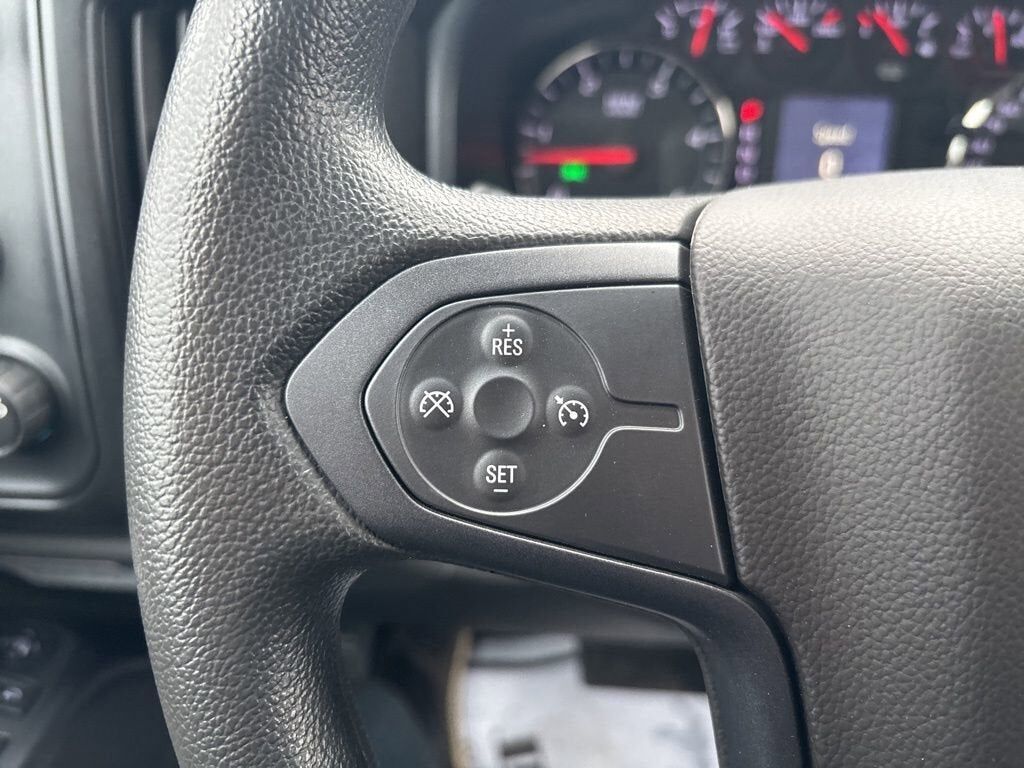

Cruise control steering wheel-mounted
Door locks power
Air conditioning single-zone
Assist handle front passenger and driver on A-pillars
Floor covering Graphite-colored rubberized-vinyl
Steering wheel urethane

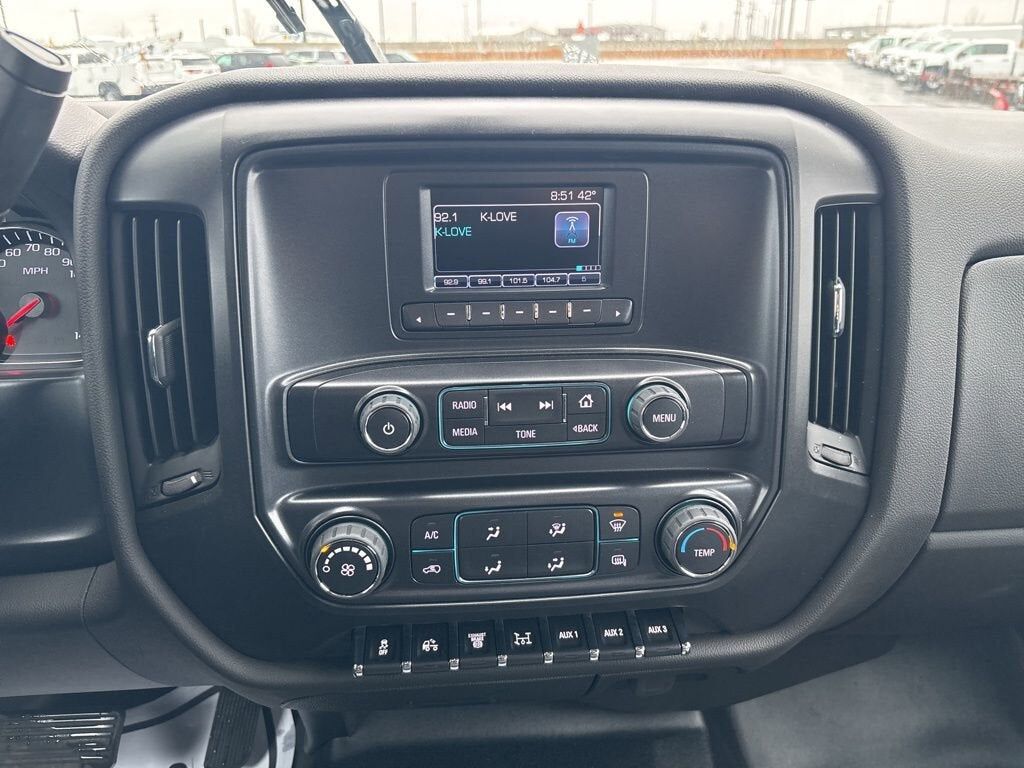

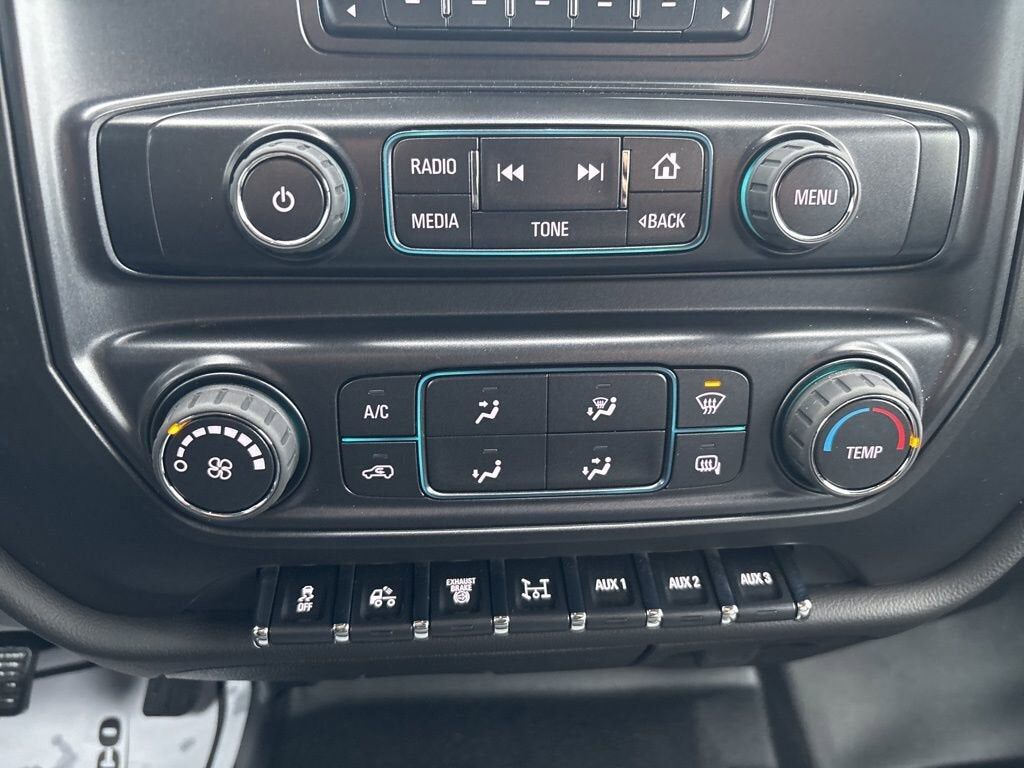

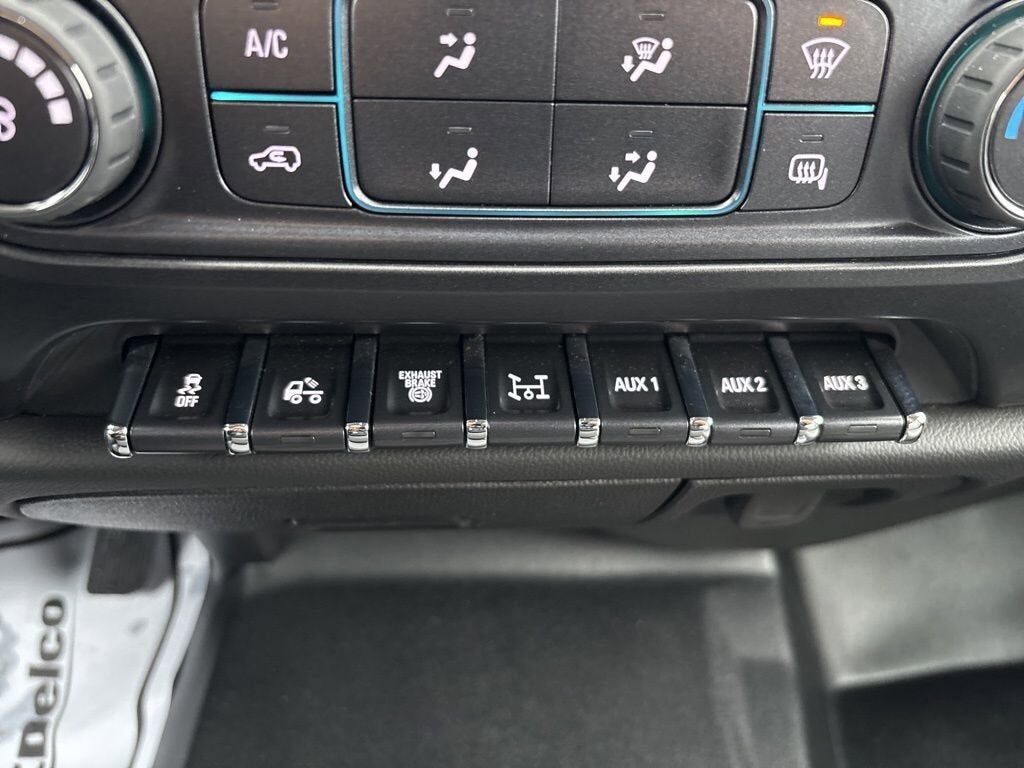

Upfitter switch kit provides up to 4-30 amp circuits to facilitate installation of aftermarket electrical accessories located on the instrument panel
Steering column manual Tilt-Wheel
Mirror inside rearview manual day/night

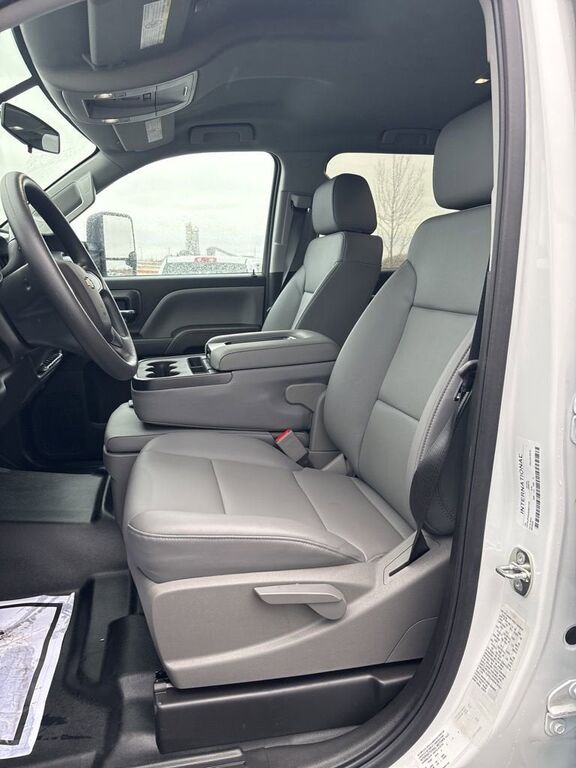

Seats front 40/20/40 split-bench 3-passenger driver and front passenger recline with outboard head restraints and center fold-down armrest with storage. Vinyl has fixed lumbar and cloth has manually adjustable driver lumbar. (STD)
Dark Ash seats with Jet Black interior accents Vinyl seat trim
Back-up alarm calibration This calibration will allow installation of an aftermarket back-up alarm by disabling rear perimeter lighting
Power outlet 110-volt AC
Remote Keyless Entry
Trailer brake controller integrated
Emissions 50 state certification
Front suspension 7500 lbs. (3402 kg) multi-leaf includes shock absorbers
Brakes hydraulic heavy duty Bosch/Meritor/Wabco system with 4-channel (ABS) (Includes (J69) driveline park brake.)
Axle Open rear axle non-locking rear
Capped Fuel Fill
Steering power (Bosch S2 8014 Plus)
Emissions USA 50 State certified
Axle to End of Frame 49" (Requires wheelbase (EM1) 199" or (FNV) 175". Not available with (G40) (GP1) or (GP8) rear air suspension.)
Incomplete vehicle
Fuel diesel B20
Axle lubricant rear synthetic oil EmGard FE -75W-90
Rear axle 4.30 ratio Max road speed: 79 MPH

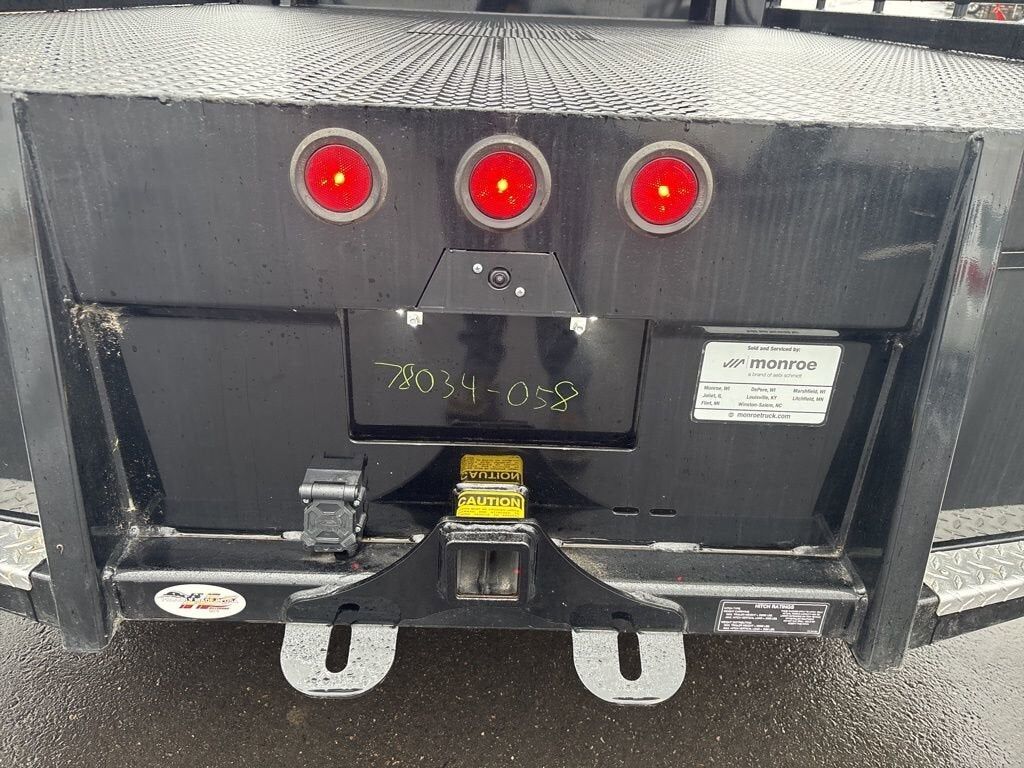

Trailering provisions trailering wire harness only trailer combined (Stop/Tail/Turn) connection socket and harness mounted at rear of frame.
Batteries heavy-duty dual 1100 cold-cranking amps includes battery box mounted to left side under cab
Front axle 7500 lbs Dana Spicer 60-256 single-reduction front driving
Axle lubricant front synthetic oil EmGard FE-75W-90
Exhaust brake
Four wheel drive
Front stabilizer bar
Recovery hooks front frame-mounted Black
Additional fuel 5 gallons
4500 HD Series
DPF diesel particulate filter manual regeneration customer regeneration will not be allowed until the DPF load percentage has reached 100% full and a driver information center (DIC) message has been shown
GVWR 16000 lbs. (7257 kg)
Rear suspension 15500 lbs. (7031 kg) multi-leaf vari-rate
Battery top post threaded battery jump start stud (located on battery box)
Axle limited slip Dana Spicer Truetrac torque proportioning limited slip
Shock Absorbers rear
34000 lbs. GCWR (15422 kg)
Fuel tank front and rear 65 gallon total
Rear axle 15000 lb. (6804 kg)
Wheelbase 199" (505.5 cm) 84" CA
Exhaust system straight terminates ahead of rear wheels
Alternator 220 amps
Snow Plow Prep Package includes (UNL) auxiliary harness for headlamps and turn signals (KW5) 220-amp alternator forward lamp wiring harness and (TRW) provision for cab roof mounted lamp/beacon
WT Preferred Equipment Group includes standard equipment
Ship Thru Produced in Springfield Assembly and shipped to Monroe Truck Equipment Flint MI and Returned to Springfield Assembly for shipping to final destination
Daytime Running Lamps with automatic exterior lamp control
Airbags Single-stage frontal airbags for driver and front outboard passenger; Seat-mounted side-impact airbags for driver and front outboard passenger; Head-curtain airbags for front and rear outboard seating positions; (Always use seat belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
Horn Trumpet Style single-note

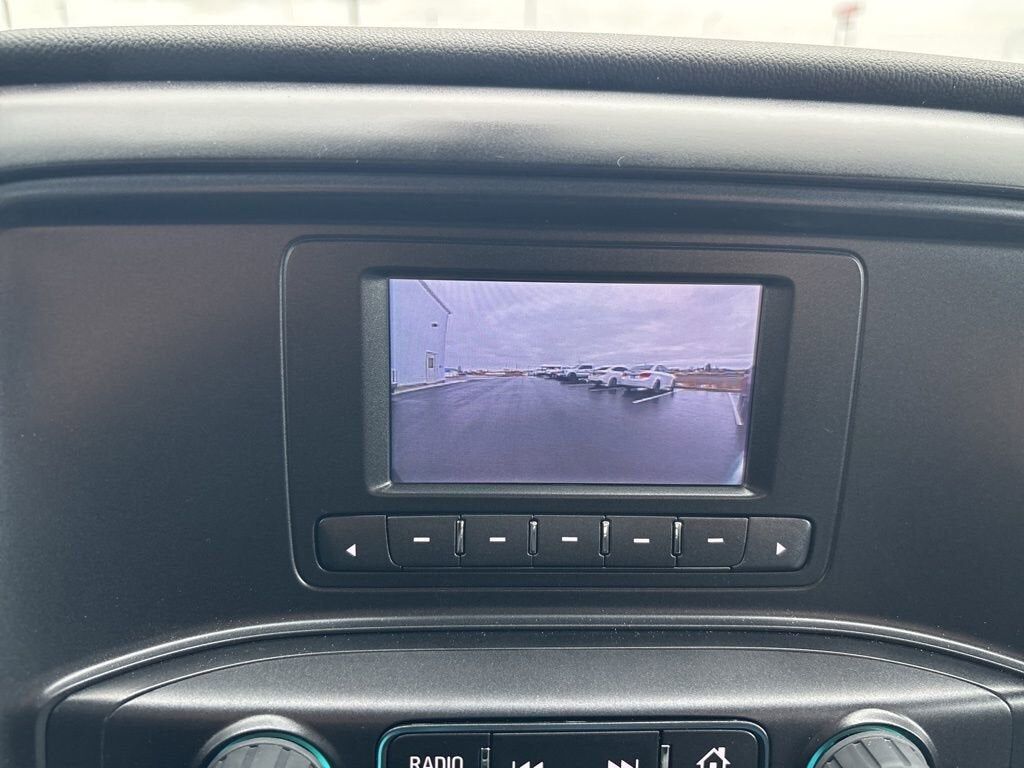

Rear Vision Camera display integrated into Radio (Shipped loose in cab for upfitter installation.)
OnStar delete
Airbag deactivation switch frontal passenger-side (Included and only available with (AY0) airbags.)
Backup alarm (Includes (SFW) SEO Calibration for backup alarm.
StabiliTrak Electronic Stability Control System with Traction Control includes Electronic Trailer Sway Control and Hill Start Assist
Brake parking driveline park brake system
Traction control
Snow Plow Prep Package
