Option & Equipment
SiriusXM delete
6-speaker audio system
Bluetooth® for phone personal cell phone connectivity to vehicle audio system

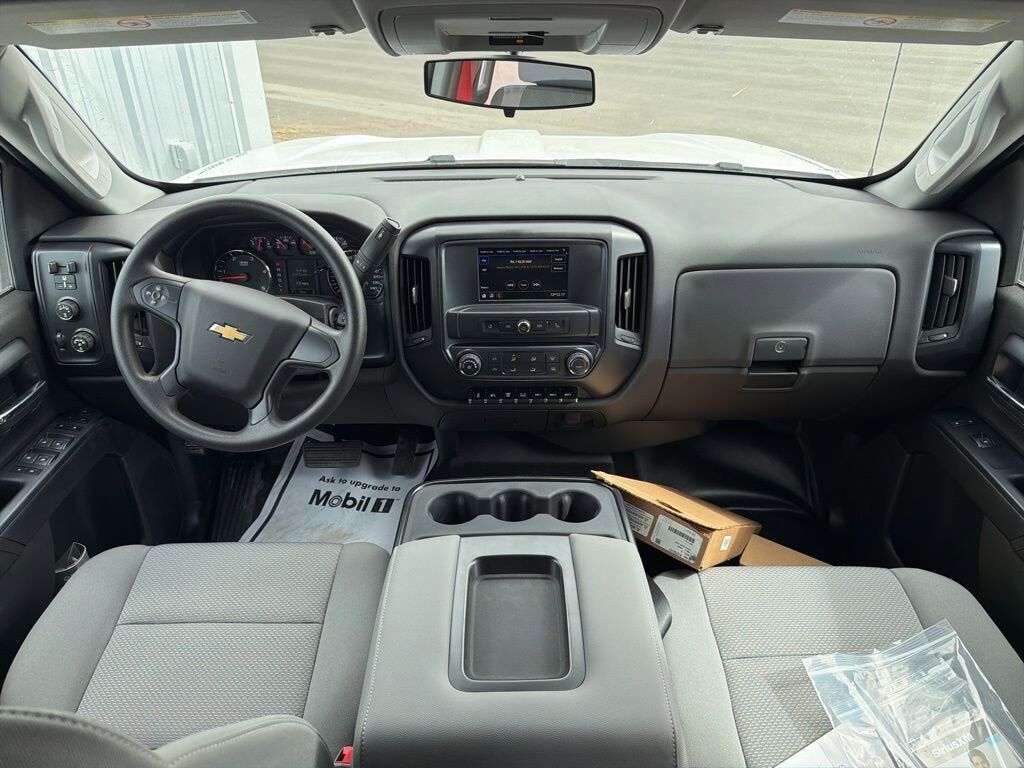

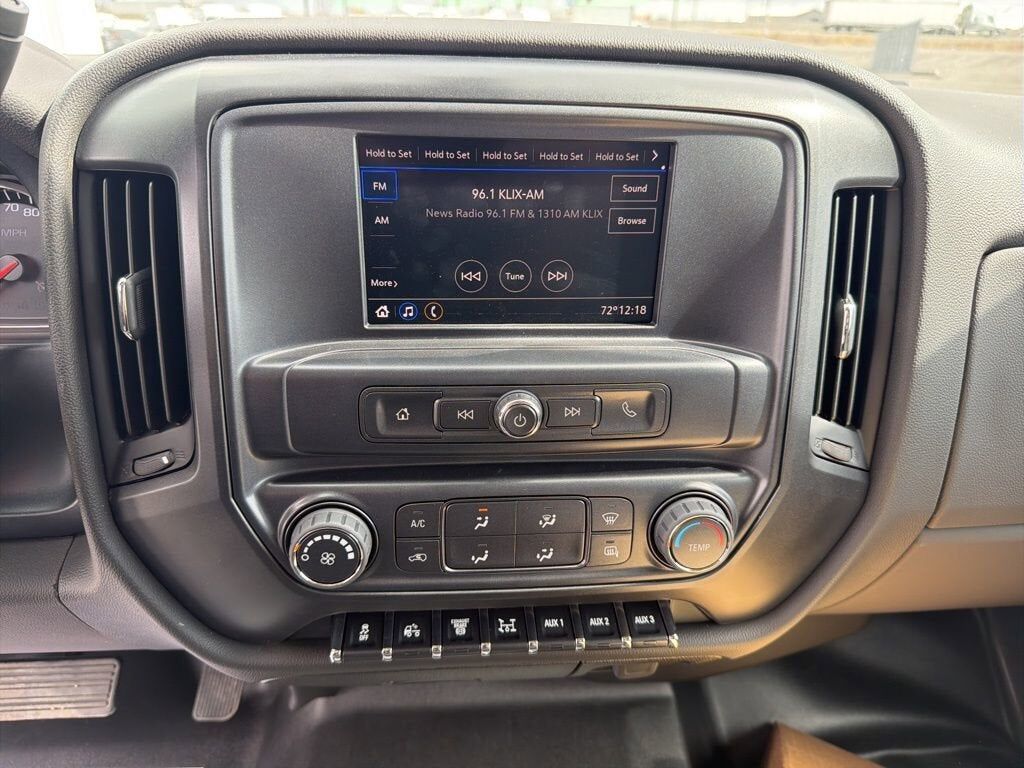

Audio system Chevrolet Infotainment System with 7" diagonal color touch-screen AM/FM stereo with seek-and-scan and digital clock includes Bluetooth® handsfree calling and streaming audio with select phones; wired phone projection via select 3rd party apps; USB ports; auxiliary jack.
Lamps rear stop/turn/backup (1-piece assembly) with license plate light
Grille guard screen insect protection (mounted behind grille)
Antenna fixed mast
Spare tire delete (STD)
Wheel spare delete
Door handles Black
Front fender extension painted body color
Lamps cargo area cab mounted with switch on center switch bank
Assist steps
Lamps Smoked Amber roof marker
Headlamps halogen projector-beam
Fog lamps front halogen
Paint solid

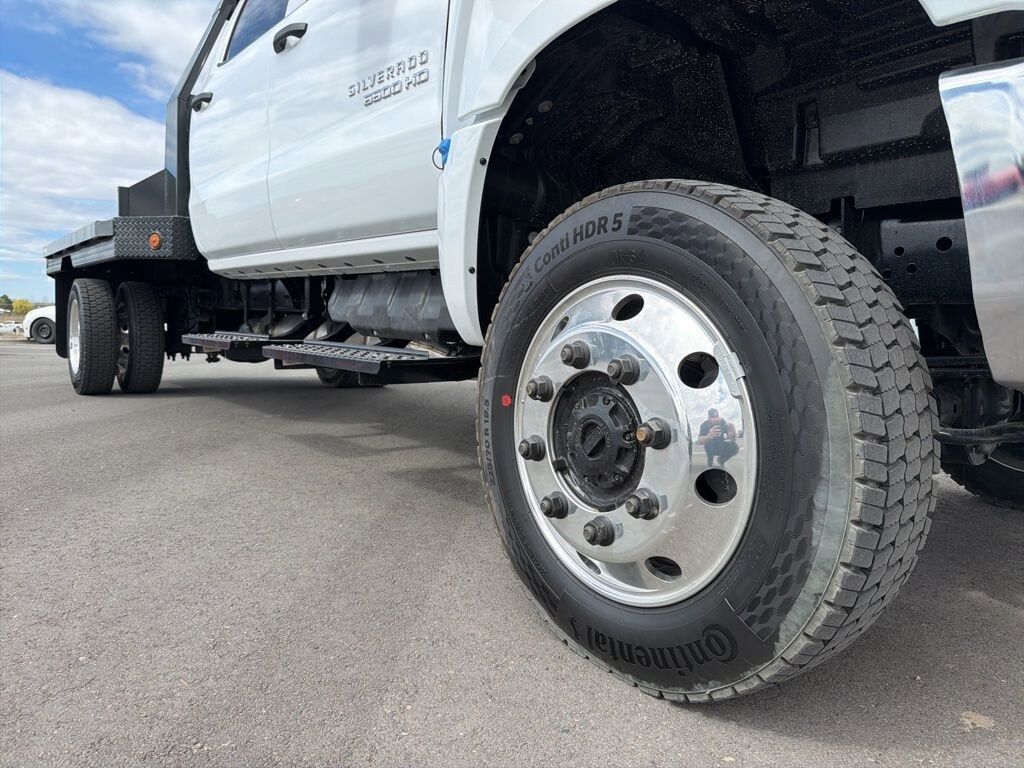

Wheels 19.5" x 6.75" 6-aluminum wheels 8-holes hub piloted Dura-Bright finish is on the outside of the wheel
Grille chrome
Tires front 225/70R19.5H traction blackwall Continental Max Axle Load: 8000 lbs.
Bumper front chrome
Tires rear 225/70R19.5H traction blackwall Continental Max Axle Load: 16000 lbs.
Grille guard screen stone protection (mounted to bumper)
Summit White
License plate kit front
Electrical Provisions rear of frame upfitter body builder wiring includes Sealed Connectors for Tail/Amber Turn/Marker/Backup/Accessory Power/Ground and Sealed Connector for Stop/Turn
Mirrors outside black heated power-adjustable high-visibility vertical camper-style and lower convex spotter glass manual-folding. Convex glass is not heated and not power adjustable. 102" Wide Load
Tire valve cap Haltec flow-thru
Glass deep-tinted
Visors driver and front passenger vinyl

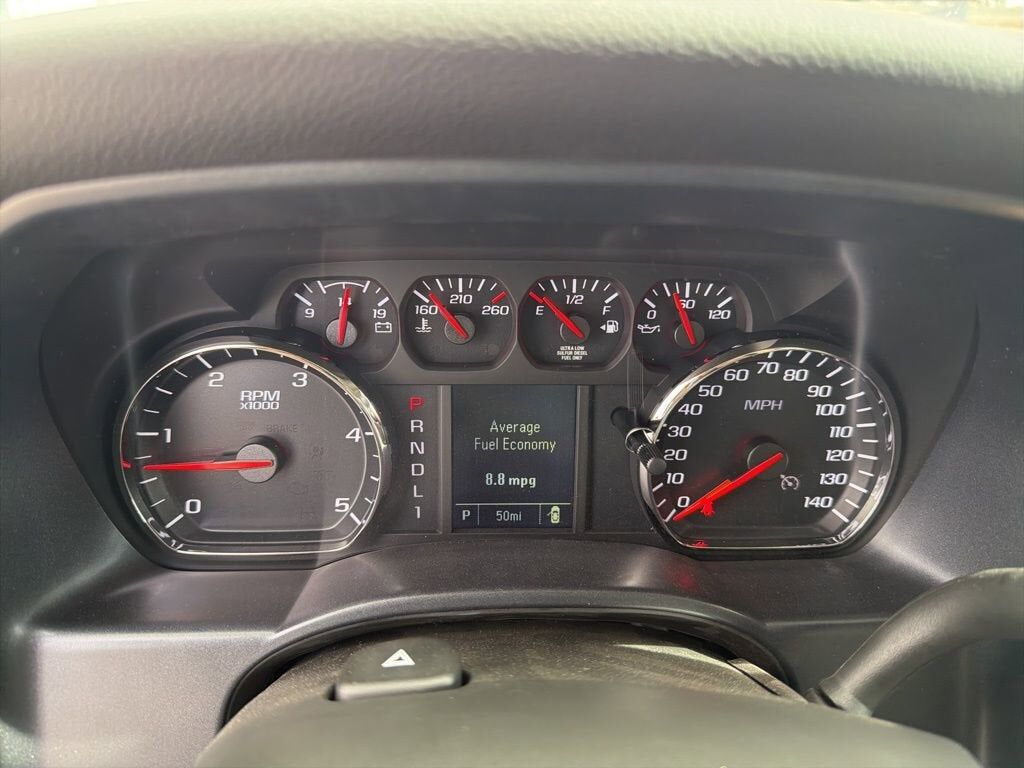

Driver Information Center 3.5" diagonal monochromatic display provides warning messages and basic vehicle information
Seat trim Vinyl

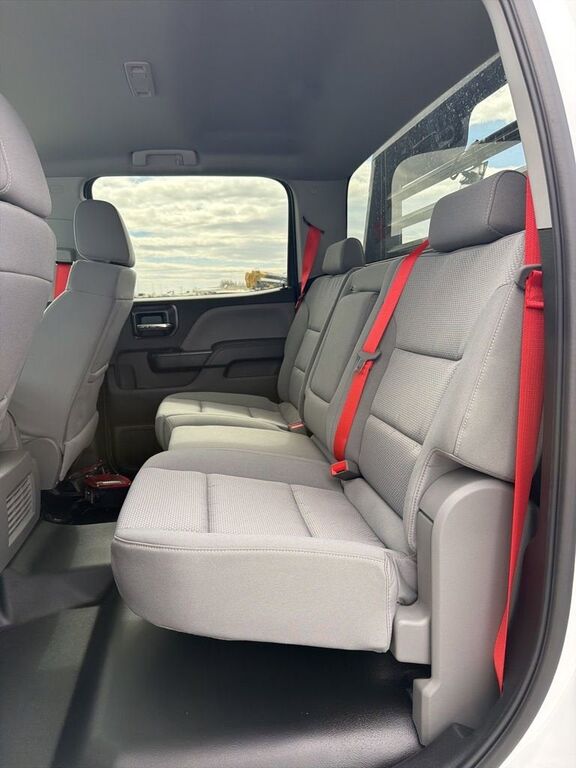

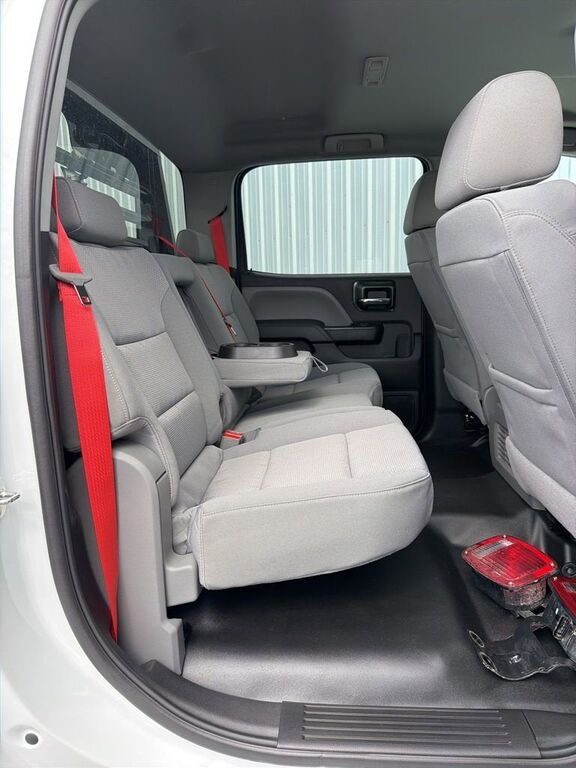

Seat rear 60/40 folding bench (folds up) 3-passenger (includes child seat top tether anchor)

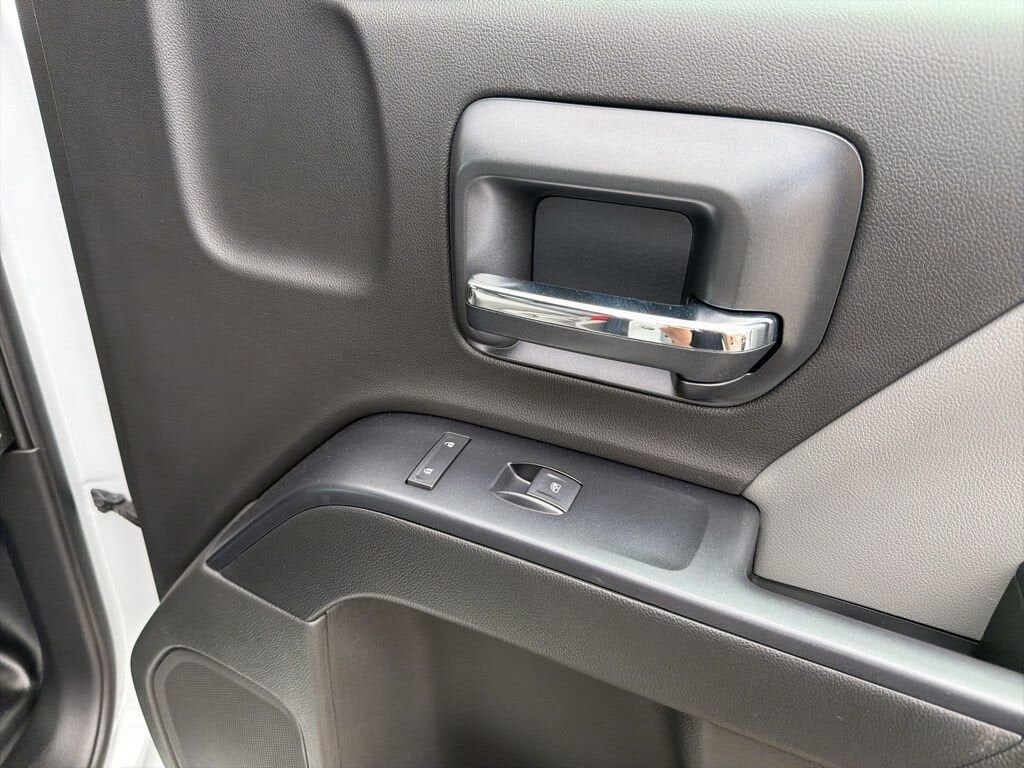

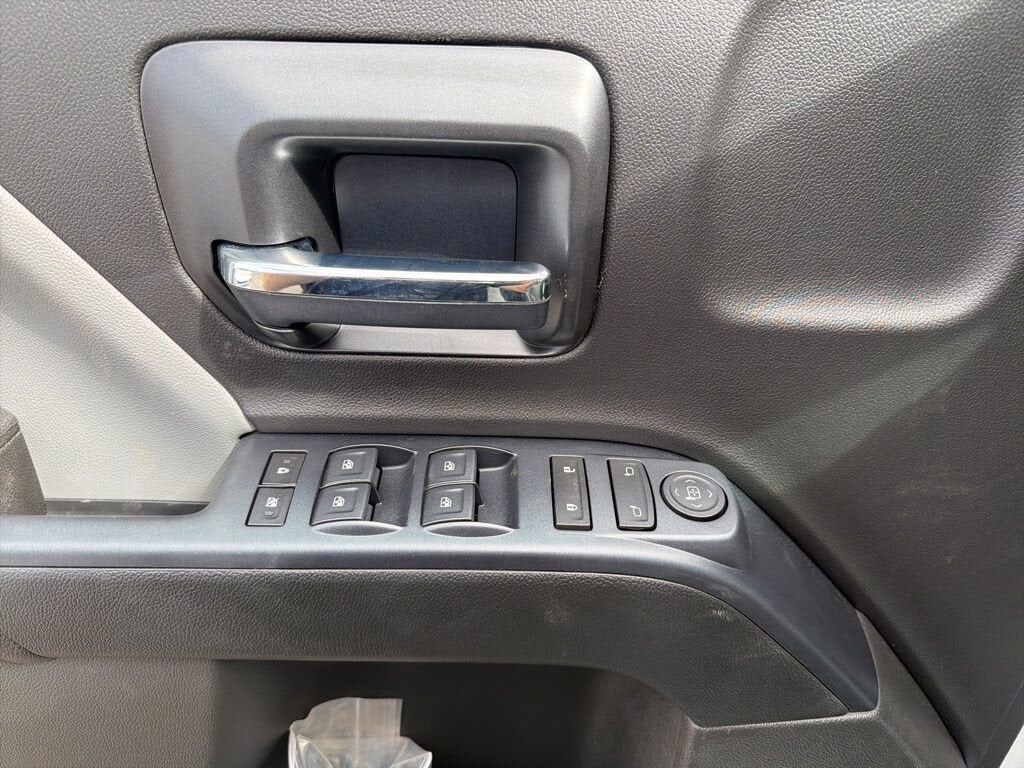

Windows power with driver express up and down and express down on all other windows

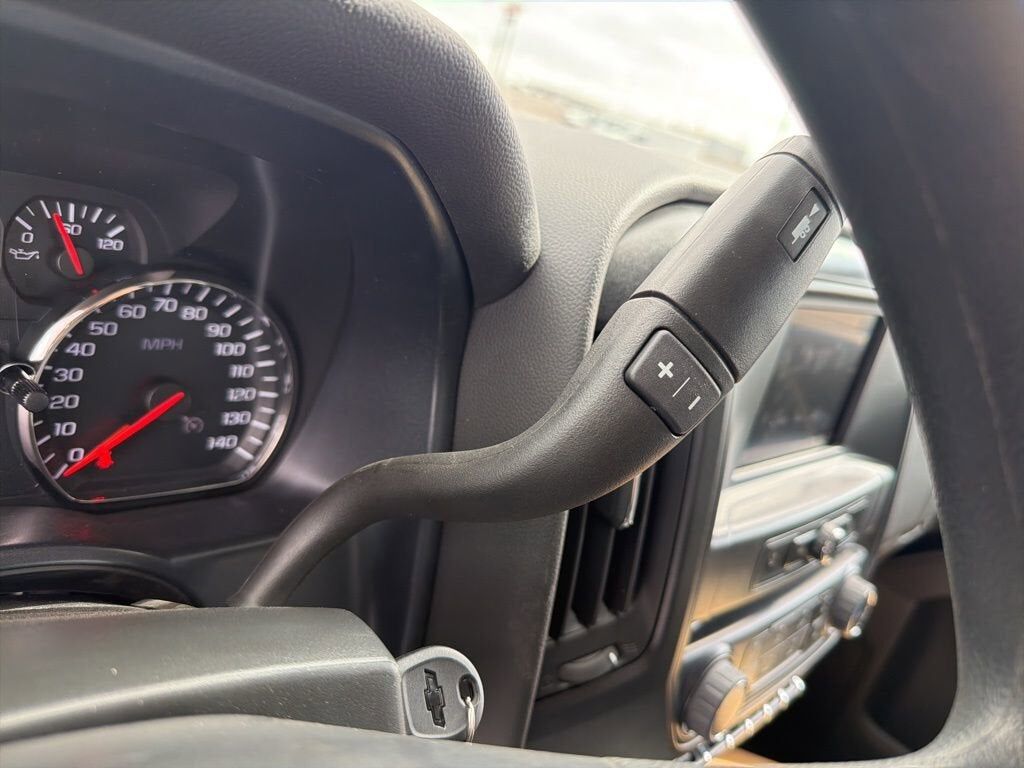

Speedometer miles/kilometers
Interior trim Jet Black/Dark Ash (Required and only available with (H2Q/H2R) Dark Ash seats with Jet Black interior accents.)

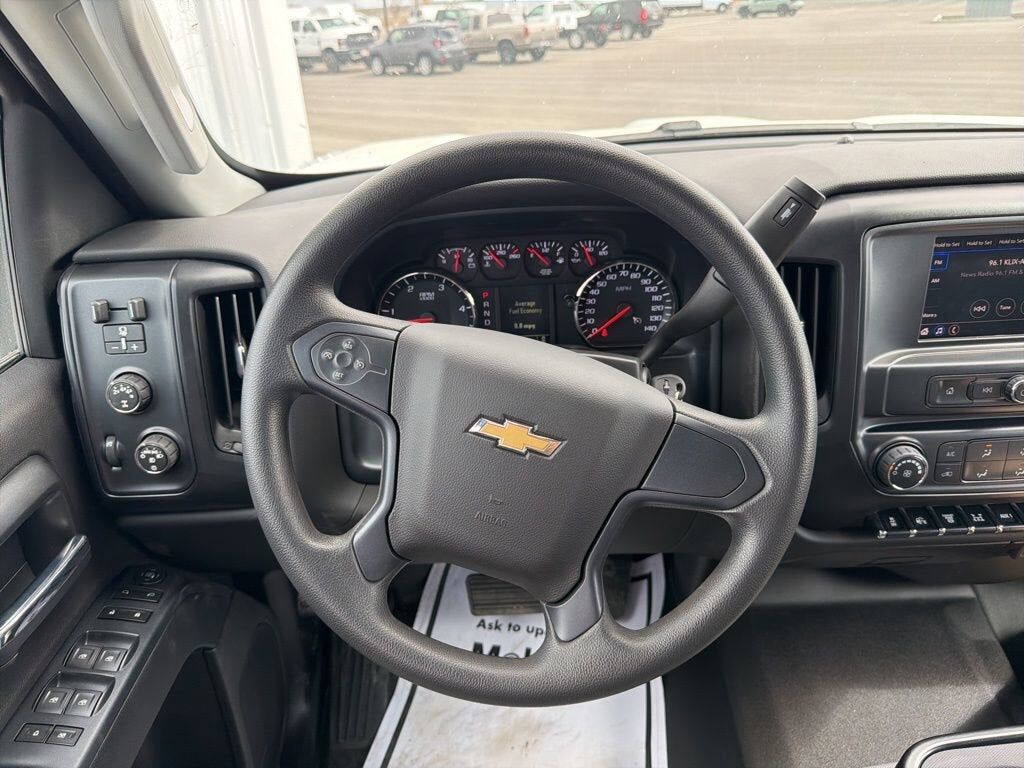

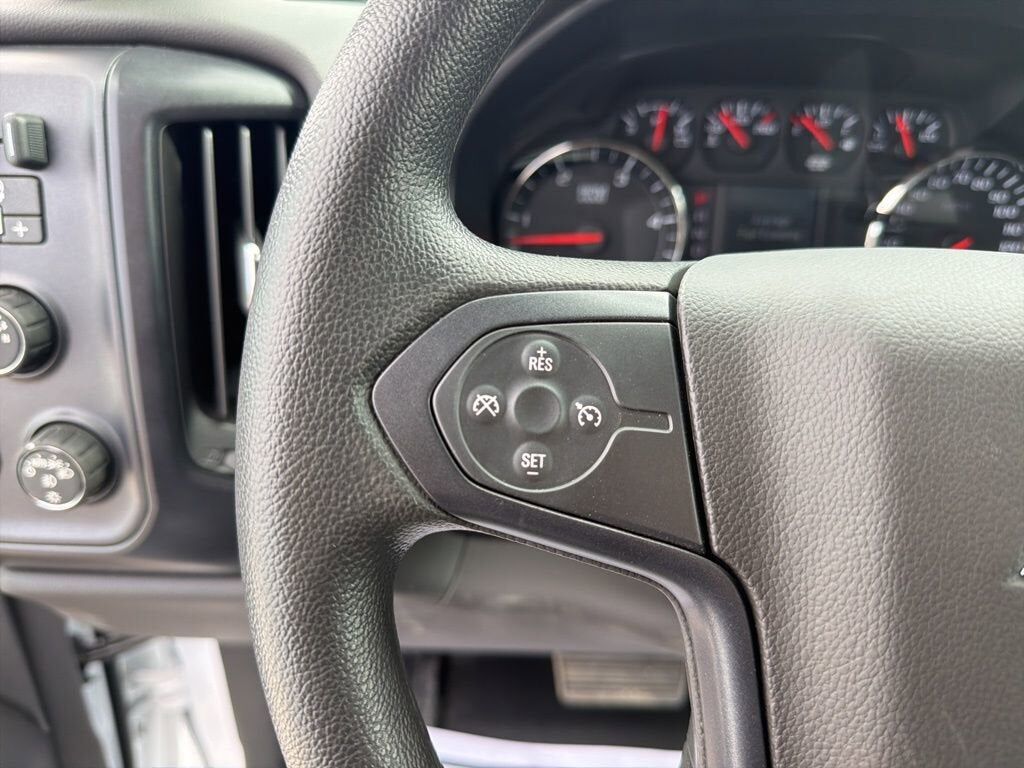

Cruise control steering wheel-mounted
Door locks power
Air conditioning single-zone
Assist handle front passenger and driver on A-pillars
Floor covering Graphite-colored rubberized-vinyl
Steering wheel urethane

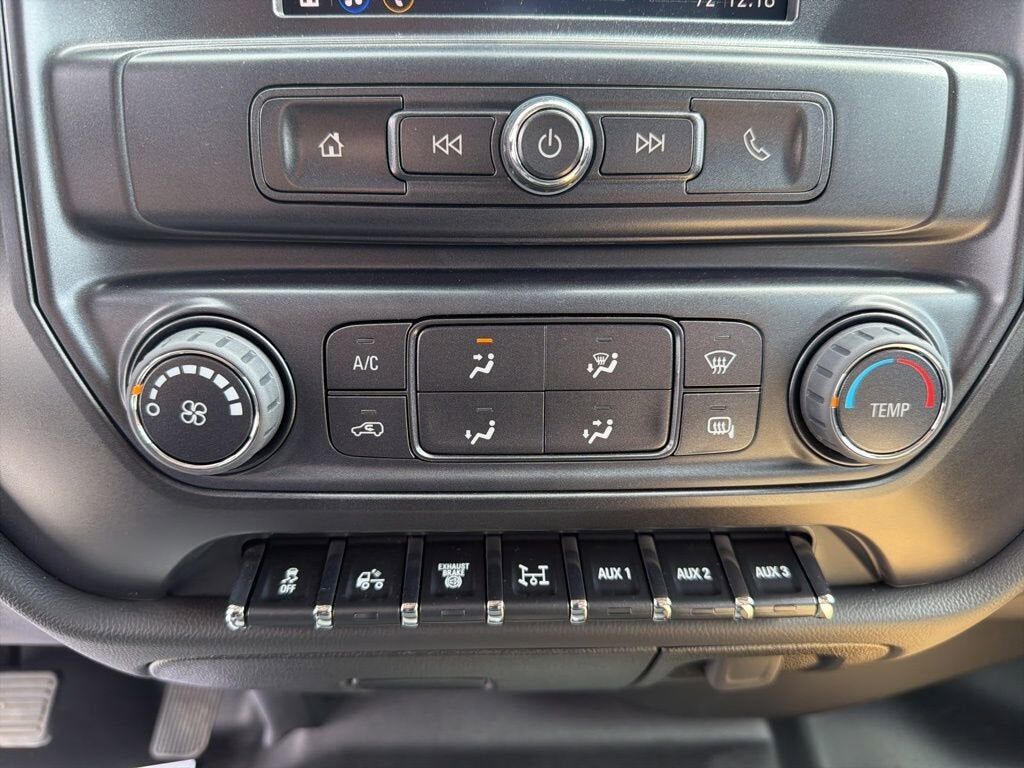

Upfitter switch kit provides up to 4-30 amp circuits to facilitate installation of aftermarket electrical accessories located on the instrument panel
Steering column manual Tilt-Wheel
Mirror inside rearview manual day/night
Seat Belt Front Red (center seat belt will ship loose)
Dark Ash seats with Jet Black interior accents Cloth seat trim includes manually adjustable driver lumbar
Power outlet 120-volt AC

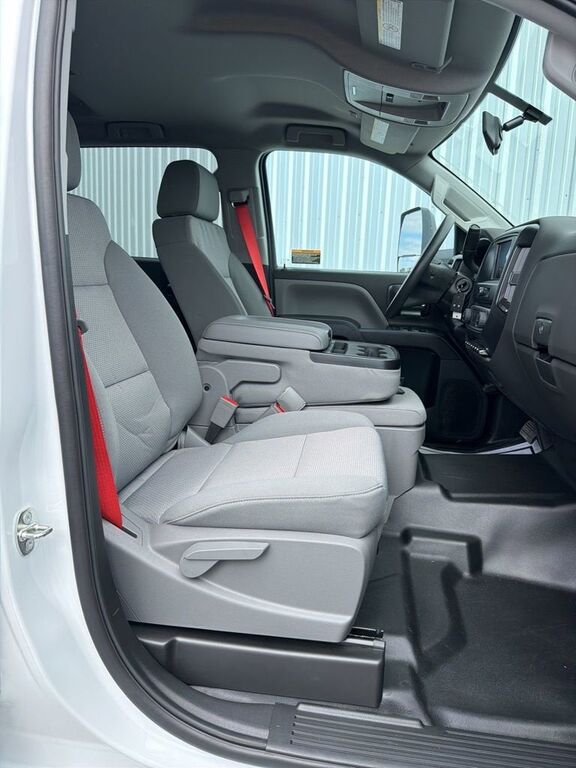

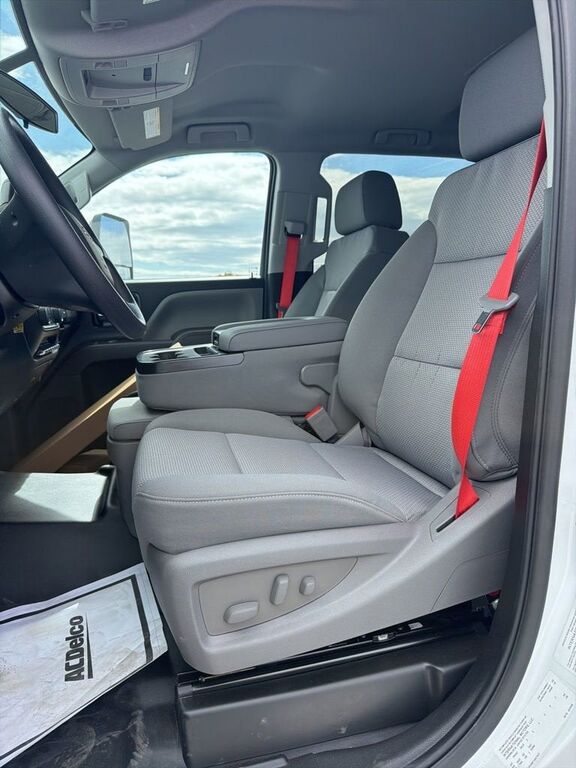

Seats front 40/20/40 split-bench cloth or vinyl 3-passenger. Includes driver and front passenger recline with outboard head restraints and center fold-down armrest with storage. Also includes manually adjustable driver lumbar and storage pockets. Includes (AG1) 10-way power seat.)
Remote Keyless Entry
Seat adjuster driver 10-way power
Emissions 50 state certification
Front suspension 7500 lbs. (3402 kg) multi-leaf includes shock absorbers
Alternator 150 amps
Brakes hydraulic heavy duty Bosch/Meritor/Wabco system with 4-channel (ABS) (Includes (J69) driveline park brake.)
Axle Open rear axle non-locking rear
Capped Fuel Fill
Steering power (Bosch S2 8014 Plus)
Emissions USA 50 State certified
Axle to End of Frame 49" (Requires wheelbase (EM1) 199" or (FNV) 175". Not available with (G40) (GP1) or (GP8) rear air suspension.)
Incomplete vehicle
Fuel diesel B20
Axle lubricant rear synthetic oil EmGard FE -75W-90
Rear axle 4.30 ratio Max road speed: 79 MPH

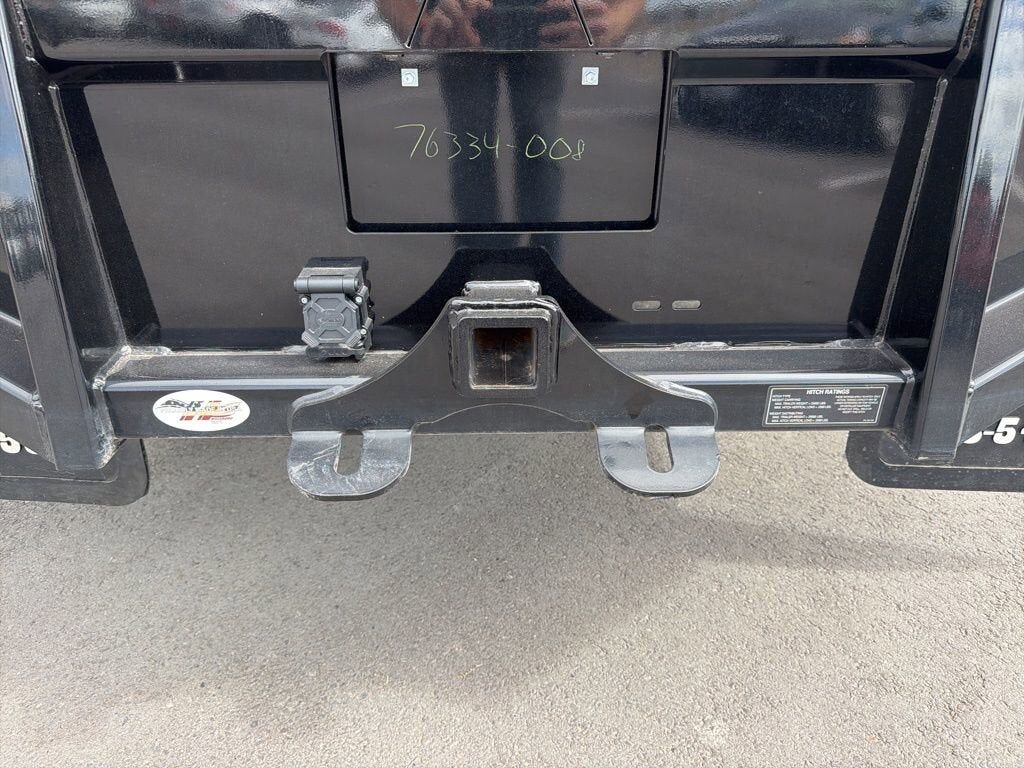

Trailering provisions trailering wire harness only trailer combined (Stop/Tail/Turn) connection socket and harness mounted at rear of frame.
Front axle 7500 lbs Dana Spicer 60-256 single-reduction front driving
Axle lubricant front synthetic oil EmGard FE-75W-90
Exhaust brake

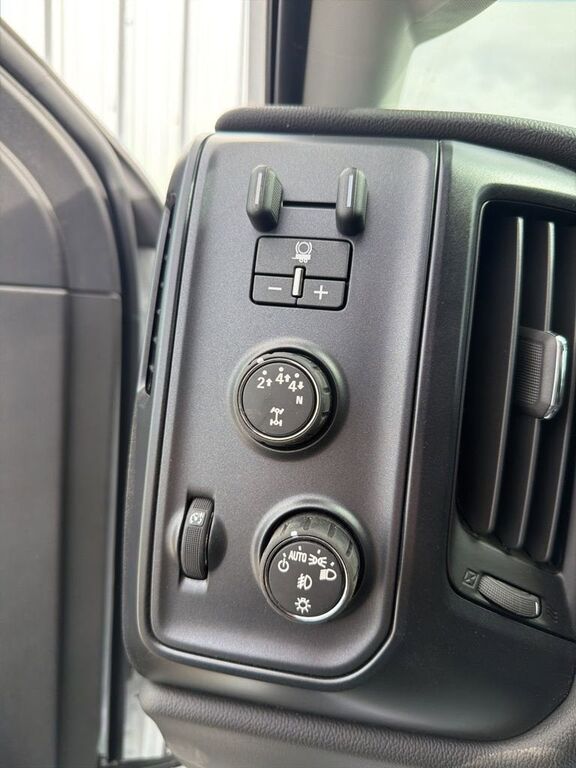

Four wheel drive
Trailer brake controller integrated
Batteries heavy-duty dual 1300 cold-cranking amps includes battery box mounted to left side under cab
Recovery hooks front frame-mounted Black
Additional fuel 5 gallons
Rear axle 15500 lb. (7031 kg)
DPF diesel particulate filter manual regeneration customer regeneration will not be allowed until the DPF load percentage has reached 100% full and a driver information center (DIC) message has been shown
Rear suspension 15500 lbs. (7031 kg) multi-leaf vari-rate
Battery top post threaded battery jump start stud (located on battery box)
Axle limited slip Dana Spicer Truetrac torque proportioning limited slip
Shock Absorbers rear
34000 lbs. GCWR (15422 kg)
Fuel tank front and rear 65 gallon total
GVWR 23000 lbs. (10433 kg)

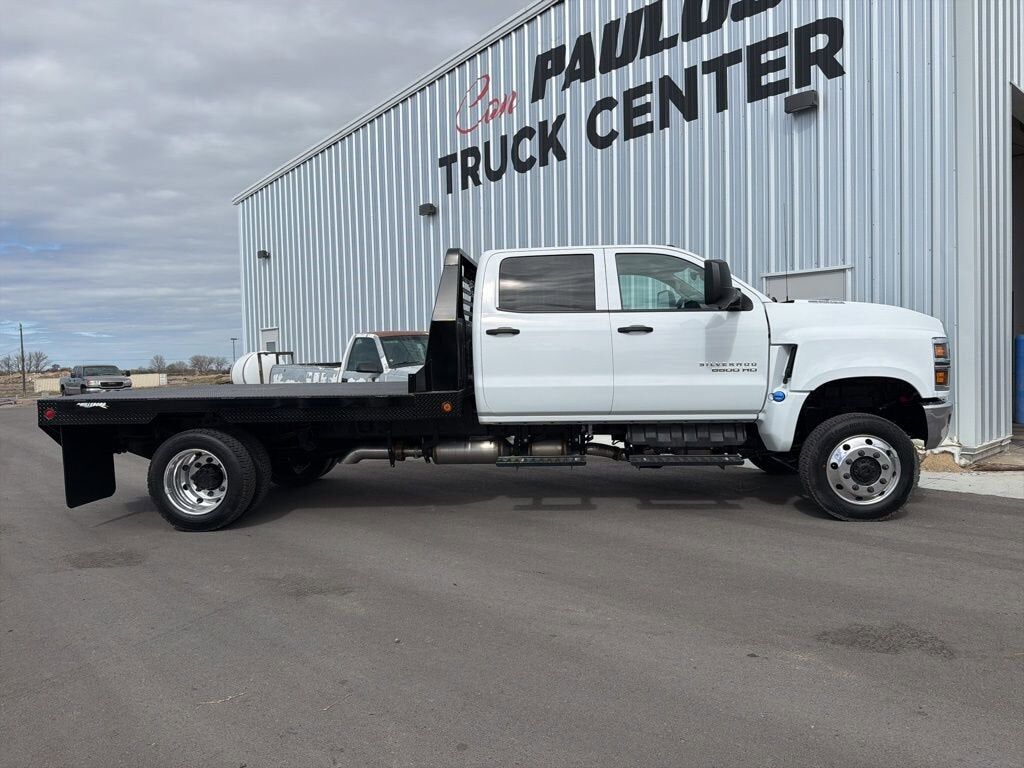

6500 HD Series
Wheelbase 199" (505.5 cm) 84" CA
Skid Plate steel frame-mounted protects the transfer case from the ground
Exhaust system straight terminates ahead of rear wheels
Front stabilizer bar
WT Preferred Equipment Group includes standard equipment
Daytime Running Lamps with automatic exterior lamp control
Horn Trumpet Style single-note

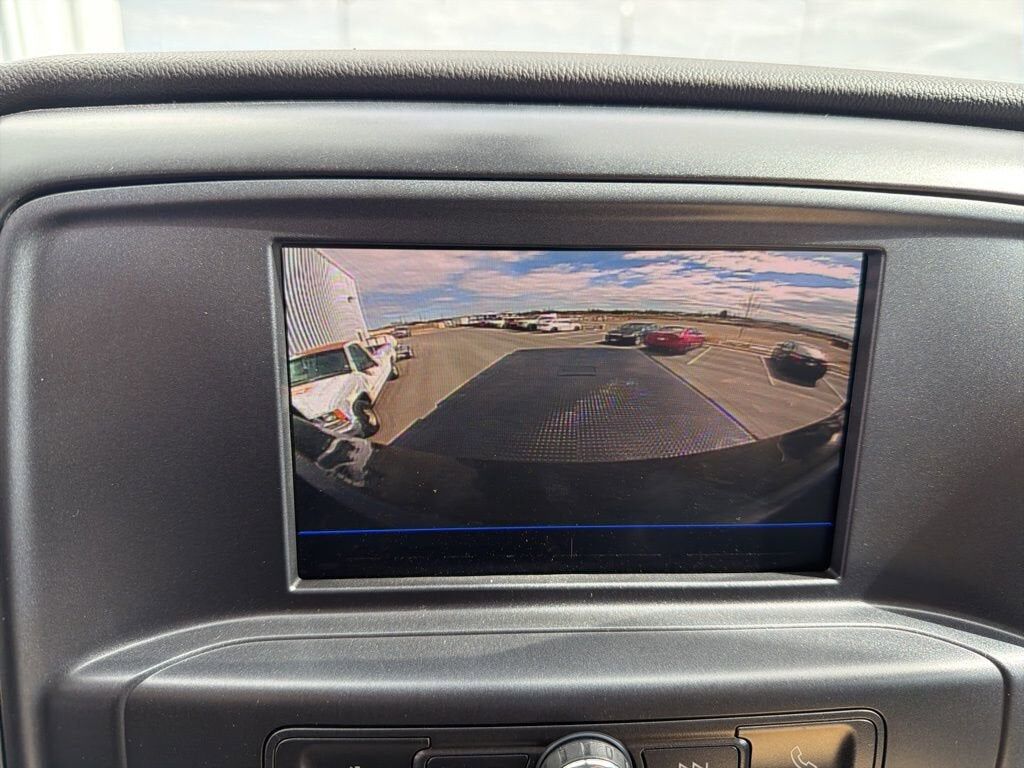

Rear Vision Camera display integrated into Radio (Shipped loose in cab for upfitter installation.)
OnStar delete
Airbag deactivation switch frontal passenger-side (Included and only available with (AY0) airbags.)
Airbags Single-stage frontal airbags for driver and front outboard passenger; Seat-mounted side-impact airbags for driver and front outboard passenger; Head-curtain airbags for front and rear outboard seating positions; (Always use seat belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
StabiliTrak Electronic Stability Control System with Traction Control includes Electronic Trailer Sway Control and Hill Start Assist
Brake parking driveline park brake system
Traction control
