Option & Equipment
Antenna fixed mast
Assist steps
Bumper front Black
Door handles Black
Front fender extension mold-in-color Black (Not available with (FNP) Body color front fender extension.)
Glass solar absorbing tinted
Grille guard screen insect protection (mounted behind grille)
Grille base molded in color Black
Headlamps halogen projector-beam
Lamps cargo area cab mounted with switch on center switch bank
Lamps rear stop/turn/backup (1-piece assembly) with license plate light
Lamps Smoked Amber roof marker
Mirrors outside high-visibility vertical camper-style Black with manual folding and extension and lower convex spotter glass
Spare tire delete

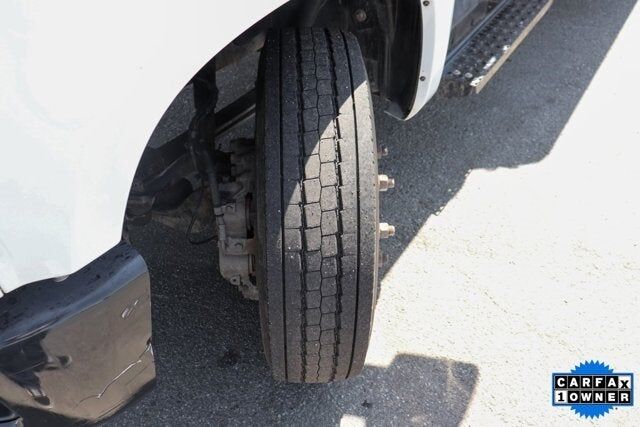

Tires front 225/70R19.5G highway blackwall Goodyear Max Axle Load: 7940 lbs.
Tires rear 225/70R19.5G highway blackwall Goodyear Max Axle Load: 15000 lbs.
Wheel spare delete

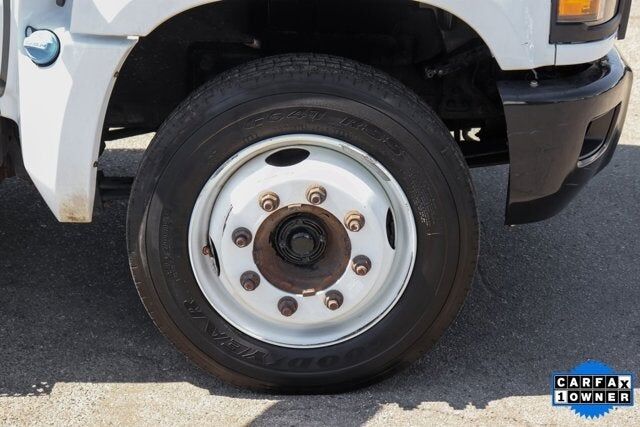

Wheels 19.5" x 6.75" steel Black painted 8-holes hub piloted
Air conditioning single-zone
Assist handle front passenger and driver on A-pillars
Audio system feature 4-speaker system
Audio system 4.2" diagonal color display AM/FM stereo with USB port and auxiliary jack (Requires (AE7) front 40/20/40 split-bench seat. Not available with (UE1) OnStar or (U2K) SiriusXM Radio.)

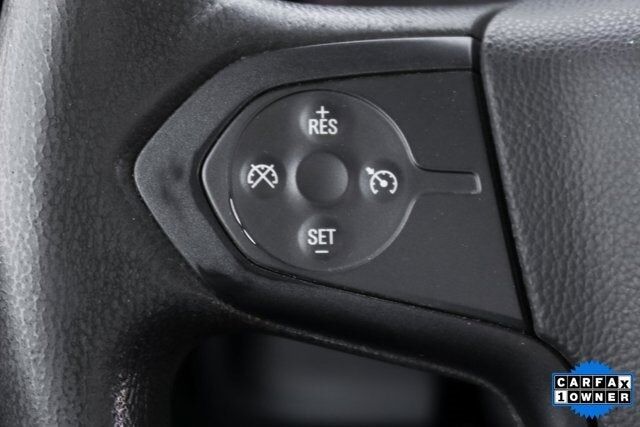

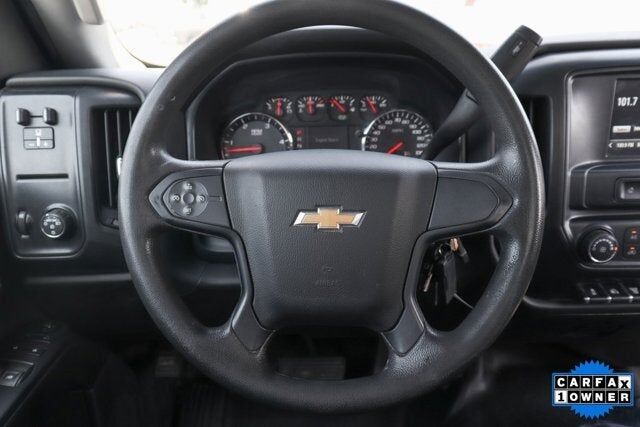

Cruise control steering wheel-mounted
Door locks power
Driver Information Center 3.5-inch diagonal monochromatic display provides warning messages and basic vehicle information
Floor covering Graphite-colored rubberized-vinyl
Interior trim Jet Black/Dark Ash (Required and only available with (H2Q/H2R) Dark Ash seats with Jet Black interior accents.)
Mirror inside rearview manual day/night
Seat Belt Black
Seats front 40/20/40 split-bench 3-passenger driver and front passenger recline with outboard head restraints and center fold-down armrest with storage. Vinyl has fixed lumbar and cloth has manually adjustable driver lumbar.
SiriusXM delete
Speedometer miles/kilometers
Steering column manual Tilt-Wheel
Steering wheel urethane
Visors driver and front passenger vinyl
Windows manual driver and front passenger
4500 HD Series (Included and only available with (C7Y) 14001 lbs. GVWR (C5B) 15000 lbs. GVWR (C7P) 16000 lbs. GVWR or (C7R) 16500 lbs. GVWR.)
Alternator 150 amps
Axle lubricant rear synthetic oil EmGard FE -75W-90
Axle to End of Frame 49" (Requires wheelbase (ED5) 201" (ED9) 165" (ER2) 189" or (FQT) 141". Not available with (G40) (GP1) or (GP8) rear air suspension.)
Axle limited slip Dana Spicer Truetrac torque proportioning limited slip (Not standard when (G80) Heavy-duty locking rear differential is ordered.)
Batteries heavy-duty dual 1100 cold-cranking amps includes battery box mounted to left side under cab
Brakes hydraulic heavy duty Bosch/Meritor/Wabco system with 4-channel (ABS) (Includes (J69) driveline park brake.)
Capped Fuel Fill

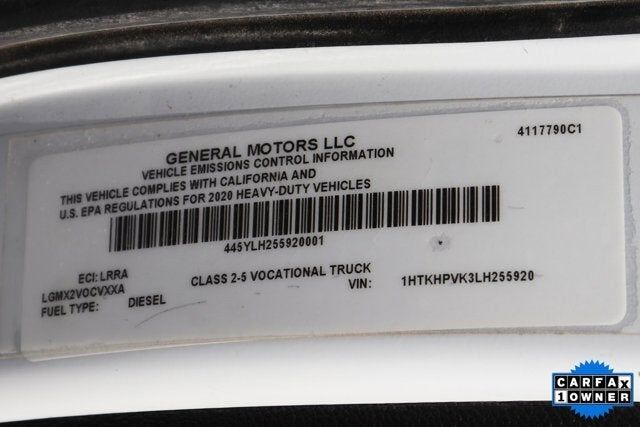

Emissions USA 50 State certified
Exhaust system right side exit behind rear wheel (Requires (FQT) 141" wheelbase.)
Front axle 6250 lb. (2835 kg) Dana Spicer D800-N "I"-beam non-driving (Requires (FTW) 6250 lb. front suspension. Includes (G68) rear shock absorbers. Not available with rear air suspensions.)
Front suspension 6250 lbs. (2835 kg) multi-leaf includes shock absorbers (Not available with rear air suspensions.)
Fuel tank rear only 40 gallon mounted between frame side rails and behind rear axle
Fuel diesel B20
GVWR 16500 lbs. (7484 kg) (Silverado 4500 HD models with (FQT) requires one of the following combinations: (1) (FTC) and (FTW) and (GL4) and (GR3). Requires (G68). (2) (FTC) and (FTW) and (HD2) and (GR4). Requires (G68). (3) (FTC) and (FTW) and (HD1) or (J27) and (GR4). Requires (G68). (4) (FTA) and (FK6) and (FN1) or (GL4) and (GR3). Requires (PCJ). (5) (FTA) and (FK6) and (HD1) or (J27) and one of the following rear suspensions: (GR4) or (FU7). Requires (PCJ). Silverado 4500 HD models without (FQT) requires one of the following combinations: (1) (FTC) and (FTW) and (GL4) and (GR3) and (G68). (2) (FTC) and (FTW) and (HD2) and (GR4) and (G68). (3) (FTC) and (FTW) and (HD1) or (J27) and (GR4) and (G68). (4) (FTA) and (FK6) and (FN1) or (GL4) and (GR3) or (G40). (5) (FTA) and (FK6) and (HD1) or (J27) and one of the following rear suspensions: (GR4) (FU7) (GP1) or (GP8).)
Incomplete vehicle
Rear axle 11000 lbs. (4999 kg) Dana Spicer S14-110 single reduction
Rear axle 4.10 ratio Max road speed: 79 MPH
Rear suspension 11000 (4990 kg) multi-leaf vari-rate (Not available with air suspension.)
Rear wheel drive
Shock Absorbers rear (Included with (FTC) 6250 lb. front axle.)
Steering power (Bosch S2 8014 Plus)
Wheelbase 141" (358.1 cm) 60" CA (Requires (F0C) 49" axle to end of frame (F0D) 63" axle to end of frame or (F0K) 91" axle to end of frame and (NPR) exhaust. Requires (PCJ) Vocational Specific Heavy Suspension Package when ordering (FTA) 7000 lbs. Front axle/(FK6) 7000 lbs. Front suspension or (FTL) 8000 lbs. Front axle/(FSN) 8000 lbs. Front suspension and/or (FU7) 15500 lbs. rear suspension. Not available with rear air suspensions.)
Airbag deactivation switch frontal passenger-side (Included and only available with (AY0) airbags.)
Airbags Single-stage frontal airbags for driver and front outboard passenger; Seat-mounted side-impact airbags for driver and front outboard passenger; Head-curtain airbags for front outboard seating positions; Includes airbag deactivation switch for front outboard passenger airbag (Always use seat belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
Brake parking driveline park brake system
Daytime Running Lamps with automatic exterior lamp control
Horn single-note
OnStar delete
Traction control
BATTERIES HEAVY-DUTY DUAL 1300 COLD-CRANKING AMPS
includes battery box mounted to left side under cab
BACKUP ALARM
(Includes (SFW) SEO Calibration for backup alarm.
MIRRORS OUTSIDE HEATED POWER-ADJUSTABLE VERTICAL TRAILERING UPPER GLASS MANUAL-FOLDING AND EXTENDING BLACK.
Includes integrated turn signal indicators consisting of 51 square inch flat mirror surface positioned over a 24.5 square inch convex mirror surface with a common head and lower convex spotter glass (convex glass is not heated and not power adjustable) and addition of Auxiliary cargo lamp for backing up (helps to see trailer when backing up with a trailer) and amber auxiliary clearance lamp

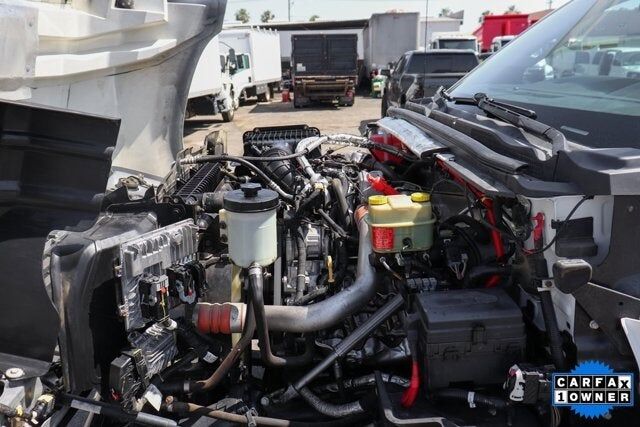

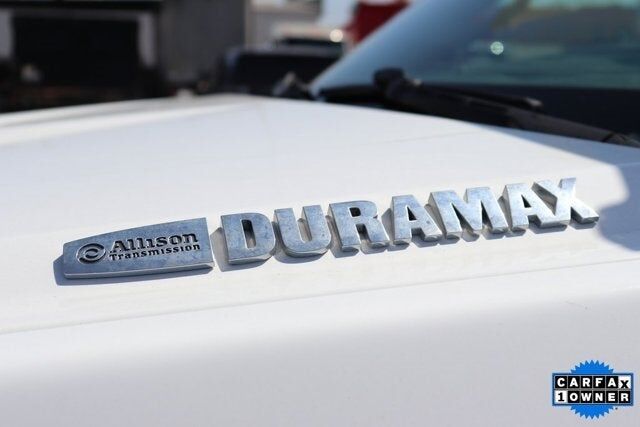

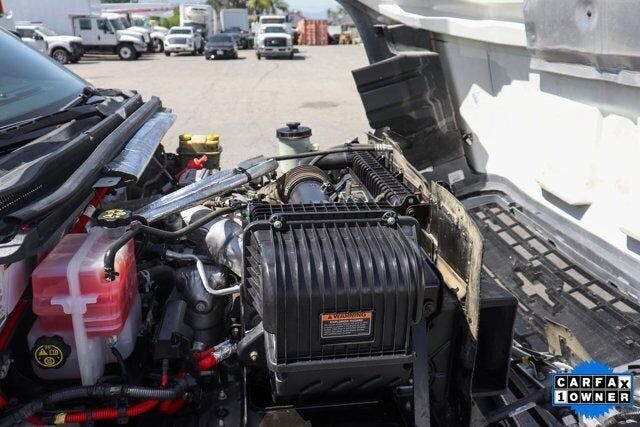

ENGINE DURAMAX 6.6L TURBO-DIESEL V8 B20-DIESEL COMPATIBLE
350 hp @ 2700 rpm
700 lb-ft torque @ 1600 rpm (STD)
REAR SUSPENSION 11000 (4990 KG) MULTI-LEAF VARI-RATE
(STD)
TIRES REAR 225/70R19.5G HIGHWAY BLACKWALL GOODYEAR
Max Axle Load: 15
000 lbs. (STD)
TIRE SPARE 225/70R19.5G HIGHWAY BLACKWALL GOODYEAR
Includes (V33) Rim Wrench and handle only tool kit.)
WORK TRUCK PREFERRED EQUIPMENT GROUP
includes standard equipment
RUGGED DUTY SERVICE TRANSMISSION AUTOMATIC CLOSE-RATIO 6 SPD WITH DOUBLE OVERDRIVE ALLISON A1700RDS
ratios: 3.10 1ST
1.80 2ND
1.40 3RD
1.00 4TH
0.70 5TH
0.61 6TH Rugged Duty Series
19.5K GVW & 26K GCW Max.
POWER TAKE OFF ENGINE CONTROL PROVISIONS
Access is available on left hand and right hand side

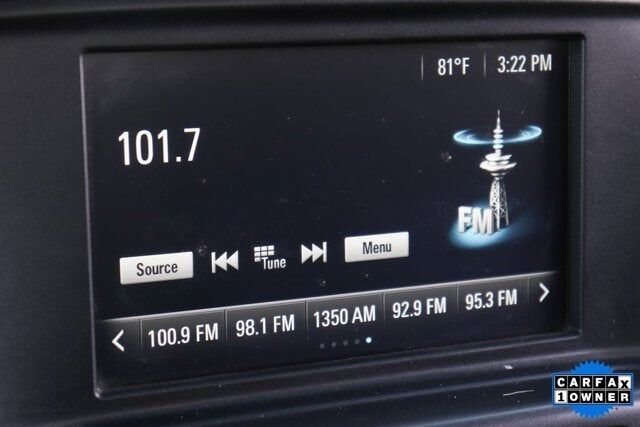

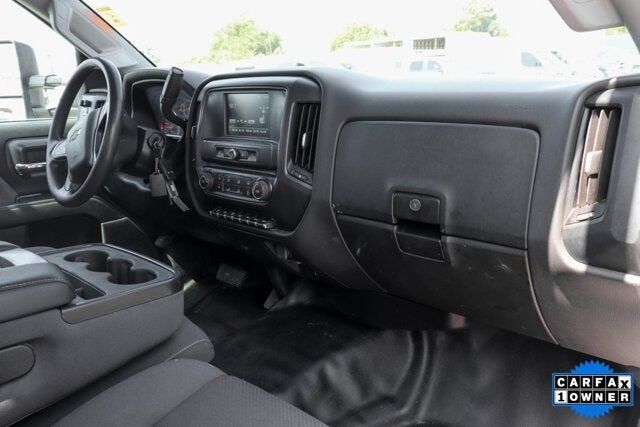

AUDIO SYSTEM 7" DIAGONAL COLOR TOUCH-SCREEN WITH CHEVROLET INFOTAINMENT
AM/FM stereo with seek-and-scan and digital clock
includes Bluetooth® streaming audio for music and select phones. (Includes (UQ3) 6-speaker audio system.

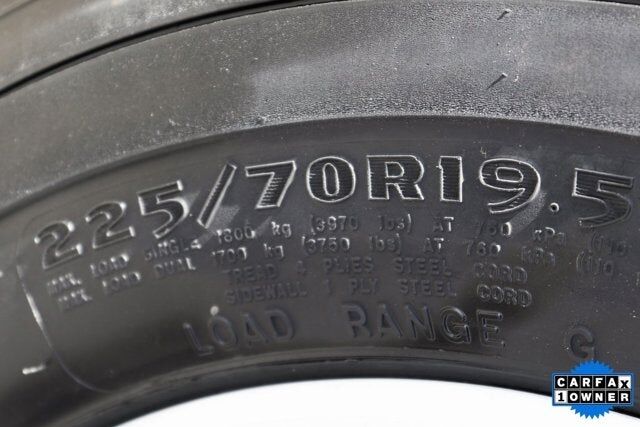

TIRES FRONT 225/70R19.5G HIGHWAY BLACKWALL GOODYEAR
Max Axle Load: 7
940 lbs. (STD)
WHEEL 19.5" X 6.75" SPARE STEEL BLACK 8-HOLES
temporary mounted on frame
hub piloted

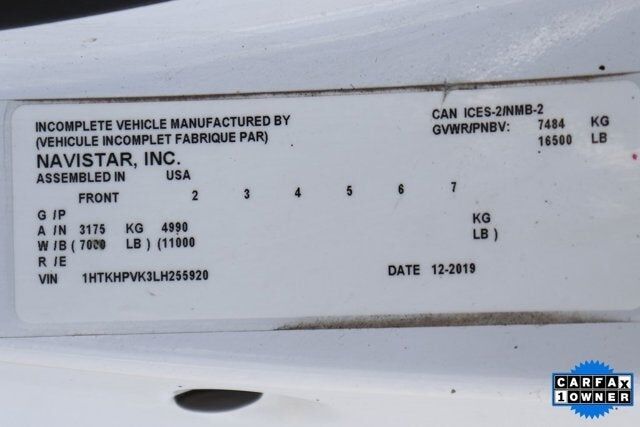

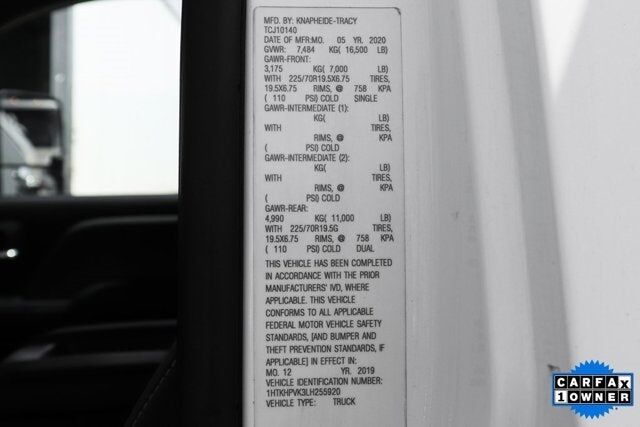

GVWR 16500 LBS. (7484 KG)
REAR AXLE 4.10 RATIO
Max road speed: 79 MPH
DPF DIESEL PARTICULATE FILTER MANUAL REGENERATION
customer regeneration will not be allowed until the DPF load percentage has reached 100% full and a driver information center (DIC) message has been shown

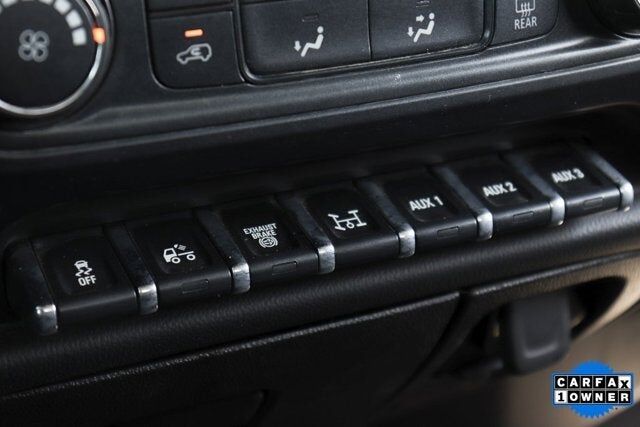

UPFITTER SWITCHES
provides up to 4-30 amp circuits to facilitate installation of aftermarket electrical accessories located on the instrument panel
TAIL LAMP WIRING HARNESS PROVISIONS
includes wiring for standard left and right taillamps
separate 8 feet of extra cable wiring for left and right body-mounted tail lights

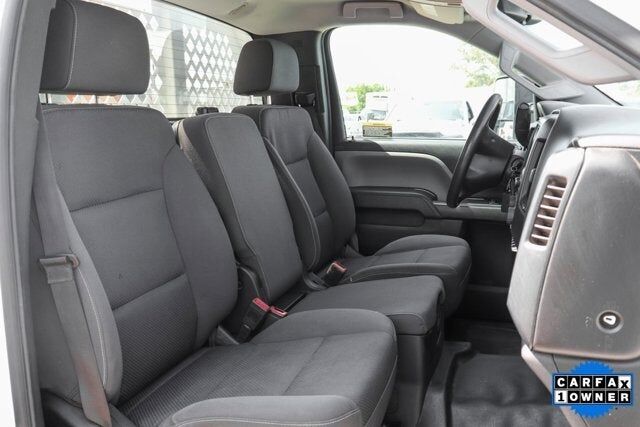

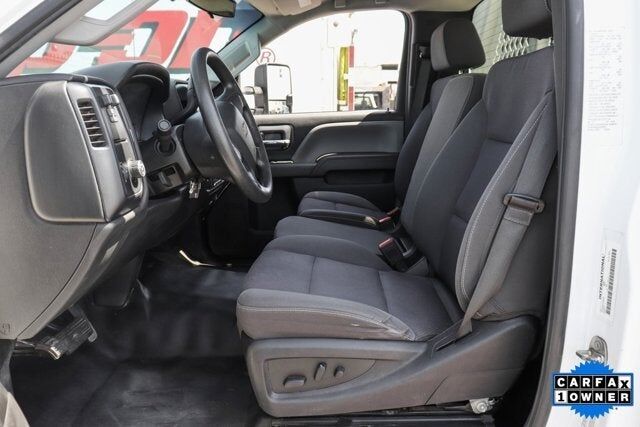

SEATS FRONT 40/20/40 SPLIT-BENCH CLOTH 3-PASSENGER.
Includes driver and front passenger recline with outboard head restraints and center fold-down armrest with storage. Also includes manually adjustable driver lumbar
lockable storage compartment in seat cushion
and storage pockets. Includes (AG1) 10-way power seat.)
BATTERIES HEAVY-DUTY DUAL 1300 COLD-CRANKING AMPS includes battery box mounted to left side under cab
FRONT STABILIZER BAR
FRONT SUSPENSION 7 000 LBS. (3 175 KG) MULTI-LEAF INCLUDES SHOCK ABSORBERS
REAR AXLE 11 000 LBS. (4 999 KG) DANA SPICER S14-110 SINGLE REDUCTION
BACKUP ALARM (Includes (SFW) SEO Calibration for backup alarm.
GLASS DEEP-TINTED
MIRRORS OUTSIDE HEATED POWER-ADJUSTABLE VERTICAL TRAILERING UPPER GLASS MANUAL-FOLDING AND EXTENDING BLACK. Includes integrated turn signal indicators consisting of 51 square inch flat mirror surface positioned over a 24.5 square inch convex mirror surface with a common head and lower convex spotter glass (convex glass is not heated and not power adjustable) and addition of Auxiliary cargo lamp for backing up (helps to see trailer when backing up with a trailer) and amber auxiliary clearance lamp
SUMMIT WHITE
ENGINE DURAMAX 6.6L TURBO-DIESEL V8 B20-DIESEL COMPATIBLE 350 hp @ 2700 rpm 700 lb-ft torque @ 1600 rpm (STD)
DEFOGGER REAR-WINDOW ELECTRIC
WHEELS 19.5 X 6.75 STEEL WHITE PAINTED 8-HOLES HUB PILOTED
REAR SUSPENSION 11 000 (4 990 KG) MULTI-LEAF VARI-RATE (STD)
TRAILER BRAKE CONTROLLER INTEGRATED
TIRES REAR 225/70R19.5G HIGHWAY BLACKWALL GOODYEAR Max Axle Load: 15 000 lbs. (STD)
LICENSE PLATE KIT FRONT
TIRE SPARE 225/70R19.5G HIGHWAY BLACKWALL GOODYEAR Includes (V33) Rim Wrench and handle only tool kit.)
FUEL TANK FRONT AND REAR 65 GALLON TOTAL
POWER OUTLET 110-VOLT AC
REMOTE KEYLESS ENTRY
WORK TRUCK PREFERRED EQUIPMENT GROUP includes standard equipment
RUGGED DUTY SERVICE TRANSMISSION AUTOMATIC CLOSE-RATIO 6 SPD WITH DOUBLE OVERDRIVE ALLISON A1700RDS ratios: 3.10 1ST 1.80 2ND 1.40 3RD 1.00 4TH 0.70 5TH 0.61 6TH Rugged Duty Series 19.5K GVW & 26K GCW Max.
POWER TAKE OFF ENGINE CONTROL PROVISIONS Access is available on left hand and right hand side
6-SPEAKER AUDIO SYSTEM
AUDIO SYSTEM 7 DIAGONAL COLOR TOUCH-SCREEN WITH CHEVROLET INFOTAINMENT AM/FM stereo with seek-and-scan and digital clock includes Bluetooth® streaming audio for music and select phones. (Includes (UQ3) 6-speaker audio system.

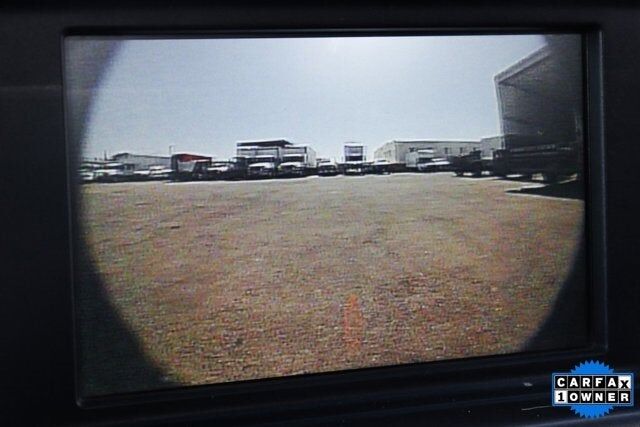

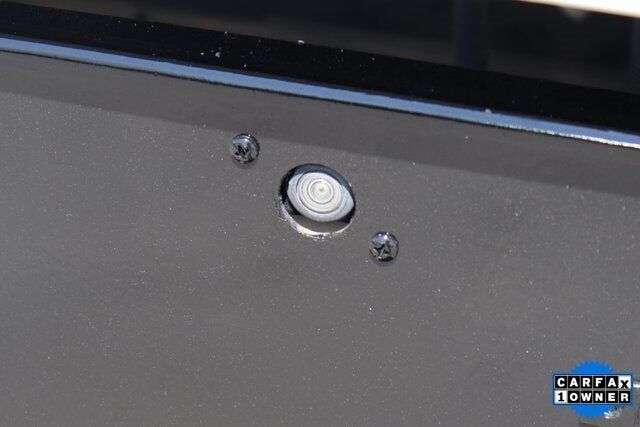

REAR VISION CAMERA DISPLAY INTEGRATED INTO RADIO
TRAILERING PROVISIONS TRAILERING WIRE HARNESS ONLY TRAILER COMBINED (STOP/TAIL/TURN) CONNECTION SOCKET AND HARNESS MOUNTED AT REAR OF FRAME.
KEY SYSTEM 2 SPARE KEYS

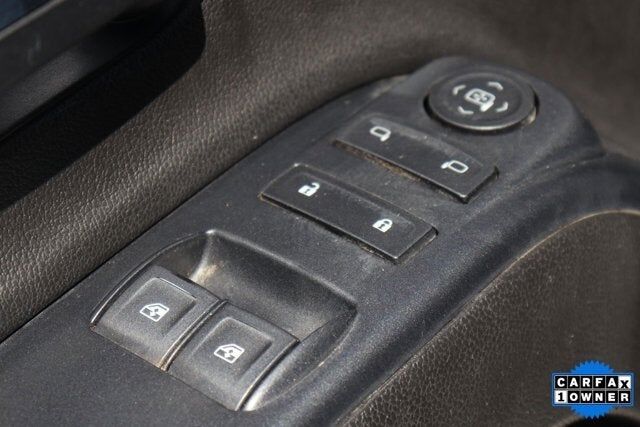

WINDOWS POWER WITH DRIVER EXPRESS UP AND DOWN AND EXPRESS DOWN ON ALL OTHER WINDOWS
AXLE TO END OF FRAME 63
TIRES FRONT 225/70R19.5G HIGHWAY BLACKWALL GOODYEAR Max Axle Load: 7 940 lbs. (STD)
WHEEL 19.5 X 6.75 SPARE STEEL BLACK 8-HOLES temporary mounted on frame hub piloted
HORN DUAL-NOTE
FRONT AXLE 7 000 LBS. DANA SPICER D800-N I -BEAM NON-DRIVING
FRONT FENDER EXTENSION PAINTED BODY COLOR
PAINT SOLID
SEAT ADJUSTER DRIVER 10-WAY POWER

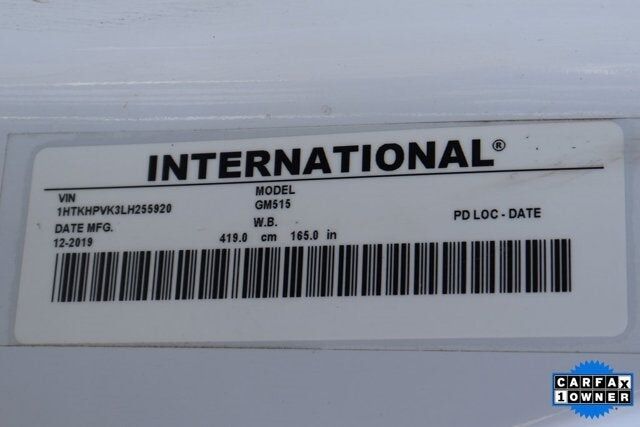

WHEELBASE 165 (419.1 CM) 84 CA
SHOCK ABSORBERS REAR
TOOL KIT RIM WRENCH AND HANDLE ONLY
GVWR 16 500 LBS. (7484 KG) (STD)

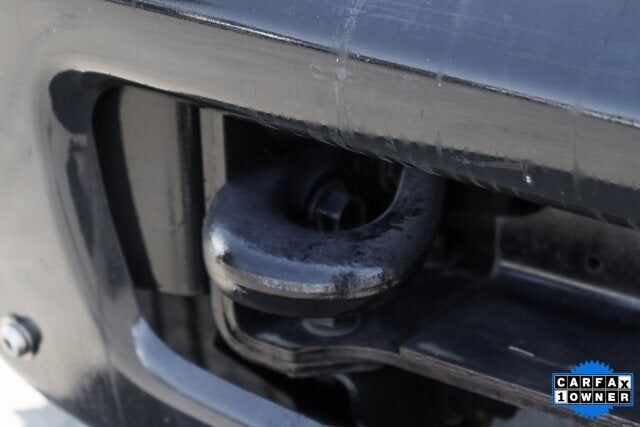

RECOVERY HOOKS FRONT FRAME-MOUNTED BLACK
DPF DIESEL PARTICULATE FILTER MANUAL REGENERATION customer regeneration will not be allowed until the DPF load percentage has reached 100% full and a driver information center (DIC) message has been shown
LABEL INFORMATION CLEAN IDLE DOOR LOCATION
JET BLACK CLOTH SEAT TRIM
ADDITIONAL FUEL 5 GALLONS
UPFITTER SWITCHES provides up to 4-30 amp circuits to facilitate installation of aftermarket electrical accessories located on the instrument panel
FOG LAMPS FRONT HALOGEN

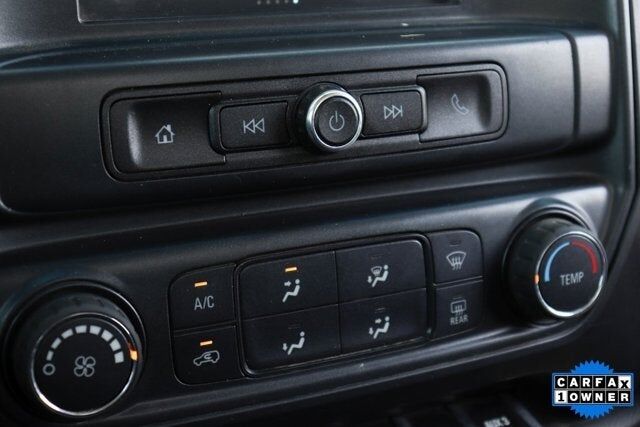

AIR CONDITIONING SINGLE-ZONE (STD)
EXHAUST BRAKE
EXHAUST SYSTEM REAR EXIT
TAIL LAMP WIRING HARNESS PROVISIONS includes wiring for standard left and right taillamps separate 8 feet of extra cable wiring for left and right body-mounted tail lights

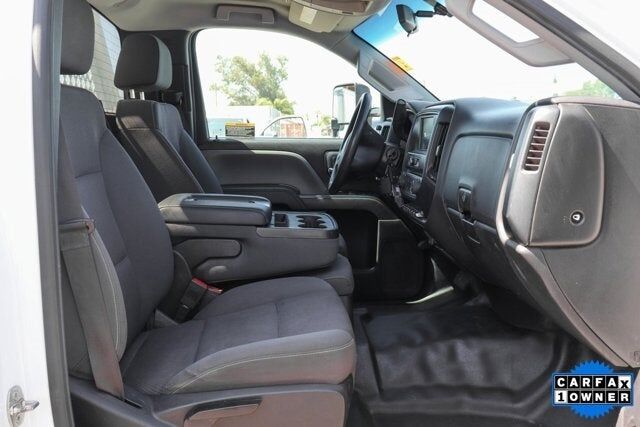

SEATS FRONT 40/20/40 SPLIT-BENCH CLOTH 3-PASSENGER. Includes driver and front passenger recline with outboard head restraints and center fold-down armrest with storage. Also includes manually adjustable driver lumbar lockable storage compartment in seat cushion and storage pockets. Includes (AG1) 10-way power seat.)
26 000 LBS. GCWR (11 793 KG)
Preferred Equipment Group 1WT
4 Speakers
4-Speaker Audio System
AM/FM radio
Premium audio system: Chevrolet MyLink
Radio: AM/FM Stereo w/4.2 Diagonal Color Display
Radio: AM/FM Stereo w/7 Diagonal Color Touch Screen
Air Conditioning
Rear-Window Electric Defogger
Single-Zone Air Conditioning
110-Volt AC Power Outlet
Bluetooth® For Phone
Power steering
Power Windows w/Driver Express Up & Down
Rear Shock Absorbers
2 Spare Keys Key System
ABS brakes
Dual front impact airbags
Dual front side impact airbags
Occupant sensing airbag
Overhead airbag
Passenger cancellable airbag
Rear Vision Camera
Delay-off headlights
Front Halogen Fog Lamps
Fully automatic headlights
Frontal Passenger-Side Airbag Deactivation Switch
Tool Kit w/Rim Wrench & Handle Only
Speed control
Dual rear wheels
63 Axle To End Of Frame
Body Color Painted Front Fender Extension
Dual-Note Horn
Front License Plate Kit
Power Take-Off Engine Control Provisions
40/20/40 Front 3-Passenger Split-Bench Seat w/Lockable Storage
Clean Idle Label Information
Door Location
Driver door bin
Front reading lights
Overhead console
Passenger vanity mirror
Tachometer
Tilt steering wheel
Trip computer
Voltmeter
10-Way Power Driver's Seat Adjuster
Vinyl Seat Trim
5 Gallons Additional Fuel
Manual Regeneration Diesel Particulate Filter DPF
Front Center Armrest w/Storage
Passenger door bin
26
000 lbs. GCWR (11
793 kg)
Black Frame-Mounted Front Recovery Hooks

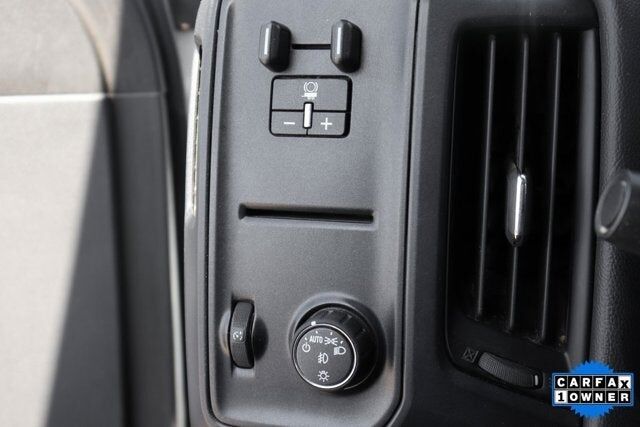

Integrated Trailer Brake Controller
Wheels: 19.5 x 6.75 Black Painted Hub Piloted Steel w/8-Holes
Wheels: 19.5 x 6.75 White Painted Hub Piloted Steel w/8-Holes
Deep-Tinted Glass
Variably intermittent wipers
4.10 Rear Axle Ratio
**CLEAN CARFAX**
**ONE OWNER CARFAX**
**DURAMAX 6.6L V8 TURBO-DIESEL**
**RWD**
**POWER WINDOWS**
**POWER SEATS**
**POWER DOOR LOCKS**

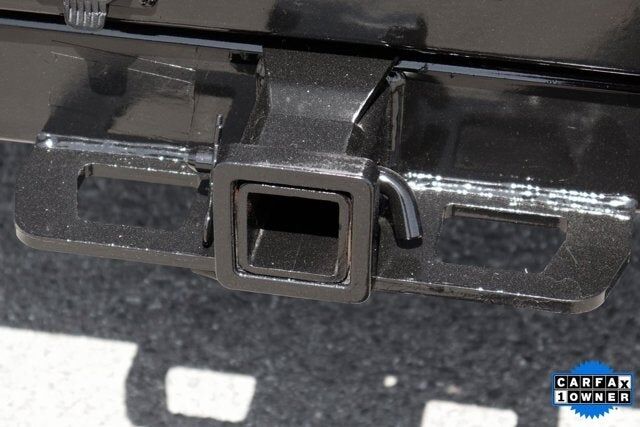

**TOW PACKAGE**
**TRAILER BRAKE CONTROL**
