Option & Equipment
Antenna fixed mast

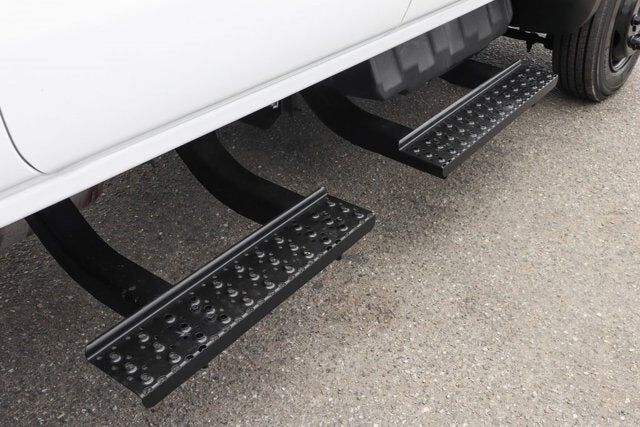

Assist steps
Bumper front Black
Door handles Black
Front fender extension mold-in-color Black (Not available with (FNP) Body color front fender extension.)
Glass solar absorbing tinted
Grille guard screen insect protection (mounted behind grille)
Grille base molded in color Black
Headlamps halogen projector-beam
Lamps cargo area cab mounted with switch on center switch bank
Lamps rear stop/turn/backup (1-piece assembly) with license plate light
Lamps Smoked Amber roof marker
Mirrors outside high-visibility vertical camper-style Black with manual folding and extension and lower convex spotter glass
Spare tire delete

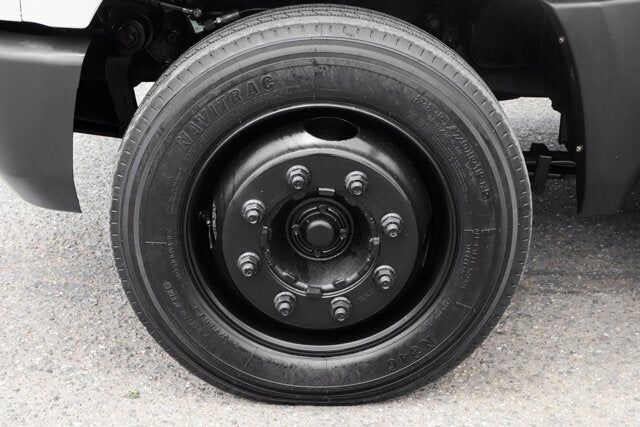

Tires front 225/70R19.5G highway blackwall Goodyear Max Axle Load: 7940 lbs.

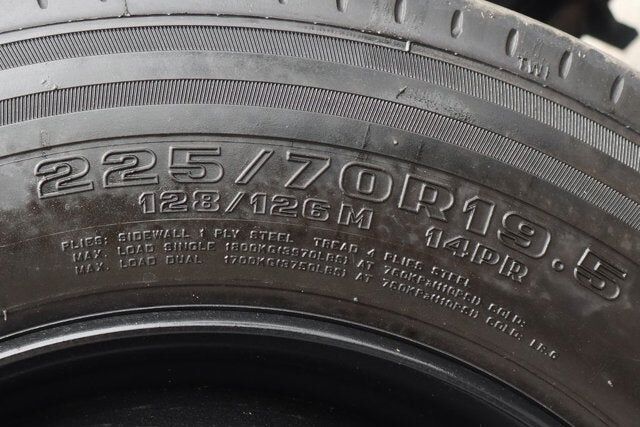

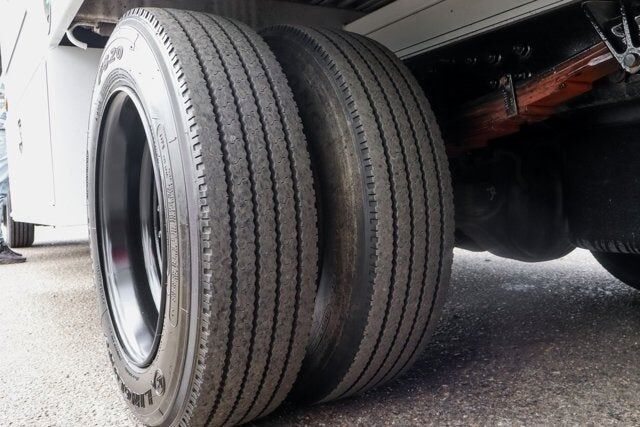

Tires rear 225/70R19.5G highway blackwall Goodyear Max Axle Load: 15000 lbs.
Wheel spare delete
Wheels 19.5" x 6.75" steel Black painted 8-holes hub piloted
6-speaker audio system
Air conditioning single-zone
Assist handle front passenger and driver on A-pillars
Audio system 4.2" diagonal color display AM/FM stereo with USB port and auxiliary jack (Requires (AE7) front 40/20/40 split-bench seat. Not available with (UE1) OnStar or (U2K) SiriusXM Radio.)

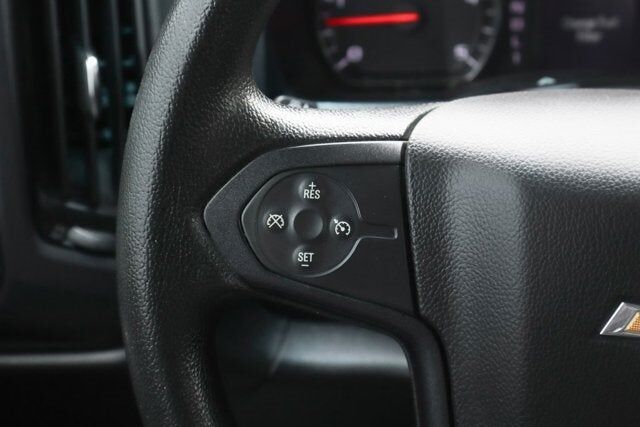

Cruise control steering wheel-mounted
Door locks power
Driver Information Center 3.5-inch diagonal monochromatic display provides warning messages and basic vehicle information
Floor covering Graphite-colored rubberized-vinyl
Interior trim Jet Black/Dark Ash (Required and only available with (H2Q/H2R) Dark Ash seats with Jet Black interior accents.)
Mirror inside rearview manual day/night
Seat Belt Black
Seat trim Vinyl

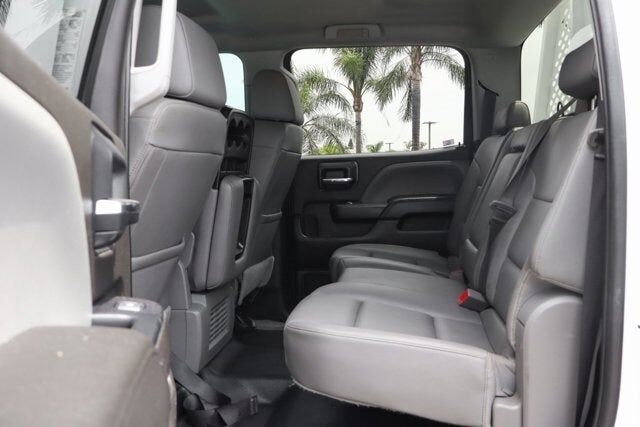

Seat rear 60/40 folding bench (folds up) 3-passenger (includes child seat top tether anchor)

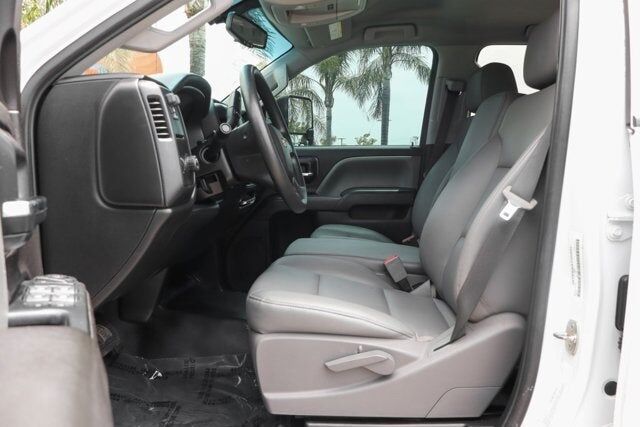

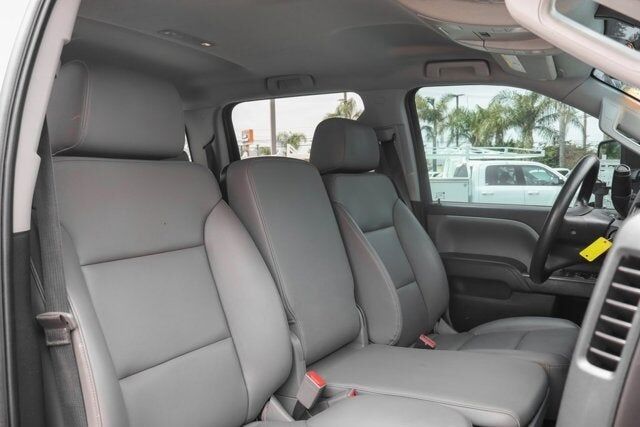

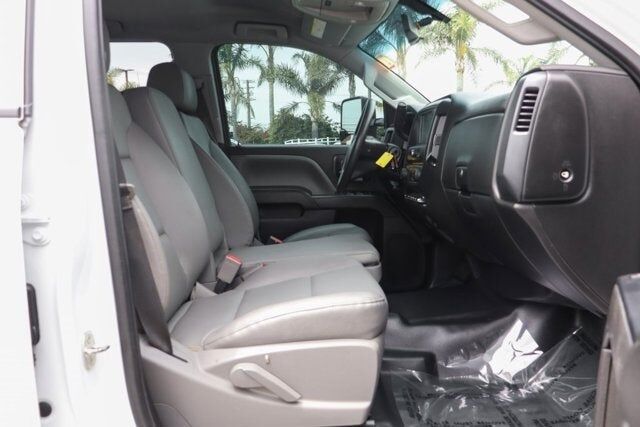

Seats front 40/20/40 split-bench 3-passenger driver and front passenger recline with outboard head restraints and center fold-down armrest with storage. Vinyl has fixed lumbar and cloth has manually adjustable driver lumbar.
SiriusXM delete
Speedometer miles/kilometers

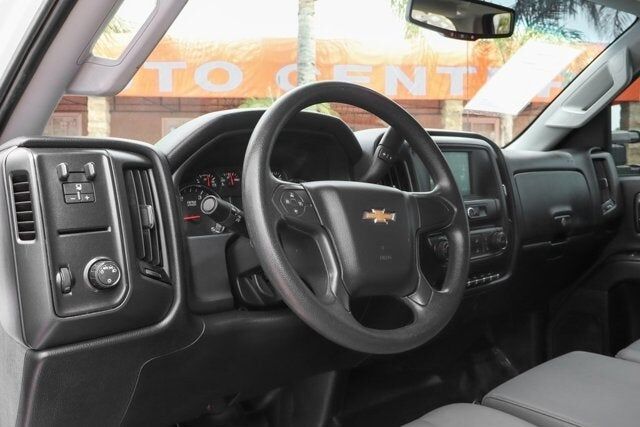

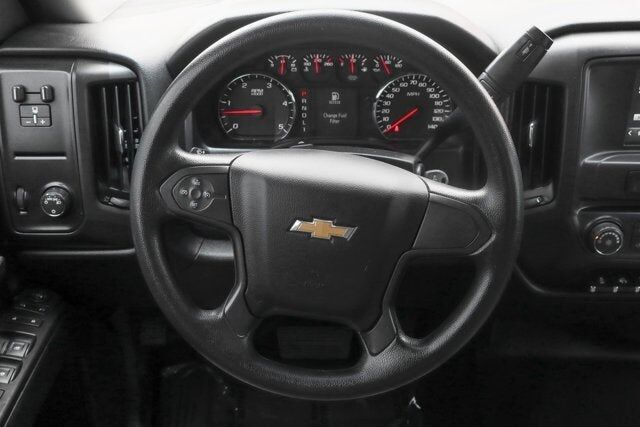

Steering column manual Tilt-Wheel
Steering wheel urethane
Visors driver and front passenger vinyl

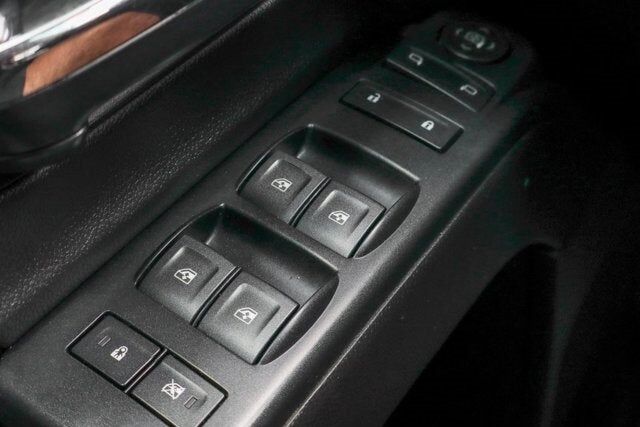

Windows power with driver express up and down and express down on all other windows
4500 HD Series (Included and only available with (C7Y) 14001 lbs. GVWR (C5B) 15000 lbs. GVWR (C7P) 16000 lbs. GVWR or (C7R) 16500 lbs. GVWR.)
Alternator 150 amps
Axle lubricant rear synthetic oil EmGard FE -75W-90
Axle to End of Frame 49" (Requires wheelbase (EM1) 199" or (FNV) 175". Not available with (G40) (GP1) or (GP8) rear air suspension.)
Axle limited slip Dana Spicer Truetrac torque proportioning limited slip (Not standard when (G80) Heavy-duty locking rear differential is ordered.)
Batteries heavy-duty dual 1100 cold-cranking amps includes battery box mounted to left side under cab
Brakes hydraulic heavy duty Bosch/Meritor/Wabco system with 4-channel (ABS) (Includes (J69) driveline park brake.)
Capped Fuel Fill
Emissions USA 50 State certified
Exhaust system rear exit
Front axle 7000 lbs. Dana Spicer D800-N "I"-beam non-driving (Requires (FK6) 7000 lbs. (3175 kg) front suspension.)
Front suspension 7000 lbs. (3175 kg) multi-leaf includes shock absorbers
Fuel tank rear only 40 gallon mounted between frame side rails and behind rear axle
Fuel diesel B20
GVWR 16500 lbs. (7484 kg) (Silverado 4500 HD Crew Cab 2WD models requires one of the following combinations: (1) (FTA) and (FK6) and (FN1) or (GL4) and (GR3) or (G40). (2) (FTA) and (FK6) and (HD1) or (J27) and one of the following rear suspensions: (GR4) (FU7) (GP1) or (GP8).)
Incomplete vehicle
Rear axle 10000 lbs. (4536 kg) Dana Spicer S14-110 single reduction
Rear axle 4.10 ratio Max road speed: 79 MPH
Rear suspension 11000 (4990 kg) multi-leaf vari-rate (Not available with air suspension.)
Rear wheel drive
Steering power (Bosch S2 8014 Plus)
Wheelbase 175" (444.5 cm) 60" CA (Requires (F0C) 49" axle to end of frame. Not available with (G40) 12000 lbs. (GP1) 13500 lbs. or (GP8) 15500 lbs. rear air suspension.)
Airbag deactivation switch frontal passenger-side (Included and only available with (AY0) airbags.)
Airbags Single-stage frontal airbags for driver and front outboard passenger; Seat-mounted side-impact airbags for driver and front outboard passenger; Head-curtain airbags for front and rear outboard seating positions; (Always use seat belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
Brake parking driveline park brake system
Daytime Running Lamps with automatic exterior lamp control
Horn single-note
OnStar delete
Traction control
BATTERIES HEAVY-DUTY DUAL 1300 COLD-CRANKING AMPS
includes battery box mounted to left side under cab
ONSTAR AND CHEVROLET CONNECTED SERVICES CAPABLE
Includes compass in instrument cluster.
TIRES FRONT 225/70R19.5G HIGHWAY BLACKWALL CONTINENTAL
Max Axle Load: 7
940 lbs.
(STD)
BACKUP ALARM
(Includes (SFW) SEO Calibration for backup alarm.
MIRRORS OUTSIDE HEATED POWER-ADJUSTABLE VERTICAL TRAILERING UPPER GLASS MANUAL-FOLDING AND EXTENDING BLACK.
Includes integrated turn signal indicators consisting of 51 square inch flat mirror surface positioned over a 24.5 square inch convex mirror surface with a common head and lower convex spotter glass (convex glass is not heated and not power adjustable) and addition of Auxiliary cargo lamp for backing up (helps to see trailer when backing up with a trailer) and amber auxiliary clearance lamp
RUGGED DUTY SERVICE TRANSMISSION AUTOMATIC CLOSE-RATIO 6 SPD WITH DOUBLE OVERDRIVE ALLISON A2700RDS
ratios: 3.10 1ST
1.80 2ND
1.40 3RD
1.00 4TH
0.70 5TH
0.61 6TH Rugged Duty Series
26K GVW & 26K GCW Max.

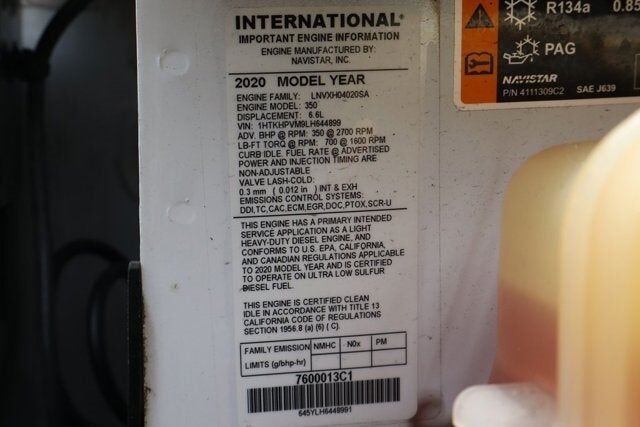

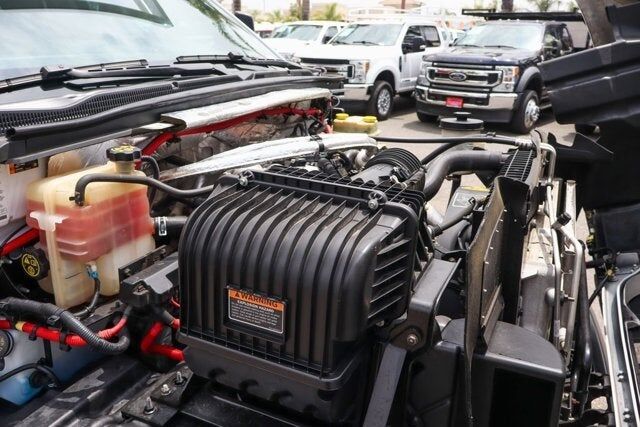

ENGINE DURAMAX 6.6L TURBO-DIESEL V8 B20-DIESEL COMPATIBLE
350 hp @ 2700 rpm
700 lb-ft torque @ 1600 rpm (STD)

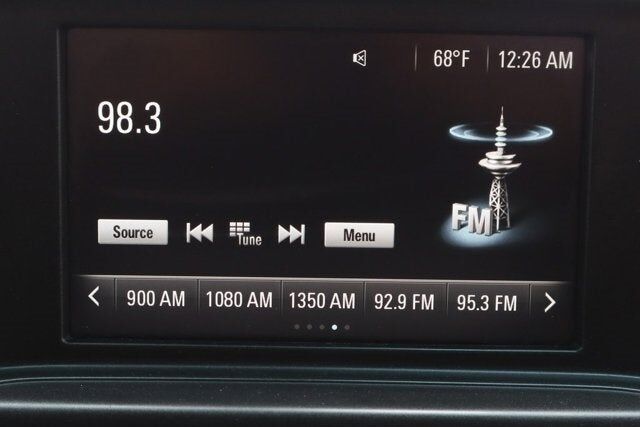

AUDIO SYSTEM 7" DIAGONAL COLOR TOUCH-SCREEN WITH CHEVROLET INFOTAINMENT
AM/FM stereo with seek-and-scan and digital clock
includes Bluetooth® streaming audio for music and select phones.
TIRES REAR 225/70R19.5G HIGHWAY BLACKWALL CONTINENTAL
Max Axle Load: 15
000 lbs.
WORK TRUCK PREFERRED EQUIPMENT GROUP
includes standard equipment
SEATS FRONT 40/20/40 SPLIT-BENCH 3-PASSENGER
driver and front passenger recline with outboard head restraints and center fold-down armrest with storage. Vinyl has fixed lumbar and cloth has manually adjustable driver lumbar. (STD)
POWER TAKE OFF ENGINE CONTROL PROVISIONS
Access is available on left hand and right hand side
REAR AXLE 4.10 RATIO
Max road speed: 79 MPH
DPF DIESEL PARTICULATE FILTER MANUAL REGENERATION
customer regeneration will not be allowed until the DPF load percentage has reached 100% full and a driver information center (DIC) message has been shown

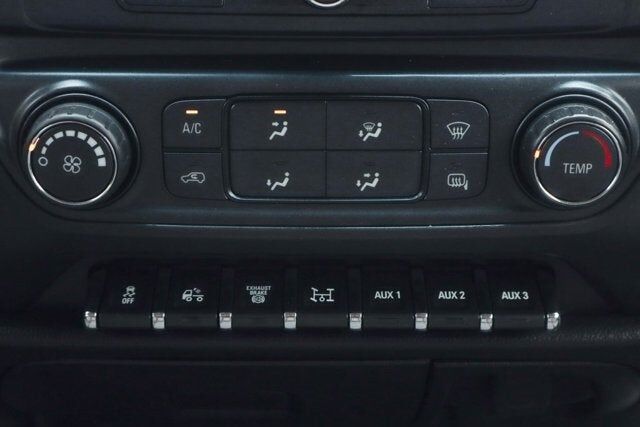

UPFITTER SWITCHES
provides up to 4-30 amp circuits to facilitate installation of aftermarket electrical accessories located on the instrument panel
GRILLE GUARD SCREEN STONE PROTECTION
(mounted to bumper)
BATTERIES HEAVY-DUTY DUAL 1300 COLD-CRANKING AMPS includes battery box mounted to left side under cab
ONSTAR AND CHEVROLET CONNECTED SERVICES CAPABLE Includes compass in instrument cluster.
TIRES FRONT 225/70R19.5G HIGHWAY BLACKWALL CONTINENTAL Max Axle Load: 7 940 lbs.
DARK ASH SEATS WITH JET BLACK INTERIOR ACCENTS VINYL SEAT TRIM
WHEELS 19.5 X 6.75 STEEL BLACK PAINTED 8-HOLES HUB PILOTED (STD)
BACKUP ALARM (Includes (SFW) SEO Calibration for backup alarm.
GLASS DEEP-TINTED

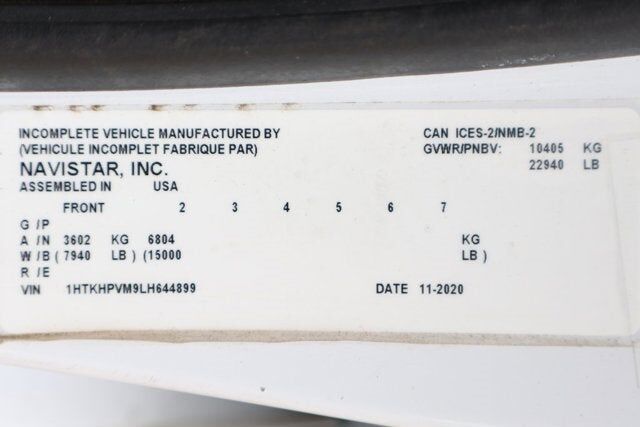

GVWR 22 940 LBS. (10 405 KG)
MIRRORS OUTSIDE HEATED POWER-ADJUSTABLE VERTICAL TRAILERING UPPER GLASS MANUAL-FOLDING AND EXTENDING BLACK. Includes integrated turn signal indicators consisting of 51 square inch flat mirror surface positioned over a 24.5 square inch convex mirror surface with a common head and lower convex spotter glass (convex glass is not heated and not power adjustable) and addition of Auxiliary cargo lamp for backing up (helps to see trailer when backing up with a trailer) and amber auxiliary clearance lamp
SUMMIT WHITE
RUGGED DUTY SERVICE TRANSMISSION AUTOMATIC CLOSE-RATIO 6 SPD WITH DOUBLE OVERDRIVE ALLISON A2700RDS ratios: 3.10 1ST 1.80 2ND 1.40 3RD 1.00 4TH 0.70 5TH 0.61 6TH Rugged Duty Series 26K GVW & 26K GCW Max.
ENGINE DURAMAX 6.6L TURBO-DIESEL V8 B20-DIESEL COMPATIBLE 350 hp @ 2700 rpm 700 lb-ft torque @ 1600 rpm (STD)
ENGINE BLOCK HEATER
AUDIO SYSTEM 7 DIAGONAL COLOR TOUCH-SCREEN WITH CHEVROLET INFOTAINMENT AM/FM stereo with seek-and-scan and digital clock includes Bluetooth® streaming audio for music and select phones.

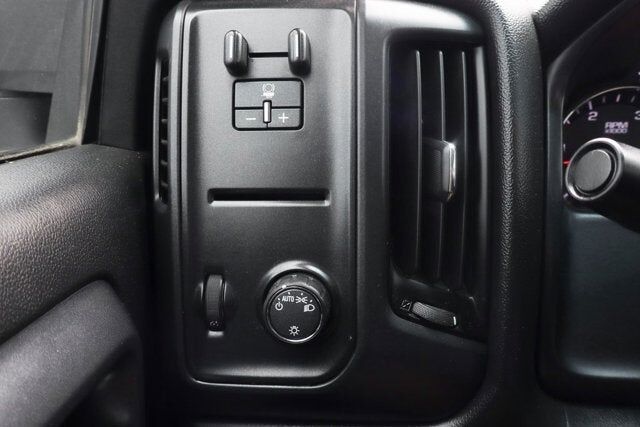

TRAILER BRAKE CONTROLLER INTEGRATED
LICENSE PLATE KIT FRONT
FUEL TANK FRONT AND REAR 65 GALLON TOTAL
BACK-UP ALARM CALIBRATION
TIRES REAR 225/70R19.5G HIGHWAY BLACKWALL CONTINENTAL Max Axle Load: 15 000 lbs.
POWER OUTLET 110-VOLT AC
FRONT AXLE 8 000 LBS. DANA/SPICER D800-N I -BEAM NON-DRIVING
WORK TRUCK PREFERRED EQUIPMENT GROUP includes standard equipment
SEATS FRONT 40/20/40 SPLIT-BENCH 3-PASSENGER driver and front passenger recline with outboard head restraints and center fold-down armrest with storage. Vinyl has fixed lumbar and cloth has manually adjustable driver lumbar. (STD)
POWER TAKE OFF ENGINE CONTROL PROVISIONS Access is available on left hand and right hand side
4G LTE WI-FI HOTSPOT CAPABLE
WHEELBASE 199 (505.5 CM) 84 CA

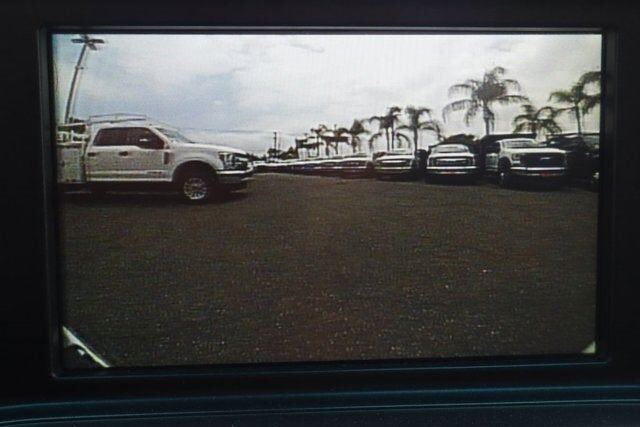

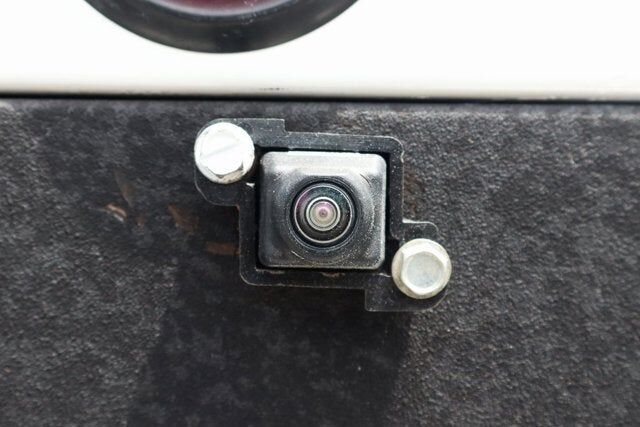

REAR VISION CAMERA DISPLAY INTEGRATED INTO RADIO
TRAILERING PROVISIONS TRAILERING WIRE HARNESS ONLY TRAILER COMBINED (STOP/TAIL/TURN) CONNECTION SOCKET AND HARNESS MOUNTED AT REAR OF FRAME.
KEY SYSTEM 2 SPARE KEYS
SPARE TIRE DELETE (STD)
ALTERNATOR 220 AMPS
PAINT SOLID
6500 HD SERIES
RECOVERY HOOKS FRONT FRAME-MOUNTED BLACK
TIRE VALVE CAP HALTEC FLOW-THRU
DPF DIESEL PARTICULATE FILTER MANUAL REGENERATION customer regeneration will not be allowed until the DPF load percentage has reached 100% full and a driver information center (DIC) message has been shown
REAR AXLE 15 000 LBS. (6 804 KG) DANA SPICER S16-130 SINGLE REDUCTION
ADDITIONAL FUEL 5 GALLONS
UPFITTER SWITCHES provides up to 4-30 amp circuits to facilitate installation of aftermarket electrical accessories located on the instrument panel
AIR CONDITIONING SINGLE-ZONE (STD)
GRILLE GUARD SCREEN STONE PROTECTION (mounted to bumper)
EXHAUST BRAKE
FRONT SUSPENSION 8 000 LBS. (3 629 KG) MULTI-LEAF INCLUDES SHOCK ABSORBERS
REAR SUSPENSION 15 500 LBS. (7 031 KG) MULTI-LEAF VARI-RATE
26 000 LBS. GCWR (11 793 KG)
Premium audio system: Chevrolet MyLink
Air Conditioning
Single-Zone Air Conditioning
Power steering
ABS brakes
Dual front impact airbags
Dual front side impact airbags
Occupant sensing airbag
Overhead airbag
Passenger cancellable airbag
Delay-off headlights
Fully automatic headlights
Frontal Passenger-Side Airbag Deactivation Switch
Speed control
Dual rear wheels
Driver door bin
Front reading lights
Overhead console
Tachometer
Tilt steering wheel
Trip computer
Voltmeter
Front Center Armrest w/Storage
Passenger door bin
Wheels: 19.5 x 6.75 Black Painted Hub Piloted Steel w/8-Holes
Variably intermittent wipers
4.10 Rear Axle Ratio
