Option & Equipment
SiriusXM delete
6-speaker audio system
Bluetooth® for phone personal cell phone connectivity to vehicle audio system
Audio system 7" diagonal color touch-screen with Chevrolet Infotainment AM/FM stereo with seek-and-scan and digital clock includes Bluetooth® streaming audio for music and select phones.
Lamps Smoked Amber roof marker
Spare tire delete (STD)
Door handles Black
Glass solar absorbing tinted
Assist steps
Wheel spare delete
Antenna fixed mast
Grille guard screen insect protection (mounted behind grille)
Headlamps halogen projector-beam
Help minimize glare in adverse driving conditions
Paint solid
Tire valve cap (Alligaro V2B) flo-thru
Wheels 19.5" x 6.75" steel Grey painted 8-holes hub piloted
Lamps rear LED stop/turn and license plate with incandescent backup lamps

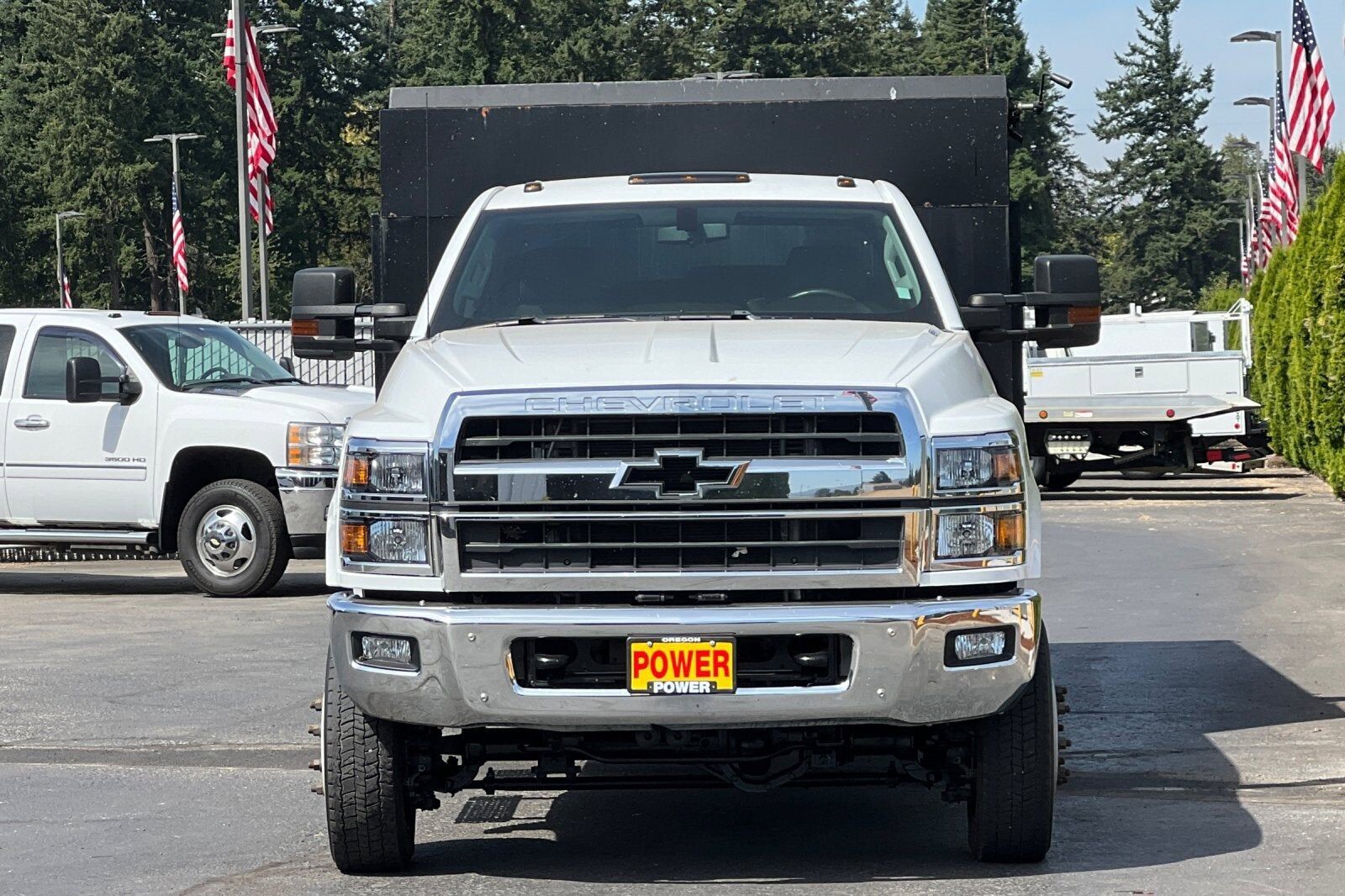

Grille chrome
Bumper front chrome
Mirrors outside heated power-adjustable vertical trailering upper glass manual-folding and extending black. Includes integrated turn signal indicators consisting of 51 square inch flat mirror surface positioned over a 24.5 square inch convex mirror surface with a common head and lower convex spotter glass (convex glass is not heated and not power adjustable) and addition of Auxiliary cargo lamp for backing up (helps to see trailer when backing up with a trailer) and amber auxiliary clearance lamp
Summit White
Oil seal for front hub Chicago Rawhide Nitrile for oil lubricated wheel bearings
License plate kit front
Electrical Provisions rear of frame upfitter body builder wiring includes Sealed Connectors for Tail/Amber Turn/Marker/Backup/Accessory Power/Ground and Sealed Connector for Stop/Turn
Front fender extension painted body color
Visors driver and front passenger vinyl
Seat trim Vinyl
Maintains a selected temperature
Manual
Interior trim Jet Black/Dark Ash (Required and only available with (H2Q/H2R) Dark Ash seats with Jet Black interior accents.)
Seat rear 60/40 folding bench (folds up) 3-passenger (includes child seat top tether anchor)
Speedometer miles/kilometers
Assist handle front passenger and driver on A-pillars
Door locks power
Cruise control steering wheel-mounted
Seat Belt Black
Driver Information Center 3.5-inch diagonal monochromatic display provides warning messages and basic vehicle information
Steering column manual Tilt-Wheel
Windows power with driver express up and down and express down on all other windows
Mirror inside rearview manual day/night
Steering wheel urethane
Floor covering Graphite-colored rubberized-vinyl

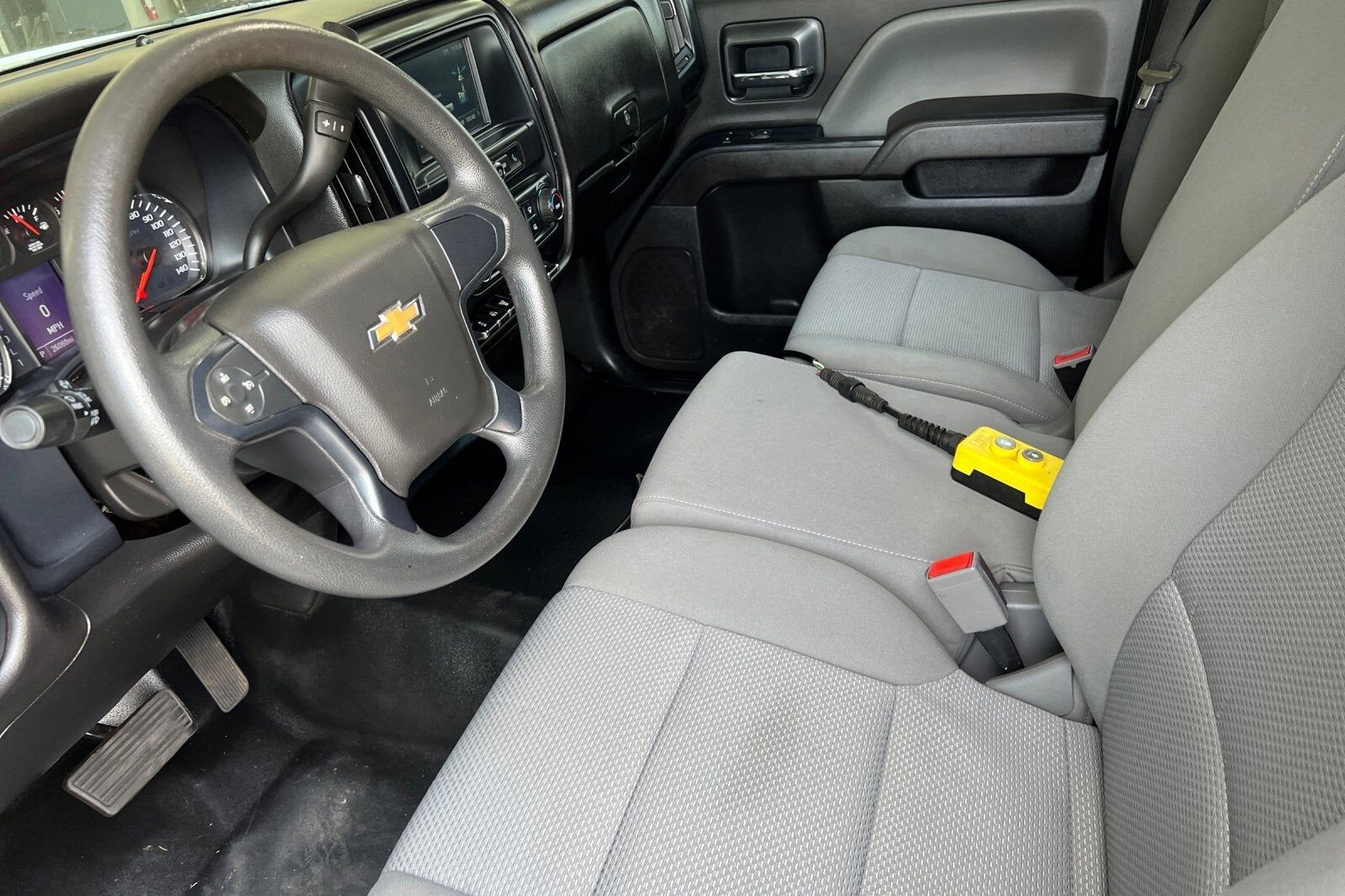

Seats front 40/20/40 split-bench 3-passenger driver and front passenger recline with outboard head restraints and center fold-down armrest with storage. Vinyl has fixed lumbar and cloth has manually adjustable driver lumbar. (STD)
Dark Ash seats with Jet Black interior accents Cloth seat trim
Power outlet 110-volt AC
Remote Keyless Entry
Upfitter switches provides up to 4-30 amp circuits to facilitate installation of aftermarket electrical accessories located on the instrument panel
Fuel diesel B20
Rear axle 4.30 ratio Max road speed: 75 MPH
Incomplete vehicle
Axle lubricant rear synthetic oil EmGard FE -75W-90
Emissions USA 50 State certified
Exhaust system rear exit
Axle limited slip Dana Spicer Truetrac torque proportioning limited slip (Not standard when (G80) Heavy-duty locking rear differential is ordered.)
Capped Fuel Fill
Front suspension 7500 lbs. (3402 kg) multi-leaf includes shock absorbers
Brakes hydraulic heavy duty Bosch/Meritor/Wabco system with 4-channel (ABS) (Includes (J69) driveline park brake.)
Steering power (Bosch S2 8014 Plus)
Axle lubricant front synthetic oil EmGard FE-75W-90
Emissions 50 state certification
Front axle 7500 lbs. Dana Spicer 60-256 single-reduction front driving
Four wheel drive
Batteries heavy-duty dual 1300 cold-cranking amps includes battery box mounted to left side under cab
Rear axle 13500 lbs. (6124 kg) Dana Spicer S14-110 single reduction
Additional fuel 5 gallons
DPF diesel particulate filter manual regeneration customer regeneration will not be allowed until the DPF load percentage has reached 100% full and a driver information center (DIC) message has been shown
Axle to End of Frame 63"
Exhaust brake
Trailer brake controller integrated
Battery top post threaded battery jump start stud (located on battery box)
30000 lbs. GCWR (13607 kg)
Rear suspension 13500 lbs. (6123 kg) multi-leaf vari-rate
Fuel tank front and rear 65 gallon total
GVWR 19500 lbs. (8845 kg)
Trailering provisions trailering wire harness only trailer combined (Stop/Tail/Turn) connection socket and harness mounted at rear of frame.
5500 HD Series
Wheelbase 199" (505.5 cm) 84" CA
Alternator 220 amps
Recovery hooks front frame-mounted black
Front stabilizer bar
Work Truck Preferred Equipment Group includes standard equipment
Daytime Running Lamps with automatic exterior lamp control
OnStar delete
Airbag deactivation switch frontal passenger-side (Included and only available with (AY0) airbags.)
Airbags Single-stage frontal airbags for driver and front outboard passenger; Seat-mounted side-impact airbags for driver and front outboard passenger; Head-curtain airbags for front and rear outboard seating positions; (Always use seat belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
Horn dual-note
Backup alarm (Includes (SFW) SEO Calibration for backup alarm.
Rear Vision Camera display integrated into Radio
Traction control
Brake parking driveline park brake system
