Option & Equipment
Antenna fixed mast
Assist steps
Bumper front Black
Door handles Black
Front fender extension mold-in-color Black (Not available with (FNP) Body color front fender extension.)
Glass solar absorbing tinted
Grille guard screen insect protection (mounted behind grille)
Grille base molded in color Black
Headlamps halogen projector-beam
Lamps cargo area cab mounted with switch on center switch bank

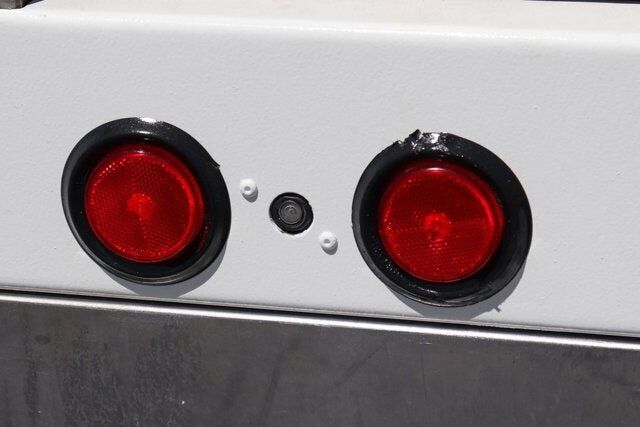

Lamps rear stop/turn/backup (1-piece assembly) with license plate light
Lamps Smoked Amber roof marker
Mirrors outside high-visibility vertical camper-style Black with manual folding and extension and lower convex spotter glass
Spare tire delete
Tires front 225/70R19.5G highway blackwall Goodyear Max Axle Load: 7940 lb. (Requires (YAL) Tires rear 225/70R19.5G highway blackwall Goodyear Max Axle Load: 15000 lb. or (YMF) Tires rear 225/70R19.5G traction blackwall Goodyear Max Axle Load: 15000 lb.)

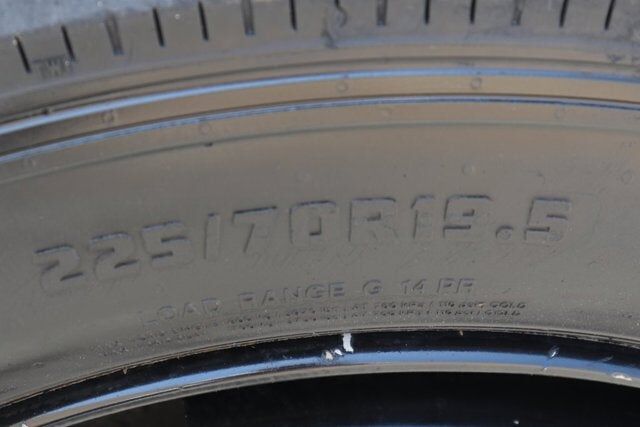

Tires rear 225/70R19.5G highway blackwall Goodyear Max Axle Load: 15000 lb.
Wheel spare delete

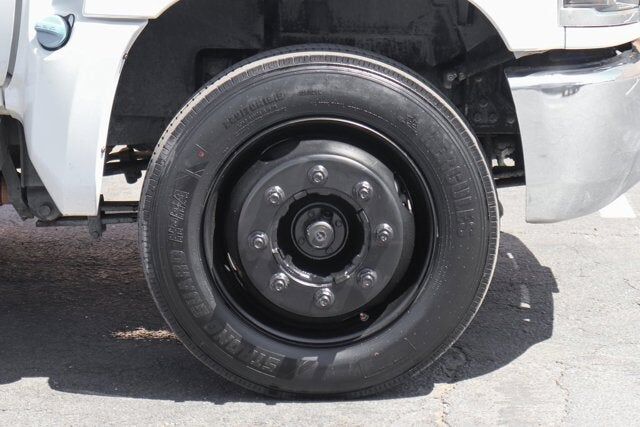

Wheels 19.5" x 6.75" steel Black painted 8-holes hub piloted

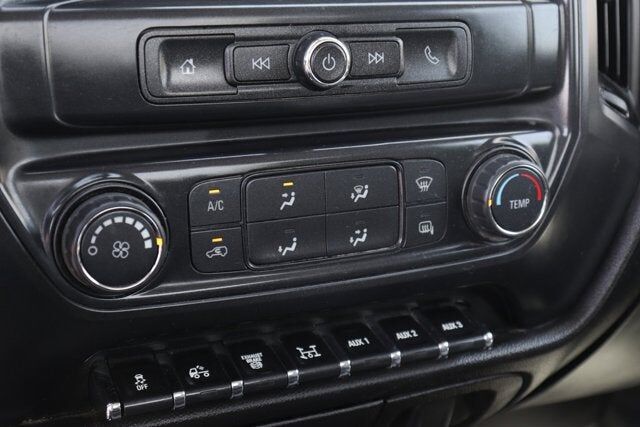

Air conditioning single-zone
Assist handle front passenger and driver on A-pillars
Audio system feature 4-speaker system
Audio system 4.2" diagonal color display AM/FM stereo with USB port and auxiliary jack (Requires (AE7) front 40/20/40 split-bench seat. Not available with (UE1) OnStar or (U2K) SiriusXM Radio.)

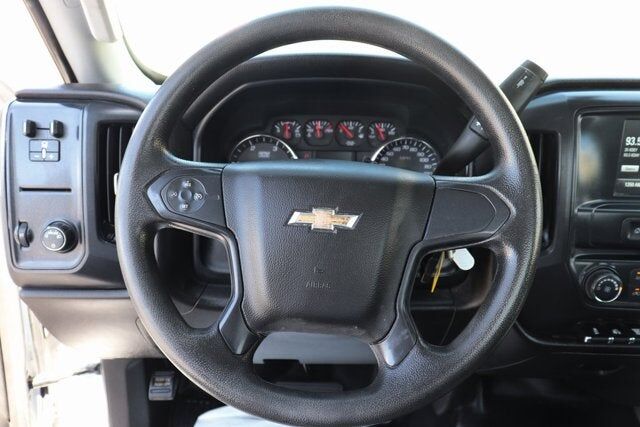

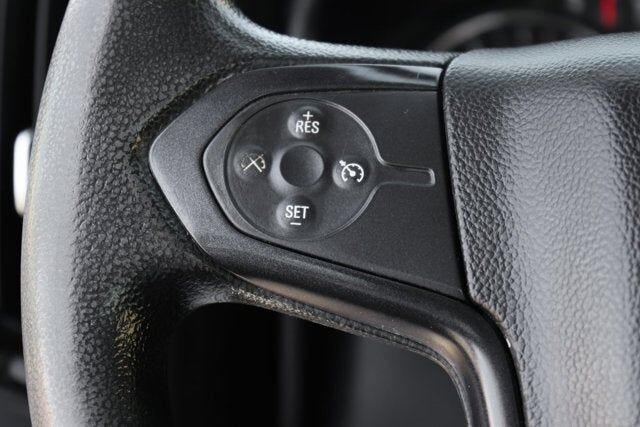

Cruise control steering wheel-mounted
Door locks power
Driver Information Center 3.5-inch diagonal monochromatic display provides warning messages and basic vehicle information
Floor covering Graphite-colored rubberized-vinyl
Interior trim Jet Black/Dark Ash (Required and only available with (H2Q/H2R) Dark Ash seats with Jet Black interior accents.)
Mirror inside rearview manual day/night
Seat Belt Black
Seats front 40/20/40 split-bench 3-passenger driver and front passenger recline with outboard head restraints and center fold-down armrest with storage. Vinyl has fixed lumbar and cloth has manually adjustable driver lumbar.
SiriusXM delete
Speedometer miles/kilometers
Steering column manual Tilt-Wheel
Steering wheel urethane
Upfitter switch kit provides up to 4-30 amp circuits to facilitate installation of aftermarket electrical accessories located on the instrument panel
Visors driver and front passenger vinyl
Windows manual driver and front passenger
4500 HD Series (Included and only available with (C7Y) 14001 lb. GVWR (C5B) 15000 lb. GVWR (C7P) 16000 lb. GVWR or (C7R) 16500 lb. GVWR.)
Alternator 150 amps
Axle lubricant rear synthetic oil EmGard FE -75W-90
Axle to End of Frame 49" (Requires wheelbase (ED5) 201" (ED9) 165" (ER2) 189" or (FQT) 141". Not available with (G40) (GP1) or (GP8) rear air suspension.)
Axle Open rear axle non-locking rear
Batteries heavy-duty dual 1100 cold-cranking amps includes battery box mounted to left side under cab
Brakes hydraulic heavy duty Bosch/Meritor/Wabco system with 4-channel (ABS) (Includes (J69) driveline park brake.)
Capped Fuel Fill

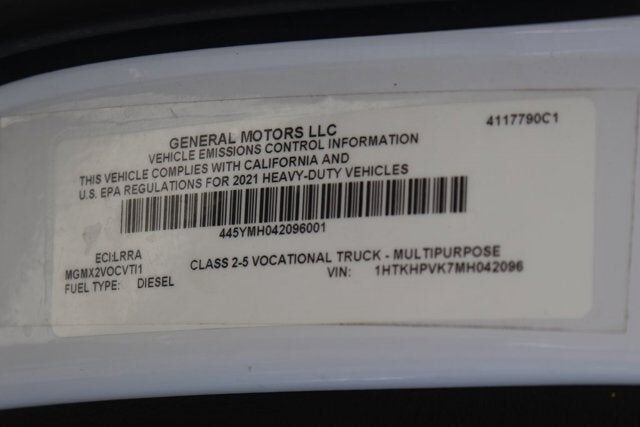

Emissions USA 50 State certified
Exhaust brake
Exhaust system right side exit behind rear wheels (Requires (FQT) 141" wheelbase.)
Front axle 6250 lb. (2835 kg) Dana Spicer D800-N "I"-beam non-driving (Requires (FTW) 6250 lb. front suspension. Includes (G68) rear shock absorbers. Not available with rear air suspensions.)
Front suspension 6250 lb. (2835 kg) multi-leaf includes shock absorbers (Not available with rear air suspensions.)
Fuel tank rear only 40 gallon mounted between frame side rails and behind rear axle
Fuel diesel B20
GVWR 16500 lb. (7484 kg) (Silverado 4500 HD 2WD Regular Cab models require one of the following combinations: (1) (FTC) 6.25k front axle and (FTW) 6.25k front suspension and (GL4) 11k rear axle and (GR3) 11k rear suspension. (2) (FTC) 6.25k front axle and (FTW) 6.25k front suspension and one of the following rear axles: (HD2) 13.5k rear axle (HD1) 15k rear axle or (J27) 15.5k rear axle and (GR4) 13.5k rear suspension. (3) (FTA) 7k front axle and (FK6) 7k front suspension and (FN1) 10k rear axle or (GL4) 11k rear axle and (GR3) 11k rear suspension or (G40) 12K Rear air suspension. (4) (FTA) 7k front axle and (FK6) 7k front suspension and (HD1) 15k rear axle or (J27) 15.5k rear axle and one of the following rear suspensions: (GR4) 13.5k rear suspension (FU7) 15.5k rear suspension (GP1) 13.5K rear air suspension (GP8) 15.5k rear air suspension (91B) 13.5k LiquidSpring prep single volume rear suspension (91C) 13.5k LiquidSpring prep stacked volume rear suspension (91D) 15.5k LiquidSpring prep single volume rear suspension or (91E) 15.5k LiquidSpring prep stacked volume rear suspension.)

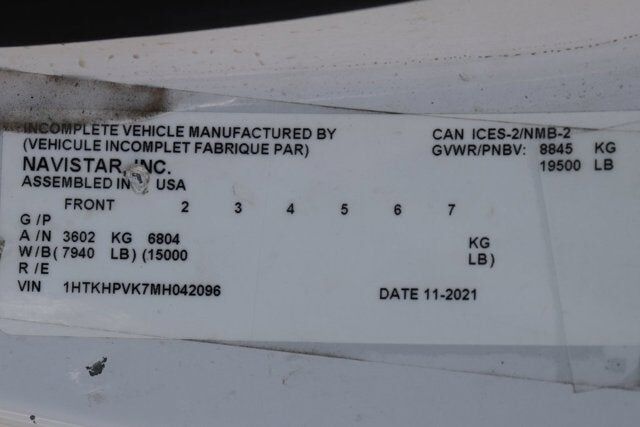

Incomplete vehicle
Rear axle 11000 lb. (4999 kg) Dana Spicer S14-110 single reduction
Rear axle 4.10 ratio Max road speed: 79 MPH
Rear suspension 11000 (4990 kg) multi-leaf vari-rate (Not available with air suspension.)
Rear wheel drive
Shock Absorbers rear (Included with (FTC) 6250 lb. front axle.)
Steering power (Bosch S2 8014 Plus)
Wheelbase 141" (358.1 cm) 60" CA (Requires (F0C) 49" axle to end of frame (F0D) 63" axle to end of frame or (F0K) 91" axle to end of frame and (NPR) exhaust. Requires (PCJ) Vocational Specific Heavy Suspension Package when ordering (FTA) 7000 lb. Front axle/(FK6) 7000 lb. Front suspension or (FTL) 8000 lb. Front axle/(FSN) 8000 lb. Front suspension and/or (FU7) 15500 lb. rear suspension. Not available with rear air suspensions or (91B) (91C) (91D) or (91E) prep for LiquidSpring rear suspension.)
Airbag deactivation switch frontal passenger-side (Included and only available with (AY0) airbags.)
Airbags Single-stage frontal airbags for driver and front outboard passenger; Seat-mounted side-impact airbags for driver and front outboard passenger; Head-curtain airbags for front outboard seating positions; Includes airbag deactivation switch for front outboard passenger airbag (Always use seat belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
Brake parking driveline park brake system
Daytime Running Lamps with automatic exterior lamp control
Electronic Stability Control System with Traction Control includes Electronic Trailer Sway Control and Hill Start Assist
Horn single-note
OnStar delete
Traction control
BATTERY TOP POST THREADED BATTERY JUMP START STUD
(located on battery box)

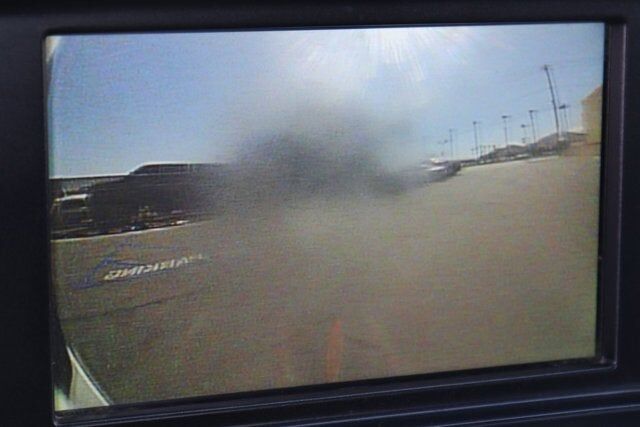

REAR VISION CAMERA DISPLAY INTEGRATED INTO RADIO
(Shipped loose in cab for upfitter installation.)
(STD)

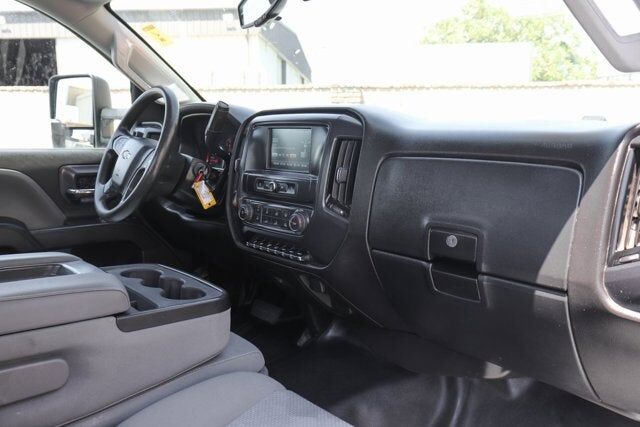

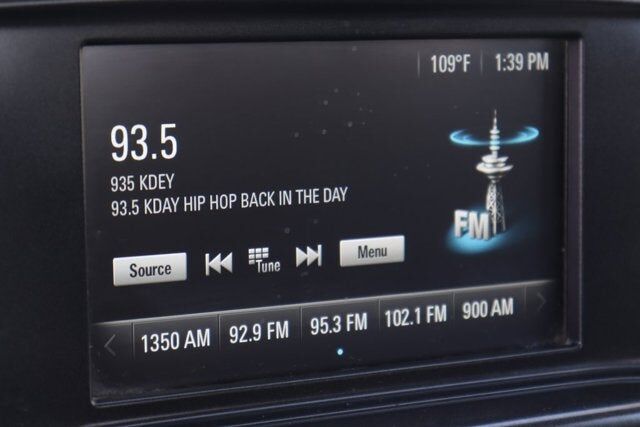

AUDIO SYSTEM 7" DIAGONAL COLOR TOUCH-SCREEN WITH CHEVROLET INFOTAINMENT
AM/FM stereo with seek-and-scan and digital clock
includes Bluetooth® streaming audio for music and select phones. (Includes (UQ3) 6-speaker audio system.
BATTERIES HEAVY-DUTY DUAL 1300 COLD-CRANKING AMPS
includes battery box mounted to left side under cab
VOCATIONAL SPECIFIC HEAVY SUSPENSION PACKAGE
Allows the selection of 7
000 lb.
8
front axles and/or 15
500 lb. rear spring suspension on trucks that will be upfitted with the following vocational bodies: Utility/Service Bodies
Aerial Lift/Bucket bodies
Front Plow/Rear Spreader Applications
and Landscape Dump Bodies.

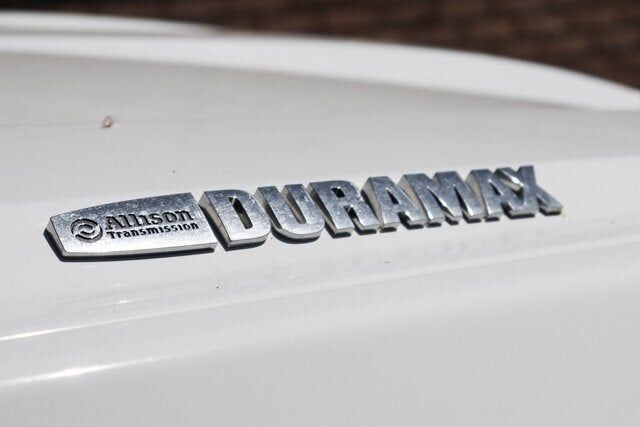

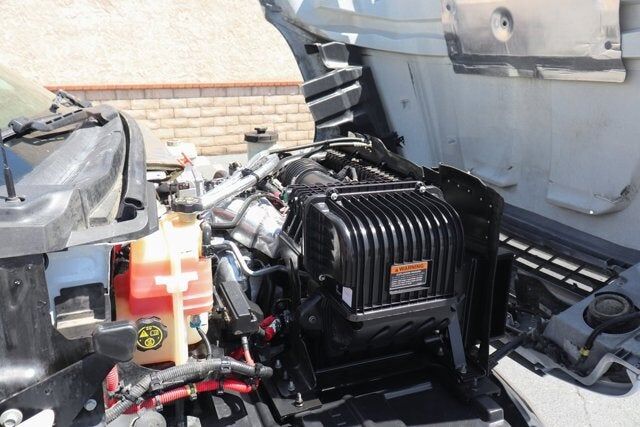

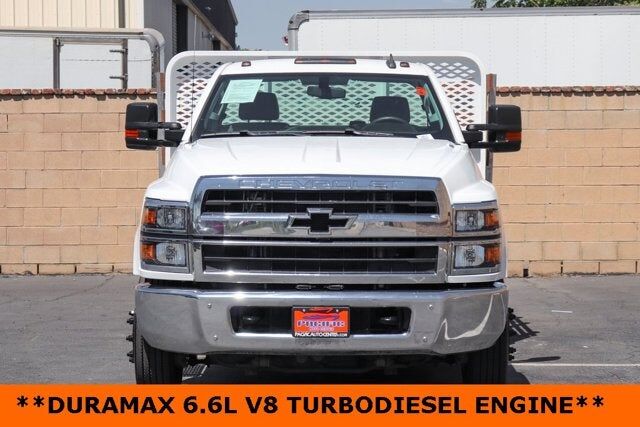

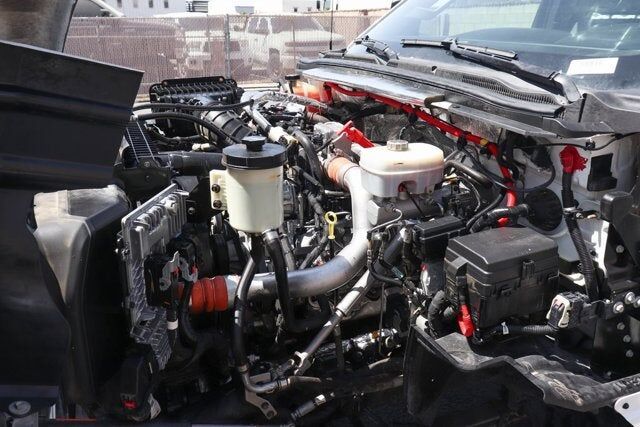

ENGINE DURAMAX 6.6L TURBO-DIESEL V8 B20-DIESEL COMPATIBLE
350 hp @ 2700 rpm
700 lb.-ft. torque @ 1600 rpm (STD)
ONSTAR AND CHEVROLET CONNECTED SERVICES CAPABLE
Includes compass in instrument cluster.
TIRES REAR 225/70R19.5G HIGHWAY BLACKWALL CONTINENTAL
Max Axle Load: 15
ELECTRICAL PROVISIONS REAR OF FRAME UPFITTER BODY BUILDER WIRING
includes Sealed Connectors for Tail/Amber Turn/Marker/Backup/Accessory Power/Ground and Sealed Connector for Stop/Turn

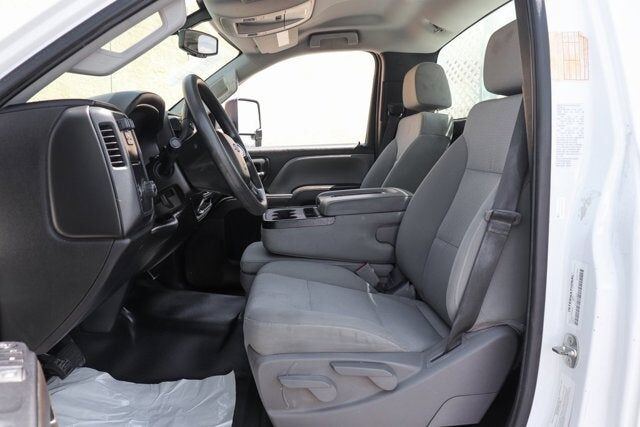

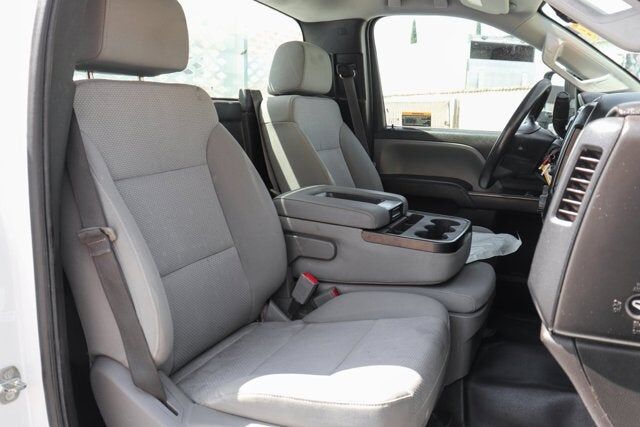

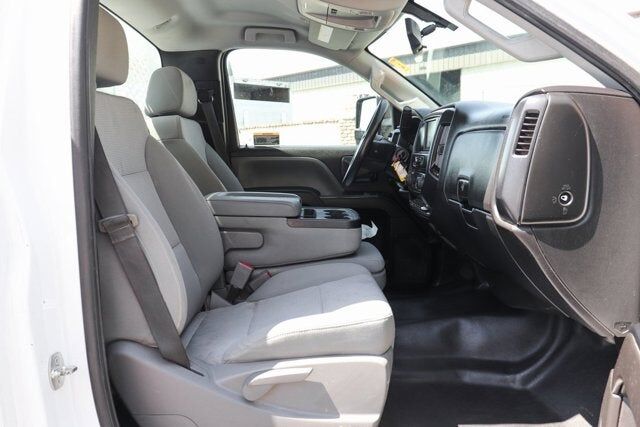

SEATS FRONT 40/20/40 SPLIT-BENCH 3-PASSENGER
driver and front passenger recline with outboard head restraints and center fold-down armrest with storage. Vinyl has fixed lumbar and cloth has manually adjustable driver lumbar. (STD)
WORK TRUCK PREFERRED EQUIPMENT GROUP
includes standard equipment
DPF DIESEL PARTICULATE FILTER MANUAL REGENERATION
customer regeneration will not be allowed until the DPF load percentage has reached 100% full and a driver information center (DIC) message has been shown
GRILLE GUARD SCREEN STONE PROTECTION
(mounted to bumper)
MIRRORS OUTSIDE HEATED POWER-ADJUSTABLE VERTICAL TRAILERING UPPER GLASS MANUAL-FOLDING AND EXTENDING BLACK.
Includes integrated turn signal indicators consisting of 51 square inch flat mirror surface positioned over a 24.5 square inch convex mirror surface with a common head and lower convex spotter glass (convex glass is not heated and not power adjustable) and addition of Auxiliary cargo lamp for backing up (helps to see trailer when backing up with a trailer) and amber auxiliary clearance lamp
REAR AXLE 4.30 RATIO
Max road speed: 75 MPH

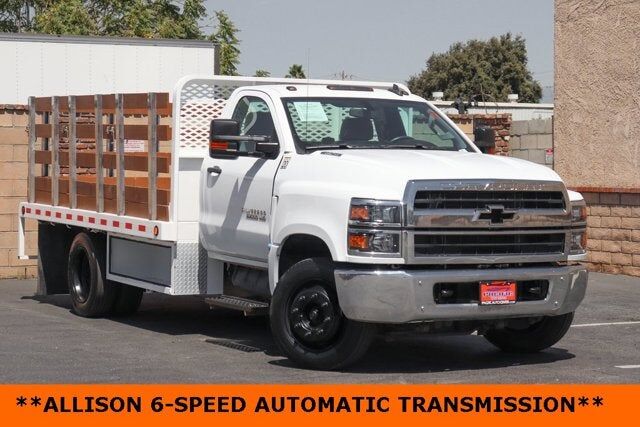

RUGGED DUTY SERVICE TRANSMISSION AUTOMATIC CLOSE-RATIO 6 SPD WITH DOUBLE OVERDRIVE ALLISON A1750RDS
ratios 3.10 1ST
1.80 2ND
1.40 3RD
1.00 4TH
0.70 5TH
0.61 Rugged Duty Series

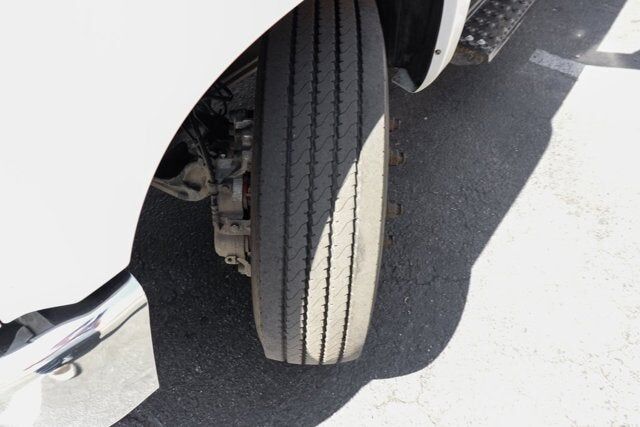

TIRES FRONT 225/70R19.5G HIGHWAY BLACKWALL CONTINENTAL
Max Axle Load: 7
940 lb.
POWER TAKE OFF ENGINE CONTROL PROVISIONS
Access is available on left-hand and right-hand side
BATTERY TOP POST THREADED BATTERY JUMP START STUD (located on battery box)
TRAILERING PROVISIONS TRAILERING WIRE HARNESS ONLY TRAILER COMBINED (STOP/TAIL/TURN) CONNECTION SOCKET AND HARNESS MOUNTED AT REAR OF FRAME.
30 000 LB. GCWR (13 607 KG)
DARK ASH SEATS WITH JET BLACK INTERIOR ACCENTS CLOTH SEAT TRIM
REAR VISION CAMERA DISPLAY INTEGRATED INTO RADIO (Shipped loose in cab for upfitter installation.)
ADDITIONAL FUEL 20 GALLONS
SPARE TIRE DELETE (STD)
LICENSE PLATE KIT FRONT
AUDIO SYSTEM 7 DIAGONAL COLOR TOUCH-SCREEN WITH CHEVROLET INFOTAINMENT AM/FM stereo with seek-and-scan and digital clock includes Bluetooth® streaming audio for music and select phones. (Includes (UQ3) 6-speaker audio system.
GRILLE CHROME
BATTERIES HEAVY-DUTY DUAL 1300 COLD-CRANKING AMPS includes battery box mounted to left side under cab
REMOTE KEYLESS ENTRY
VOCATIONAL SPECIFIC HEAVY SUSPENSION PACKAGE Allows the selection of 7 000 lb. 8 000 lb. front axles and/or 15 500 lb. rear spring suspension on trucks that will be upfitted with the following vocational bodies: Utility/Service Bodies Aerial Lift/Bucket bodies Front Plow/Rear Spreader Applications and Landscape Dump Bodies.
6-SPEAKER AUDIO SYSTEM
FRONT STABILIZER BAR
SHOCK ABSORBERS REAR
ENGINE DURAMAX 6.6L TURBO-DIESEL V8 B20-DIESEL COMPATIBLE 350 hp @ 2700 rpm 700 lb.-ft. torque @ 1600 rpm (STD)
RECOVERY HOOKS FRONT FRAME-MOUNTED BLACK
ONSTAR AND CHEVROLET CONNECTED SERVICES CAPABLE Includes compass in instrument cluster.
FRONT SUSPENSION 8 000 LB. (3 629 KG) MULTI-LEAF INCLUDES SHOCK ABSORBERS
TIRES REAR 225/70R19.5G HIGHWAY BLACKWALL CONTINENTAL Max Axle Load: 15 000 lb.
BUMPER FRONT CHROME
EXHAUST SYSTEM REAR EXIT
REAR AXLE 15 000 LB. (6 804 KG) DANA SPICER S16-130 SINGLE REDUCTION

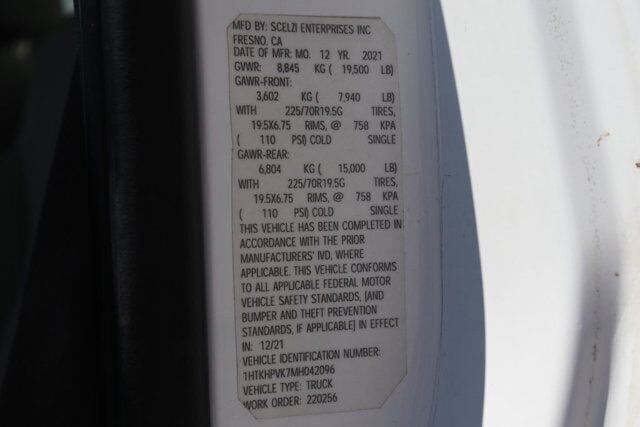

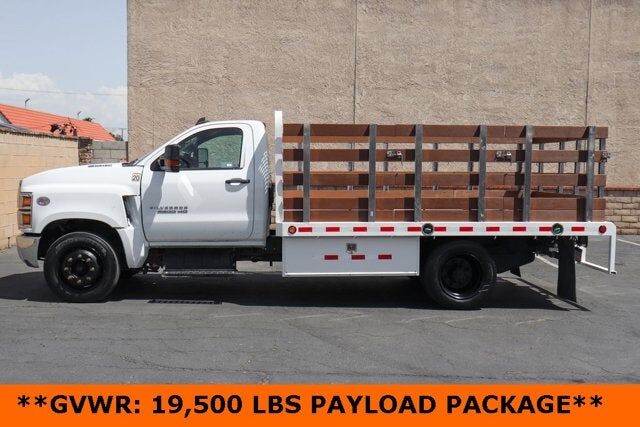

GVWR 19 500 LB. (8845 KG)
WINDOWS POWER WITH DRIVER EXPRESS UP AND DOWN AND EXPRESS DOWN ON ALL OTHER WINDOWS
REAR SUSPENSION 15 500 LB. (7 031 KG) MULTI-LEAF VARI-RATE

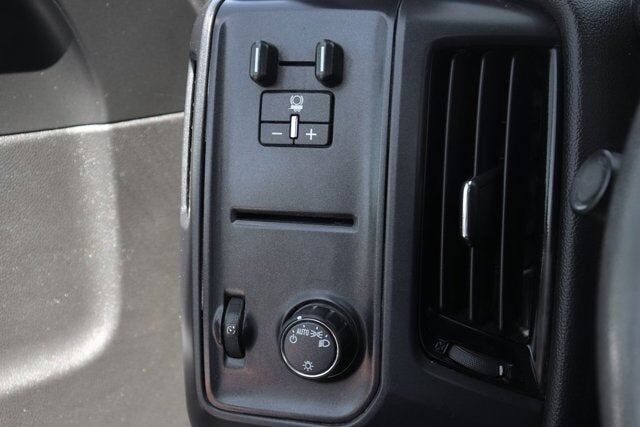

TRAILER BRAKE CONTROLLER INTEGRATED
4G LTE WI-FI HOTSPOT CAPABLE
ELECTRICAL PROVISIONS REAR OF FRAME UPFITTER BODY BUILDER WIRING includes Sealed Connectors for Tail/Amber Turn/Marker/Backup/Accessory Power/Ground and Sealed Connector for Stop/Turn
SEATS FRONT 40/20/40 SPLIT-BENCH 3-PASSENGER driver and front passenger recline with outboard head restraints and center fold-down armrest with storage. Vinyl has fixed lumbar and cloth has manually adjustable driver lumbar. (STD)
SUMMIT WHITE
WORK TRUCK PREFERRED EQUIPMENT GROUP includes standard equipment
AXLE LIMITED SLIP DANA SPICER TRUETRAC TORQUE PROPORTIONING LIMITED SLIP
PAINT SOLID
FRONT AXLE 8 000 LB. DANA/SPICER D800-N I -BEAM NON-DRIVING
OIL SEAL FOR FRONT HUB CHICAGO RAWHIDE NITRILE FOR OIL LUBRICATED WHEEL BEARINGS
DPF DIESEL PARTICULATE FILTER MANUAL REGENERATION customer regeneration will not be allowed until the DPF load percentage has reached 100% full and a driver information center (DIC) message has been shown
FRONT FENDER EXTENSION PAINTED BODY COLOR

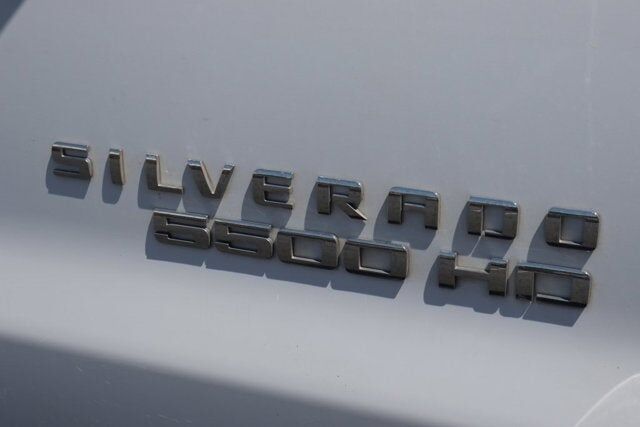

5500 HD SERIES
GRILLE GUARD SCREEN STONE PROTECTION (mounted to bumper)
MIRRORS OUTSIDE HEATED POWER-ADJUSTABLE VERTICAL TRAILERING UPPER GLASS MANUAL-FOLDING AND EXTENDING BLACK. Includes integrated turn signal indicators consisting of 51 square inch flat mirror surface positioned over a 24.5 square inch convex mirror surface with a common head and lower convex spotter glass (convex glass is not heated and not power adjustable) and addition of Auxiliary cargo lamp for backing up (helps to see trailer when backing up with a trailer) and amber auxiliary clearance lamp
REAR AXLE 4.30 RATIO Max road speed: 75 MPH
HORN DUAL-NOTE
WHEELS 19.5 X 6.75 STEEL BLACK PAINTED 8-HOLES HUB PILOTED (STD)
RUGGED DUTY SERVICE TRANSMISSION AUTOMATIC CLOSE-RATIO 6 SPD WITH DOUBLE OVERDRIVE ALLISON A1750RDS ratios 3.10 1ST 1.80 2ND 1.40 3RD 1.00 4TH 0.70 5TH 0.61 Rugged Duty Series
ALTERNATOR 220 AMPS
TIRES FRONT 225/70R19.5G HIGHWAY BLACKWALL CONTINENTAL Max Axle Load: 7 940 lb.
POWER TAKE OFF ENGINE CONTROL PROVISIONS Access is available on left-hand and right-hand side
WHEELBASE 165 (419.1 CM) 84 CA
FUEL TANK FRONT AND REAR 65 GALLON TOTAL
POWER OUTLET 110-VOLT AC
Premium audio system: Chevrolet MyLink
Single-Slot CD/MP3 Player
SiriusXM Radio
Air Conditioning
Single-Zone Air Conditioning
110-Volt AC Power Outlet
Power steering
Power Windows w/Driver Express Up & Down
Rear Shock Absorbers
ABS brakes
Chrome Front Bumper
Dual front impact airbags
Dual front side impact airbags
Occupant sensing airbag
Overhead airbag
Passenger cancellable airbag
Electronic Stability Control
Rear Vision Camera
Delay-off headlights
Fully automatic headlights
Frontal Passenger-Side Airbag Deactivation Switch
Speed control
Dual rear wheels
Limited-Slip Axle
Body Color Painted Front Fender Extension
Chrome Grille
Dual-Note Horn
Front License Plate Kit
Nitrile For Oil Lubricated Wheel Bearings Chicago Rawhide Front Hub Oil Seal
Power Take-Off Engine Control Provisions
Stone Protection Grille Guard Screen
Top Post Threaded Battery Jump Start Stud
40/20/40 Front 3-Passenger Split-Bench Seat (A52)
Chevrolet Connected Access Capable
Cloth Seat Trim
Driver door bin
Front reading lights
OnStar & Chevrolet Connected Services Capable
Overhead console
Tachometer
Tilt steering wheel
Trip computer
Upfitter Electrical Provisions In Rear Of Frame
Voltmeter
10-Way Power Driver's Seat Adjuster
20 Gallons Additional Fuel
Manual Regeneration Diesel Particulate Filter DPF
Front Center Armrest w/Storage
Passenger door bin
30
000 lbs. GCWR (13
607 kg)
Black Frame-Mounted Front Recovery Hooks
Integrated Trailer Brake Controller
Wheels: 19.5 x 6.75 Black Painted Hub Piloted Steel w/8-Holes
Variably intermittent wipers
4.10 Rear Axle Ratio
4.30 Rear Axle Ratio
**CLEAN ONE OWNER CARFAX**
**RWD**
**STANDARD CAB**

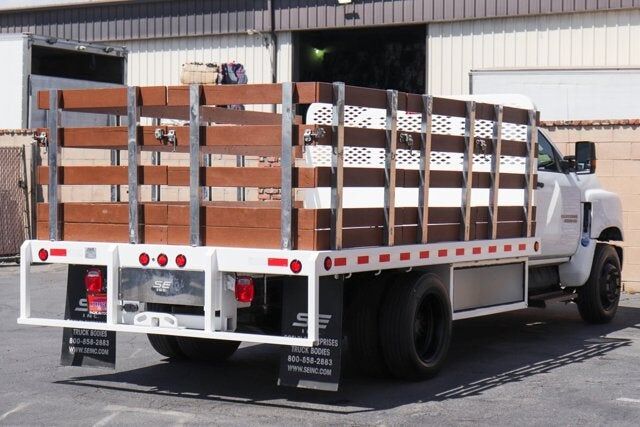

**LONG BED**
**DUALLY**

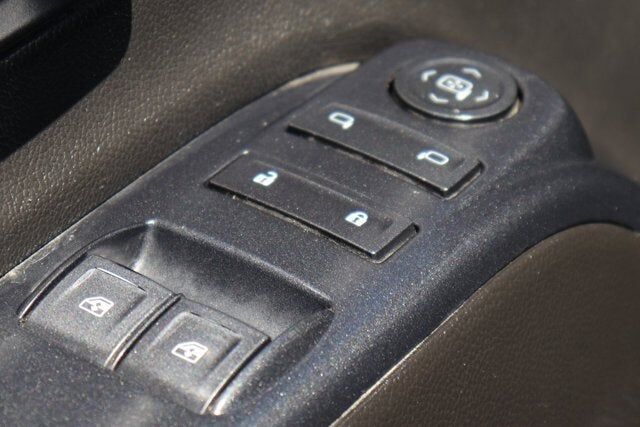

**POWER WINDOWS**
**POWER DOOR LOCKS**

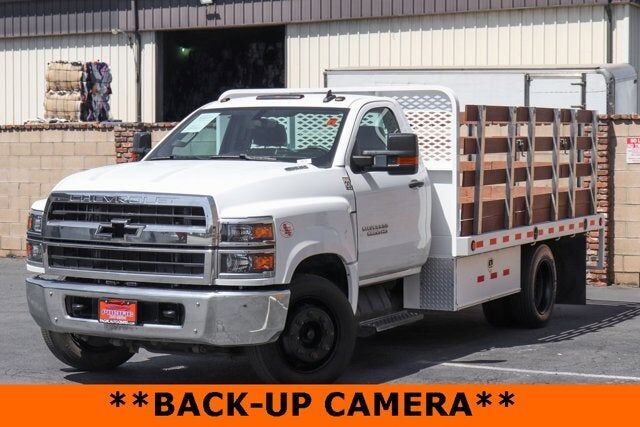

**BACK-UP CAMERA**
**TOW PACKAGE**
**TRAILER BRAKE CONTROL**
**EXHAUST BRAKE**
**UPFITTER SWITCHES**
