Option & Equipment
4G LTE Wi-Fi Hotspot capable
SiriusXM Radio enjoy a Platinum Plan trial subscription with over 150 channels including commercial-free music plus sports news and entertainment. Plus listening on the SiriusXM app online and at home on compatible connected devices is included so you'll hear the best SiriusXM has to offer anywhere life takes you. Welcome to the world of SiriusXM.
6-speaker audio system
Bluetooth® for phone personal cell phone connectivity to vehicle audio system

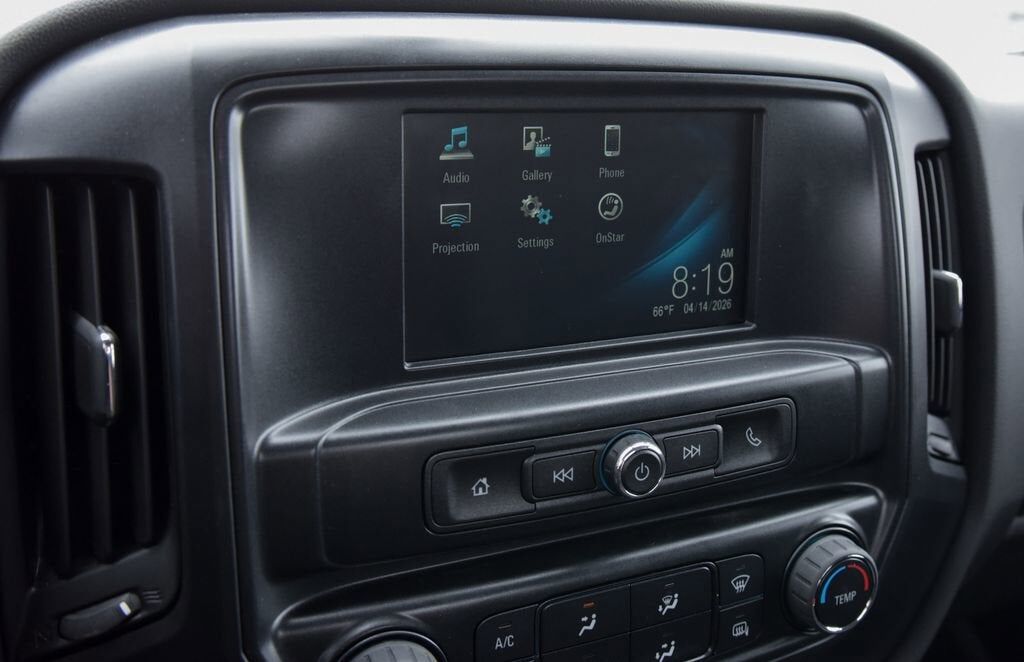

Audio system 7" diagonal color touch-screen with Chevrolet Infotainment AM/FM stereo with seek-and-scan and digital clock includes Bluetooth® streaming audio for music and select phones. Includes (UQ3) 6-speaker audio system.
Lamps rear stop/turn/backup (1-piece assembly) with license plate light
Glass solar absorbing tinted
Grille guard screen insect protection (mounted behind grille)
Antenna fixed mast
Spare tire delete (STD)
Wheel spare delete
Door handles Black

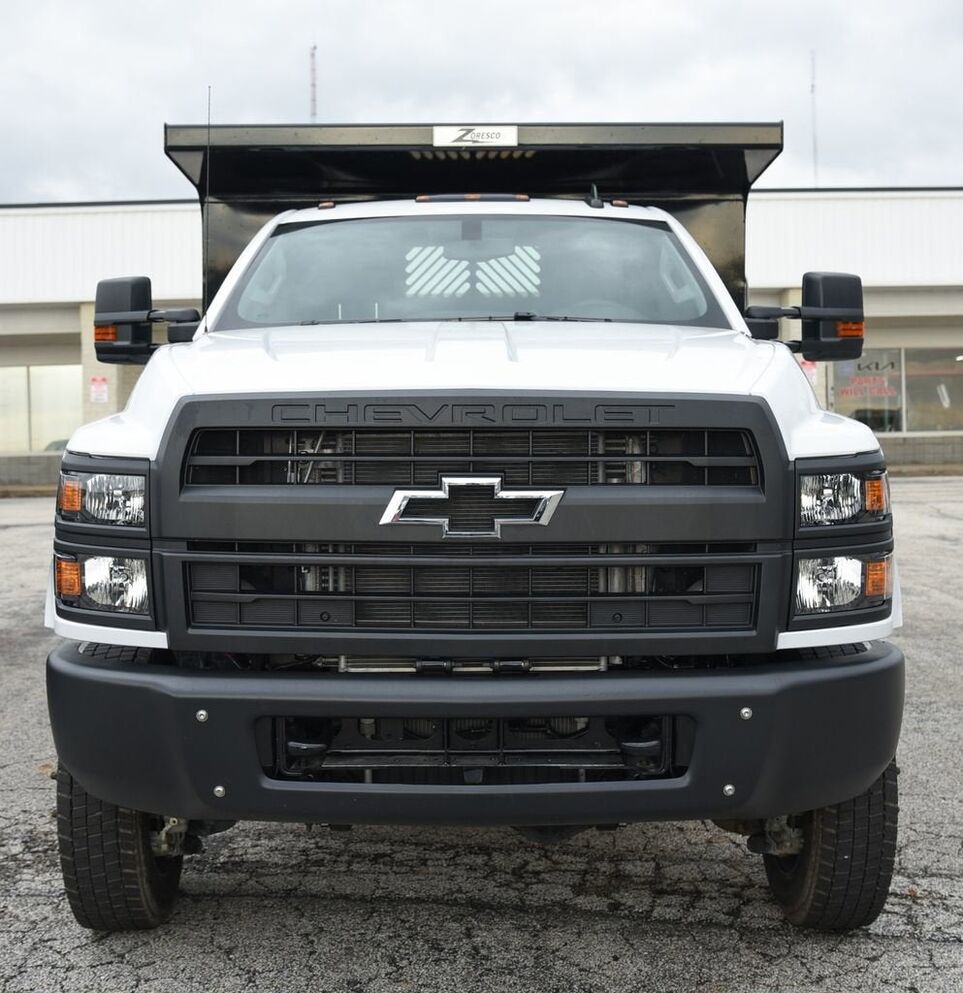

Grille base molded in color Black
Wheels 19.5" x 6.75" steel Black painted 8-holes hub piloted (STD)
Front fender extension painted body color

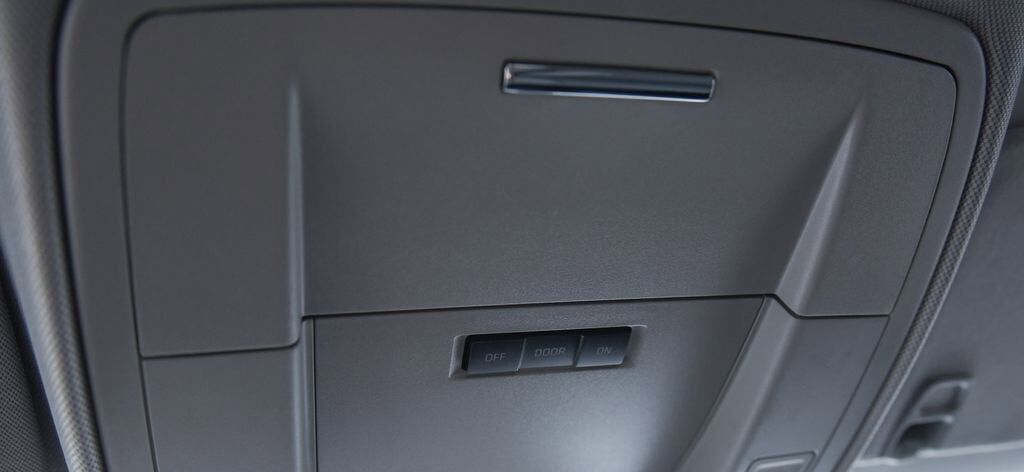

Lamps cargo area cab mounted with switch on center switch bank
Assist steps
Lamps Smoked Amber roof marker
Headlamps halogen projector-beam
Bumper front Black
Paint solid
Electrical Provisions rear of cab upfitter body builder wiring includes Sealed Connectors for Tail/Amber Turn/Marker/Backup/Accessory Power/Ground and Sealed Connector for Stop/Turn
Tires front 225/70R19.5 G Traction Blackwall Continental Max Axle Load: 7940 lb.
Tires rear 225/70R19.5 G Traction Blackwall Continental Max Axle Load: 15000 lb.
Mirrors outside heated power-adjustable vertical trailering upper glass manual-folding and extending black. Includes integrated turn signal indicators consisting of 51 square inch flat mirror surface positioned over a 24.5 square inch convex mirror surface with a common head and lower convex spotter glass (convex glass is not heated and not power adjustable) and addition of Auxiliary cargo lamp for backing up (helps to see trailer when backing up with a trailer) and amber auxiliary clearance lamp
Summit White
Paint Scheme Style 1
Tire valve cap Haltec flow-thru
Visors driver and front passenger vinyl
Seat trim Vinyl
Speedometer miles/kilometers
Interior trim Jet Black/Dark Ash (Required and only available with (H2Q/H2R) Dark Ash seats with Jet Black interior accents.)

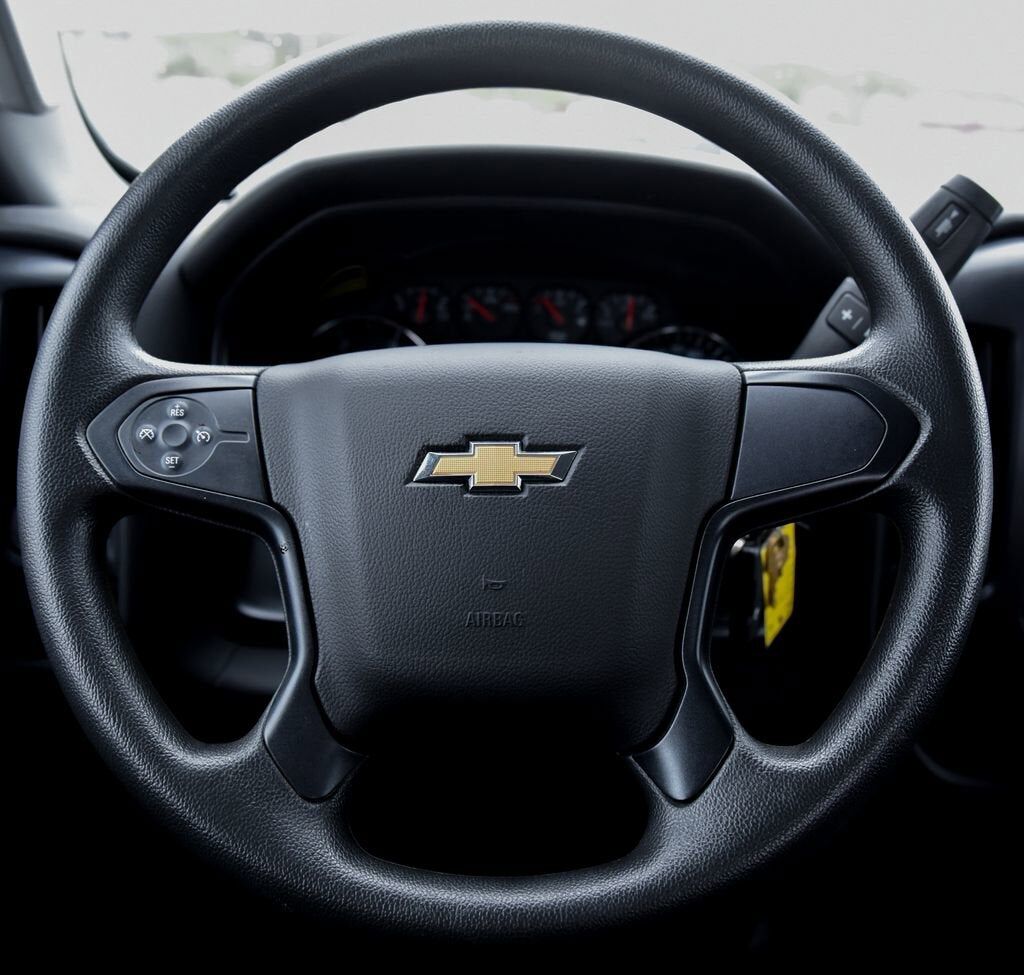

Cruise control steering wheel-mounted
Door locks power
Air conditioning single-zone
Assist handle front passenger and driver on A-pillars

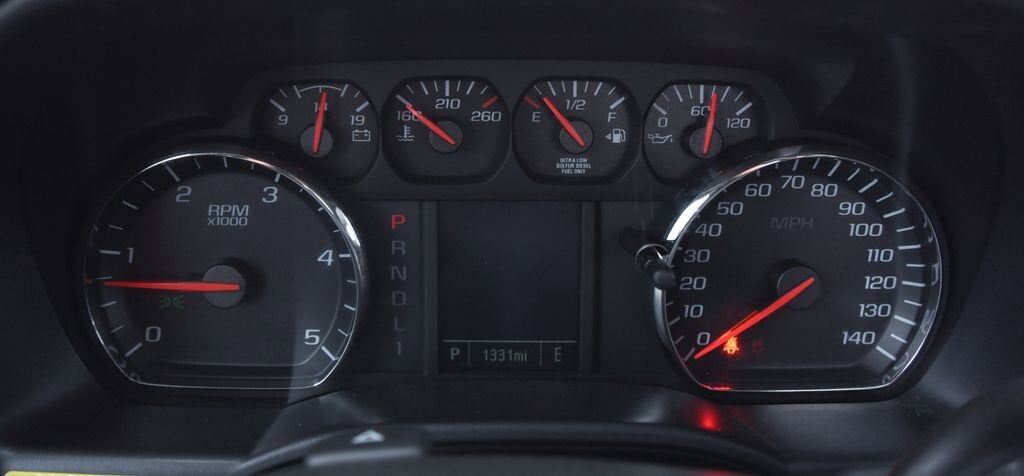

Driver Information Center 3.5-inch diagonal monochromatic display provides warning messages and basic vehicle information
Floor covering Graphite-colored rubberized-vinyl
Steering wheel urethane

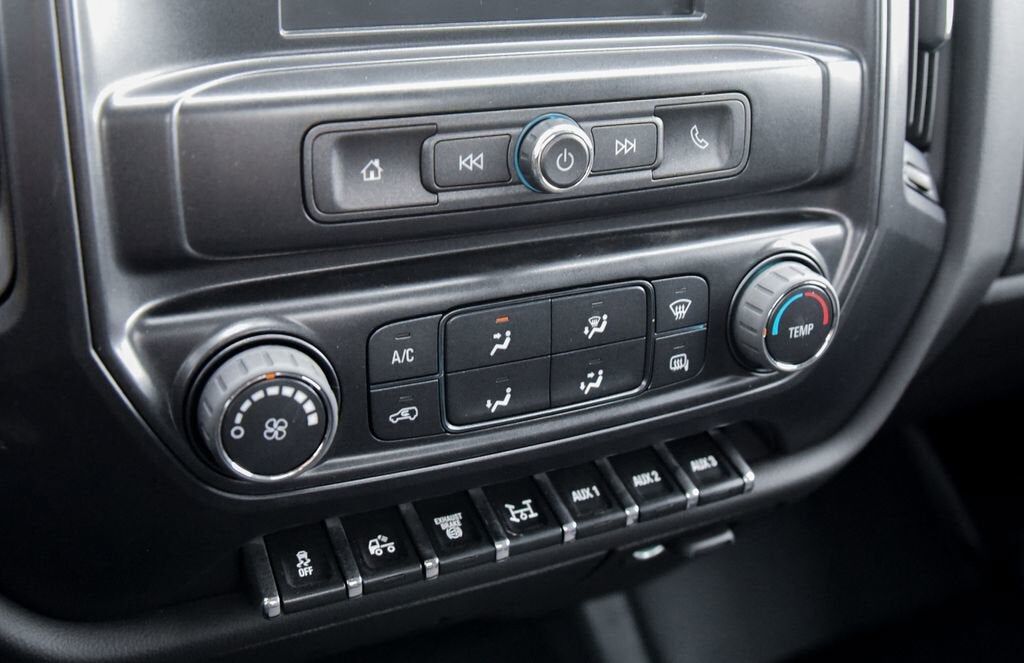

Upfitter switch kit provides up to 4-30 amp circuits to facilitate installation of aftermarket electrical accessories located on the instrument panel
Steering column manual Tilt-Wheel

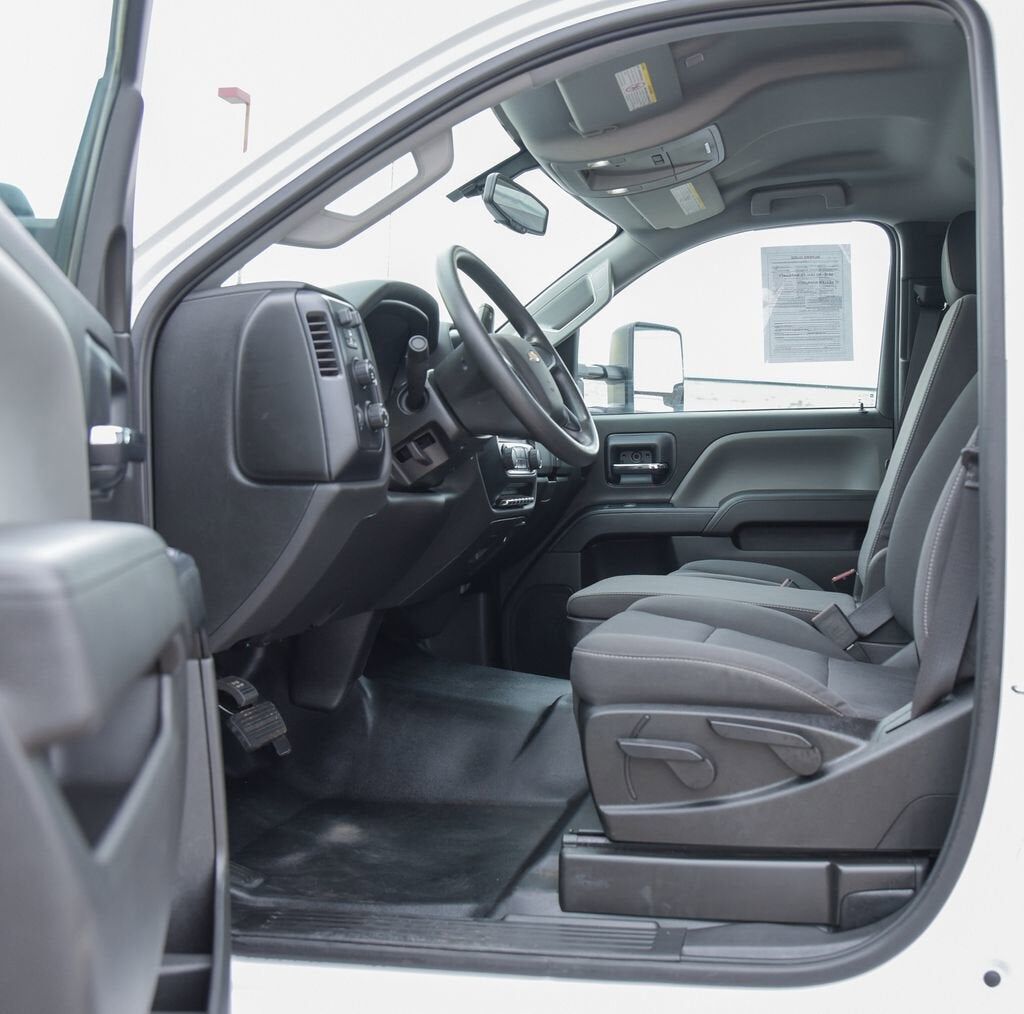

Seats front 40/20/40 split-bench 3-passenger driver and front passenger recline with outboard head restraints and center fold-down armrest with storage. Vinyl has fixed lumbar and cloth has manually adjustable driver lumbar. (STD)
Mirror inside rearview manual day/night
Seat Belt Black
Back-up alarm calibration This calibration will allow installation of an aftermarket back-up alarm by disabling rear perimeter lighting
Chevrolet Connected Access capable
Power outlet 110-volt AC
Remote Keyless Entry
Jet Black Cloth seat trim includes manually adjustable driver lumbar

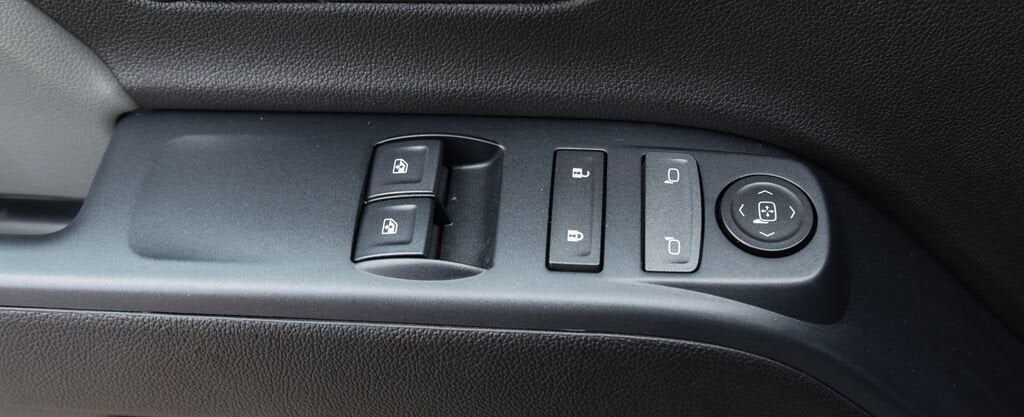

Windows power with driver express up and down and express down on all other windows
Front suspension 7500 lb. (3402 kg) multi-leaf includes shock absorbers
Axle to End of Frame 49" (Requires wheelbase (ED5) 201" (ED9) 165" or (ER2) 189". Not available with (G40) (GP1) or (GP8) rear air suspension.)
Emissions 50 state certification
Exhaust system rear exit

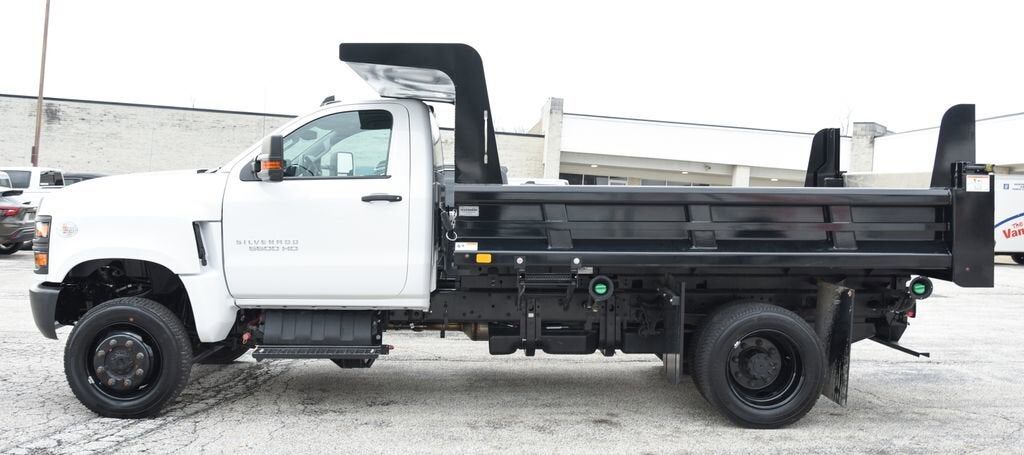

Wheelbase 165" (419.1 cm) 84" CA (Requires (F0C) 49" axle to end of frame (F0D) 63" axle to end of frame or (F0K) 91" axle to end of frame. Requires (PCJ) Vocational Specific Heavy Suspension Package when ordering (FTA) 7000 lb. Front axle/(FK6) 7000 lb. Front suspension or (FTL) 8000 lb. Front axle/(FSN) 8000 lb. Front suspension or (FU7) 15500 lb. rear suspension.) (STD)
Brakes hydraulic heavy duty Bosch/Meritor/Wabco system with 4-channel (ABS) (Includes (J69) driveline park brake.)
Axle Open rear axle non-locking rear
Capped Fuel Fill
Steering power (Bosch S2 8014 Plus)
Emissions USA 50 State certified
Incomplete vehicle
Fuel diesel B20
Axle lubricant rear synthetic oil EmGard FE -75W-90
Trailering provisions trailering wire harness only trailer combined (Stop/Tail/Turn) connection socket and harness mounted at rear of frame.
Rear axle 4.30 ratio Max road speed: 75 MPH
Front axle 7500 lb. Dana Spicer 60-256 single-reduction front driving
Axle lubricant front synthetic oil EmGard FE-75W-90
Exhaust brake
Four wheel drive

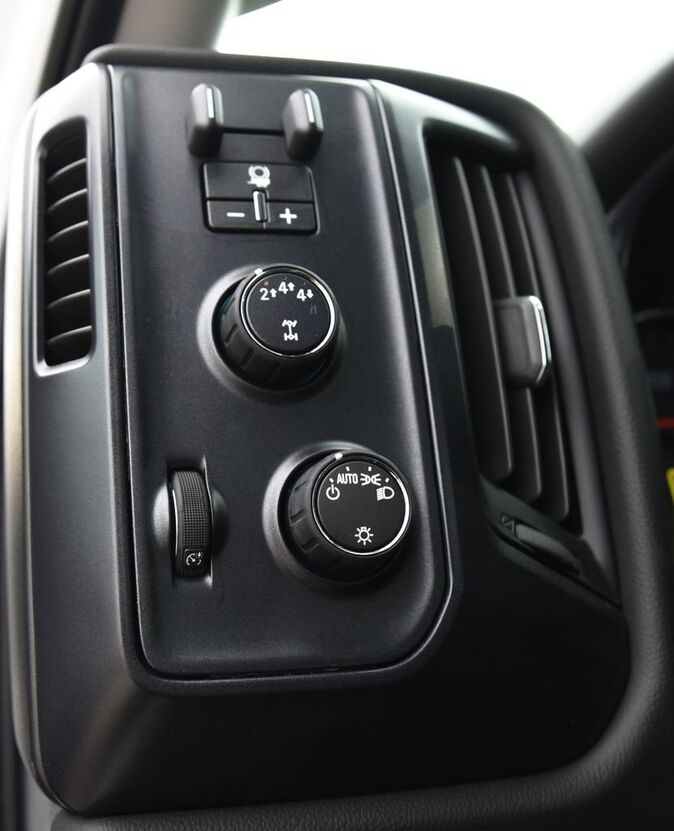

Trailer brake controller integrated
Batteries heavy-duty dual 1300 cold-cranking amps includes battery box mounted to left side under cab
DPF diesel particulate filter manual regeneration customer regeneration will not be allowed until the DPF load percentage has reached 100% full and a driver information center (DIC) message has been shown
Battery top post threaded battery jump start stud (located on battery box)
Axle limited slip Dana Spicer Truetrac torque proportioning limited slip
Fuel tank front and rear 65 gallon total
Wheelbase 165" (419.1 cm) 84" CA (STD)
Rear axle 15000 lb. (6804 kg) Dana Spicer S16-130 single reduction

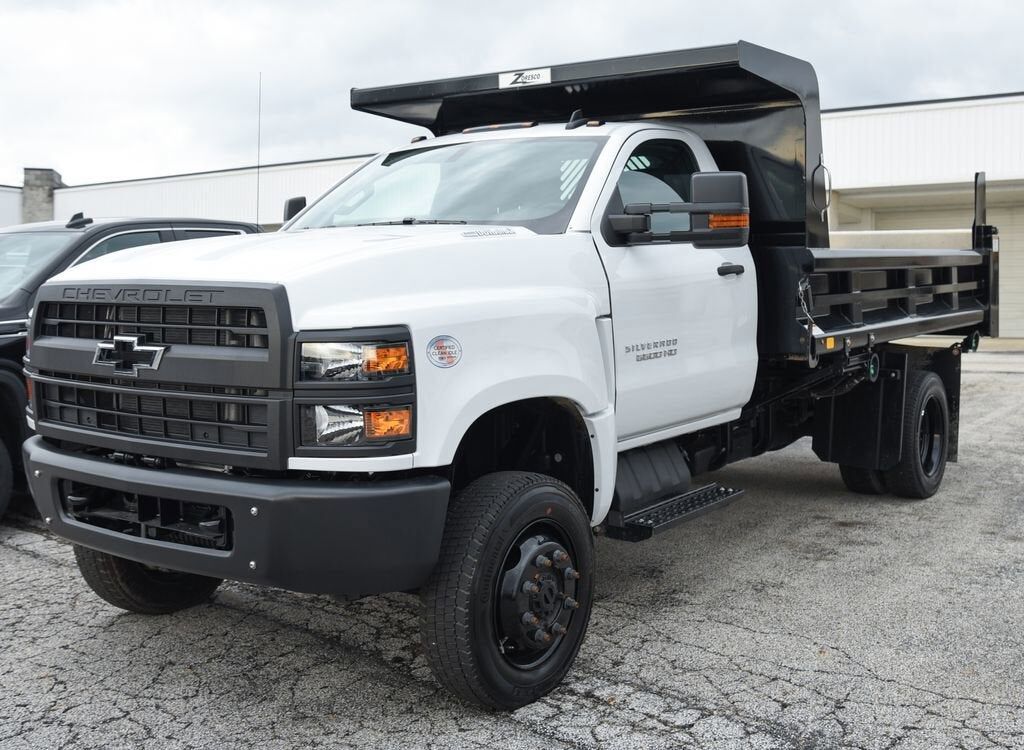

5500 HD Series
Rear suspension 13500 lb. (6123 kg) multi-leaf vari-rate
GVWR 19500 lb. (8845 kg)
Skid Plate steel frame-mounted protects the transfer case from the ground
Alternator 220 amps
Recovery hooks front frame-mounted black
34000 lb. GCWR (15422 kg)
Front stabilizer bar
Work Truck Preferred Equipment Group includes standard equipment
Daytime Running Lamps with automatic exterior lamp control
Airbags Single-stage frontal airbags for driver and front outboard passenger; Seat-mounted side-impact airbags for driver and front outboard passenger; Head-curtain airbags for front outboard seating positions; Includes airbag deactivation switch for front outboard passenger airbag (Always use seat belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)

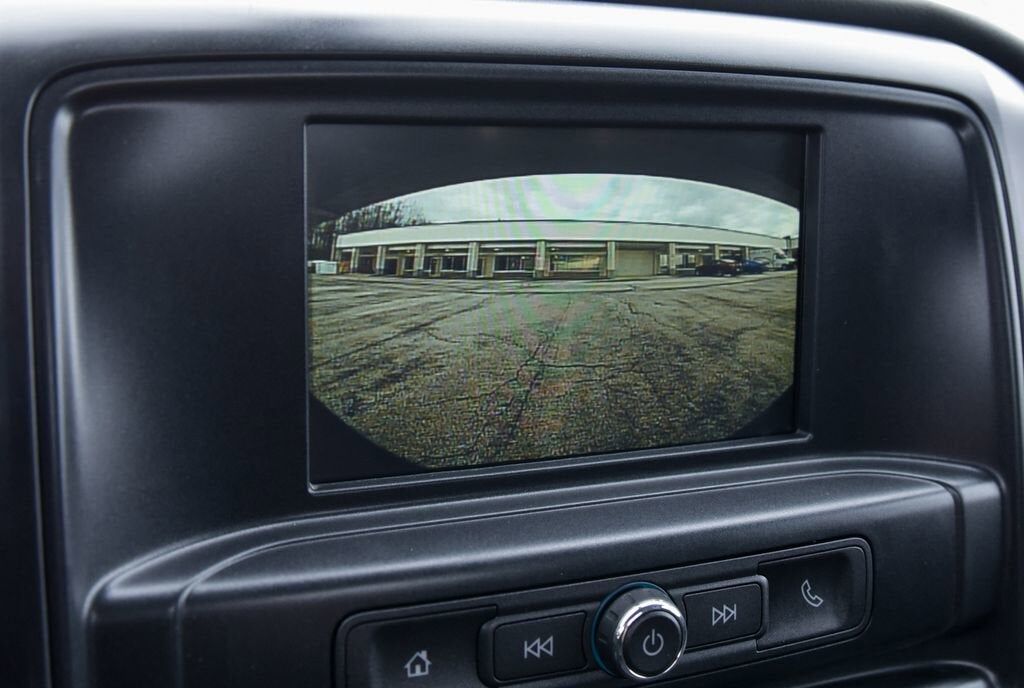

Rear Vision Camera display integrated into Radio (Shipped loose in cab for upfitter installation.)

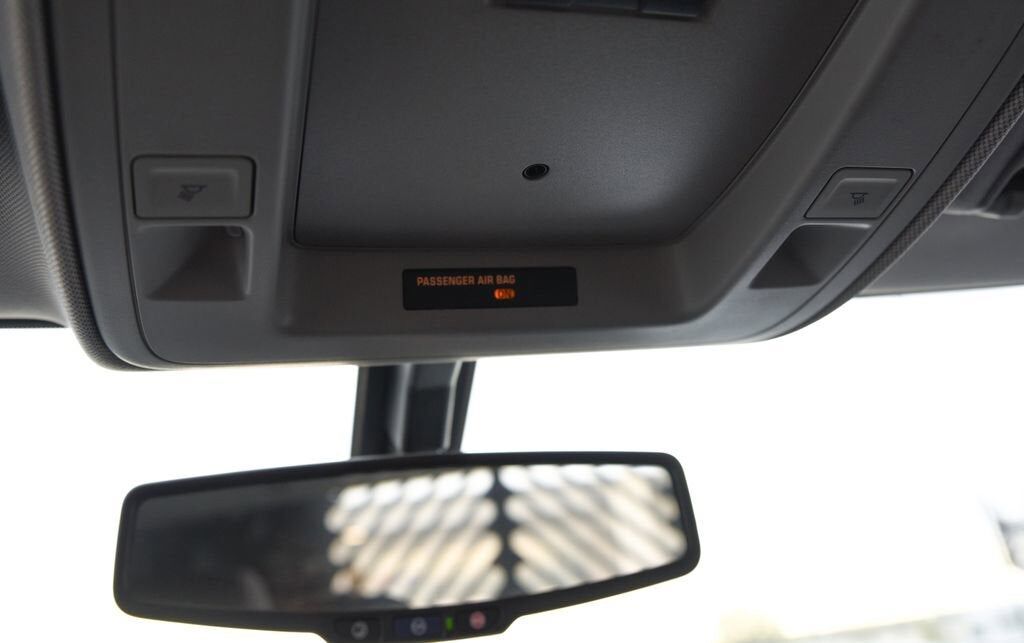

Airbag deactivation switch frontal passenger-side (Included and only available with (AY0) airbags.)
Horn dual-note
Backup alarm (Includes (SFW) SEO Calibration for backup alarm.
OnStar and Chevrolet connected services capable Includes compass in instrument cluster.
StabiliTrak Electronic Stability Control System with Traction Control includes Electronic Trailer Sway Control and Hill Start Assist
Brake parking driveline park brake system
Traction control
REAR AXLE 4.30 RATIO
Max road speed: 75 MPH
WORK TRUCK PREFERRED EQUIPMENT GROUP
includes standard equipment
ELECTRICAL PROVISIONS REAR OF CAB UPFITTER BODY BUILDER WIRING
includes Sealed Connectors for Tail/Amber Turn/Marker/Backup/Accessory Power/Ground and Sealed Connector for Stop/Turn
BATTERIES HEAVY-DUTY DUAL 1300 COLD-CRANKING AMPS
includes battery box mounted to left side under cab
SPARE TIRE DELETE
(STD)
SEATS FRONT 40/20/40 SPLIT-BENCH 3-PASSENGER
driver and front passenger recline with outboard head restraints and center fold-down armrest with storage. Vinyl has fixed lumbar and cloth has manually adjustable driver lumbar. (STD)
BATTERY TOP POST THREADED BATTERY JUMP START STUD
(located on battery box)
MIRRORS OUTSIDE HEATED POWER-ADJUSTABLE VERTICAL TRAILERING UPPER GLASS MANUAL-FOLDING AND EXTENDING BLACK.
Includes integrated turn signal indicators consisting of 51 square inch flat mirror surface positioned over a 24.5 square inch convex mirror surface with a common head and lower convex spotter glass (convex glass is not heated and not power adjustable) and addition of Auxiliary cargo lamp for backing up (helps to see trailer when backing up with a trailer) and amber auxiliary clearance lamp
WHEELBASE 165" (419.1 CM) 84" CA
DPF DIESEL PARTICULATE FILTER MANUAL REGENERATION
customer regeneration will not be allowed until the DPF load percentage has reached 100% full and a driver information center (DIC) message has been shown
JET BLACK CLOTH SEAT TRIM
includes manually adjustable driver lumbar
AUDIO SYSTEM 7" DIAGONAL COLOR TOUCH-SCREEN WITH CHEVROLET INFOTAINMENT
AM/FM stereo with seek-and-scan and digital clock
includes Bluetooth® streaming audio for music and select phones. Includes (UQ3) 6-speaker audio system.
ENGINE DURAMAX 6.6L TURBO-DIESEL V8 B20-DIESEL COMPATIBLE
350 hp @ 2700 rpm
700 lb.-ft. torque @ 1600 rpm (STD)
RUGGED DUTY SERVICE TRANSMISSION AUTOMATIC CLOSE-RATIO 6 SPD WITH DOUBLE OVERDRIVE ALLISON A1750RDS
ratios 3.10 1ST
1.80 2ND
1.40 3RD
1.00 4TH
0.70 5TH
0.61 Rugged Duty Series
POWER TAKE OFF ENGINE CONTROL PROVISIONS
Access is available on left-hand and right-hand side
WHEELS 19.5" X 6.75" STEEL BLACK PAINTED 8-HOLES HUB PILOTED
BACK-UP ALARM CALIBRATION
This calibration will allow installation of an aftermarket back-up alarm by disabling rear perimeter lighting
SIRIUSXM RADIO
enjoy a Platinum Plan trial subscription with over 150 channels including commercial-free music
plus sports
news and entertainment. Plus listening on the SiriusXM app
online and at home on compatible connected devices is included
so you'll hear the best SiriusXM has to offer
anywhere life takes you. Welcome to the world of SiriusXM.
ONSTAR AND CHEVROLET CONNECTED SERVICES CAPABLE
Includes compass in instrument cluster.
BACKUP ALARM
(Includes (SFW) SEO Calibration for backup alarm.
TIRES FRONT 225/70R19.5 G TRACTION BLACKWALL CONTINENTAL
Max Axle Load: 7
940 lb.
TIRES REAR 225/70R19.5 G TRACTION BLACKWALL CONTINENTAL
Max Axle Load: 15
000 lb.
PAINT SCHEME
STYLE 1
WINDOWS
POWER WITH DRIVER EXPRESS UP AND DOWN AND EXPRESS DOWN ON ALL OTHER WINDOWS
FRONT AXLE
7
500 LB.
DANA SPICER 60-256
SINGLE-REDUCTION
FRONT DRIVING
AXLE
LIMITED SLIP
DANA SPICER TRUETRAC
TORQUE PROPORTIONING LIMITED SLIP
REAR SUSPENSION
13
500 LB. (6
123 KG) MULTI-LEAF
VARI-RATE
GVWR
19
500 LB. (8845 KG)
REAR AXLE
15
000 LB. (6
804 KG) DANA SPICER S16-130
SINGLE REDUCTION
ENGINE BLOCK HEATER
POWER OUTLET
110-VOLT AC
ALTERNATOR
220 AMPS
FUEL TANK
FRONT AND REAR
65 GALLON TOTAL
SKID PLATE
STEEL
FRAME-MOUNTED
PROTECTS THE TRANSFER CASE FROM THE GROUND
TIRE VALVE CAP
HALTEC FLOW-THRU
34
000 LB. GCWR (15
422 KG)
HORN
DUAL-NOTE
RECOVERY HOOKS
FRONT
BLACK
PAINT
SOLID
