Option & Equipment
SiriusXM delete
4G LTE Wi-Fi Hotspot capable
6-speaker audio system
Bluetooth® for phone personal cell phone connectivity to vehicle audio system

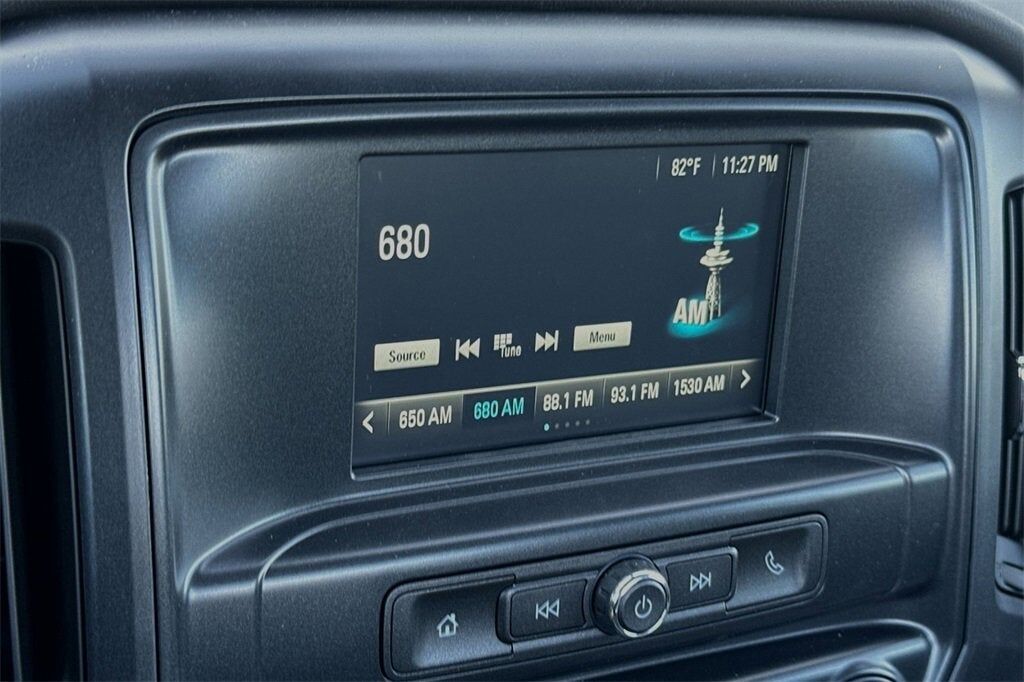

Audio system 7" diagonal color touch-screen with Chevrolet Infotainment AM/FM stereo with seek-and-scan and digital clock includes Bluetooth® streaming audio for music and select phones. Includes (UQ3) 6-speaker audio system.
Lamps rear stop/turn/backup (1-piece assembly) with license plate light
Glass solar absorbing tinted
Grille guard screen insect protection (mounted behind grille)
Antenna fixed mast
Spare tire delete (STD)
Wheel spare delete
Front fender extension painted body color
Lamps cargo area cab mounted with switch on center switch bank
Lamps Smoked Amber roof marker
Headlamps halogen projector-beam
Paint solid
Assist Steps aluminum
Tires rear 225/70R19.5G highway blackwall Continental Max Axle Load: 15000 lb.

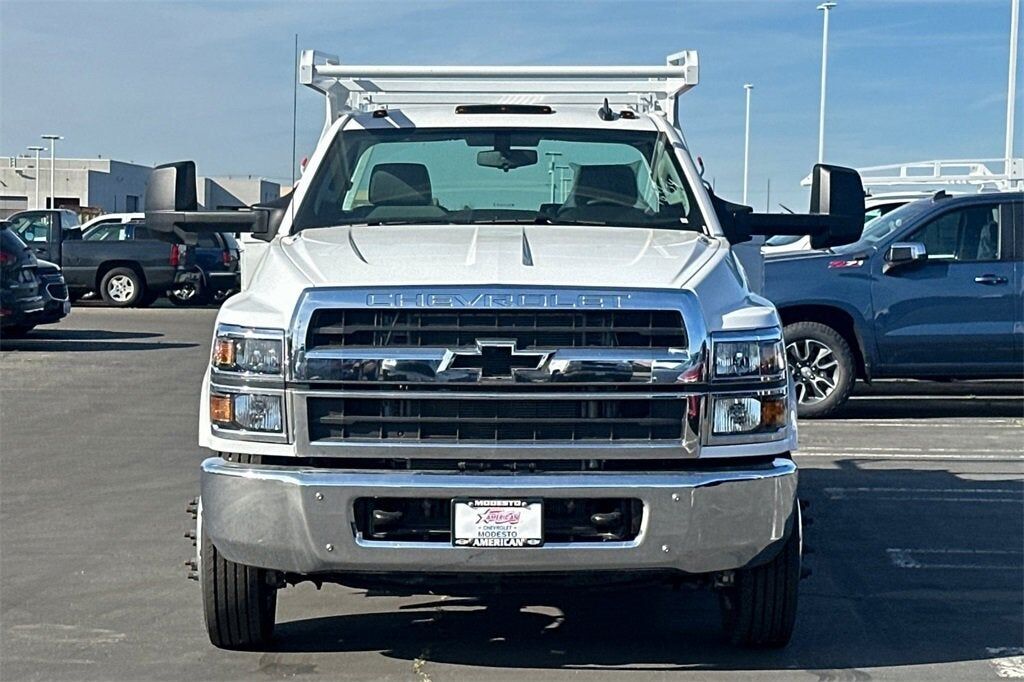

Grille chrome
Tires front 225/70R19.5G highway blackwall Continental Max Axle Load: 7940 lb.
Bumper front chrome
Door handles outside chrome
Provision for cab roof-mounted lamp/beacon provides an overhead console mounted switch and electrical wiring tucked beneath the headliner for a body upfitter to connect a body-mounted warning or emergency lamp
Wheels 19.5" x 6.75" 4-aluminum wheels 8-holes hub piloted Dura-Bright finish is on the outside of the wheel
Auxiliary harness 3' for headlamps and turn signals
Summit White
License plate kit front
Electrical Provisions rear of frame upfitter body builder wiring includes Sealed Connectors for Tail/Amber Turn/Marker/Backup/Accessory Power/Ground and Sealed Connector for Stop/Turn
Paint Scheme Style 1
Mirrors outside black heated power-adjustable high-visibility vertical camper-style and lower convex spotter glass manual-folding. Convex glass is not heated and not power adjustable. 102" Wide Load
Visors driver and front passenger vinyl
Seat trim Vinyl
Speedometer miles/kilometers
Interior trim Jet Black/Dark Ash (Required and only available with (H2Q/H2R) Dark Ash seats with Jet Black interior accents.)

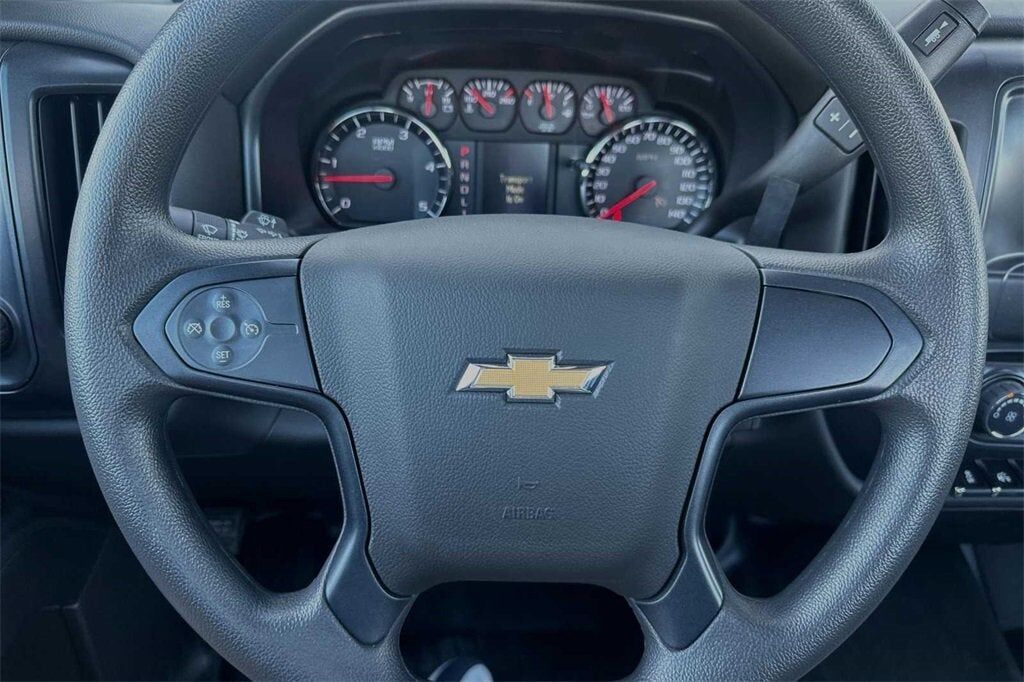

Cruise control steering wheel-mounted
Door locks power
Air conditioning single-zone
Assist handle front passenger and driver on A-pillars

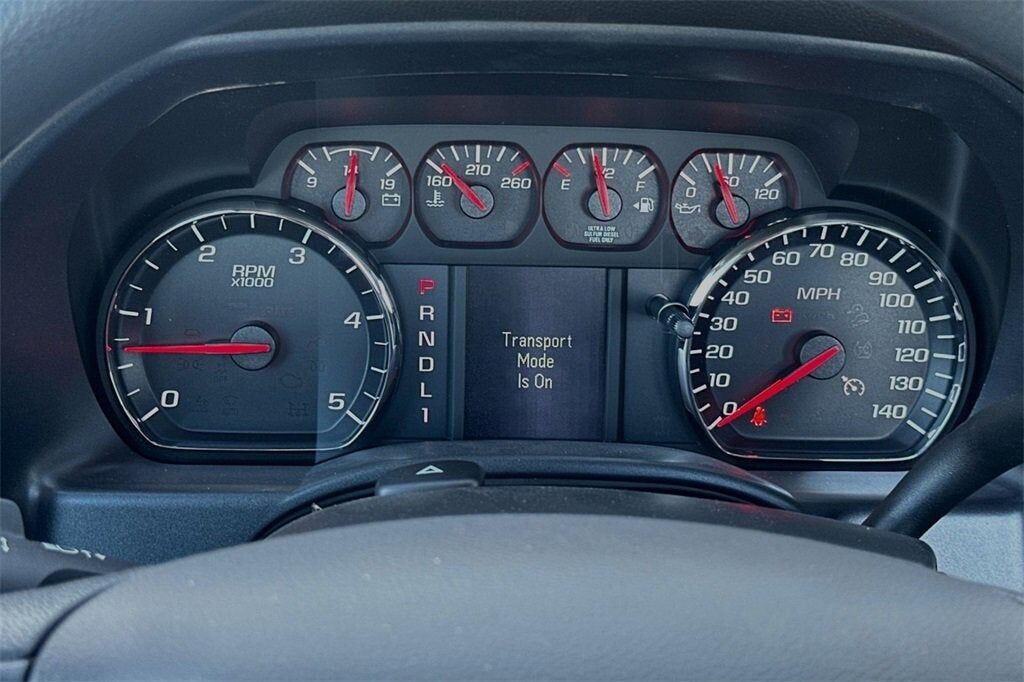

Driver Information Center 3.5-inch diagonal monochromatic display provides warning messages and basic vehicle information
Floor covering Graphite-colored rubberized-vinyl

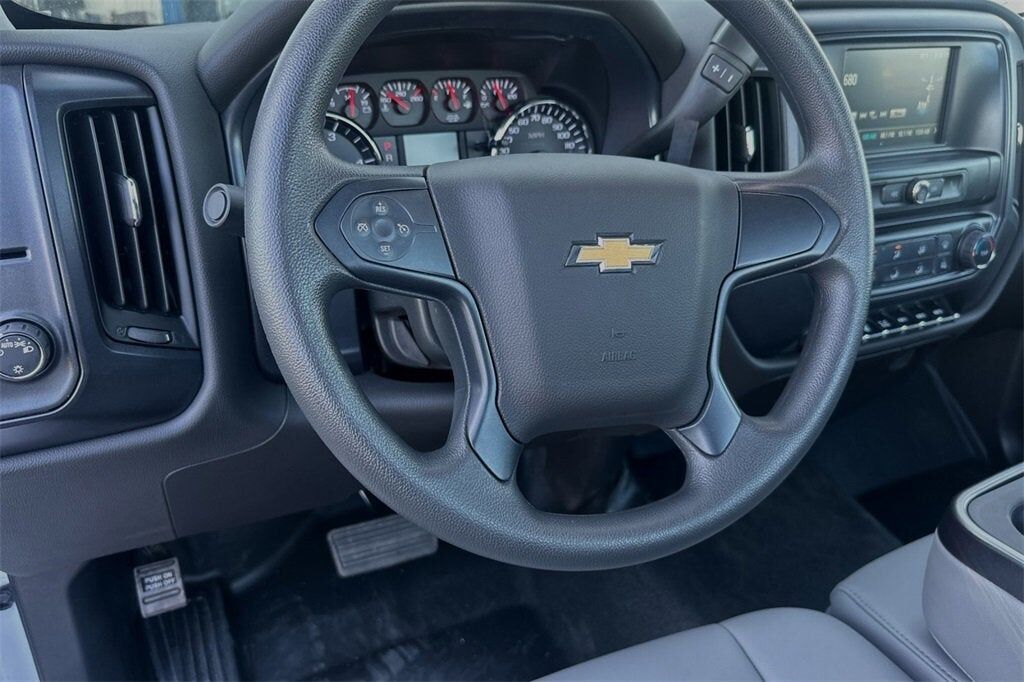

Steering wheel urethane

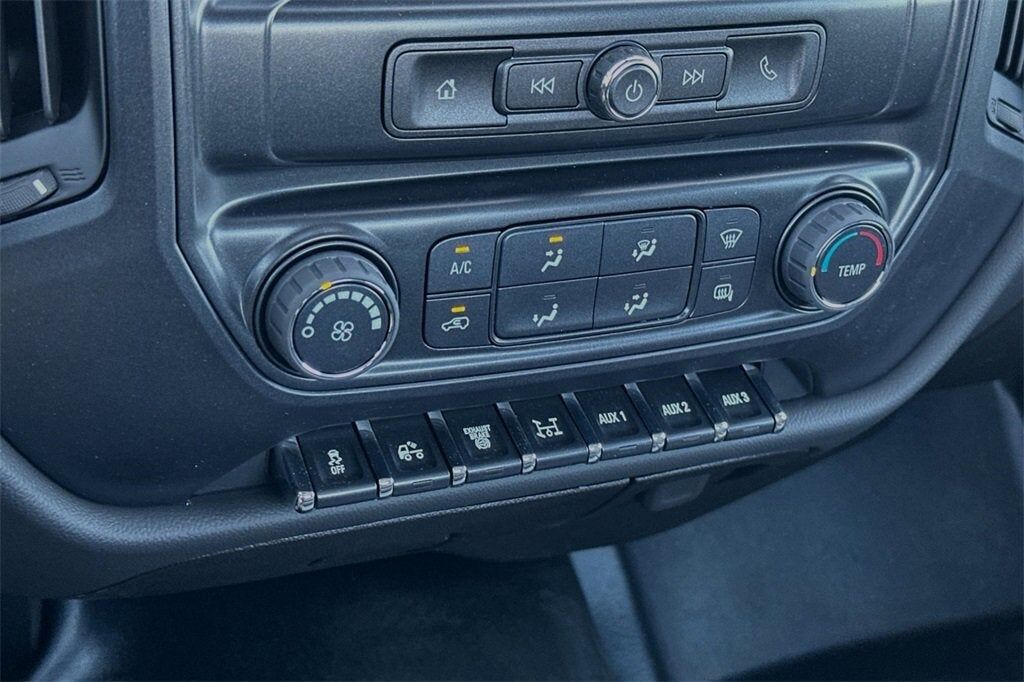

Upfitter switch kit provides up to 4-30 amp circuits to facilitate installation of aftermarket electrical accessories located on the instrument panel
Steering column manual Tilt-Wheel

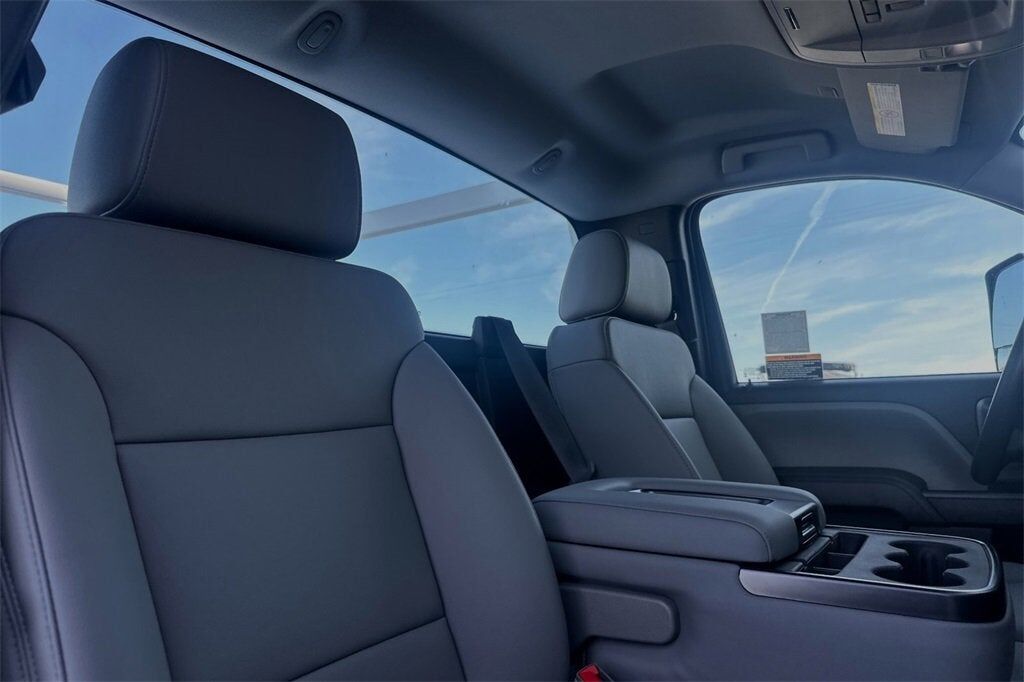

Seats front 40/20/40 split-bench 3-passenger driver and front passenger recline with outboard head restraints and center fold-down armrest with storage. Vinyl has fixed lumbar and cloth has manually adjustable driver lumbar. (STD)
Mirror inside rearview manual day/night
Seat Belt Black
Dark Ash seats with Jet Black interior accents Vinyl seat trim
Back-up alarm calibration This calibration will allow installation of an aftermarket back-up alarm by disabling rear perimeter lighting
Chevrolet Connected Access capable
Power outlet 110-volt AC
Remote Keyless Entry

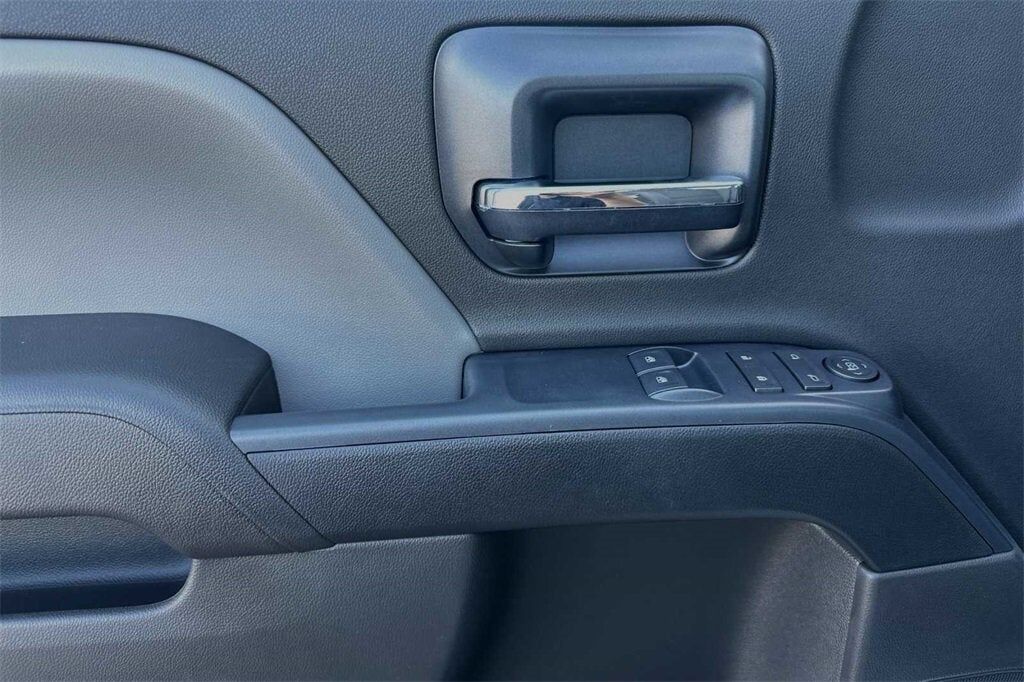

Windows power with driver express up and down and express down on all other windows
Emissions 50 state certification
Front suspension 6250 lb. (2835 kg) multi-leaf includes shock absorbers (Not available with rear air suspensions.) (STD)
Brakes hydraulic heavy duty Bosch/Meritor/Wabco system with 4-channel (ABS) (Includes (J69) driveline park brake.)
Axle Open rear axle non-locking rear
Capped Fuel Fill
Front axle 6250 lb. (2835 kg) Dana Spicer D800-N "I"-beam non-driving (Requires (FTW) 6250 lb. front suspension. Includes (G68) rear shock absorbers. Not available with rear air suspensions.)
Steering power (Bosch S2 8014 Plus)
Fuel tank rear only 40 gallon mounted between frame side rails and behind rear axle
Emissions USA 50 State certified
Rear wheel drive
Incomplete vehicle
Fuel diesel B20
Axle lubricant rear synthetic oil EmGard FE -75W-90
Rear axle 4.10 ratio Max road speed: 79 MPH
Shock Absorbers rear (Included with (FTC) 6250 lb. front axle.)
Trailering provisions trailering wire harness only trailer combined (Stop/Tail/Turn) connection socket and harness mounted at rear of frame.
Batteries heavy-duty dual 1100 cold-cranking amps includes battery box mounted to left side under cab
Exhaust brake
Trailer brake controller integrated
DPF diesel particulate filter manual regeneration customer regeneration will not be allowed until the DPF load percentage has reached 100% full and a driver information center (DIC) message has been shown
Axle to End of Frame 63"
Rear axle 13500 lb. (6124 kg) Dana Spicer S14-110 single reduction
Front suspension 6250 lb. (2835 kg) multi-leaf includes shock absorbers (STD)
Battery top post threaded battery jump start stud (located on battery box)
Shock Absorbers rear
30000 lb. GCWR (13607 kg)
Exhaust system rear exit

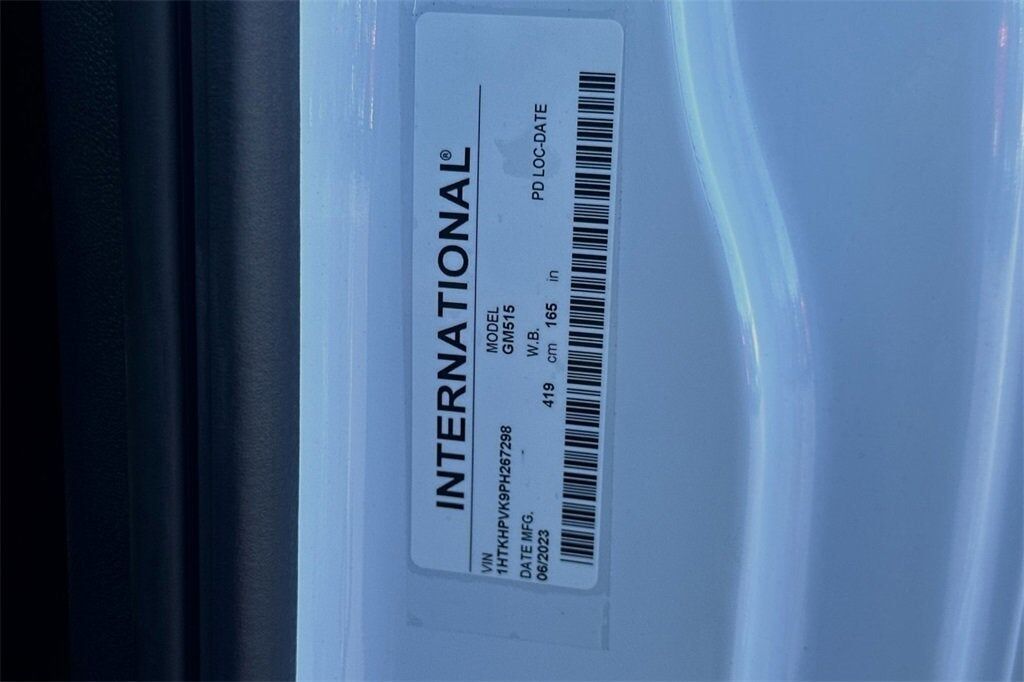

Wheelbase 165" (419.1 cm) 84" CA

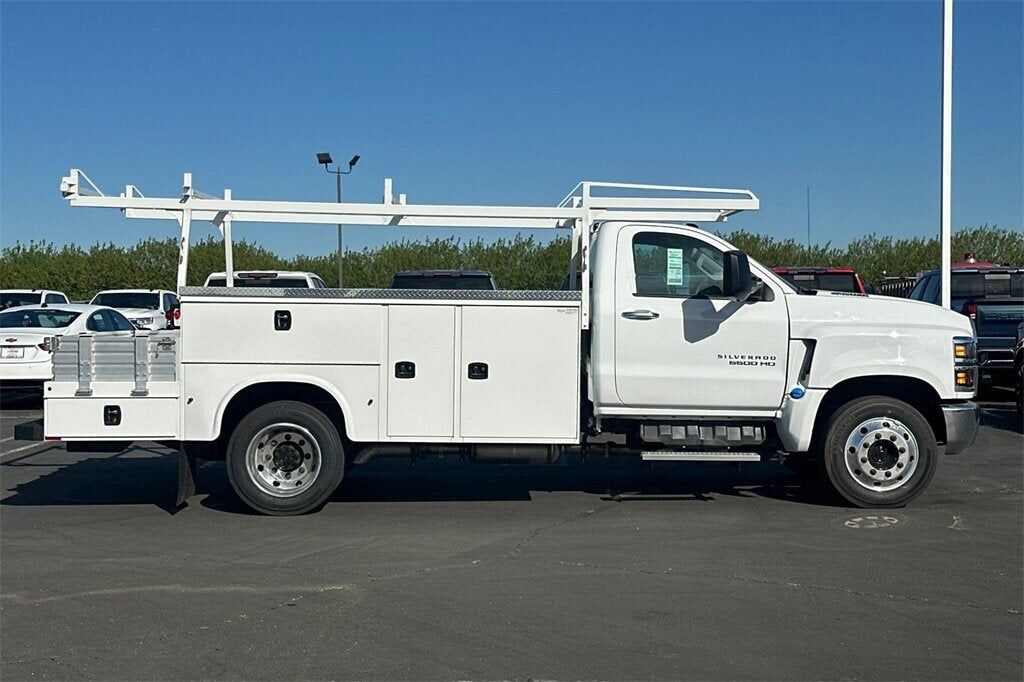

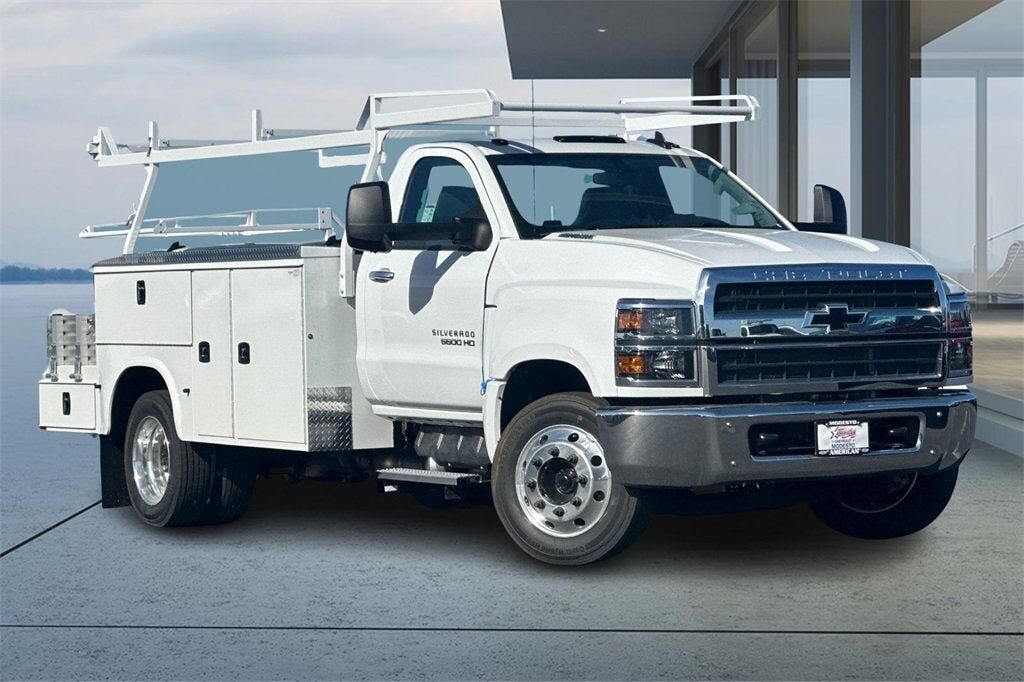

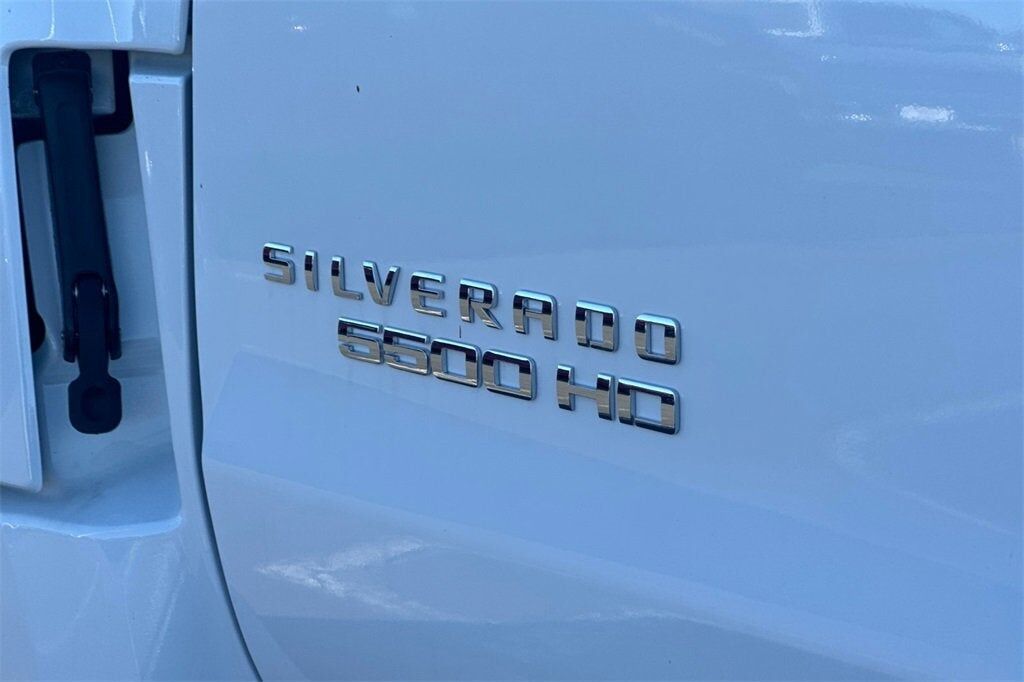

5500 HD Series
Rear suspension 13500 lb. (6123 kg) multi-leaf vari-rate
GVWR 19500 lb. (8845 kg)
Front axle 6250 lb. (2835 kg) Dana Spicer D800-N "I"-beam non-driving Includes (G68) rear shock absorbers.
Alternator 220 amps
Recovery hooks front frame-mounted black
Work Truck Preferred Equipment Group includes standard equipment
Daytime Running Lamps with automatic exterior lamp control
Airbags Single-stage frontal airbags for driver and front outboard passenger; Seat-mounted side-impact airbags for driver and front outboard passenger; Head-curtain airbags for front outboard seating positions; Includes airbag deactivation switch for front outboard passenger airbag (Always use seat belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)

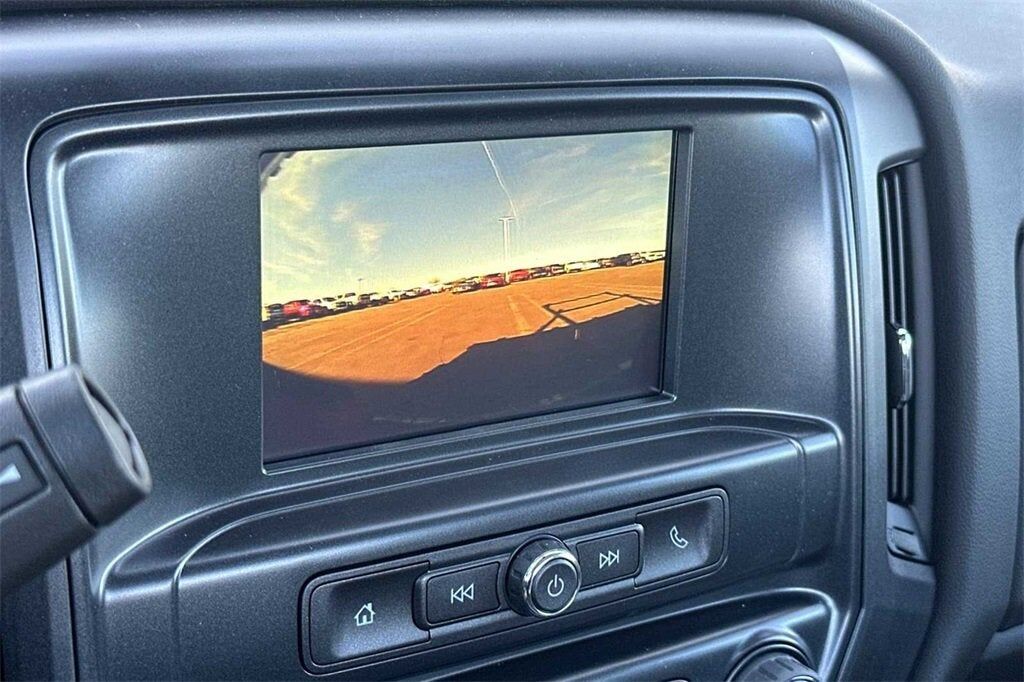

Rear Vision Camera display integrated into Radio (Shipped loose in cab for upfitter installation.)
Airbag deactivation switch frontal passenger-side (Included and only available with (AY0) airbags.)
Horn dual-note
Backup alarm (Includes (SFW) SEO Calibration for backup alarm.
OnStar and Chevrolet connected services capable Includes compass in instrument cluster.
StabiliTrak Electronic Stability Control System with Traction Control includes Electronic Trailer Sway Control and Hill Start Assist
Brake parking driveline park brake system
Traction control
