Option & Equipment
Audio system feature 4-speaker system

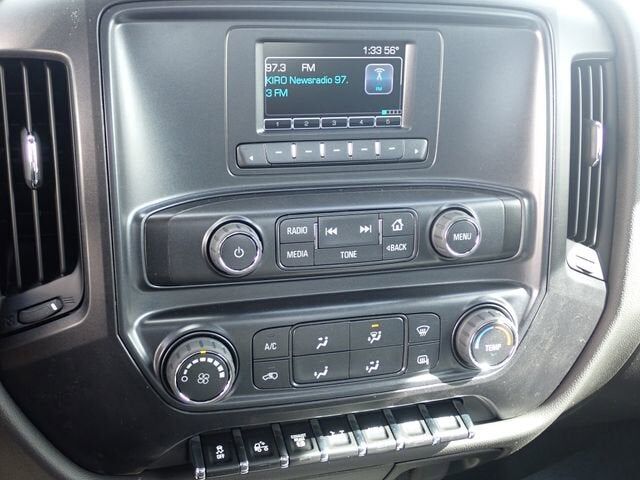

Audio system 4.2" diagonal color display AM/FM stereo with USB port and auxiliary jack (Requires (AE7) front 40/20/40 split-bench seat. Not available with (UE1) OnStar or (U2K) SiriusXM Radio.) (STD)
SiriusXM delete

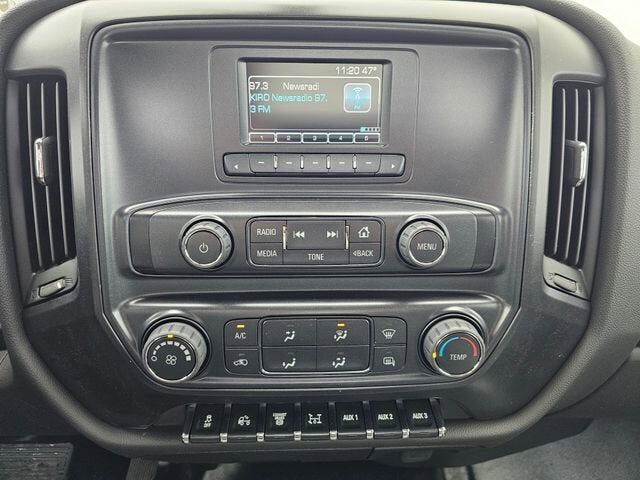

Audio system 4.2" diagonal color display AM/FM stereo with USB port and auxiliary jack (STD)
Glass solar absorbing tinted
Grille guard screen insect protection (mounted behind grille)
Antenna fixed mast
Spare tire delete (STD)
Wheel spare delete
Door handles Black
Grille base molded in color Black
Lamps cargo area cab mounted with switch on center switch bank
Assist steps
Lamps Smoked Amber roof marker
Headlamps halogen projector-beam
Wheels 19.5" x 6.75" steel Black painted 8-holes hub piloted (STD)
Front fender extension painted body color
Paint solid
Tires rear 225/70R19.5G traction blackwall Goodyear Max Axle Load: 15000 lb.
Lamps rear LED stop/turn and license plate with incandescent backup lamps
Bumper front chrome
License plate kit front
Paint Scheme Style 1
Mirrors outside black heated power-adjustable high-visibility vertical camper-style and lower convex spotter glass manual-folding. Convex glass is not heated and not power adjustable. 102" Wide Load
Tires front 225/70R19.5G highway blackwall Goodyear Max Axle Load: 7940 lb.
Grille guard screen stone protection (mounted to bumper)
Summit White
Visors driver and front passenger vinyl
Seat trim Vinyl

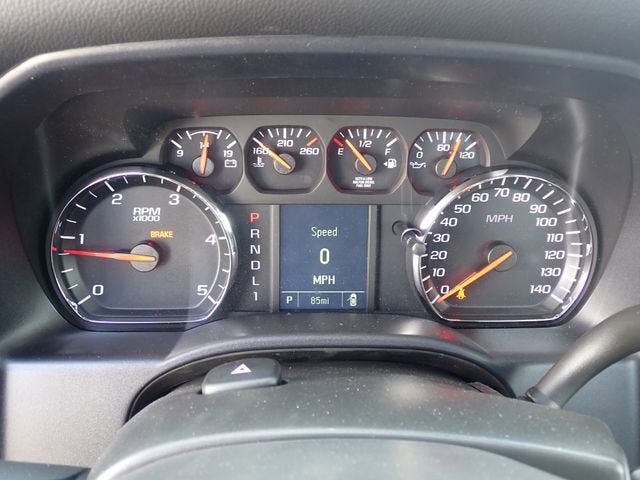

Speedometer miles/kilometers
Interior trim Jet Black/Dark Ash (Required and only available with (H2Q/H2R) Dark Ash seats with Jet Black interior accents.)

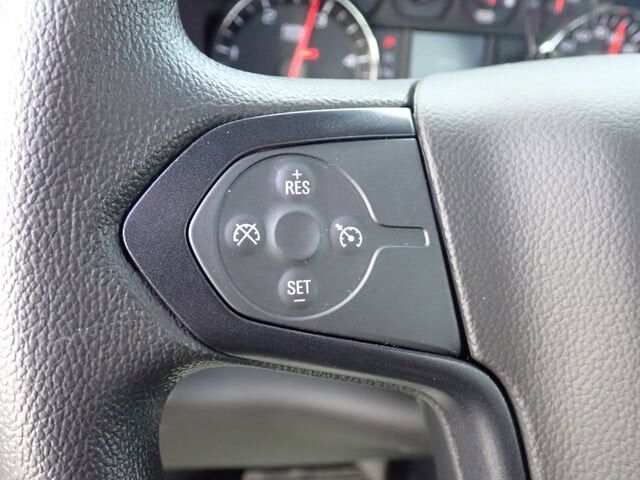

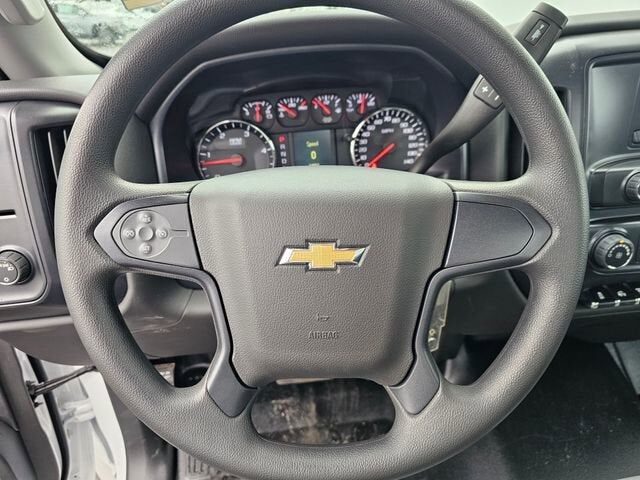

Cruise control steering wheel-mounted
Door locks power

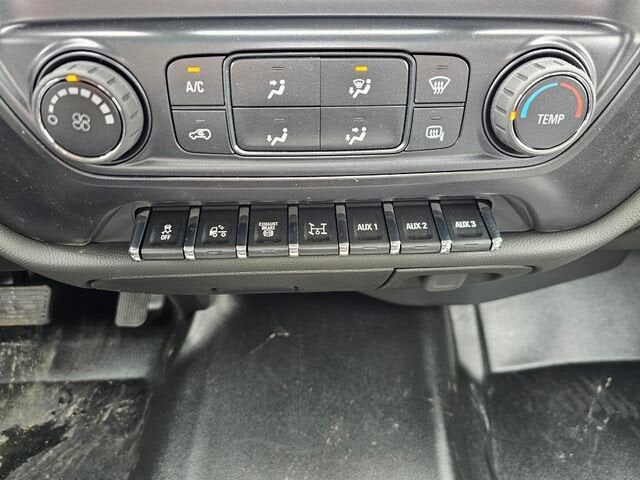

Upfitter switch kit provides up to 4-30 amp circuits to facilitate installation of aftermarket electrical accessories located on the instrument panel
Air conditioning single-zone
Assist handle front passenger and driver on A-pillars
Steering column manual Tilt-Wheel

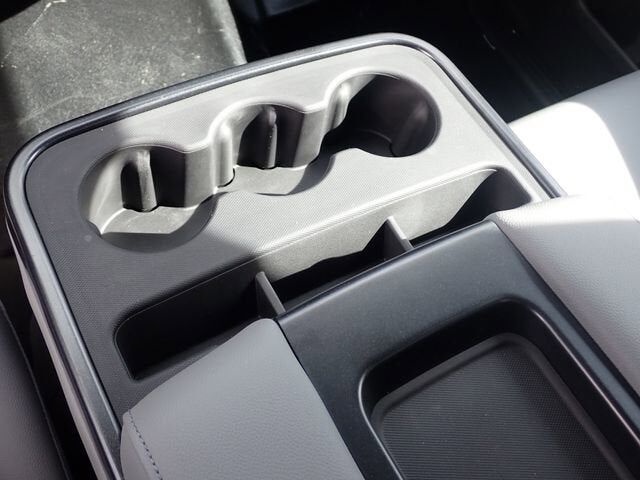

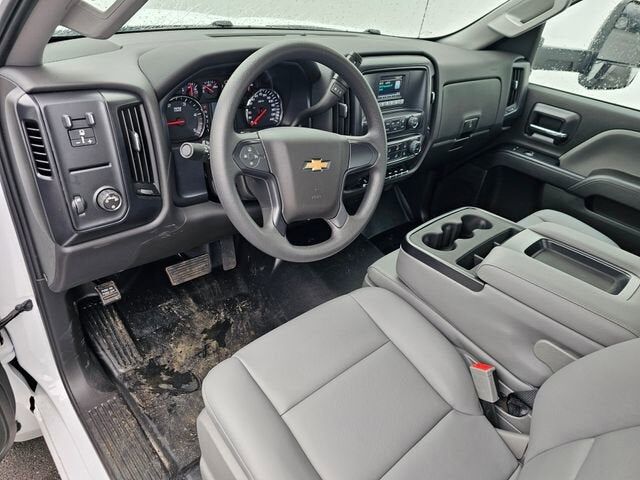

Seats front 40/20/40 split-bench 3-passenger driver and front passenger recline with outboard head restraints and center fold-down armrest with storage. Vinyl has fixed lumbar and cloth has manually adjustable driver lumbar. (STD)
Mirror inside rearview manual day/night
Seat Belt Black
Driver Information Center 3.5-inch diagonal monochromatic display provides warning messages and basic vehicle information
Floor covering Graphite-colored rubberized-vinyl

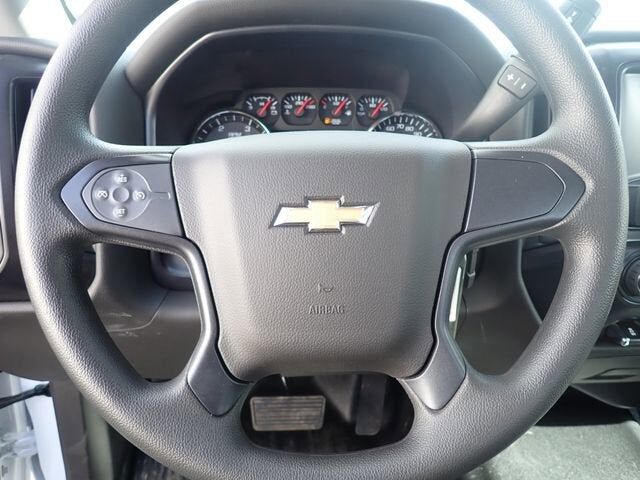

Steering wheel urethane
Dark Ash seats with Jet Black interior accents Vinyl seat trim
Back-up alarm calibration This calibration will allow installation of an aftermarket back-up alarm by disabling rear perimeter lighting

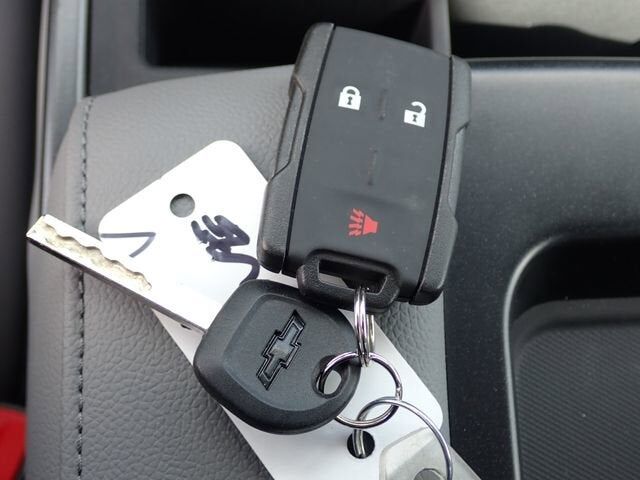

Remote Keyless Entry

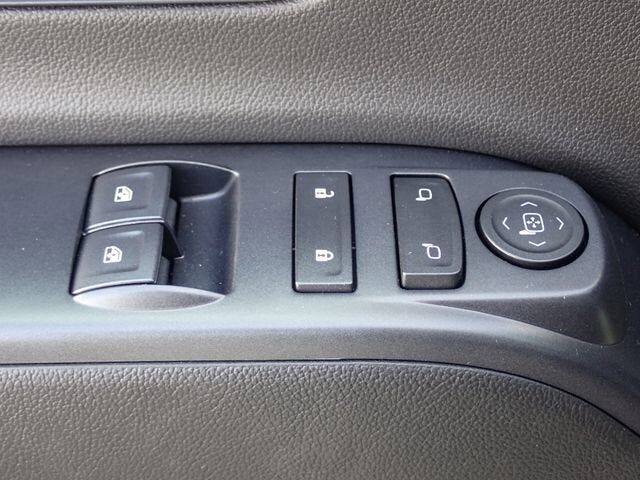

Windows power with driver express up and down and express down on all other windows
Wiring harness accessory for 9L7 wiring to junction block Includes connector and blunt cut wires
Emissions 50 state certification
Front suspension 6250 lb. (2835 kg) multi-leaf includes shock absorbers (Not available with rear air suspensions.) (STD)
Alternator 150 amps
Brakes hydraulic heavy duty Bosch/Meritor/Wabco system with 4-channel (ABS) (Includes (J69) driveline park brake.)
Axle Open rear axle non-locking rear
Capped Fuel Fill
Rear suspension 11000 lb. (4990 kg) multi-leaf vari-rate (Not available with air suspension.) (STD)
Shock Absorbers rear (Included with (FTC) 6250 lb. front axle.)
Trailering provisions trailering wire harness only trailer combined (Stop/Tail/Turn) connection socket and harness mounted at rear of frame.
Front axle 6250 lb. (2835 kg) Dana Spicer D800-N "I"-beam non-driving (Requires (FTW) 6250 lb. front suspension. Includes (G68) rear shock absorbers. Not available with rear air suspensions.)
Steering power (Bosch S2 8014 Plus)
Axle to End of Frame 49" (Requires wheelbase (ED5) 201" (ED9) 165" (ER2) 189" or (FQT) 141". Not available with (G40) (GP1) or (GP8) rear air suspension.)
Emissions USA 50 State certified
Rear wheel drive
Incomplete vehicle
Exhaust brake

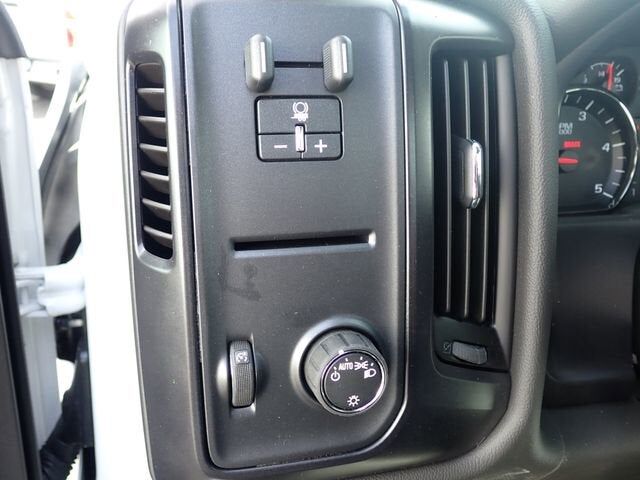

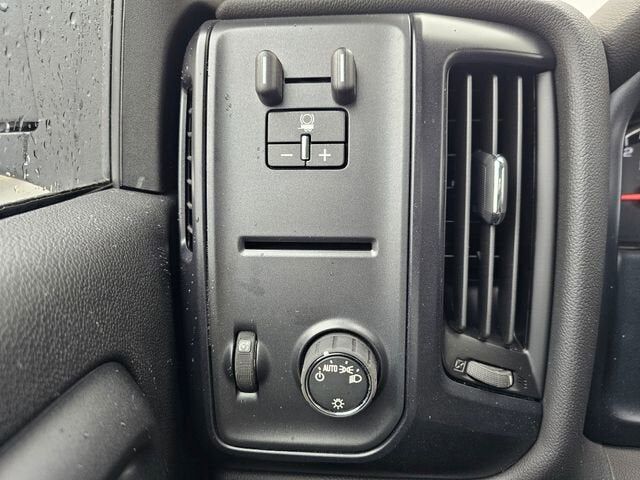

Trailer brake controller integrated
Fuel diesel B20
Rear axle 11000 lb. (4999 kg) Dana Spicer S14-110 single reduction
Axle lubricant rear synthetic oil EmGard FE -75W-90
Rear axle 4.10 ratio Max road speed: 79 MPH
Batteries heavy-duty dual 1300 cold-cranking amps includes battery box mounted to left side under cab
Additional fuel 5 gallons
26000 lb. GCWR (11793 kg)
4500 HD Series
DPF diesel particulate filter manual regeneration customer regeneration will not be allowed until the DPF load percentage has reached 100% full and a driver information center (DIC) message has been shown
Front suspension 6250 lb. (2835 kg) multi-leaf includes shock absorbers (STD)
Battery top post threaded battery jump start stud (located on battery box)
Axle limited slip Dana Spicer Truetrac torque proportioning limited slip
Shock Absorbers rear
Fuel tank front and rear 65 gallon total
Exhaust system rear exit
Wheelbase 165" (419.1 cm) 84" CA
Rear suspension 11000 lb. (4990 kg) multi-leaf vari-rate (STD)
Front axle 6250 lb. (2835 kg) Dana Spicer D800-N "I"-beam non-driving Includes (G68) rear shock absorbers.
GVWR 16000 lb. (7257 kg)
Recovery hooks front frame-mounted black
Front stabilizer bar
Work Truck Preferred Equipment Group includes standard equipment
Daytime Running Lamps with automatic exterior lamp control
Horn single-note
Airbags Single-stage frontal airbags for driver and front outboard passenger; Seat-mounted side-impact airbags for driver and front outboard passenger; Head-curtain airbags for front outboard seating positions; Includes airbag deactivation switch for front outboard passenger airbag (Always use seat belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)

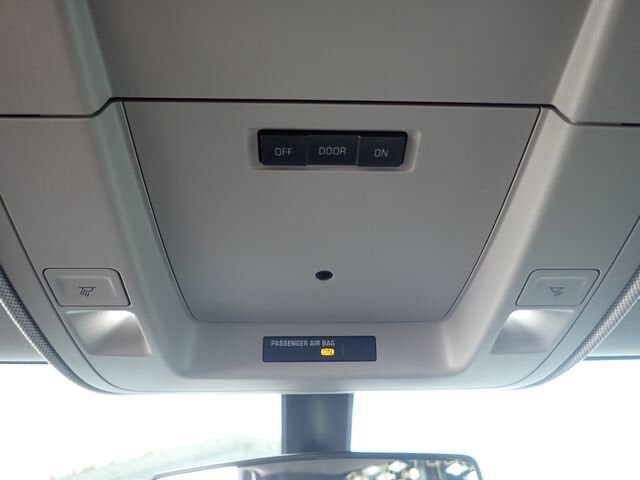

Airbag deactivation switch frontal passenger-side (Included and only available with (AY0) airbags.)

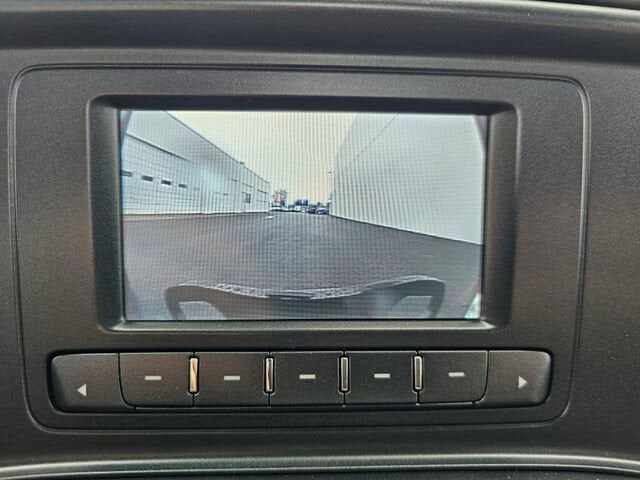

Rear Vision Camera display integrated into Radio (Shipped loose in cab for upfitter installation.)
OnStar delete
Backup alarm (Includes (SFW) SEO Calibration for backup alarm.
StabiliTrak Electronic Stability Control System with Traction Control includes Electronic Trailer Sway Control and Hill Start Assist
Brake parking driveline park brake system
Traction control
