Option & Equipment
Audio system feature 4-speaker system
Audio system 4.2" diagonal color display AM/FM stereo with USB port and auxiliary jack (Requires (AE7) front 40/20/40 split-bench seat. Not available with (UE1) OnStar or (U2K) SiriusXM Radio.) (STD)
SiriusXM delete

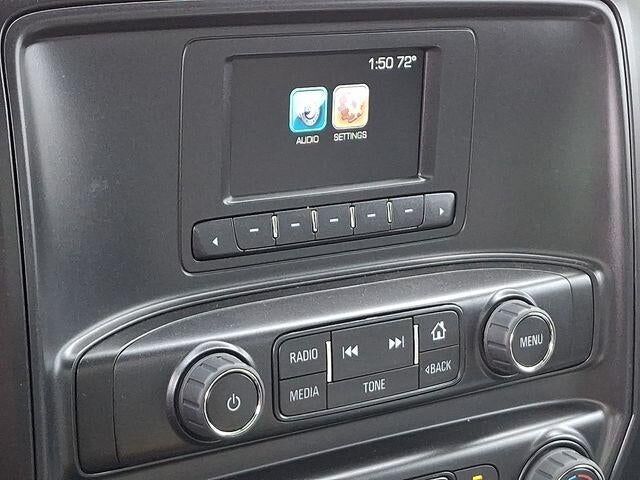

Audio system 4.2" diagonal color display AM/FM stereo with USB port and auxiliary jack (STD)
Antenna fixed mast
Spare tire delete (STD)
Wheel spare delete
Door handles Black
Lamps rear stop/turn/backup (1-piece assembly) with license plate light
Glass solar absorbing tinted
Grille guard screen insect protection (mounted behind grille)
Front fender extension painted body color
Lamps cargo area cab mounted with switch on center switch bank
Assist steps
Lamps Smoked Amber roof marker

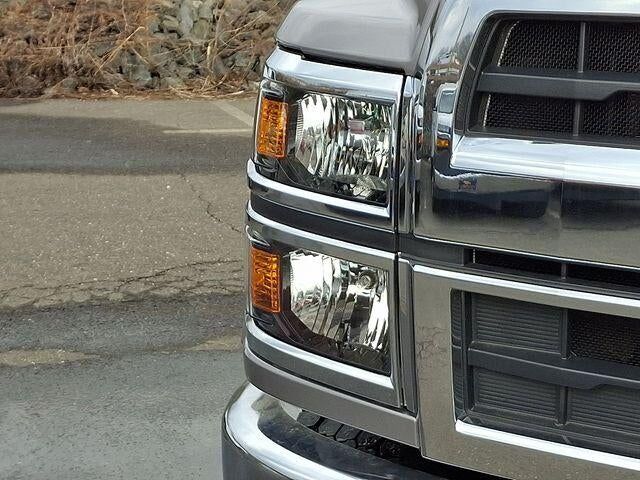

Headlamps halogen projector-beam
Tires front 225/70R19.5G traction blackwall Pirelli Max Axle Load: 7940 lb.

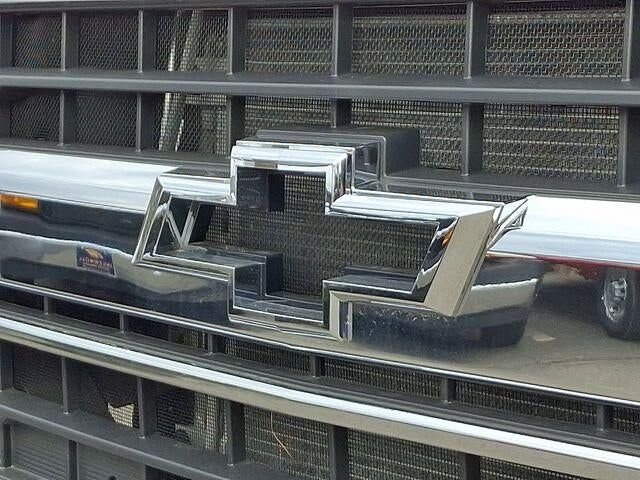

Grille chrome
Bumper front chrome
Provision for cab roof-mounted lamp/beacon provides an overhead console mounted switch and electrical wiring tucked beneath the headliner for a body upfitter to connect a body-mounted warning or emergency lamp

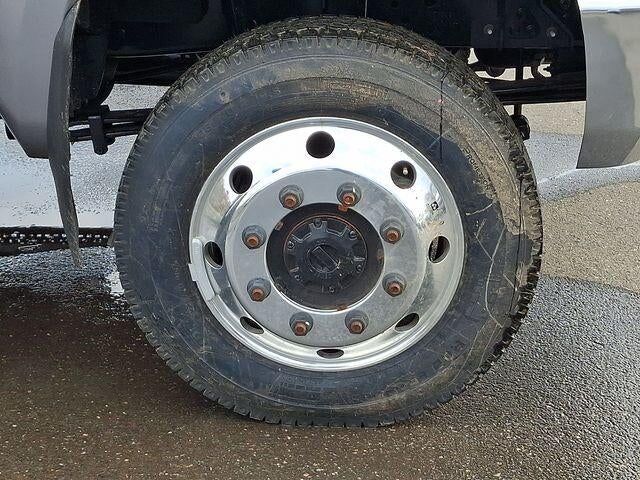

Wheels 19.5" x 6.75" 4-aluminum wheels 8-holes hub piloted Dura-Bright finish is on the outside of the wheel
Paint solid
Auxiliary harness 3' for headlamps and turn signals
Mirrors outside heated power-adjustable vertical trailering upper glass manual-folding and extending black. Includes integrated turn signal indicators consisting of 51 square inch flat mirror surface positioned over a 24.5 square inch convex mirror surface with a common head and lower convex spotter glass (convex glass is not heated and not power adjustable) and addition of Auxiliary cargo lamp for backing up (helps to see trailer when backing up with a trailer) and amber auxiliary clearance lamp
Tires rear 225/70R19.5G traction blackwall Pirelli Max Axle Load: 15000 lb.
Grille guard screen stone protection (mounted to bumper)
Sterling Gray Metallic
License plate kit front
Electrical Provisions rear of frame upfitter body builder wiring includes Sealed Connectors for Tail/Amber Turn/Marker/Backup/Accessory Power/Ground and Sealed Connector for Stop/Turn
Mud Flaps front
Speedometer miles/kilometers
Interior trim Jet Black/Dark Ash (Required and only available with (H2Q/H2R) Dark Ash seats with Jet Black interior accents.)
Cruise control steering wheel-mounted
Door locks power
Air conditioning single-zone
Visors driver and front passenger vinyl
Seat trim Vinyl
Assist handle front passenger and driver on A-pillars
Floor covering Graphite-colored rubberized-vinyl

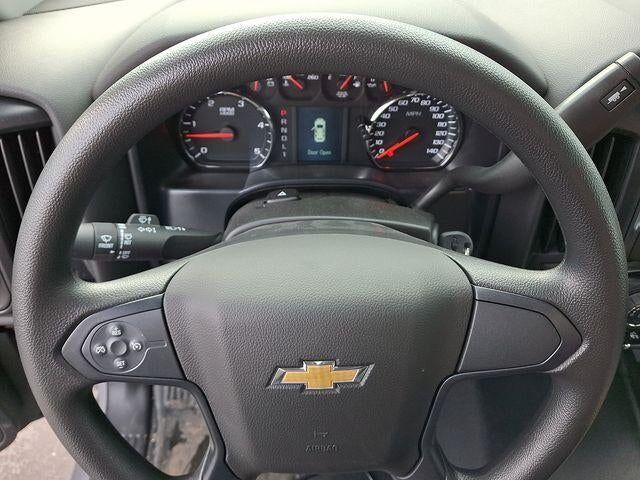

Steering wheel urethane

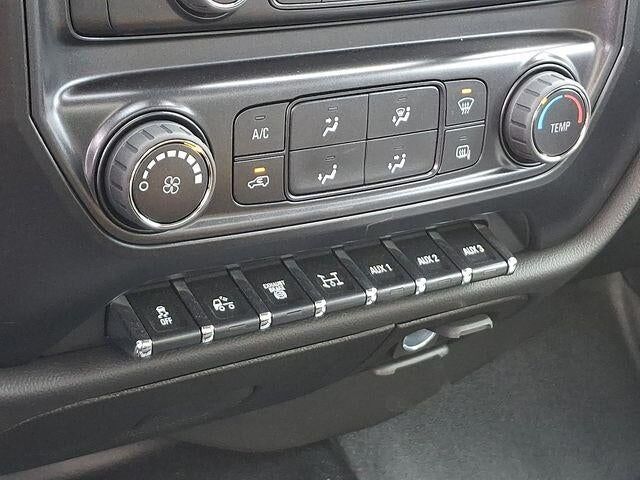

Upfitter switch kit provides up to 4-30 amp circuits to facilitate installation of aftermarket electrical accessories located on the instrument panel
Steering column manual Tilt-Wheel

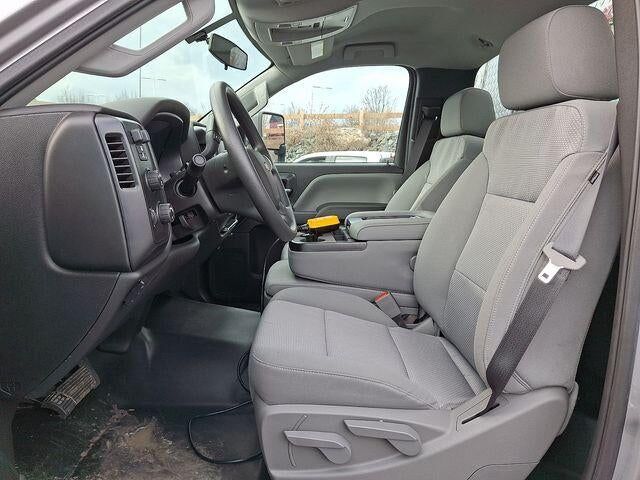

Seats front 40/20/40 split-bench 3-passenger driver and front passenger recline with outboard head restraints and center fold-down armrest with storage. Vinyl has fixed lumbar and cloth has manually adjustable driver lumbar. (STD)
Driver Information Center 3.5-inch diagonal monochromatic display provides warning messages and basic vehicle information (Included and only available with (IO3) Audio System with 4.2" diagonal color display or (IOR) Chevrolet Infotainment System with 7" diagonal color touch-screen.)
Mirror inside rearview manual day/night
Seat Belt Black
Dark Ash seats with Jet Black interior accents Cloth seat trim includes manually adjustable driver lumbar
Back-up alarm calibration This calibration will allow installation of an aftermarket back-up alarm by disabling rear perimeter lighting
Power outlet 110-volt AC
Remote Keyless Entry

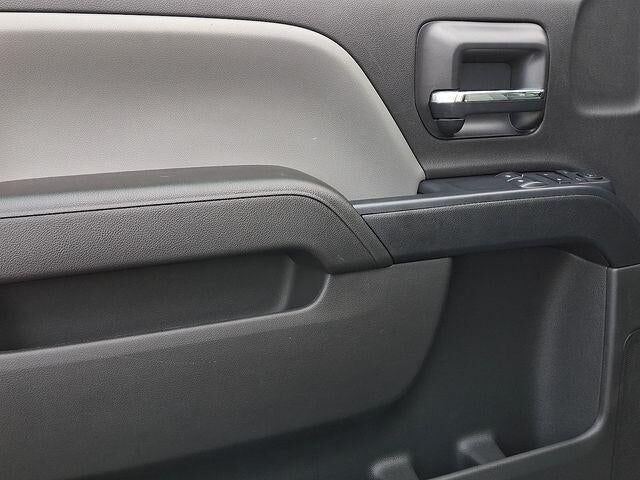

Windows power with driver express up and down and express down on all other windows
Exhaust system right side exit behind rear wheels (Requires (ED9) 165" wheelbase.)
Brakes hydraulic heavy duty Bosch/Meritor/Wabco system with 4-channel (ABS) (Includes (J69) driveline park brake.)
Axle Open rear axle non-locking rear
Capped Fuel Fill
Steering power (Bosch S2 8014 Plus)
Front suspension 7500 lb. (3402 kg) multi-leaf includes shock absorbers
Axle to End of Frame 49" (Requires wheelbase (ED5) 201" (ED9) 165" or (ER2) 189". Not available with (G40) (GP1) or (GP8) rear air suspension.)

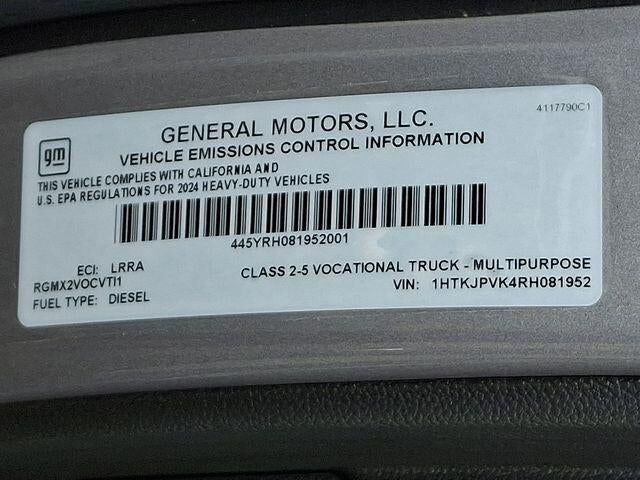

Emissions 50 state certification
Emissions USA 50 State certified
Incomplete vehicle
Fuel diesel B20
Axle lubricant rear synthetic oil EmGard FE -75W-90
Wheelbase 165" (419.1 cm) 84" CA (Requires (F0C) 49" axle to end of frame (F0D) 63" axle to end of frame or (F0K) 91" axle to end of frame and (NPR) right side exit exhaust behind rear wheels. Requires (PCJ) Vocational Specific Heavy Suspension Package when ordering (FTA) 7000 lb. Front axle/(FK6) 7000 lb. Front suspension or (FTL) 8000 lb. Front axle/(FSN) 8000 lb. Front suspension and/or (FU7) 15500 lb. rear suspension.) (STD)
Trailering provisions trailering wire harness only trailer combined (Stop/Tail/Turn) connection socket and harness mounted at rear of frame.
Rear axle 4.30 ratio Max road speed: 75 MPH
Front axle 7500 lb. Dana Spicer 60-256 single-reduction front driving
Axle lubricant front synthetic oil EmGard FE-75W-90
Exhaust brake
Four wheel drive

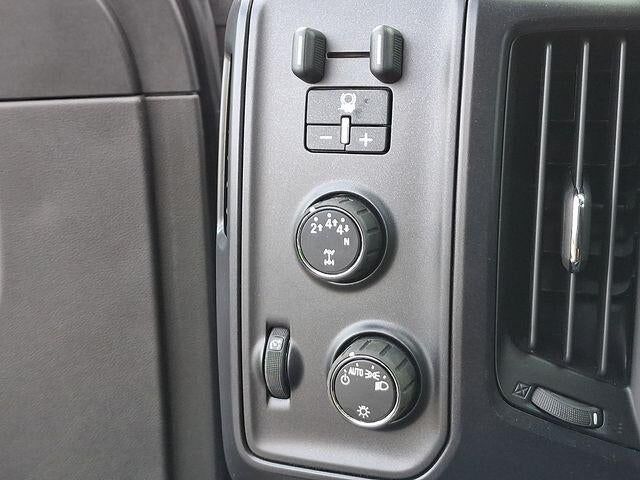

Trailer brake controller integrated
Rear axle 13500 lb. (6124 kg) Dana Spicer S14-110 single reduction
Battery top post threaded battery jump start stud (located on battery box)
Axle limited slip Dana Spicer Truetrac torque proportioning limited slip
Shock Absorbers rear
Batteries heavy-duty dual 1300 cold-cranking amps includes battery box mounted to left side under cab
30000 lb. GCWR (13607 kg)
Fuel tank front and rear 65 gallon total
Wheelbase 165" (419.1 cm) 84" CA (STD)
Additional fuel 5 gallons
DPF diesel particulate filter manual regeneration customer regeneration will not be allowed until the DPF load percentage has reached 100% full and a driver information center (DIC) message has been shown
5500 HD Series
Rear suspension 13500 lb. (6123 kg) multi-leaf vari-rate
GVWR 19500 lb. (8845 kg)
Skid Plate steel frame-mounted protects the transfer case from the ground
Alternator 220 amps
Recovery hooks front frame-mounted black
Front stabilizer bar
Work Truck Preferred Equipment Group includes standard equipment
Snow Plow Prep Package includes (UNL) auxiliary harness for headlamps and turn signals (KW5) 220-amp alternator forward lamp wiring harness and (TRW) provision for cab roof mounted lamp/beacon
Daytime Running Lamps with automatic exterior lamp control
Airbags Single-stage frontal airbags for driver and front outboard passenger; Seat-mounted side-impact airbags for driver and front outboard passenger; Head-curtain airbags for front outboard seating positions; Includes airbag deactivation switch for front outboard passenger airbag (Always use seat belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)

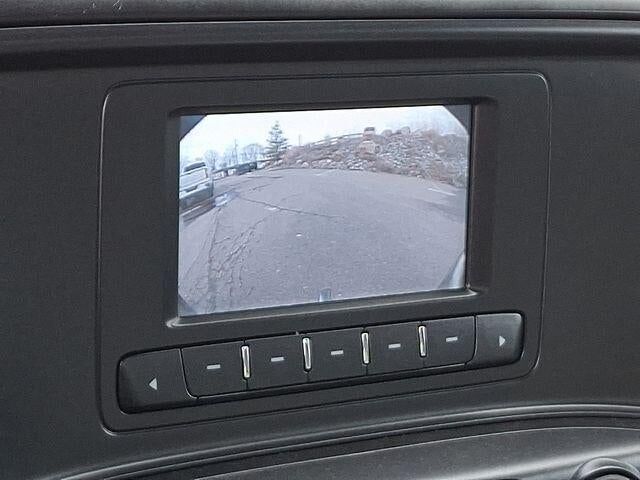

Rear Vision Camera display integrated into Radio (Shipped loose in cab for upfitter installation.)
OnStar delete
Airbag deactivation switch frontal passenger-side (Included and only available with (AY0) airbags.)
Backup alarm (Includes (SFW) SEO Calibration for backup alarm.
Horn dual-note
StabiliTrak Electronic Stability Control System with Traction Control includes Electronic Trailer Sway Control and Hill Start Assist
Brake parking driveline park brake system
Traction control
Snow Plow Prep Package
