Option & Equipment
Audio system 4.2" diagonal color display AM/FM stereo with USB port and auxiliary jack (Requires (AE7) front 40/20/40 split-bench seat. Not available with (UE1) OnStar or (U2K) SiriusXM Radio.) (STD)
SiriusXM delete
6-speaker audio system

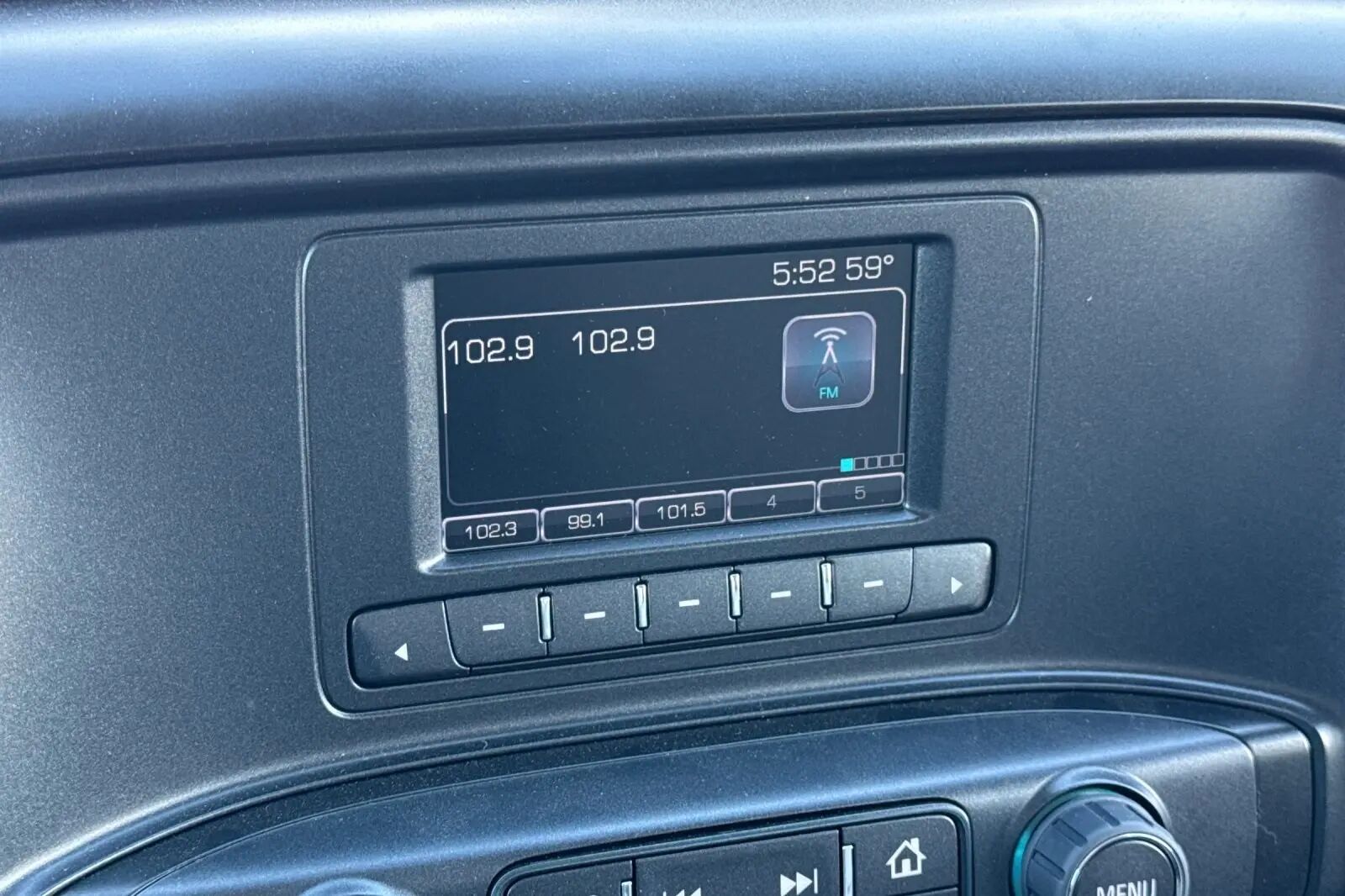

Audio system 4.2" diagonal color display AM/FM stereo with USB port and auxiliary jack (STD)
Lamps rear stop/turn/backup (1-piece assembly) with license plate light
Glass solar absorbing tinted
Grille guard screen insect protection (mounted behind grille)
Antenna fixed mast
Spare tire delete (STD)
Wheel spare delete
Door handles Black

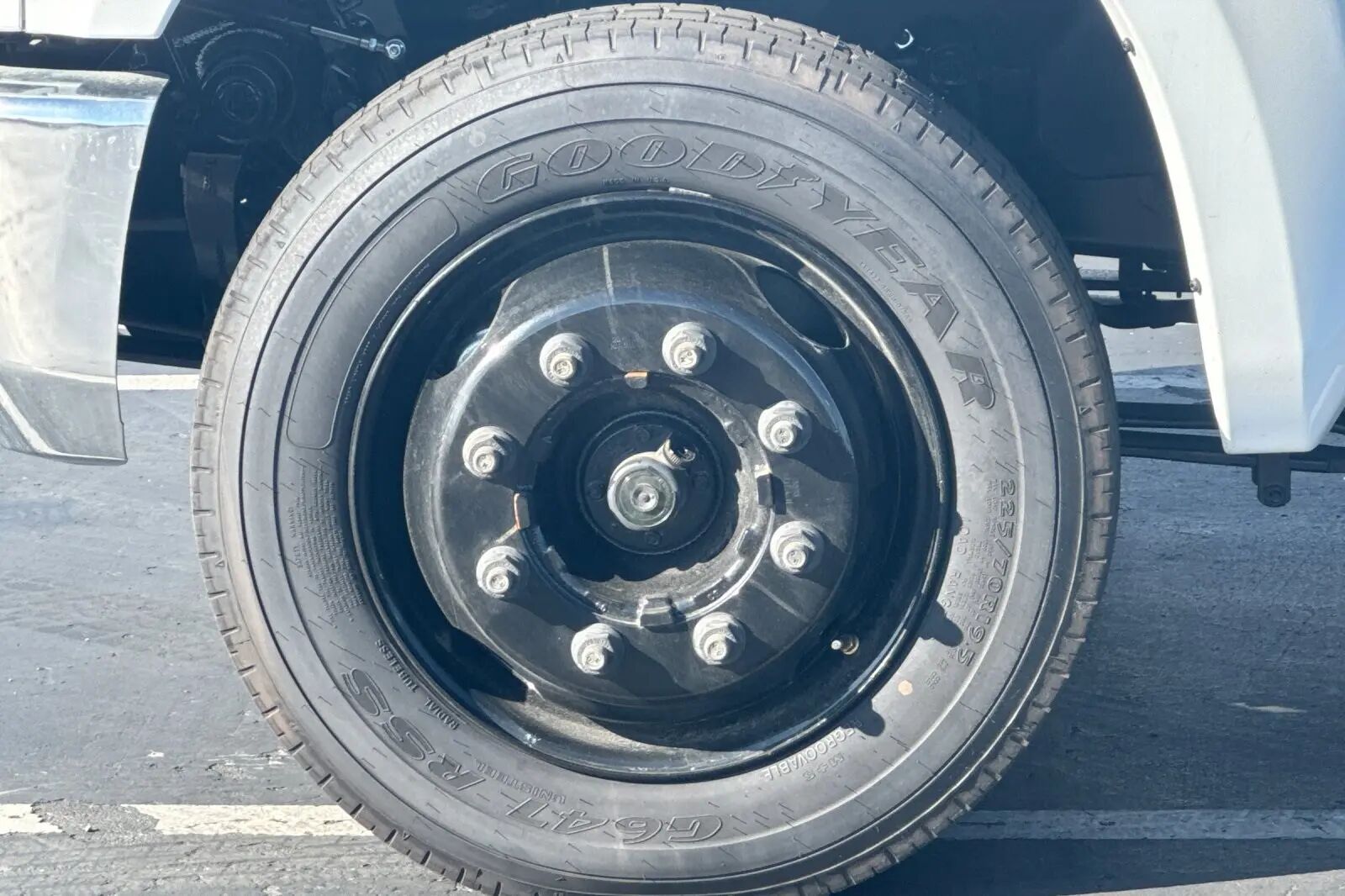

Wheels 19.5" x 6.75" steel Black painted 8-holes hub piloted (STD)
Front fender extension painted body color
Lamps cargo area cab mounted with switch on center switch bank
Assist steps
Lamps Smoked Amber roof marker
Headlamps halogen projector-beam
Paint solid

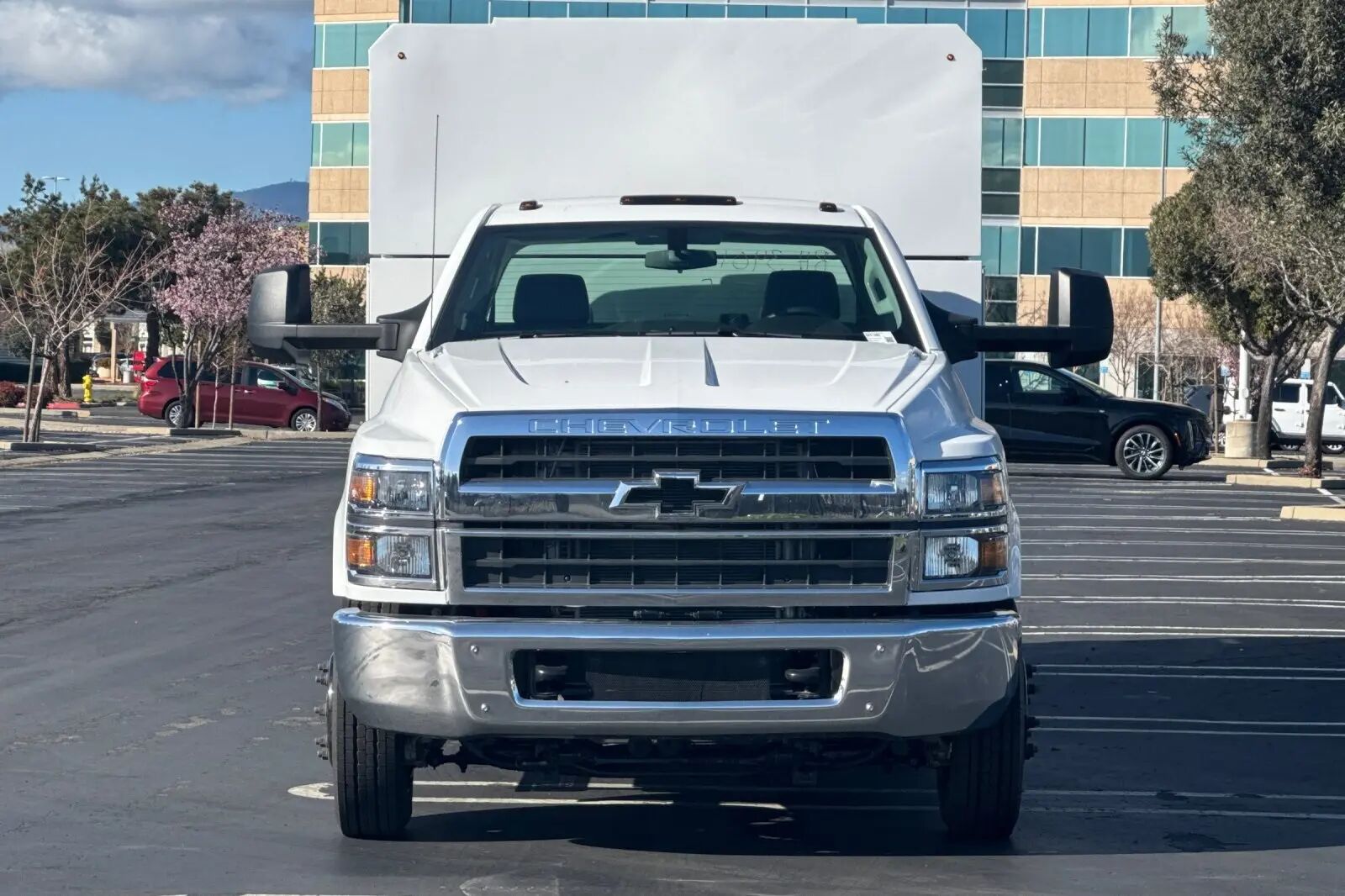

Grille chrome
Bumper front chrome
Tires rear 225/70R19.5G highway blackwall Goodyear Max Axle Load: 15000 lb.
Grille guard screen stone protection (mounted to bumper)
Summit White
Oil seal for front hub Chicago Rawhide Nitrile for oil lubricated wheel bearings
License plate kit front
Electrical Provisions rear of frame upfitter body builder wiring includes Sealed Connectors for Tail/Amber Turn/Marker/Backup/Accessory Power/Ground and Sealed Connector for Stop/Turn
Mirrors outside black heated power-adjustable high-visibility vertical camper-style and lower convex spotter glass manual-folding. Convex glass is not heated and not power adjustable. 102" Wide Load
Tires front 225/70R19.5G highway blackwall Goodyear Max Axle Load: 7940 lb.
Visors driver and front passenger vinyl
Seat trim Vinyl

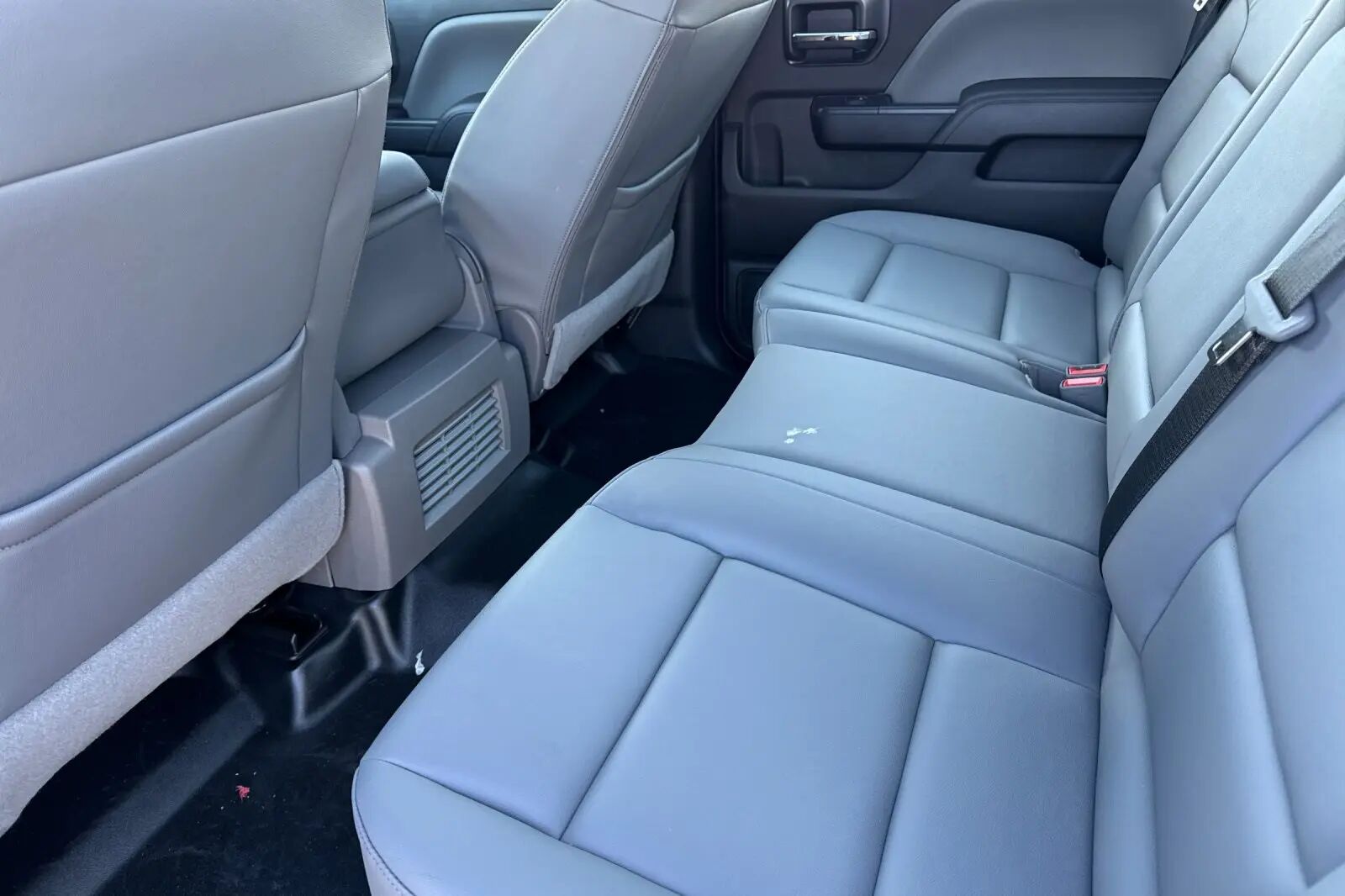

Seat rear 60/40 folding bench (folds up) 3-passenger (includes child seat top tether anchor)

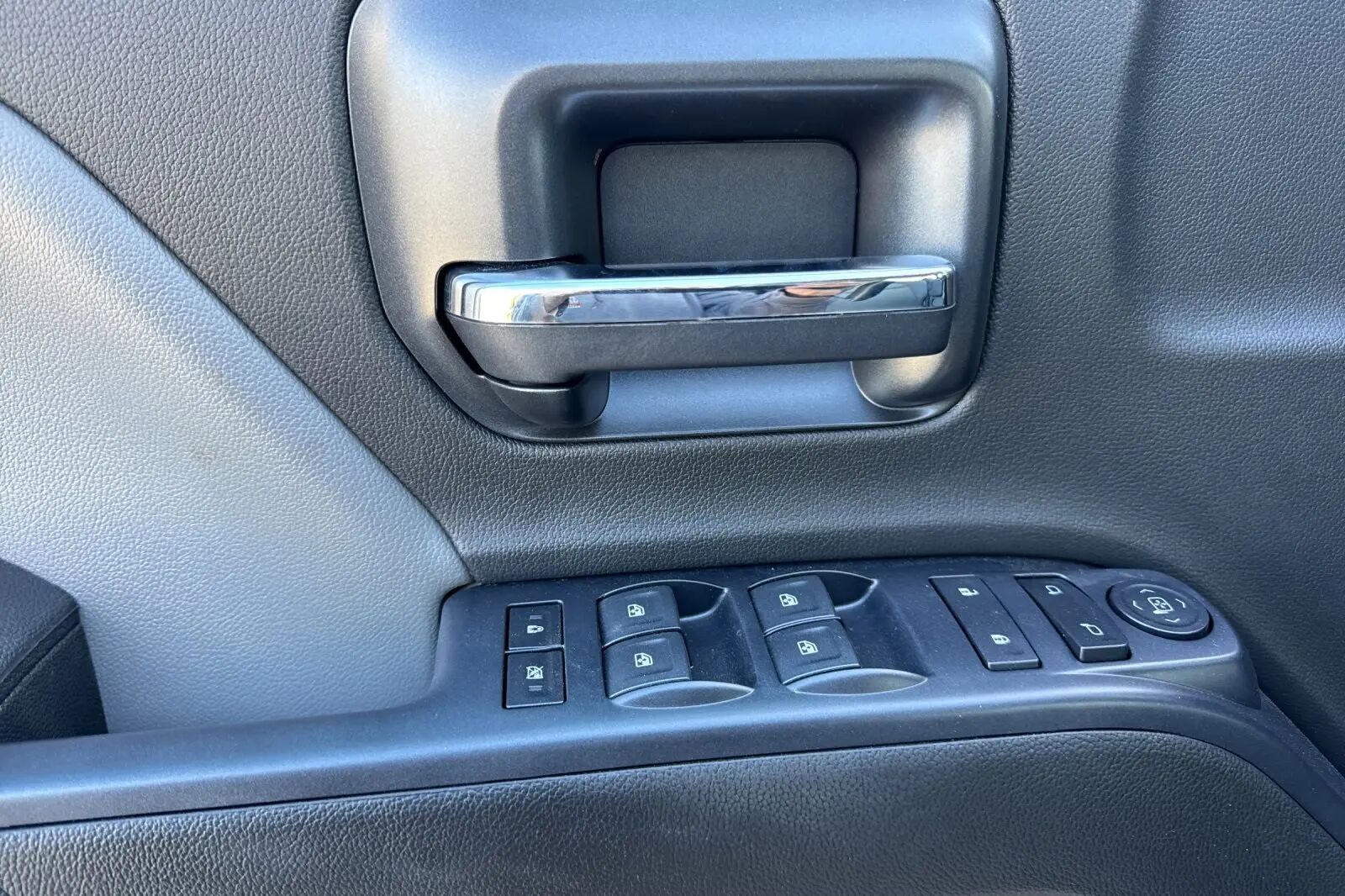

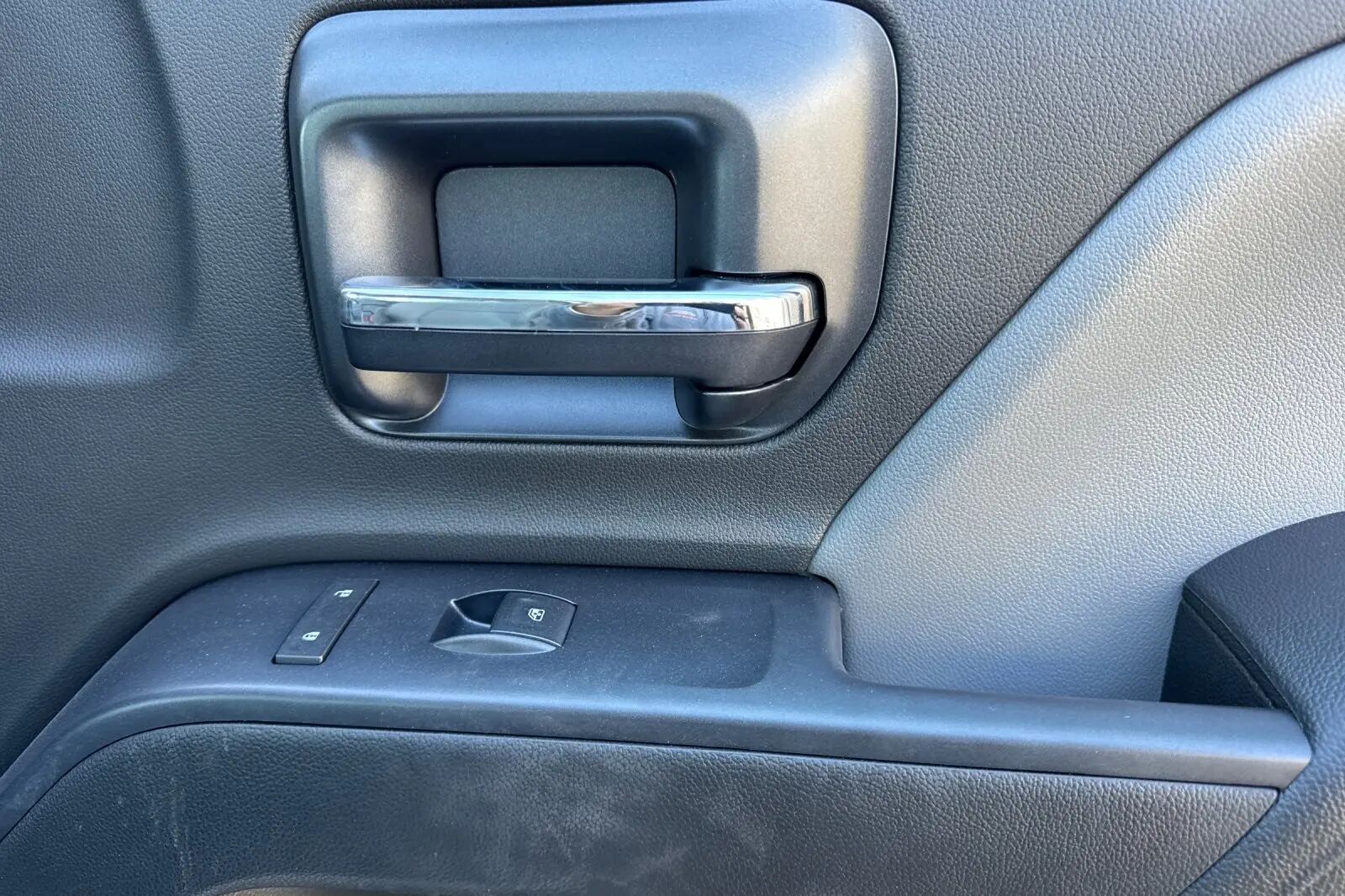

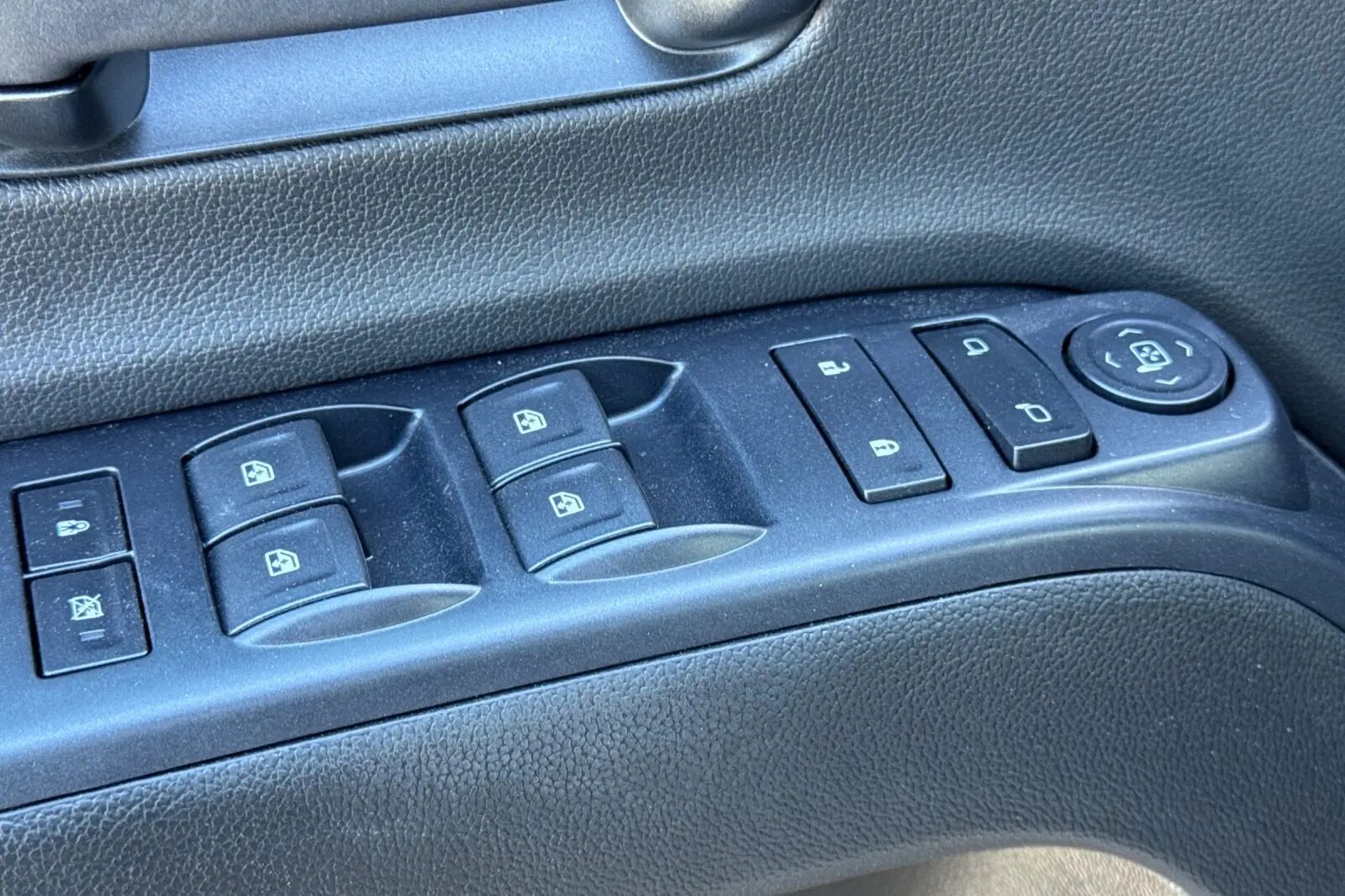

Windows power with driver express up and down and express down on all other windows

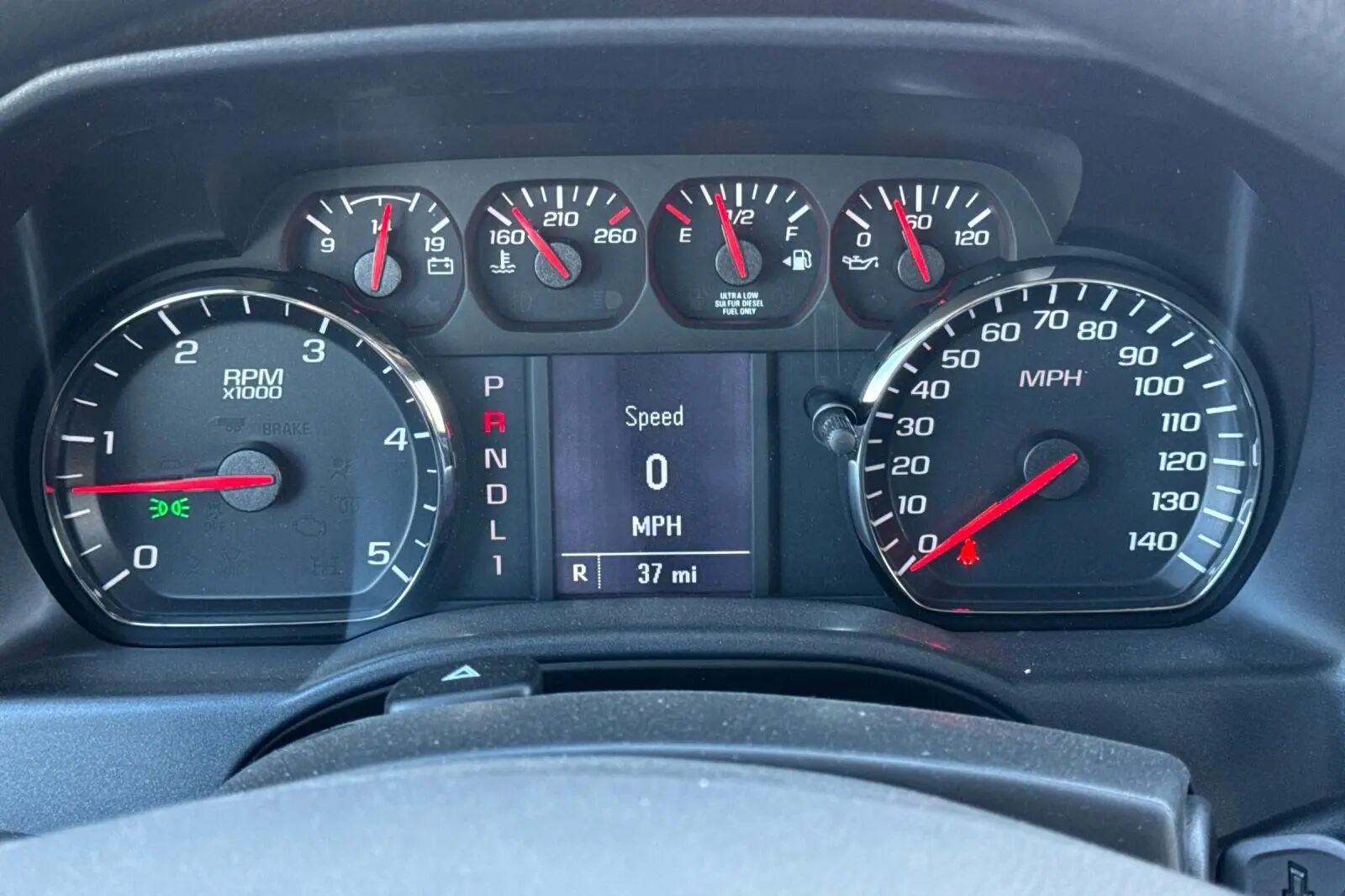

Speedometer miles/kilometers
Interior trim Jet Black/Dark Ash (Required and only available with (H2Q/H2R) Dark Ash seats with Jet Black interior accents.)

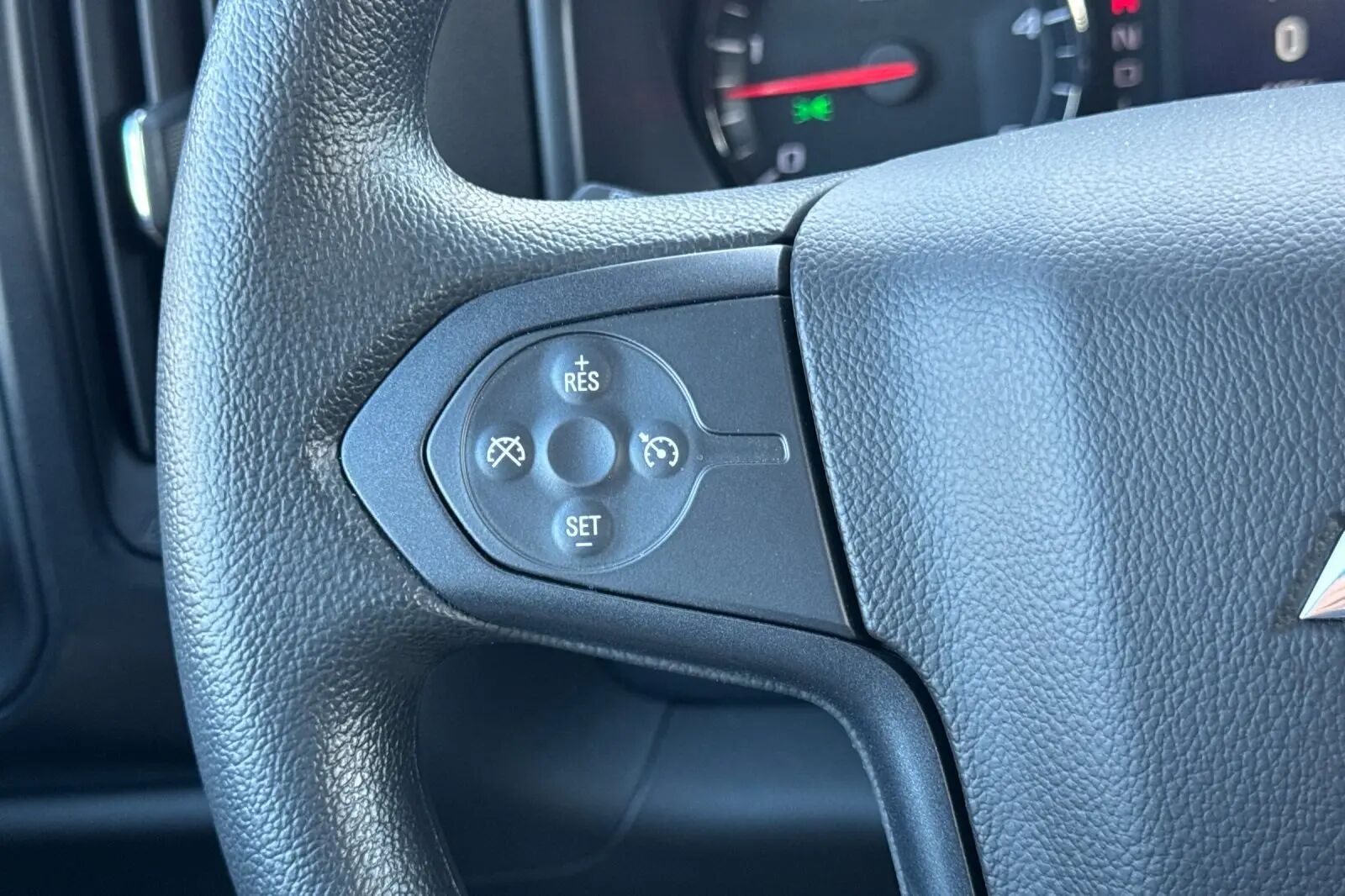

Cruise control steering wheel-mounted
Door locks power

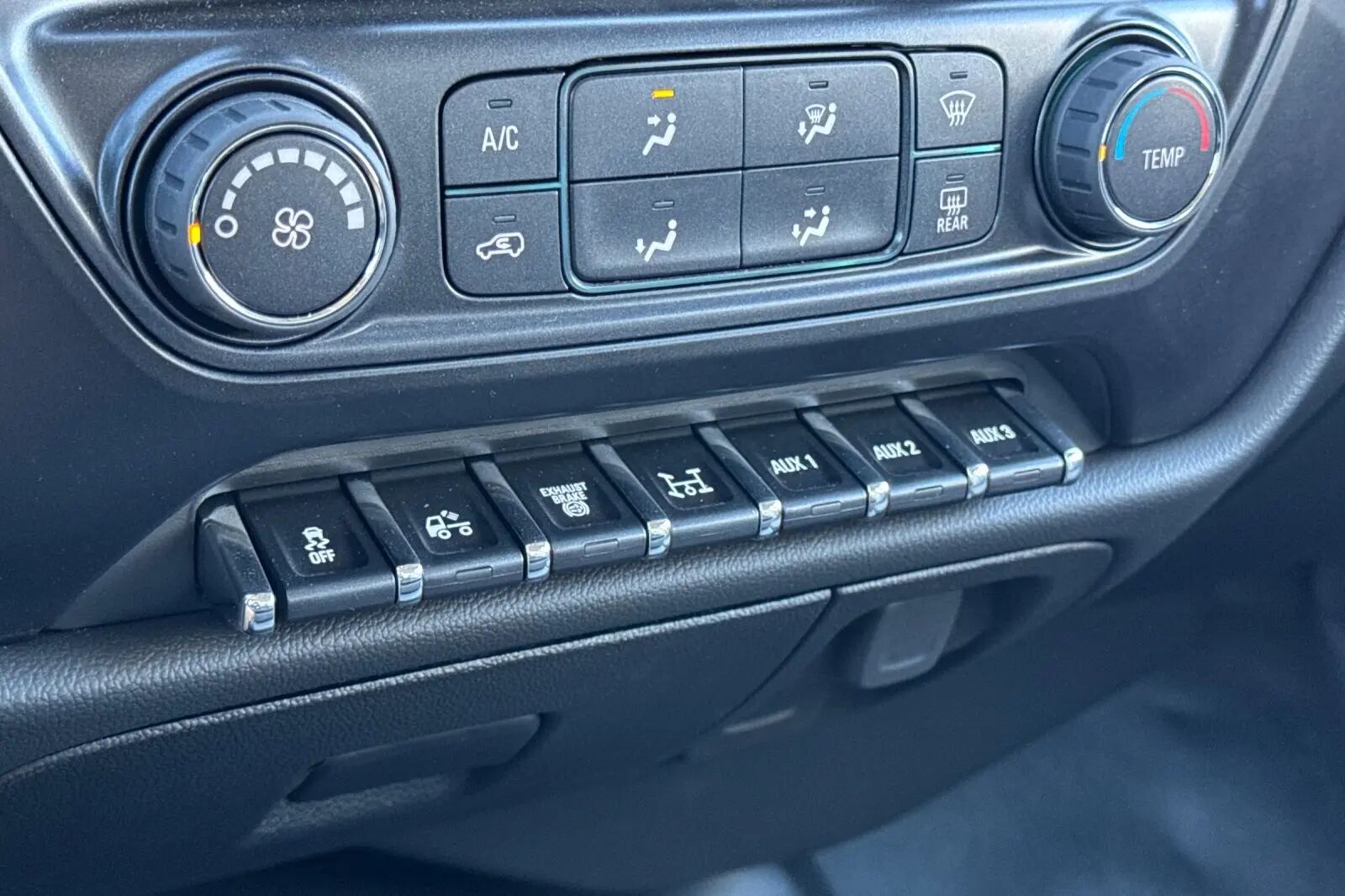

Air conditioning single-zone
Assist handle front passenger and driver on A-pillars
Floor covering Graphite-colored rubberized-vinyl

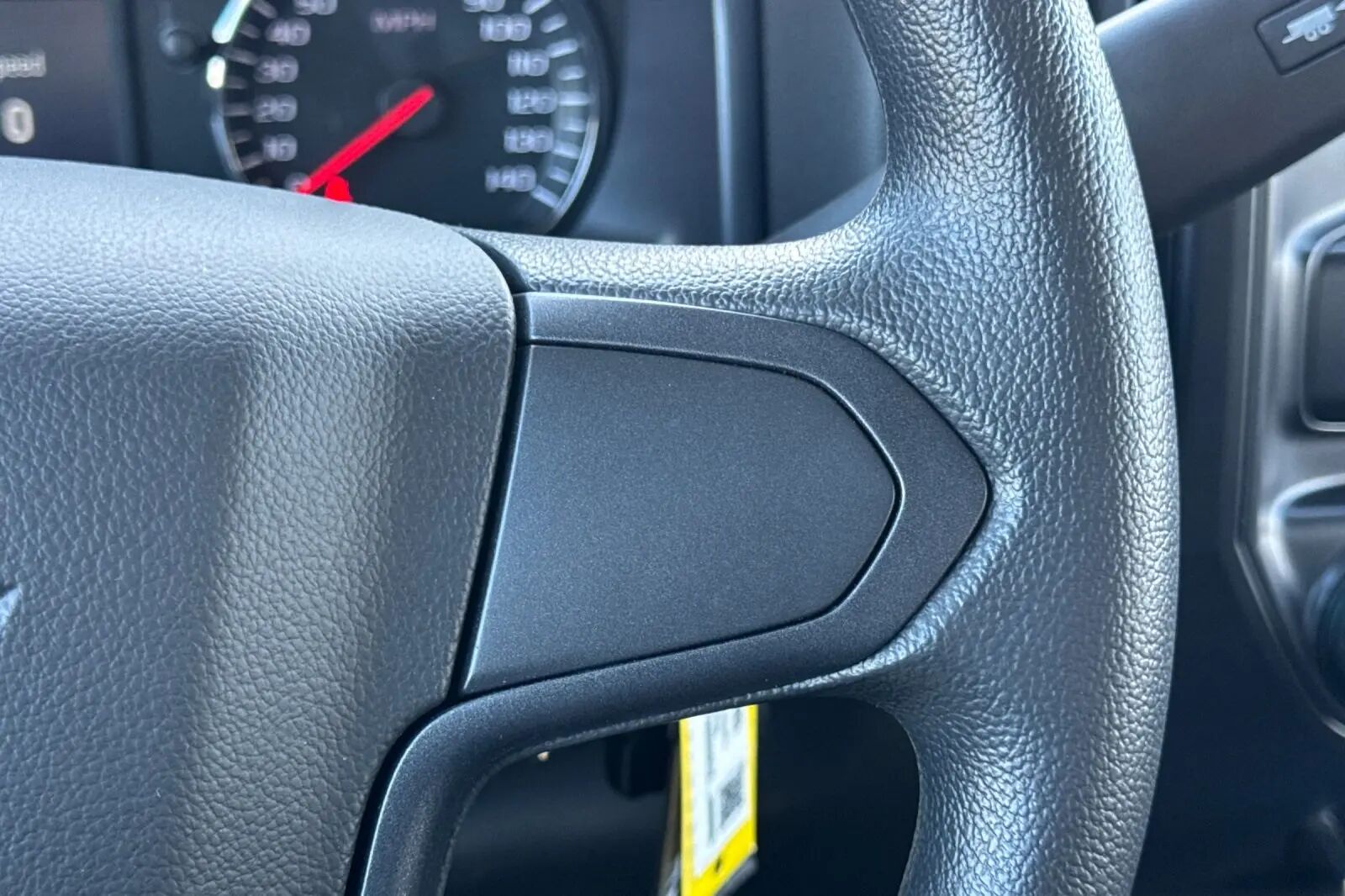

Steering wheel urethane

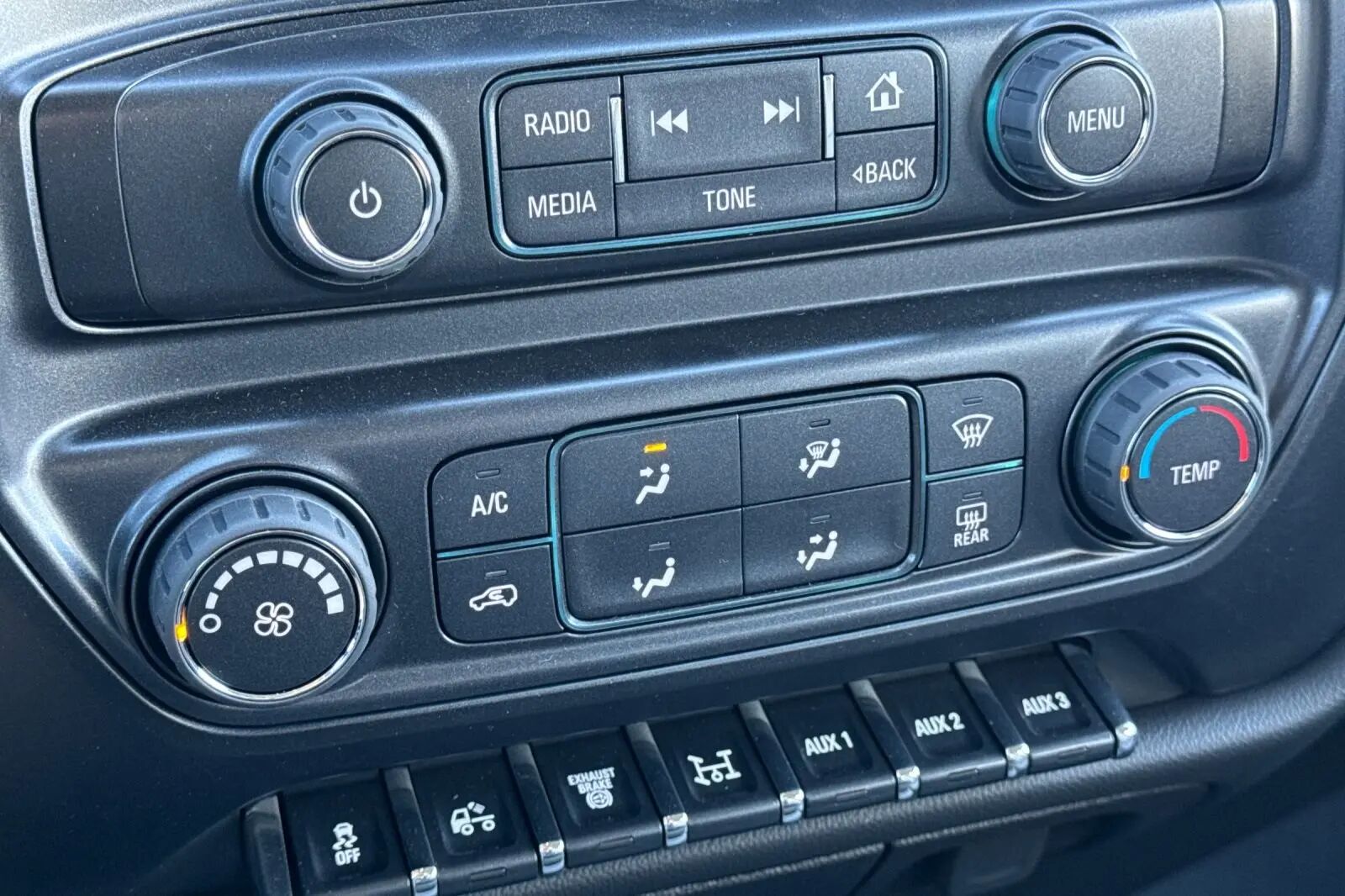

Upfitter switch kit provides up to 4-30 amp circuits to facilitate installation of aftermarket electrical accessories located on the instrument panel
Steering column manual Tilt-Wheel

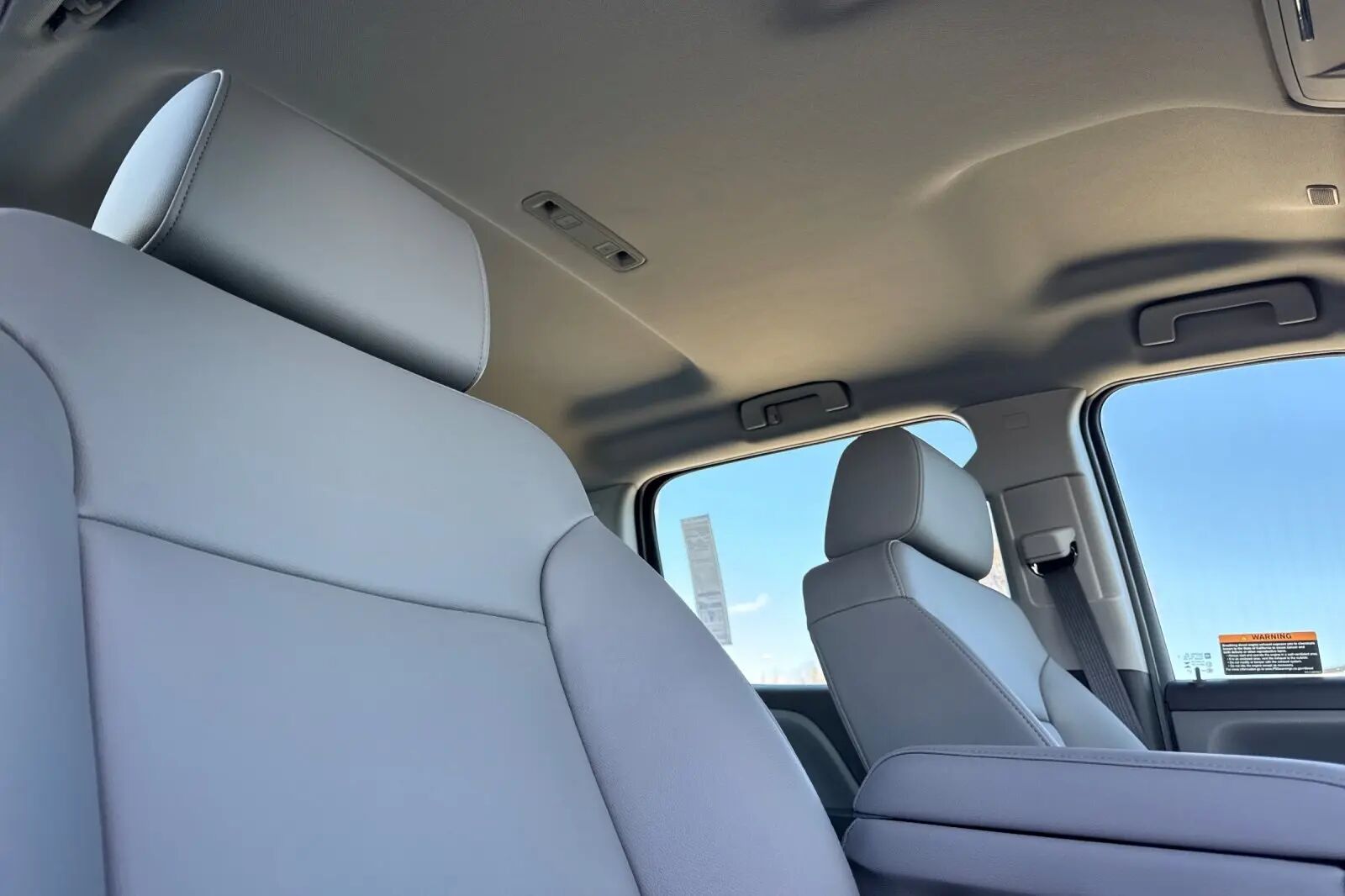

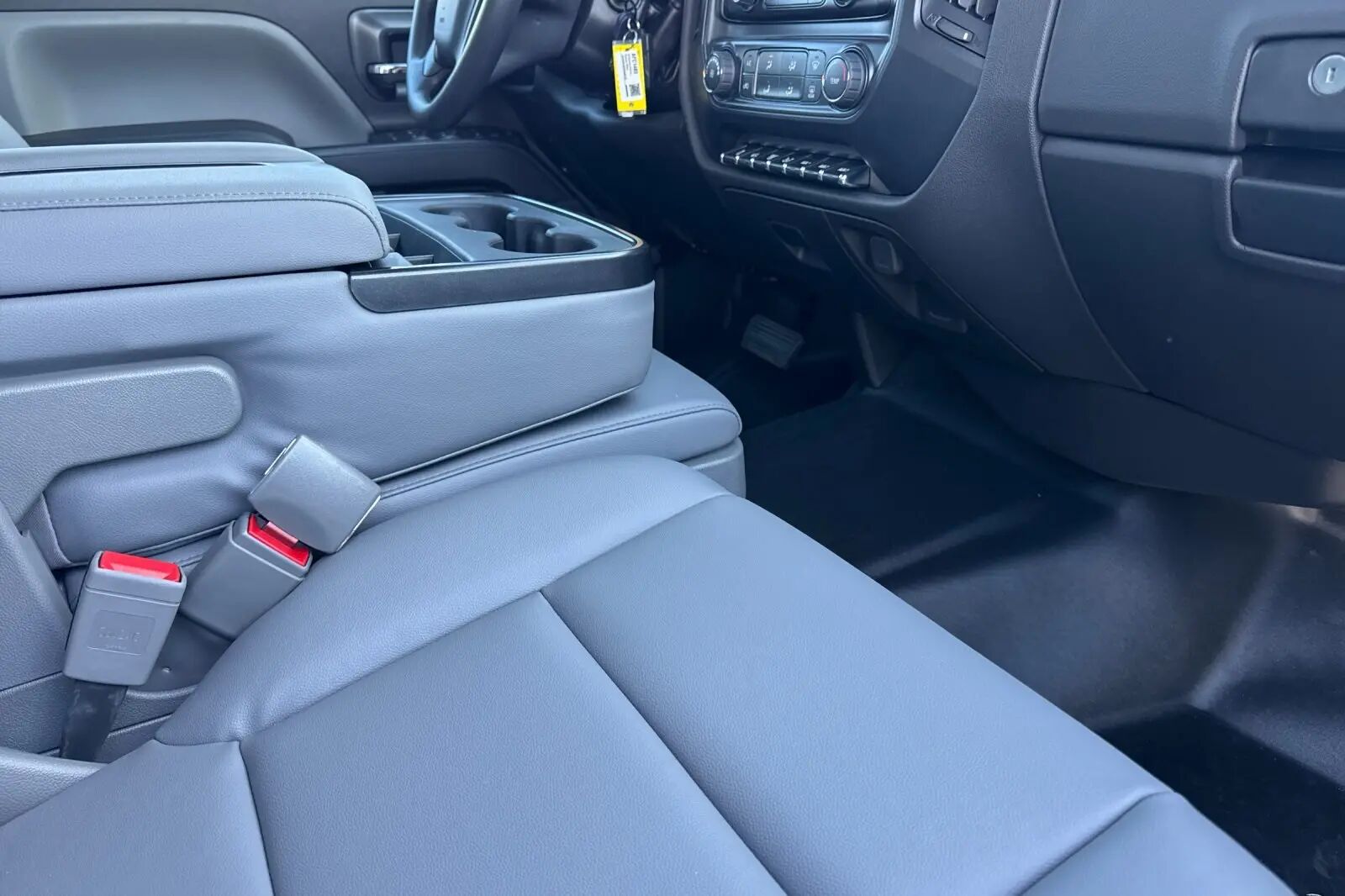

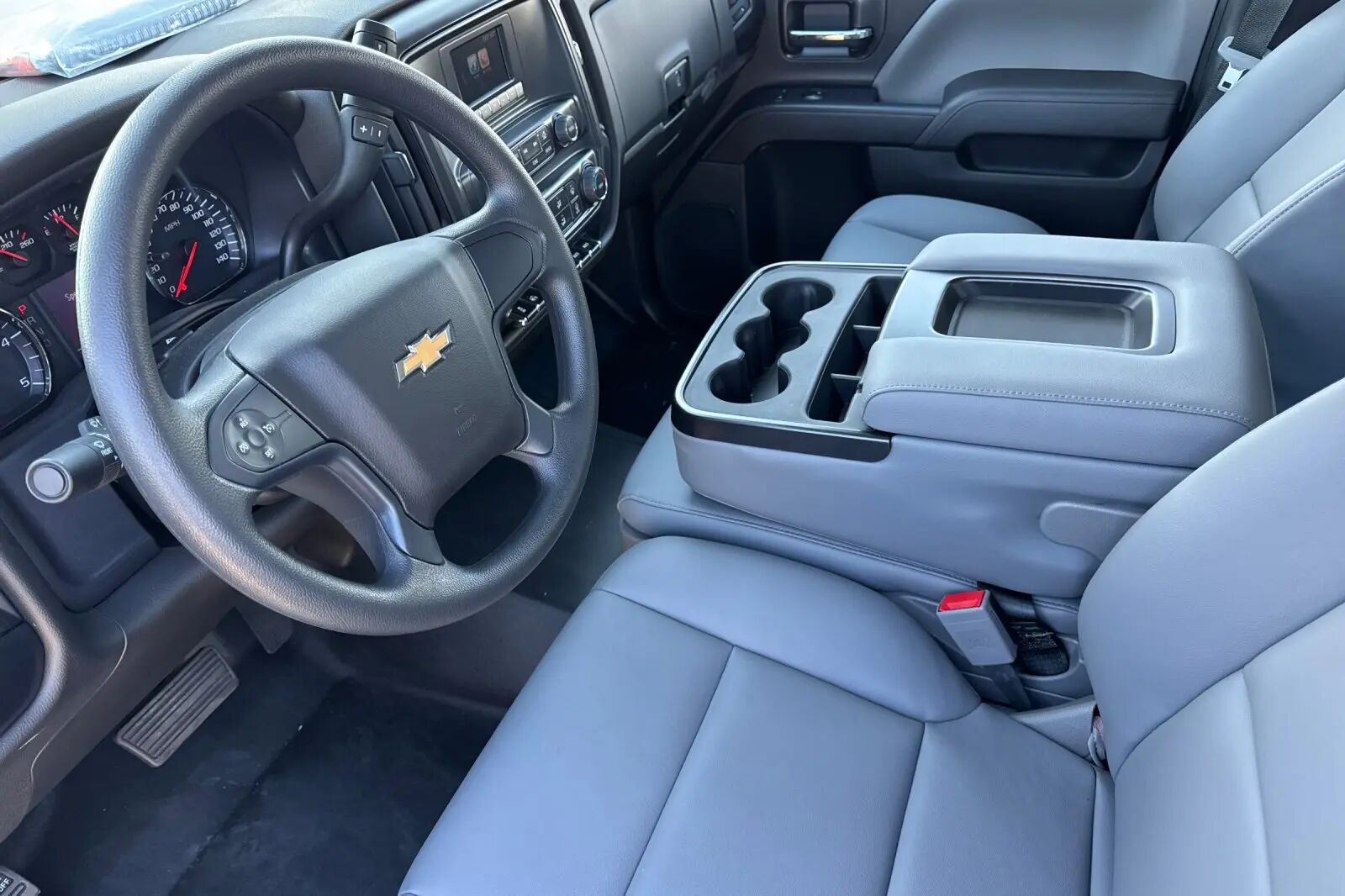

Seats front 40/20/40 split-bench 3-passenger driver and front passenger recline with outboard head restraints and center fold-down armrest with storage. Vinyl has fixed lumbar and cloth has manually adjustable driver lumbar. (STD)
Driver Information Center 3.5-inch diagonal monochromatic display provides warning messages and basic vehicle information (Included and only available with (IO3) Audio System with 4.2" diagonal color display or (IOR) Chevrolet Infotainment System with 7" diagonal color touch-screen.)
Mirror inside rearview manual day/night
Seat Belt Black
Dark Ash seats with Jet Black interior accents Vinyl seat trim
Power outlet 110-volt AC
Remote Keyless Entry
Defogger rear-window electric
Emissions 50 state certification
Front suspension 7000 lb. (3175 kg) multi-leaf includes shock absorbers (STD)
Brakes hydraulic heavy duty Bosch/Meritor/Wabco system with 4-channel (ABS) (Includes (J69) driveline park brake.)
Axle Open rear axle non-locking rear
Capped Fuel Fill
Steering power (Bosch S2 8014 Plus)
Front axle 7000 lb. Dana Spicer D800-N "I"-beam non-driving (Requires (FK6) 7000 lb. (3175 kg) front suspension.)
Emissions USA 50 State certified
Axle to End of Frame 49" (Requires wheelbase (EM1) 199" or (FNV) 175". Not available with (G40) (GP1) or (GP8) rear air suspension.)
Rear wheel drive
Incomplete vehicle
Fuel diesel B20
Axle lubricant rear synthetic oil EmGard FE -75W-90
Trailering provisions trailering wire harness only trailer combined (Stop/Tail/Turn) connection socket and harness mounted at rear of frame.

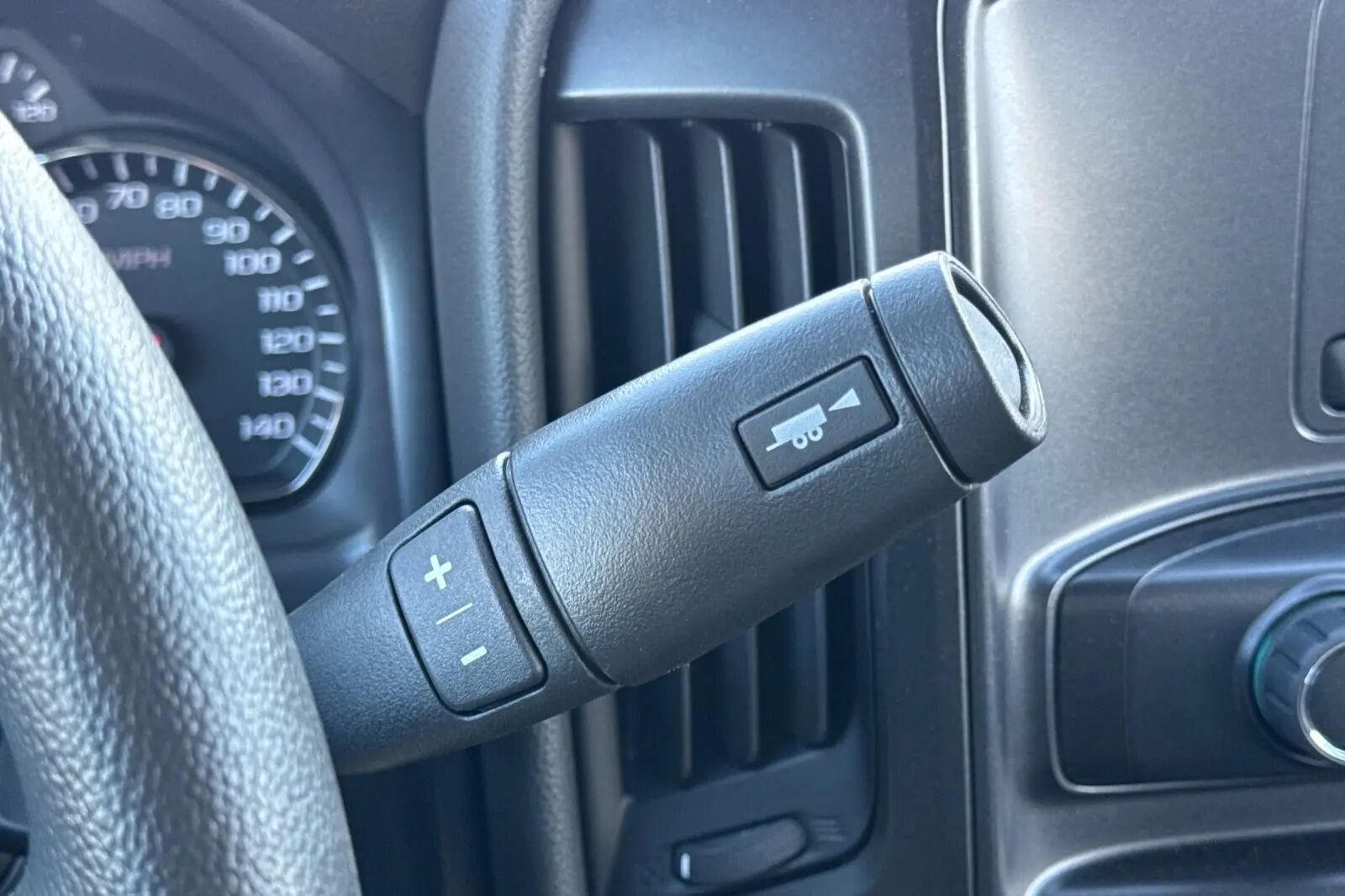

Exhaust brake
Trailer brake controller integrated
Batteries heavy-duty dual 1300 cold-cranking amps includes battery box mounted to left side under cab
Additional fuel 20 gallons
DPF diesel particulate filter manual regeneration customer regeneration will not be allowed until the DPF load percentage has reached 100% full and a driver information center (DIC) message has been shown
Battery top post threaded battery jump start stud (located on battery box)
Axle limited slip Dana Spicer Truetrac torque proportioning limited slip
Shock Absorbers rear
30000 lb. GCWR (13607 kg)
Fuel tank front and rear 65 gallon total
Rear suspension 15500 lb. (7031 kg) multi-leaf vari-rate
Rear axle 4.30 ratio Max road speed: 75 MPH
Rear axle 15500 lb. (7031 kg) Dana Spicer S16-140 single reduction
5500 HD Series
GVWR 19500 lb. (8845 kg)

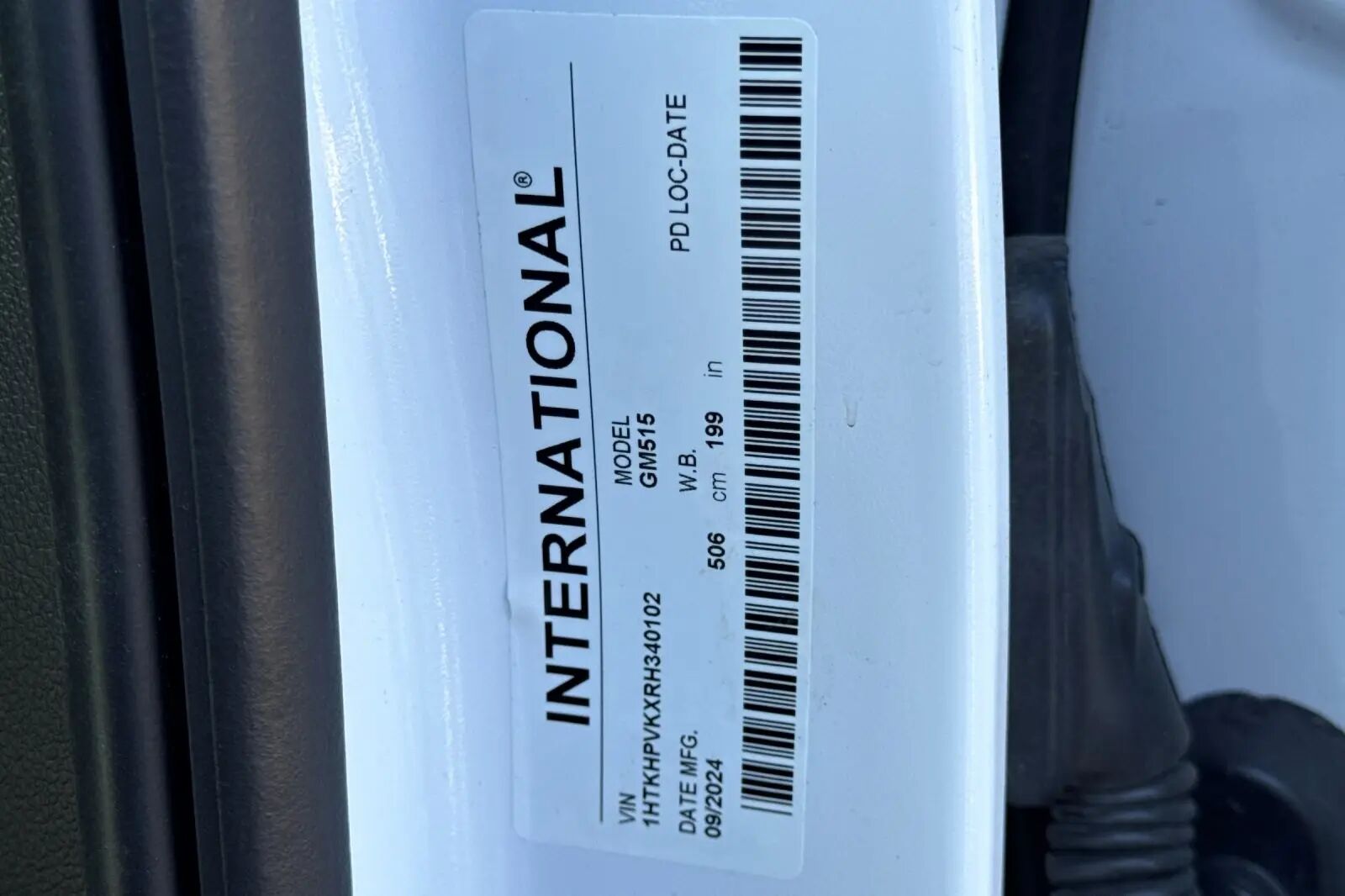

Wheelbase 199" (505.5 cm) 84" CA
Exhaust system straight terminates ahead of rear wheels
Alternator 220 amps
Front axle 7000 lb. Dana Spicer D800-N "I"-beam non-driving
Recovery hooks front frame-mounted black
Front stabilizer bar
Work Truck Preferred Equipment Group includes standard equipment

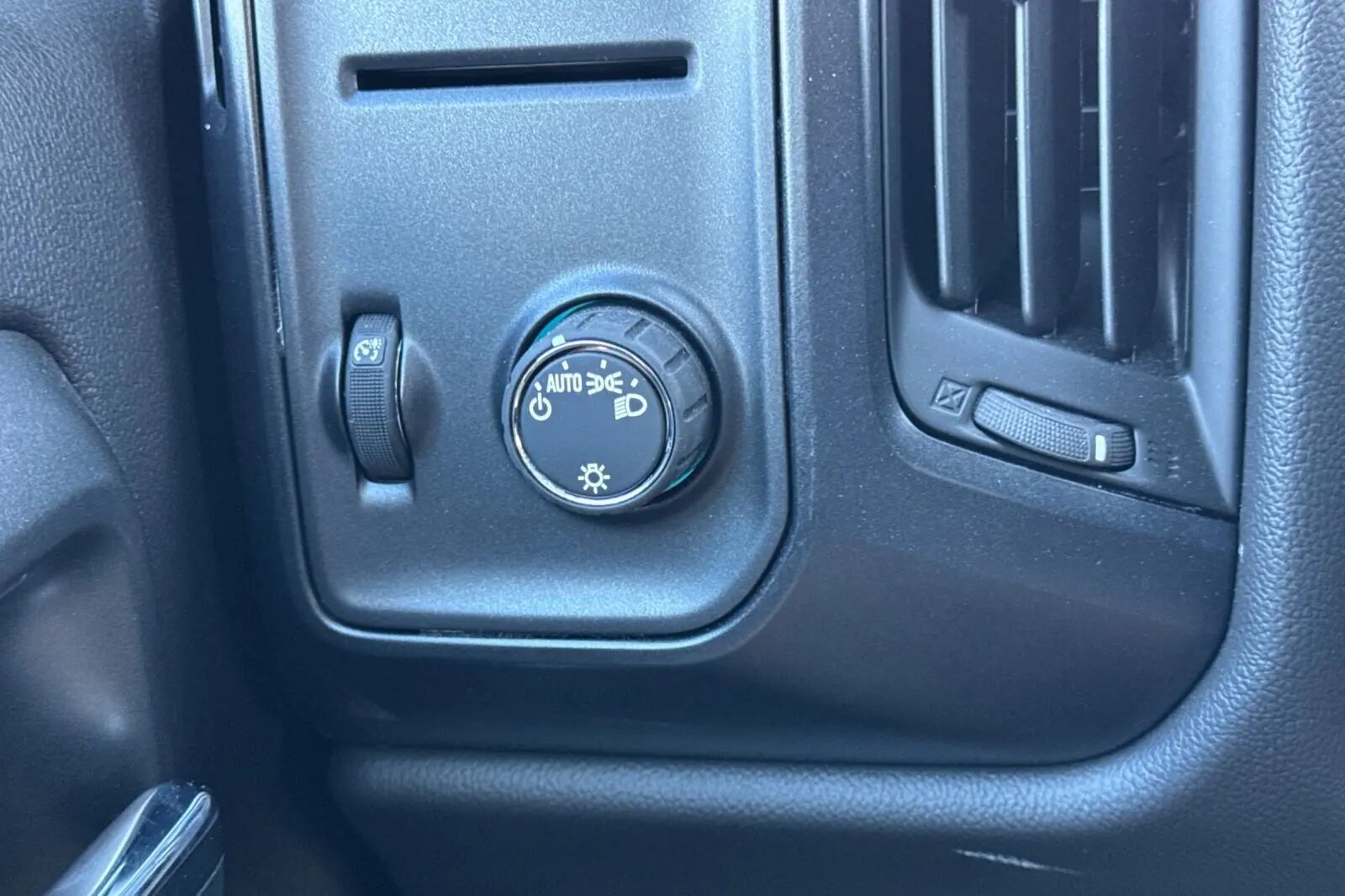

Daytime Running Lamps with automatic exterior lamp control

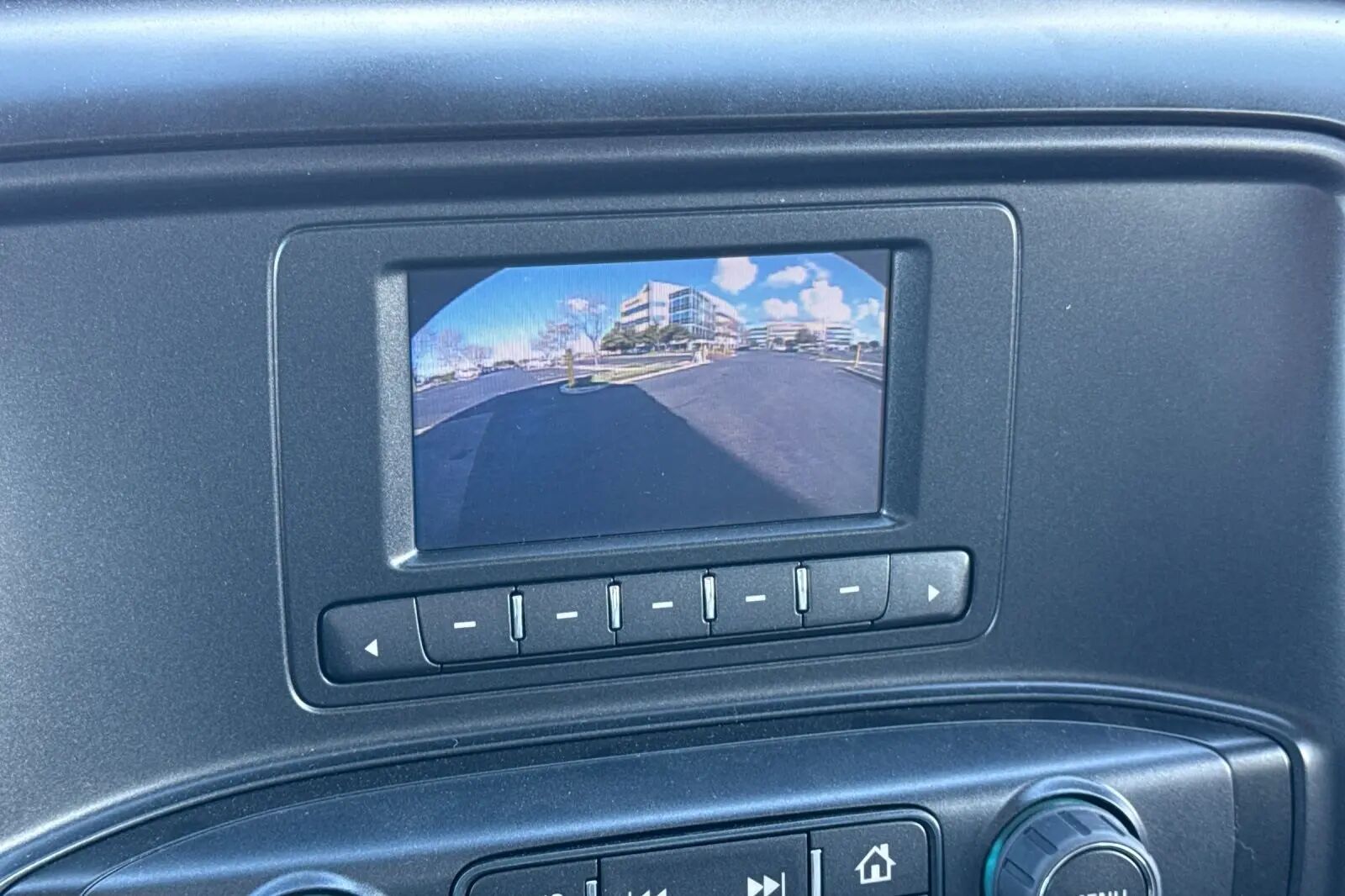

Rear Vision Camera display integrated into Radio (Shipped loose in cab for upfitter installation.)
OnStar delete
Airbag deactivation switch frontal passenger-side (Included and only available with (AY0) airbags.)
Airbags Single-stage frontal airbags for driver and front outboard passenger; Seat-mounted side-impact airbags for driver and front outboard passenger; Head-curtain airbags for front and rear outboard seating positions; (Always use seat belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
Horn dual-note
StabiliTrak Electronic Stability Control System with Traction Control includes Electronic Trailer Sway Control and Hill Start Assist
Brake parking driveline park brake system
Traction control
