Option & Equipment
Audio system feature 4-speaker system

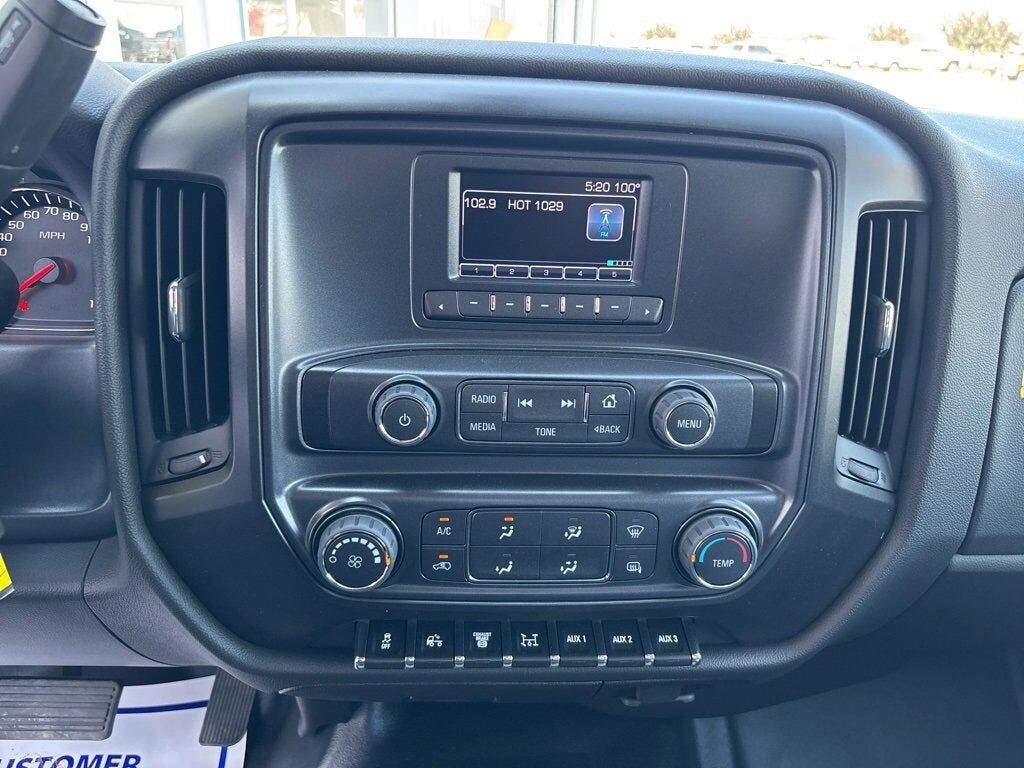

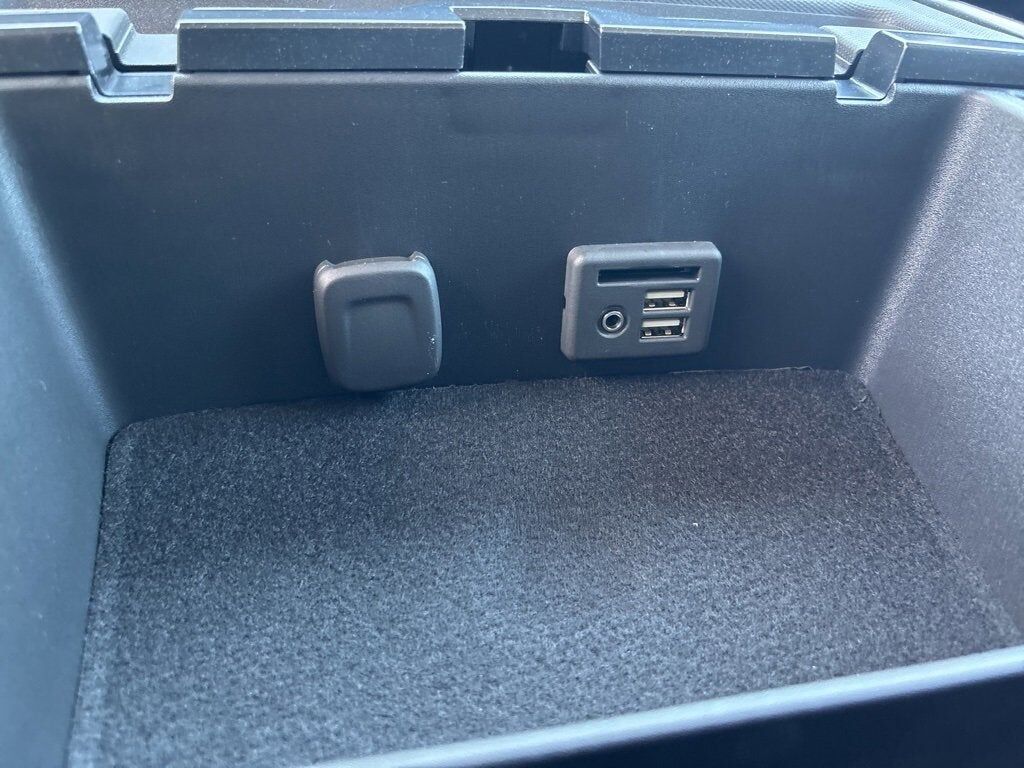

Audio system 4.2" diagonal color display AM/FM stereo with USB port and auxiliary jack (Requires (AE7) front 40/20/40 split-bench seat. Not available with (UE1) OnStar or (U2K) SiriusXM Radio.) (STD)
SiriusXM delete

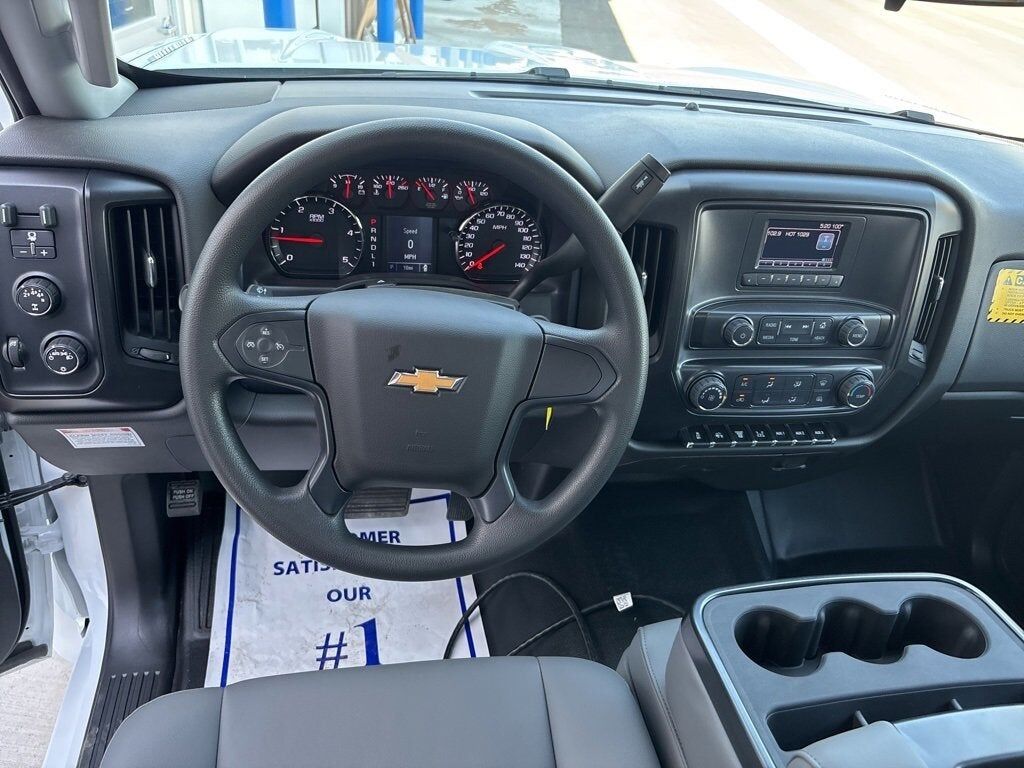

Audio system 4.2" diagonal color display AM/FM stereo with USB port and auxiliary jack (STD)
Lamps rear stop/turn/backup (1-piece assembly) with license plate light
Grille guard screen insect protection (mounted behind grille)
Antenna fixed mast
Spare tire delete (STD)
Wheel spare delete
Door handles Black
Front fender extension painted body color
Lamps cargo area cab mounted with switch on center switch bank
Lamps Smoked Amber roof marker
Headlamps halogen projector-beam
Paint solid
Assist Steps aluminum
Tires rear 225/70R19.5G traction blackwall Goodyear Max Axle Load: 15000 lb.
Air Dryer heated
Wheels 19.5" x 6.75" steel Grey painted 8-holes hub piloted

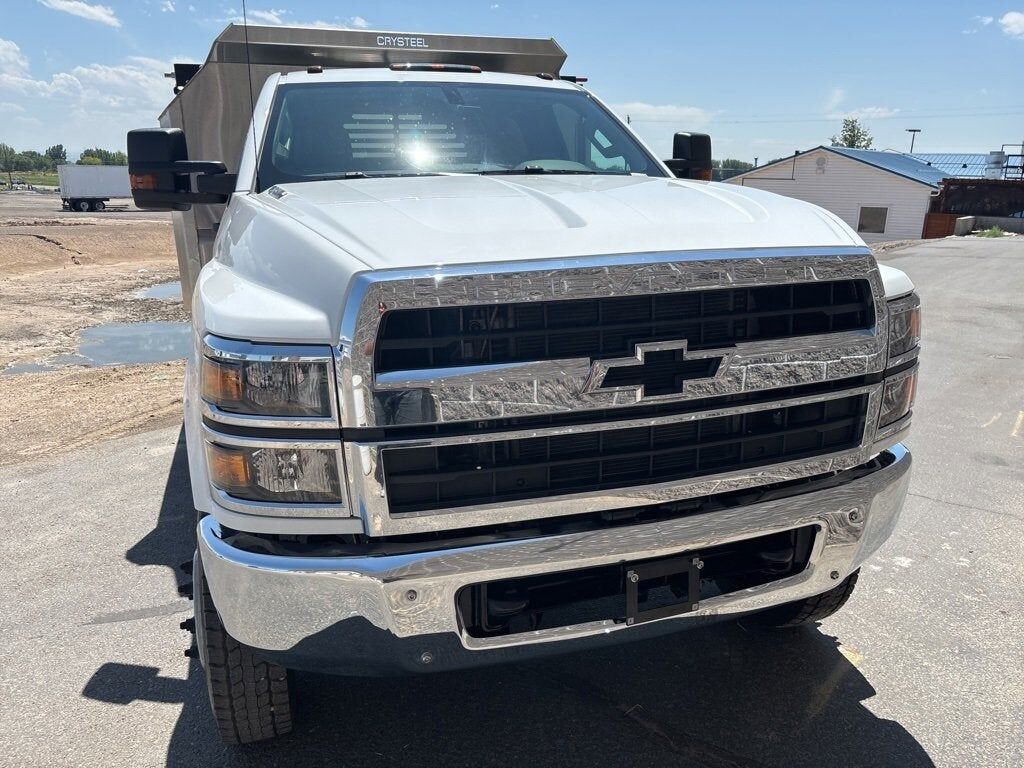

Grille chrome
Air Compressor Accessory Drive
Bumper front chrome
Provision for cab roof-mounted lamp/beacon provides an overhead console mounted switch and electrical wiring tucked beneath the headliner for a body upfitter to connect a body-mounted warning or emergency lamp
Tires front 225/70R19.5G traction blackwall Goodyear Max Axle Load: 7940 lb.
Auxiliary harness 3' for headlamps and turn signals
Mirrors outside heated power-adjustable vertical trailering upper glass manual-folding and extending black. Includes integrated turn signal indicators consisting of 51 square inch flat mirror surface positioned over a 24.5 square inch convex mirror surface with a common head and lower convex spotter glass (convex glass is not heated and not power adjustable) and addition of Auxiliary cargo lamp for backing up (helps to see trailer when backing up with a trailer) and amber auxiliary clearance lamp
Summit White
Oil seal for front hub Chicago Rawhide Nitrile for oil lubricated wheel bearings
License plate kit front
Glass deep-tinted
Visors driver and front passenger vinyl
Seat trim Vinyl

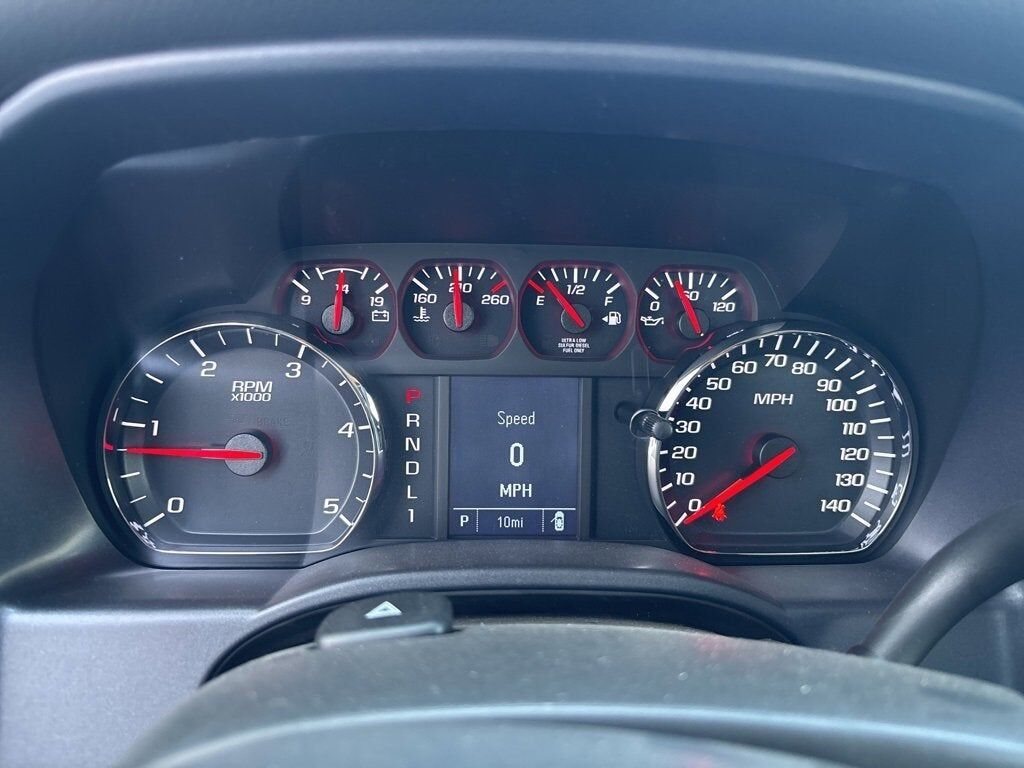

Speedometer miles/kilometers
Interior trim Jet Black/Dark Ash (Required and only available with (H2Q/H2R) Dark Ash seats with Jet Black interior accents.)

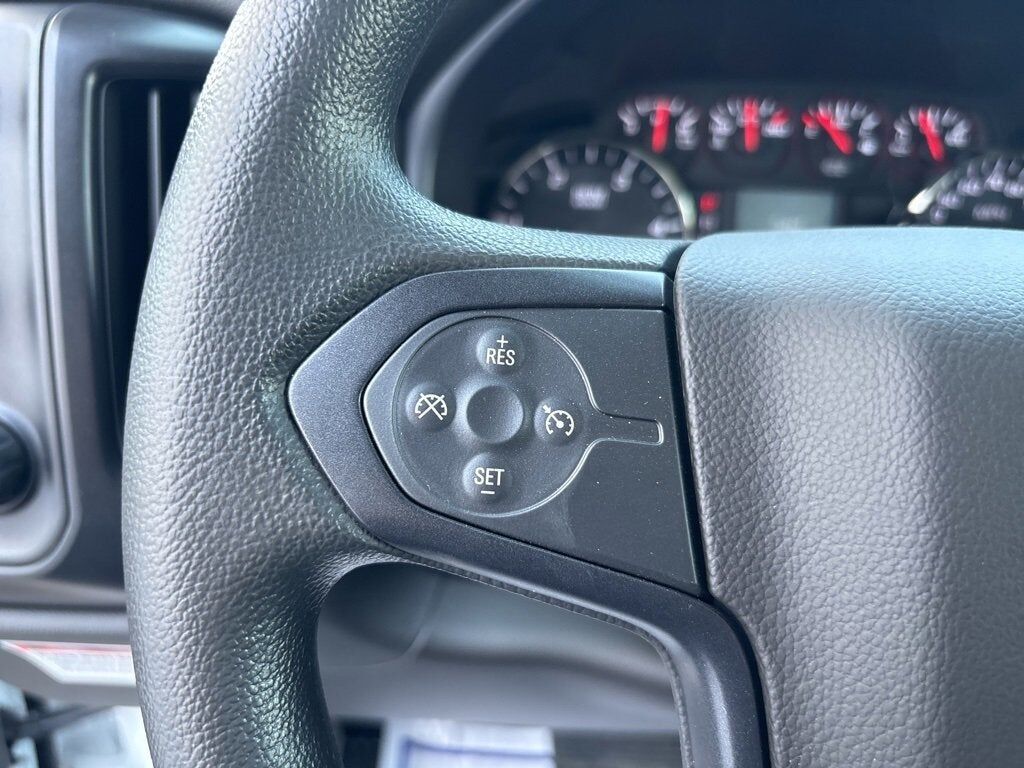

Cruise control steering wheel-mounted
Door locks power
Air conditioning single-zone
Assist handle front passenger and driver on A-pillars
Floor covering Graphite-colored rubberized-vinyl

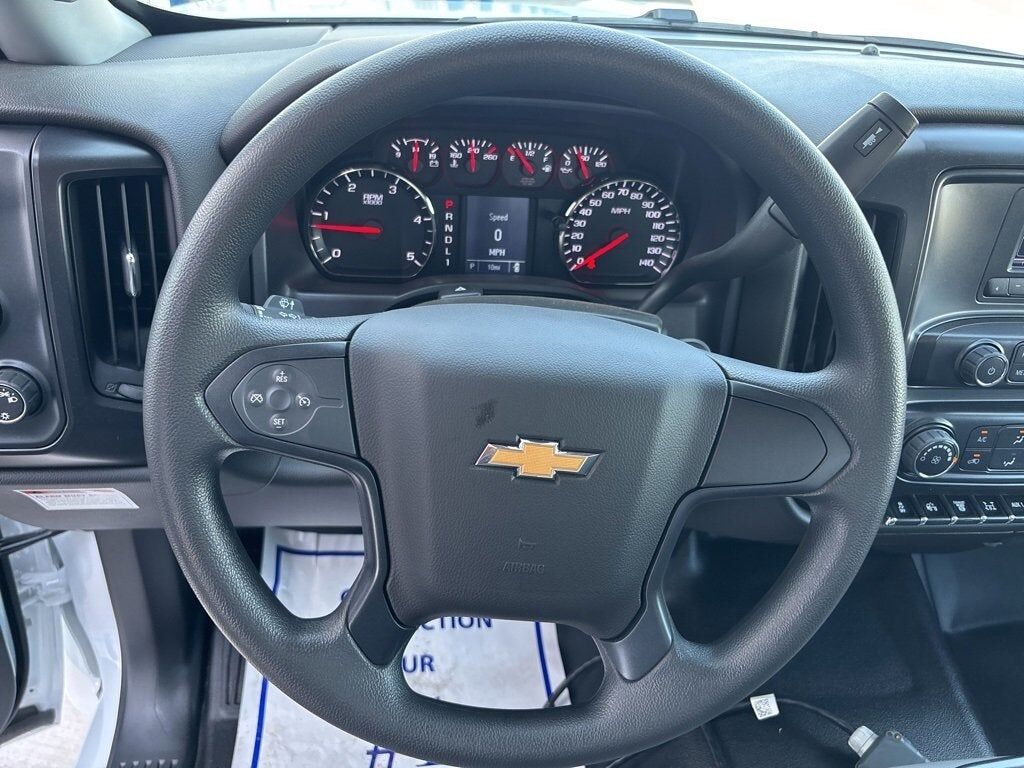

Steering wheel urethane

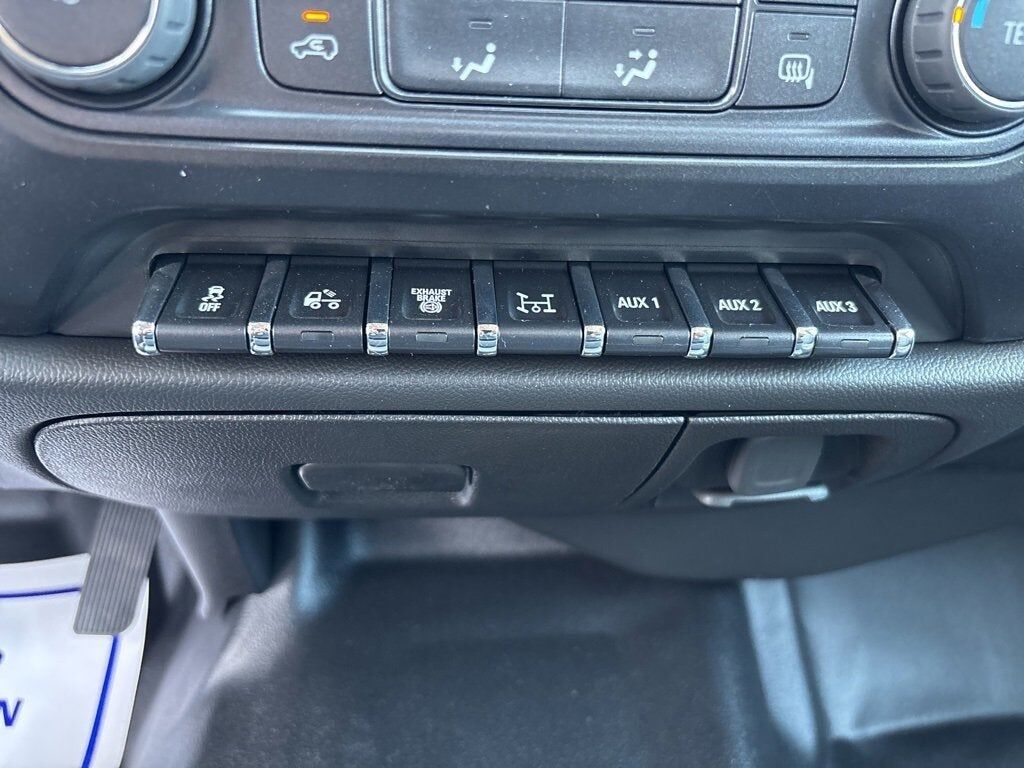

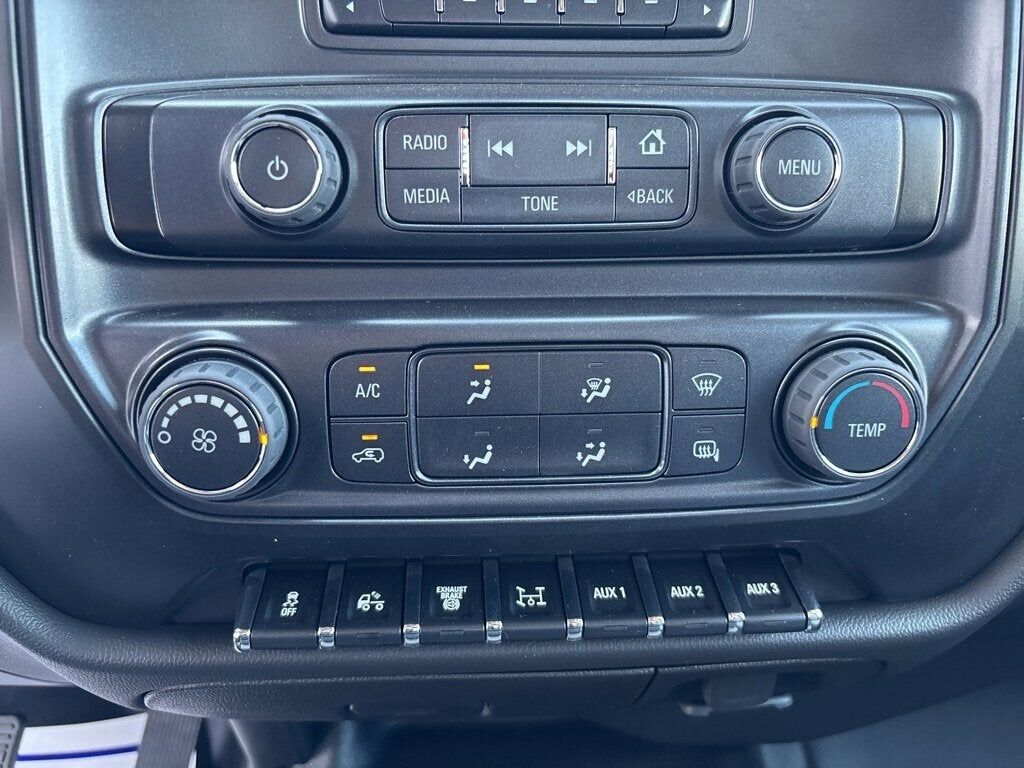

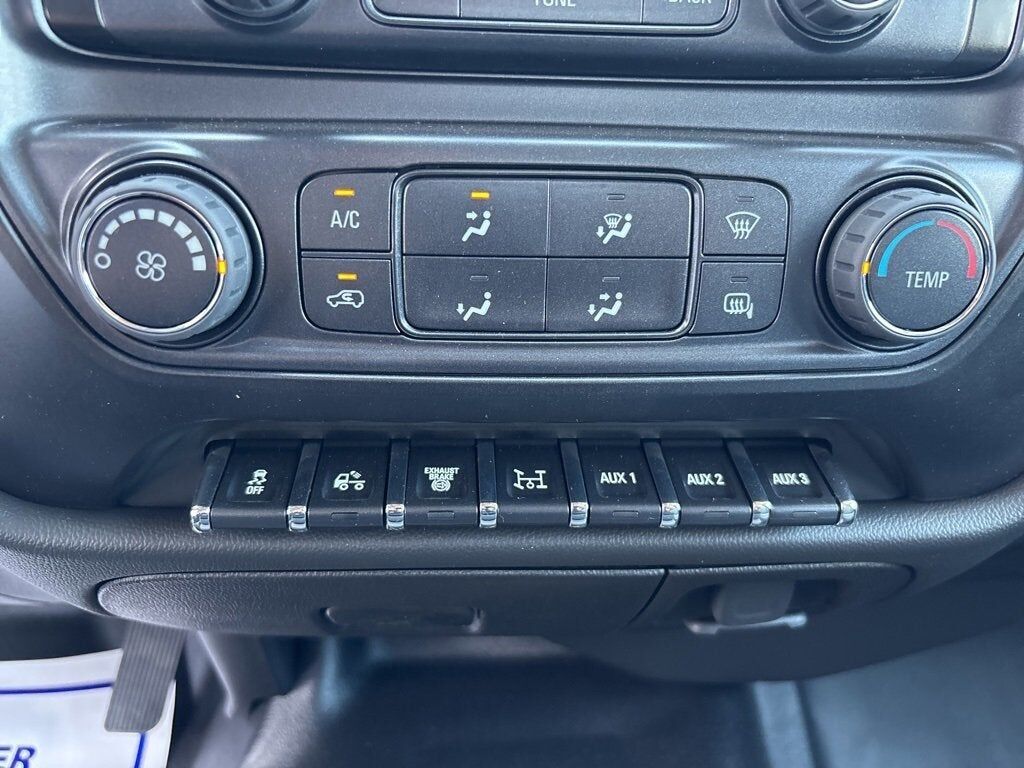

Upfitter switch kit provides up to 4-30 amp circuits to facilitate installation of aftermarket electrical accessories located on the instrument panel
Steering column manual Tilt-Wheel

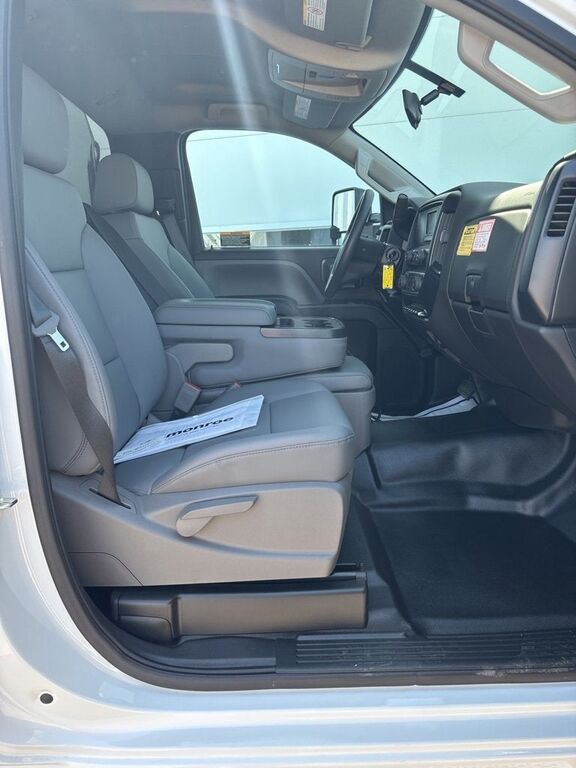

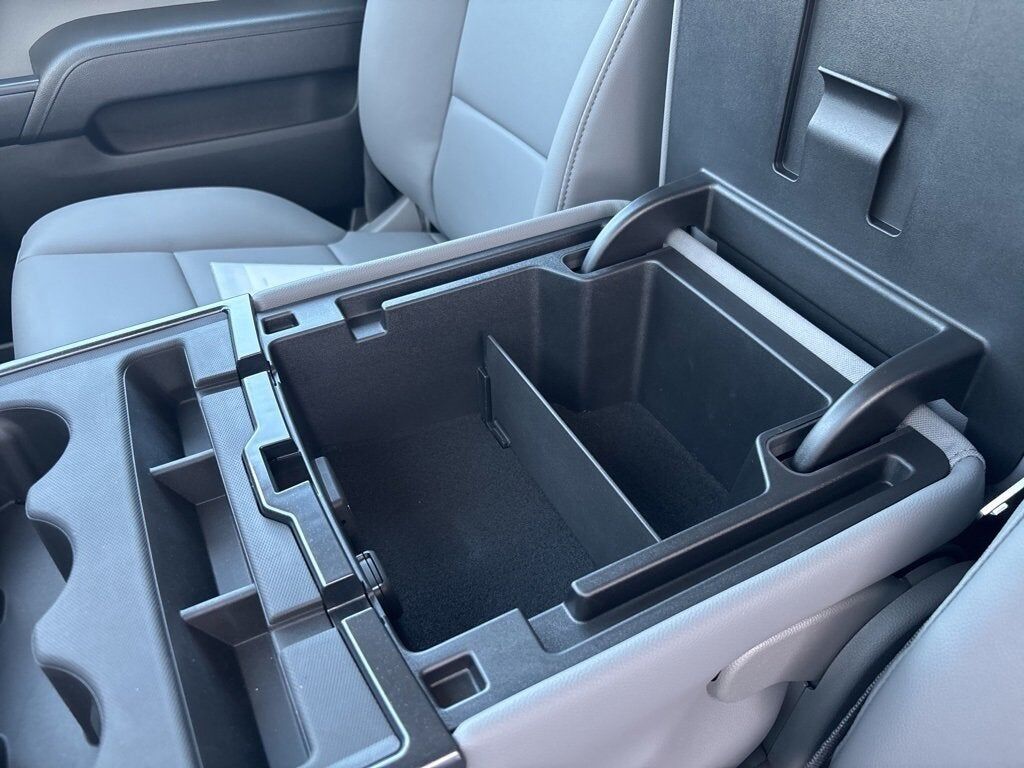

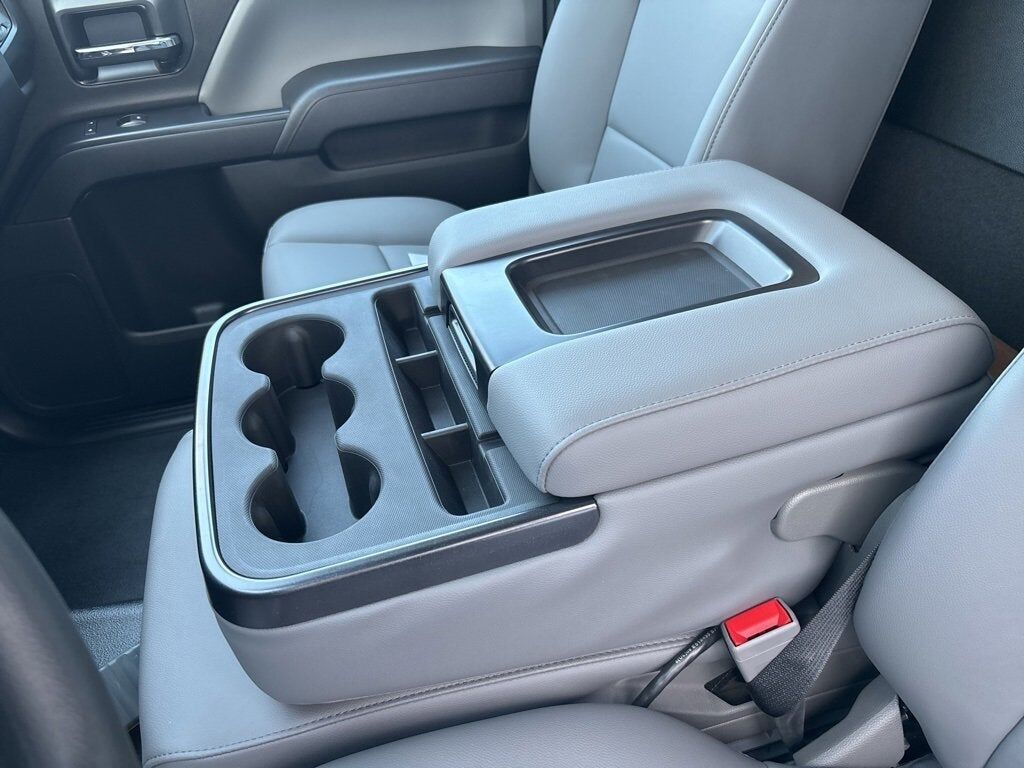

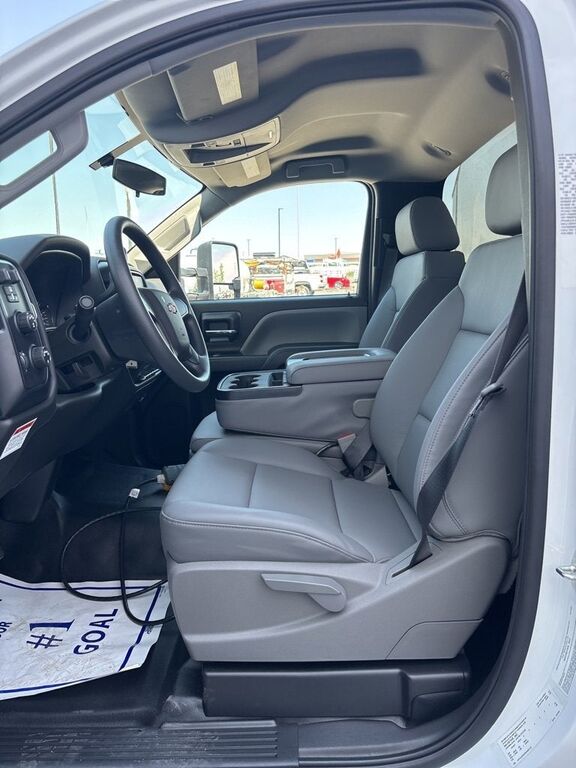

Seats front 40/20/40 split-bench 3-passenger driver and front passenger recline with outboard head restraints and center fold-down armrest with storage. Vinyl has fixed lumbar and cloth has manually adjustable driver lumbar. (STD)
Driver Information Center 3.5-inch diagonal monochromatic display provides warning messages and basic vehicle information (Included and only available with (IO3) Audio System with 4.2" diagonal color display or (IOR) Chevrolet Infotainment System with 7" diagonal color touch-screen.)
Mirror inside rearview manual day/night
Seat Belt Black
Dark Ash seats with Jet Black interior accents Vinyl seat trim
Back-up alarm calibration This calibration will allow installation of an aftermarket back-up alarm by disabling rear perimeter lighting
Power outlet 110-volt AC
Remote Keyless Entry

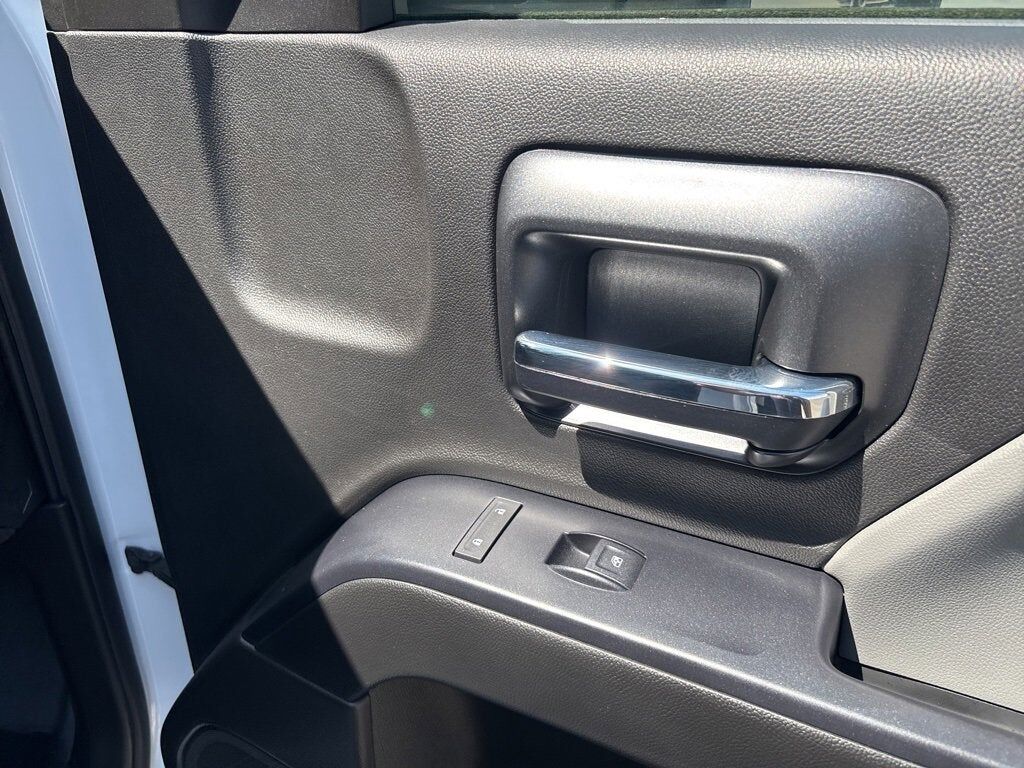

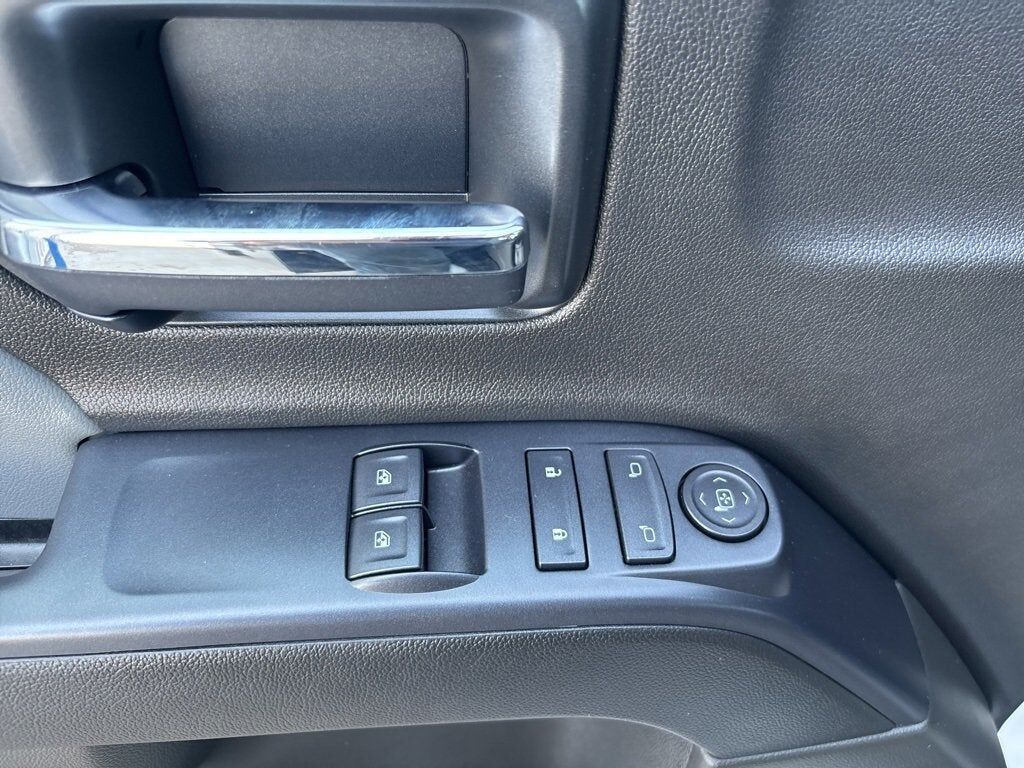

Windows power with driver express up and down and express down on all other windows
Front suspension 7500 lb. (3402 kg) multi-leaf includes shock absorbers
Axle to End of Frame 49" (Requires wheelbase (ED5) 201" (ED9) 165" or (ER2) 189". Not available with (G40) (GP1) or (GP8) rear air suspension.)
Emissions 50 state certification
Exhaust system right side exit behind rear wheels (Requires (ED9) 165" wheelbase.)
Brakes hydraulic heavy duty Bosch/Meritor/Wabco system with 4-channel (ABS) (Includes (J69) driveline park brake.)
Axle Open rear axle non-locking rear
Capped Fuel Fill
Steering power (Bosch S2 8014 Plus)
Emissions USA 50 State certified
Incomplete vehicle
Fuel diesel B20
Axle lubricant rear synthetic oil EmGard FE -75W-90
Wheelbase 165" (419.1 cm) 84" CA (Requires (F0C) 49" axle to end of frame (F0D) 63" axle to end of frame or (F0K) 91" axle to end of frame and (NPR) right side exit exhaust behind rear wheels. Requires (PCJ) Vocational Specific Heavy Suspension Package when ordering (FTA) 7000 lb. Front axle/(FK6) 7000 lb. Front suspension or (FTL) 8000 lb. Front axle/(FSN) 8000 lb. Front suspension and/or (FU7) 15500 lb. rear suspension.) (STD)

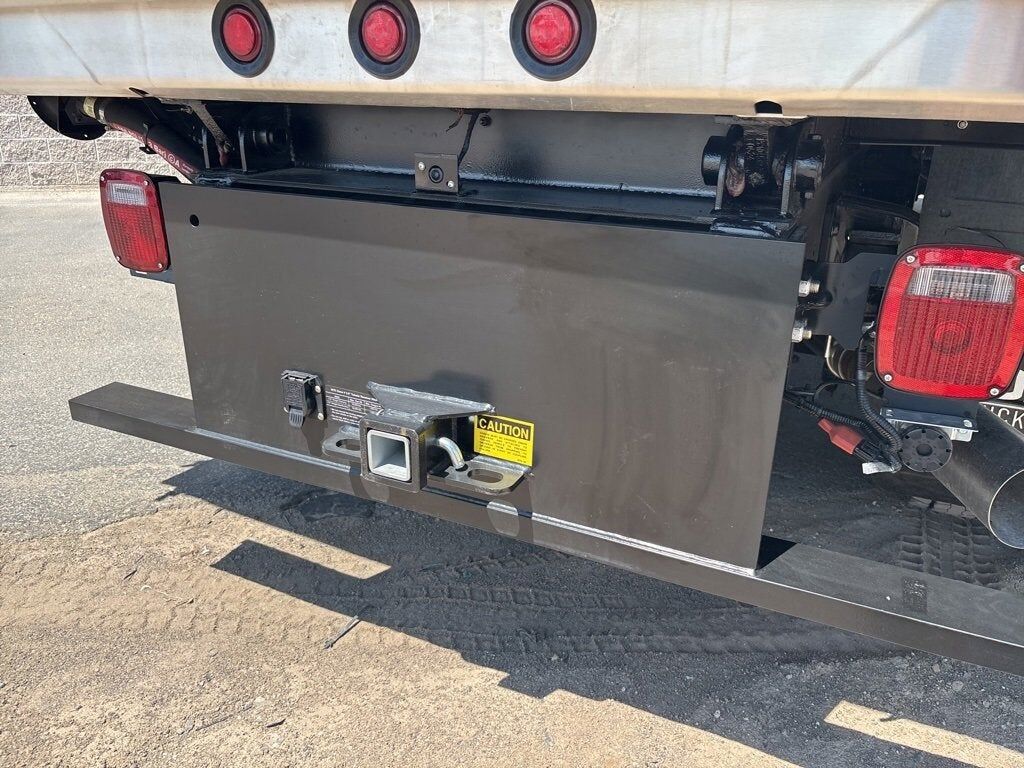

Trailering provisions trailering wire harness only trailer combined (Stop/Tail/Turn) connection socket and harness mounted at rear of frame.
Rear axle 4.30 ratio Max road speed: 75 MPH
Front axle 7500 lb. Dana Spicer 60-256 single-reduction front driving
Batteries heavy-duty dual 1100 cold-cranking amps includes battery box mounted to left side under cab
Axle lubricant front synthetic oil EmGard FE-75W-90
Exhaust brake

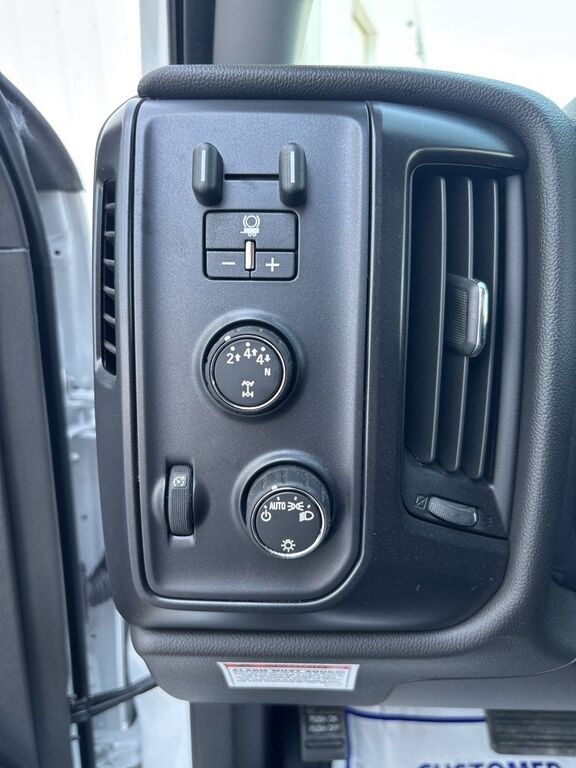

Four wheel drive
Trailer brake controller integrated
Additional fuel 5 gallons
DPF diesel particulate filter manual regeneration customer regeneration will not be allowed until the DPF load percentage has reached 100% full and a driver information center (DIC) message has been shown
Battery top post threaded battery jump start stud (located on battery box)
Axle limited slip Dana Spicer Truetrac torque proportioning limited slip
Shock Absorbers rear
Fuel tank front and rear 65 gallon total
Wheelbase 165" (419.1 cm) 84" CA (STD)
Rear suspension 15500 lb. (7031 kg) multi-leaf vari-rate
Rear axle 15000 lb. (6804 kg)

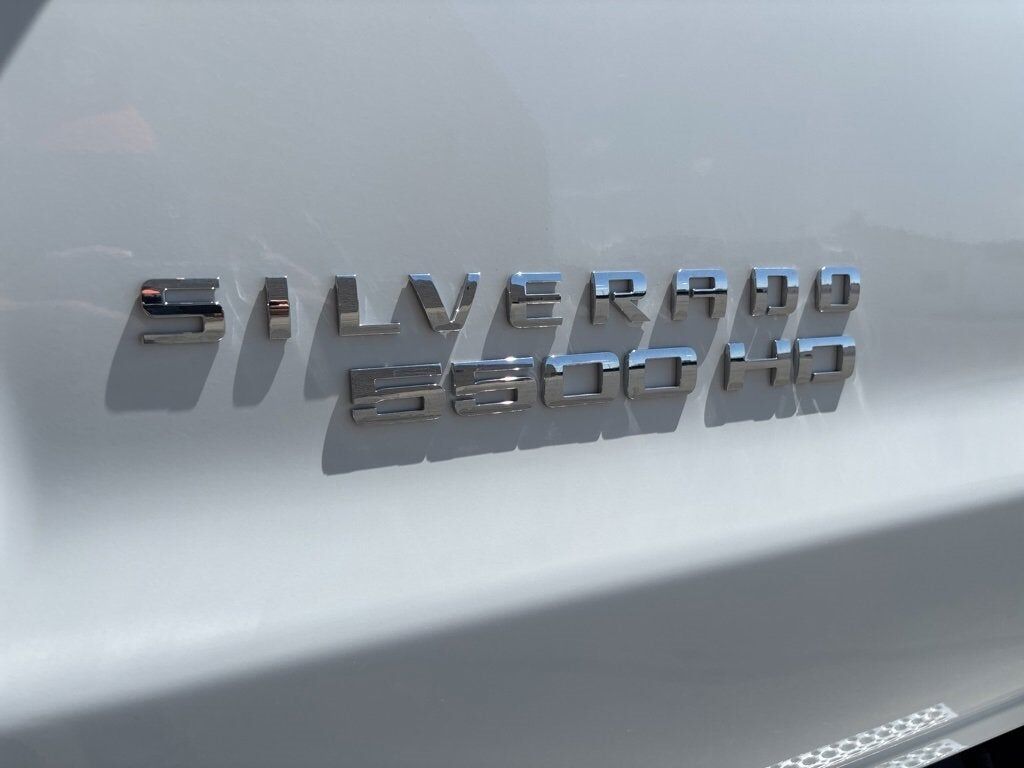

5500 HD Series
GVWR 19500 lb. (8845 kg)
Alternator 220 amps
Recovery hooks front frame-mounted black
34000 lb. GCWR (15422 kg)
Front stabilizer bar
Vocational Specific Heavy Suspension Package Allows the selection of 7000 lb. 8000 lb. front axles and/or 15500 lb. rear spring suspension on trucks that will be upfitted with the following vocational bodies: Utility/Service Bodies Aerial Lift/Bucket bodies Front Plow/Rear Spreader Applications and Landscape Dump Bodies.
Work Truck Preferred Equipment Group includes standard equipment
Snow Plow Prep Package includes (UNL) auxiliary harness for headlamps and turn signals (KW5) 220-amp alternator forward lamp wiring harness and (TRW) provision for cab roof mounted lamp/beacon
Daytime Running Lamps with automatic exterior lamp control
Airbags Single-stage frontal airbags for driver and front outboard passenger; Seat-mounted side-impact airbags for driver and front outboard passenger; Head-curtain airbags for front outboard seating positions; Includes airbag deactivation switch for front outboard passenger airbag (Always use seat belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)

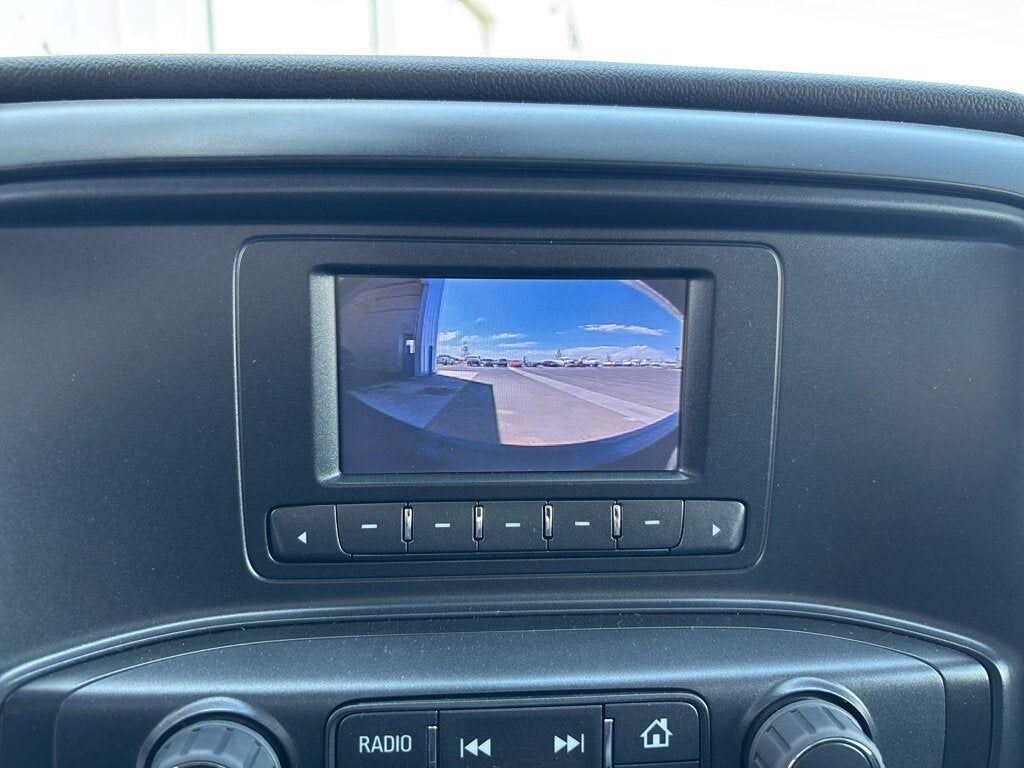

Rear Vision Camera display integrated into Radio (Shipped loose in cab for upfitter installation.)
OnStar delete
Airbag deactivation switch frontal passenger-side (Included and only available with (AY0) airbags.)
Horn dual-note
Backup alarm (Includes (SFW) SEO Calibration for backup alarm.
StabiliTrak Electronic Stability Control System with Traction Control includes Electronic Trailer Sway Control and Hill Start Assist
Brake parking driveline park brake system
Traction control
Snow Plow Prep Package
