Option & Equipment
Audio system 4.2" diagonal color display AM/FM stereo with USB port and auxiliary jack (Requires (AE7) front 40/20/40 split-bench seat. Not available with (UE1) OnStar or (U2K) SiriusXM Radio.) (STD)
SiriusXM delete
6-speaker audio system

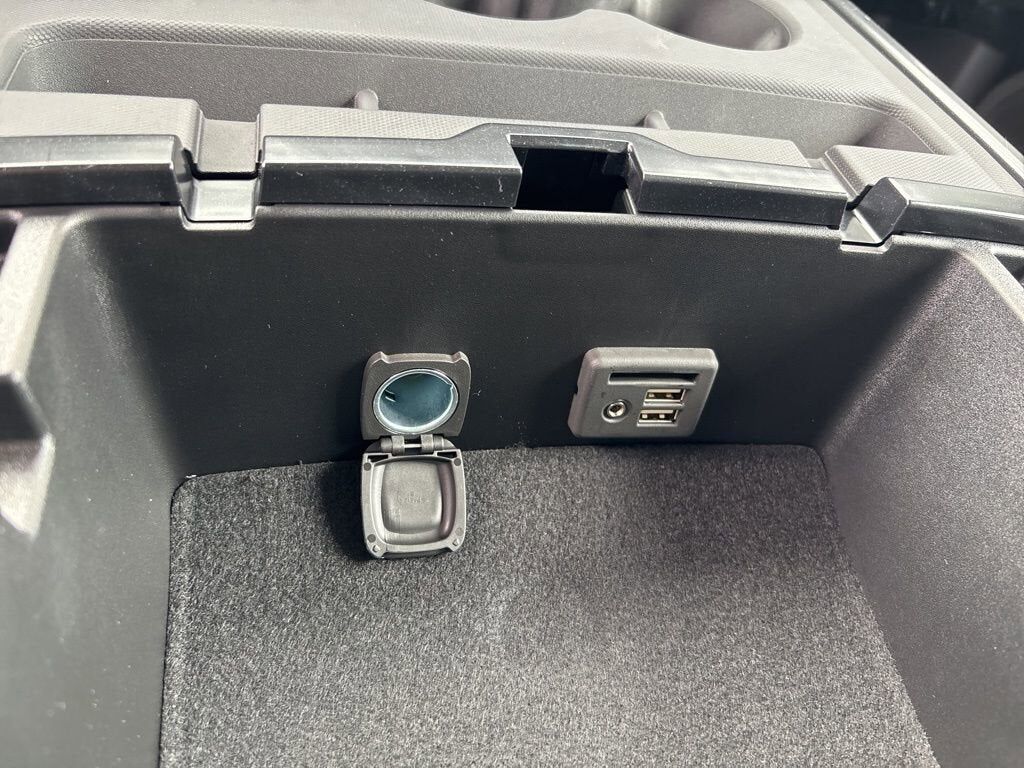

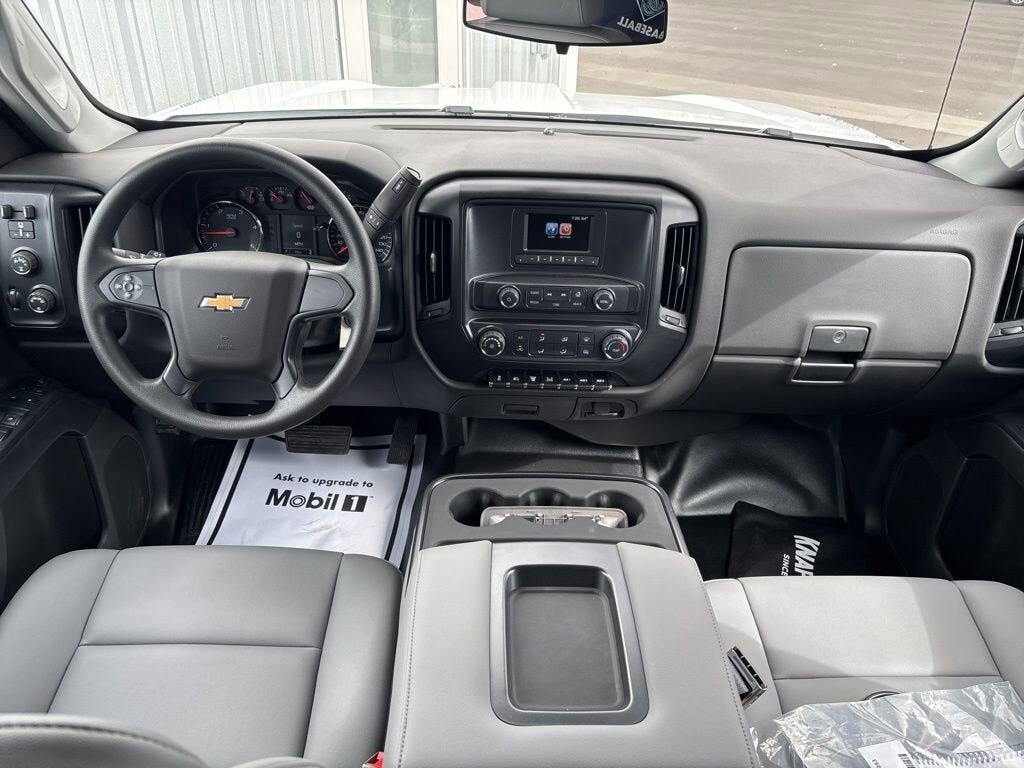

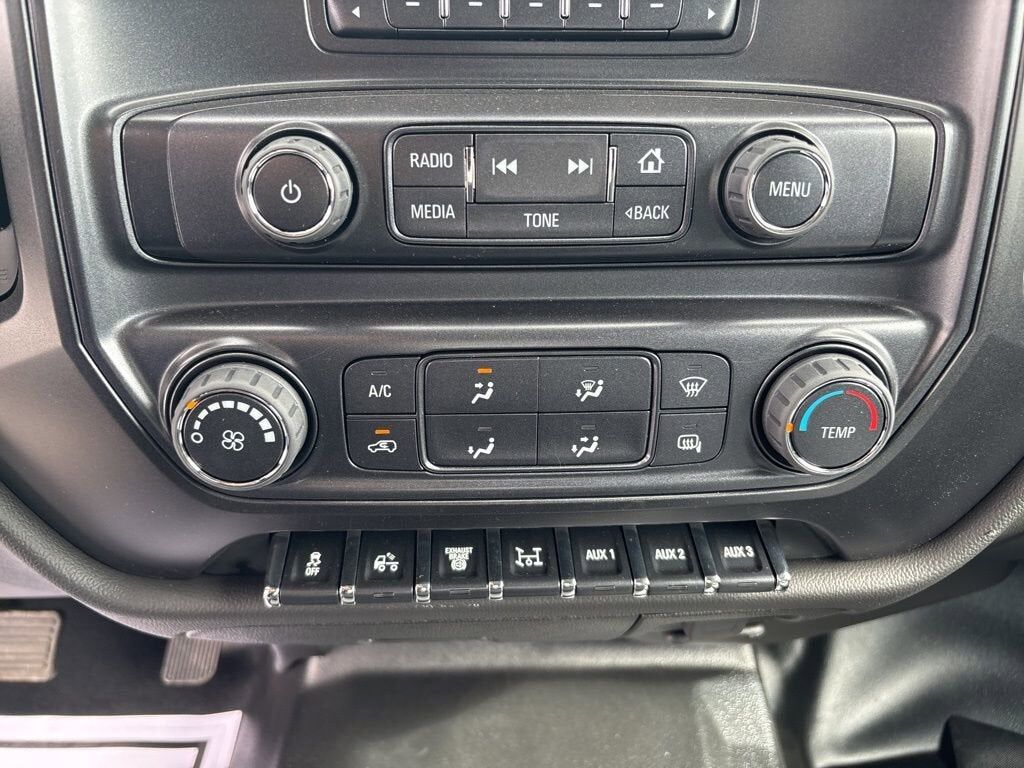

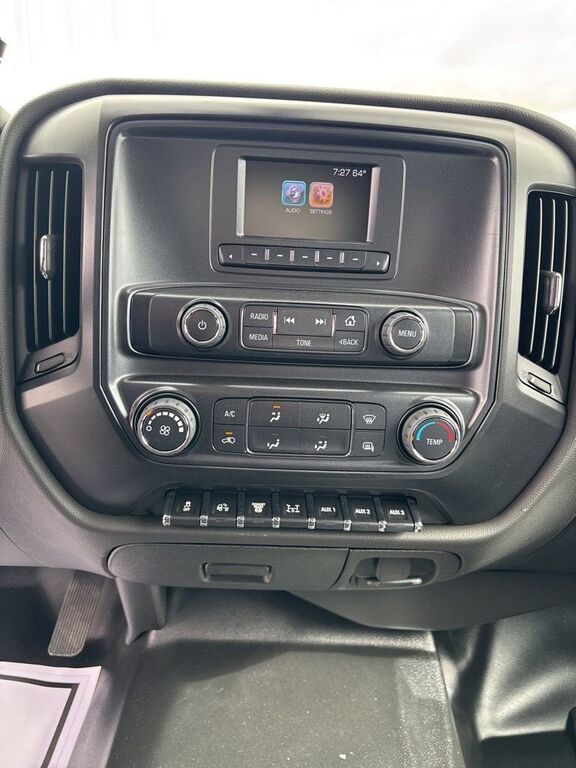

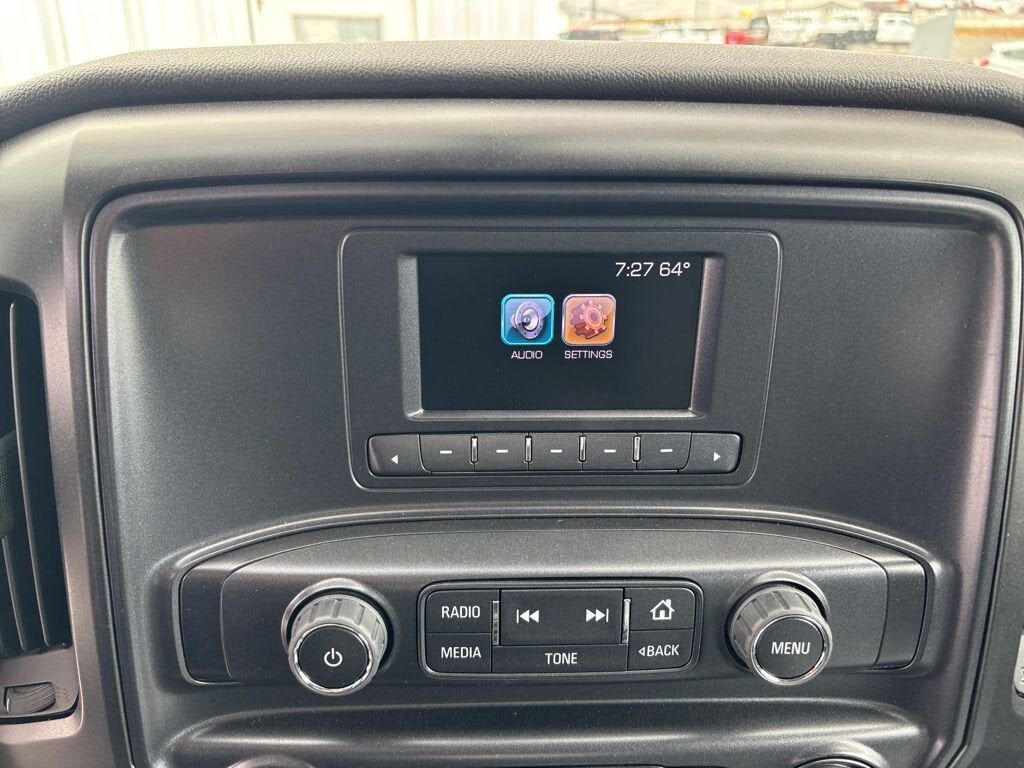

Audio system 4.2" diagonal color display AM/FM stereo with USB port and auxiliary jack (STD)

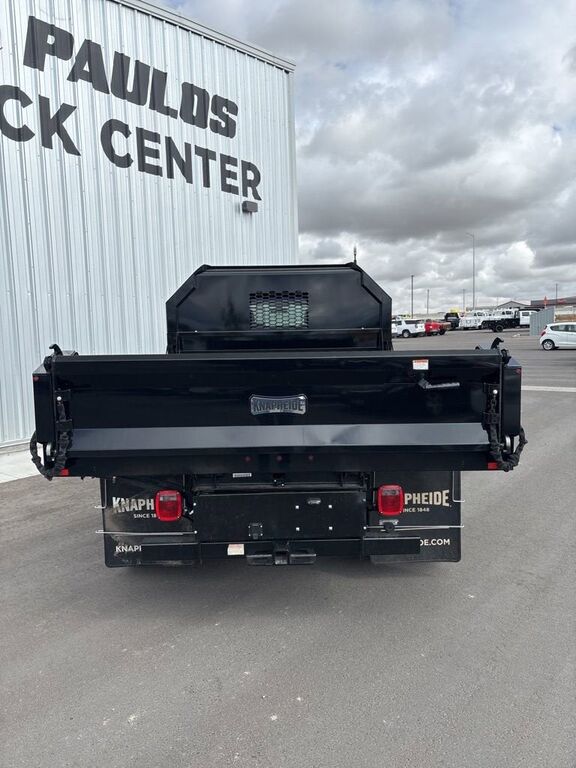

Lamps rear stop/turn/backup (1-piece assembly) with license plate light
Grille guard screen insect protection (mounted behind grille)
Antenna fixed mast
Spare tire delete (STD)
Wheel spare delete
Door handles Black
Wheels 19.5" x 6.75" steel Black painted 8-holes hub piloted (STD)
Front fender extension painted body color
Lamps cargo area cab mounted with switch on center switch bank
Assist steps

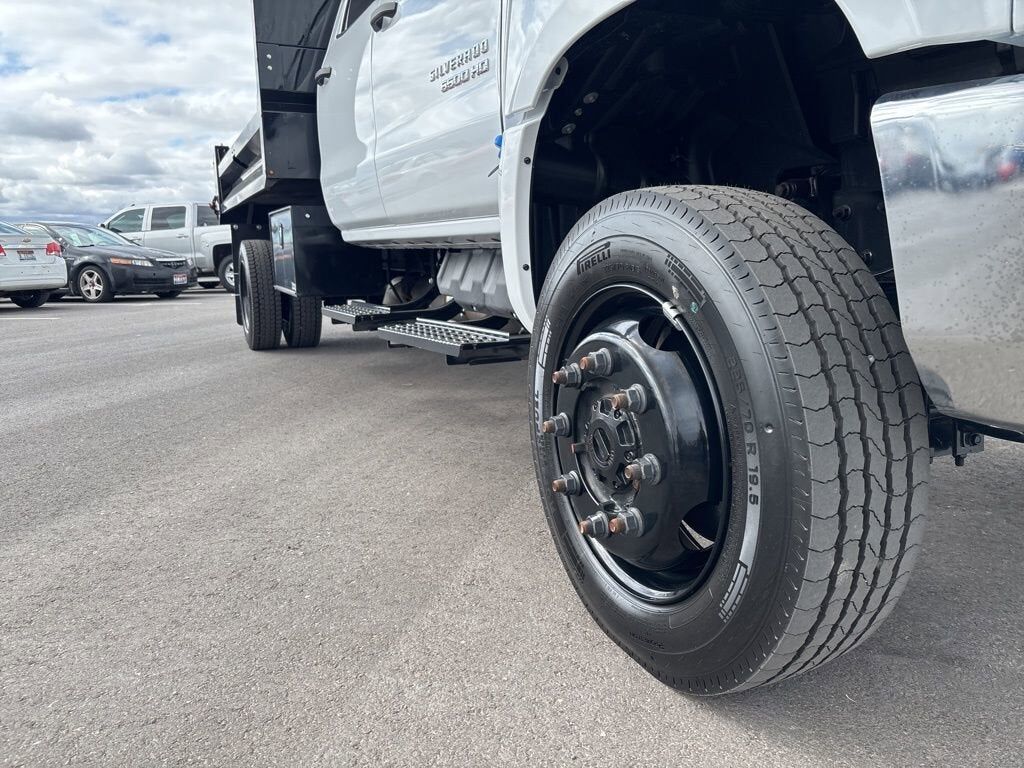

Tires front 225/70R19.5G highway blackwall Pirelli Max Axle Load: 7940 lb. (Requires (YEY) Tires rear 225/70R19.5G highway blackwall Pirelli Max Axle Load: 15000 lb. or (YEZ) Tires rear 225/70R19.5G traction blackwall Pirelli Max Axle Load: 15000 lb.) (STD)
Lamps Smoked Amber roof marker
Headlamps halogen projector-beam
Paint solid

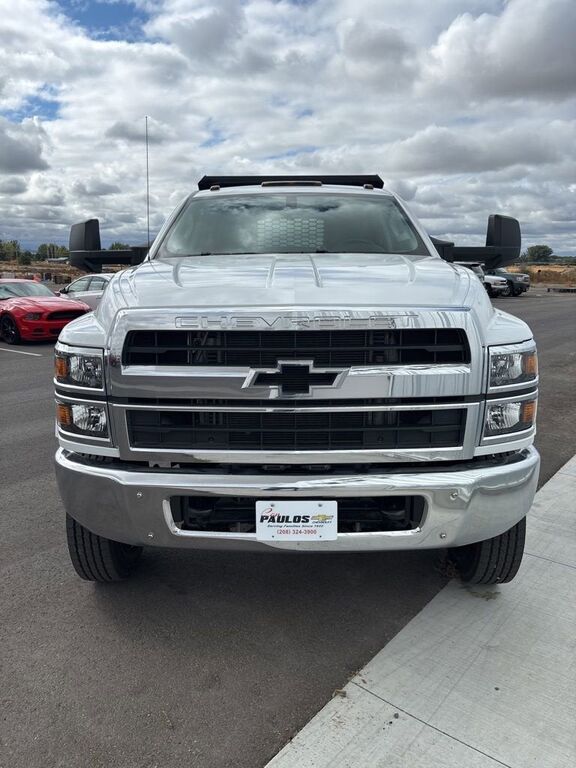

Grille chrome
Tires front 225/70R19.5G highway blackwall Pirelli Max Axle Load: 7940 lb. (STD)
Bumper front chrome
Provision for cab roof-mounted lamp/beacon provides an overhead console mounted switch and electrical wiring tucked beneath the headliner for a body upfitter to connect a body-mounted warning or emergency lamp
Auxiliary harness 3' for headlamps and turn signals
Tires rear 225/70R19.5G traction blackwall Pirelli Max Axle Load: 15000 lb.
Summit White
License plate kit front
Electrical Provisions rear of frame upfitter body builder wiring includes Sealed Connectors for Tail/Amber Turn/Marker/Backup/Accessory Power/Ground and Sealed Connector for Stop/Turn
Mirrors outside black heated power-adjustable high-visibility vertical camper-style and lower convex spotter glass manual-folding. Convex glass is not heated and not power adjustable. 102" Wide Load
Glass deep-tinted
Visors driver and front passenger vinyl
Seat trim Vinyl

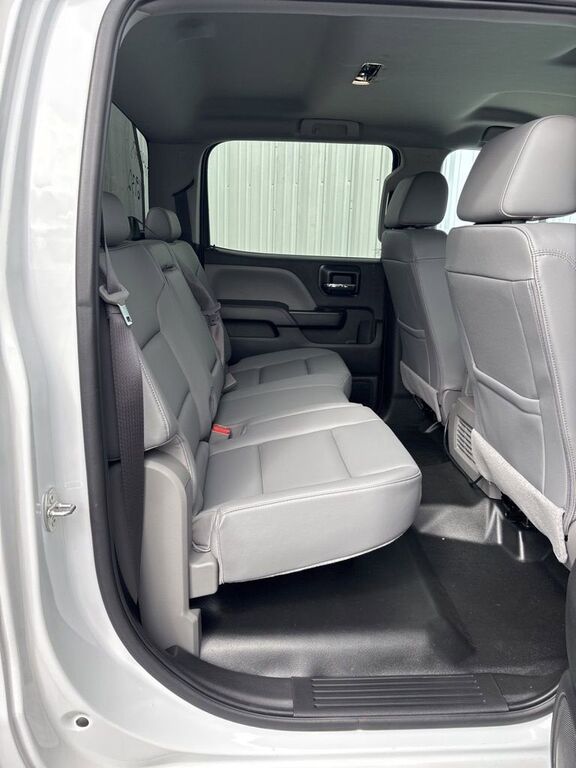

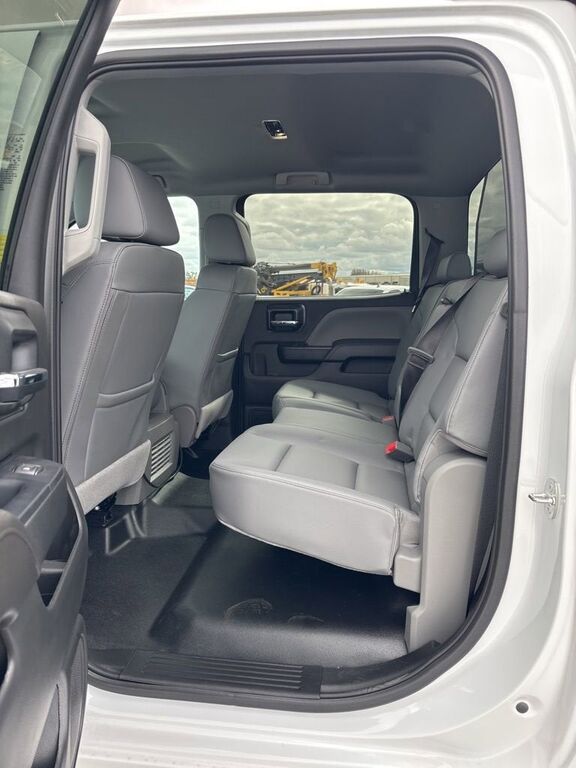

Seat rear 60/40 folding bench (folds up) 3-passenger (includes child seat top tether anchor)

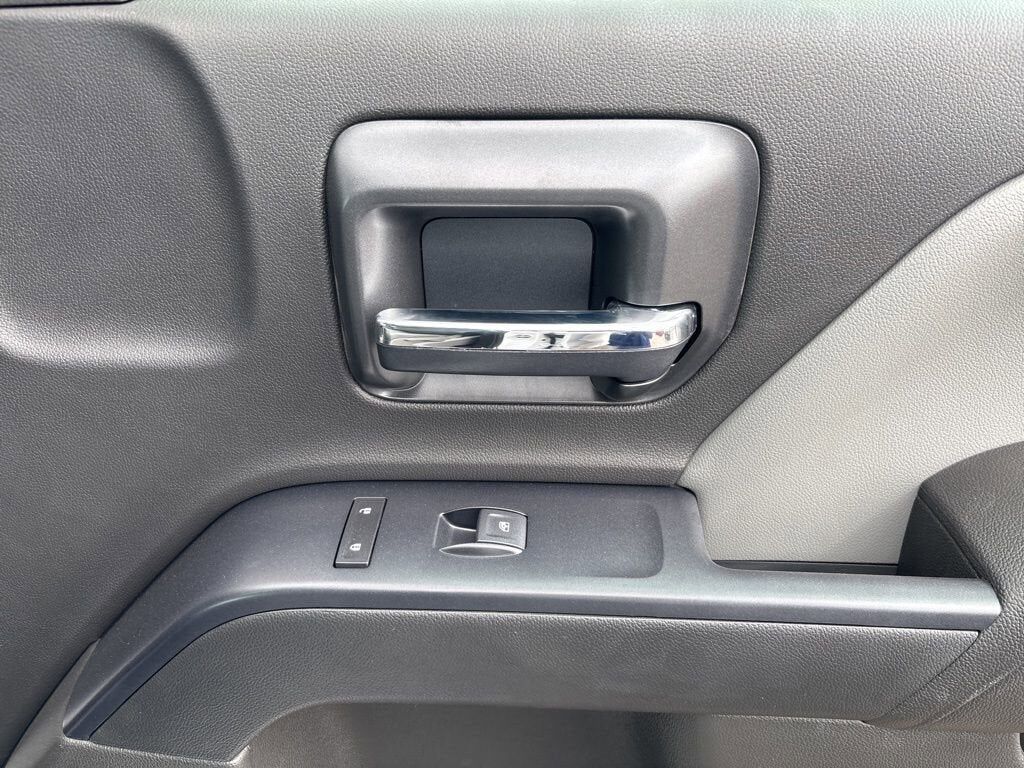

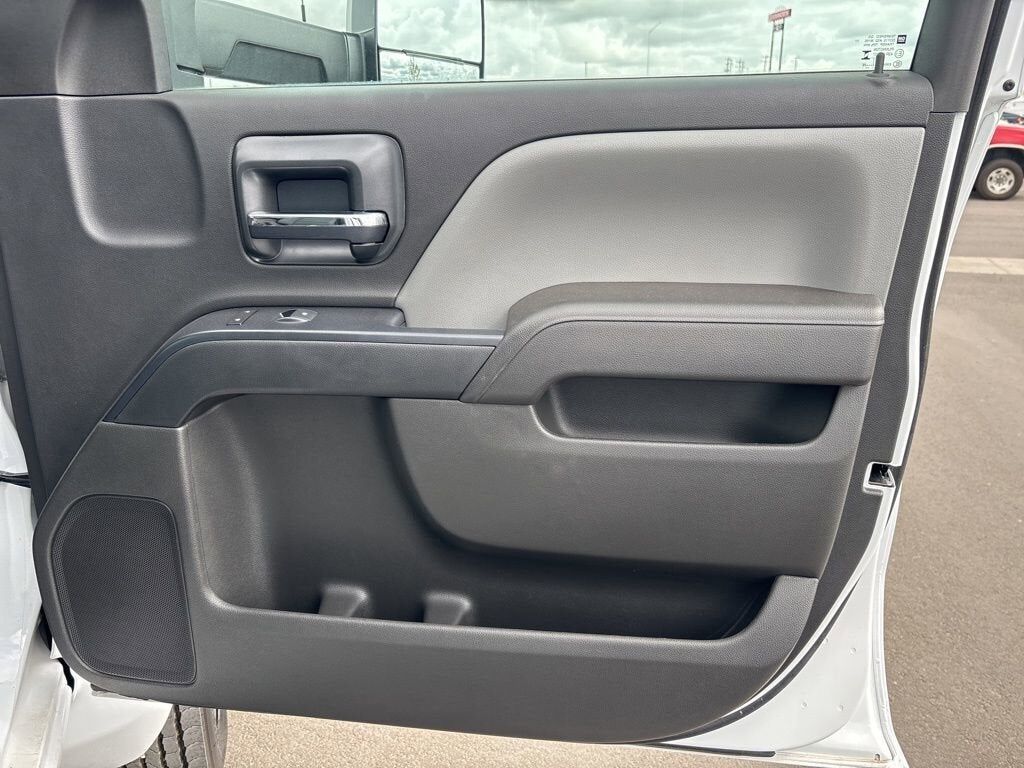

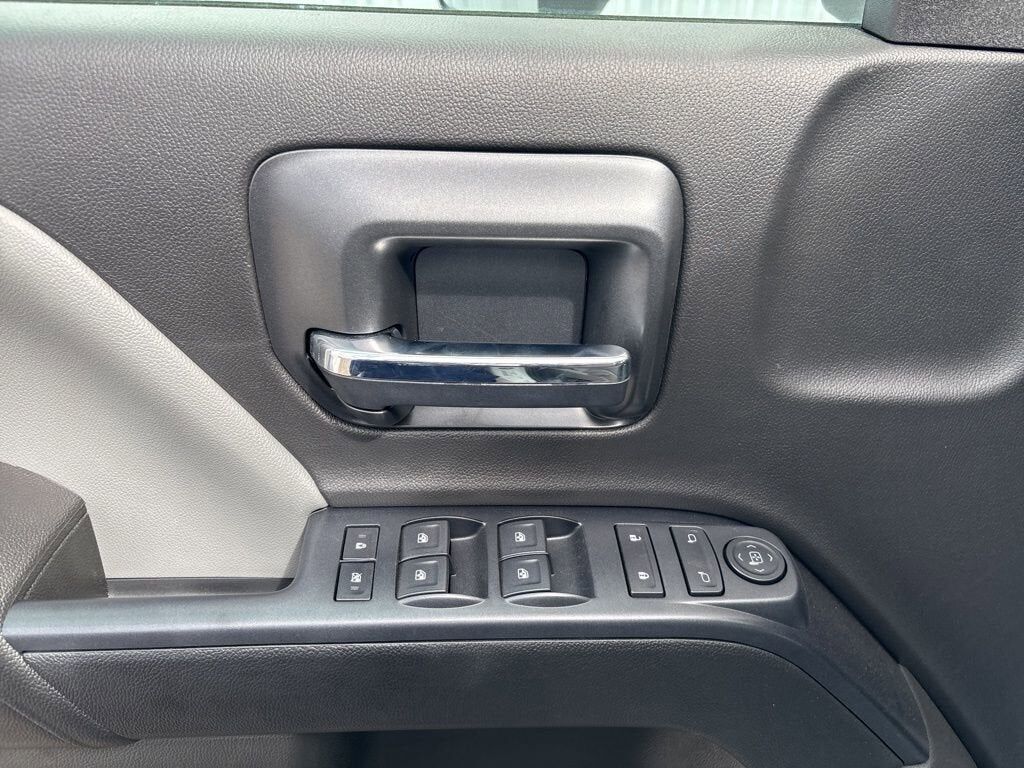

Windows power with driver express up and down and express down on all other windows

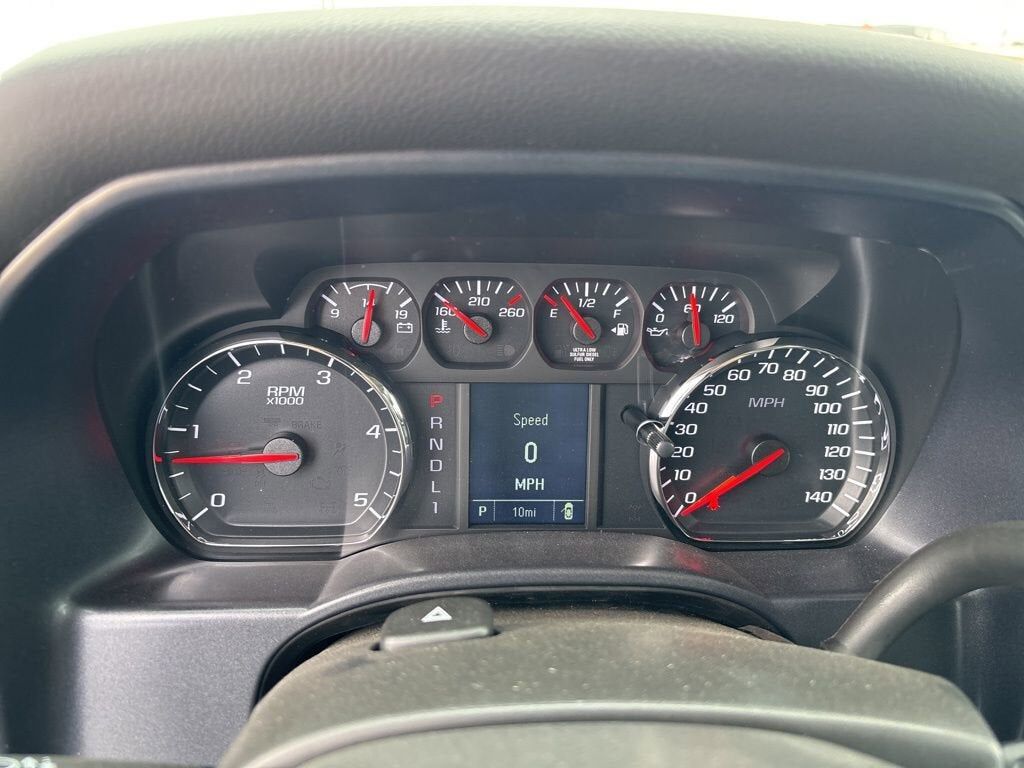

Speedometer miles/kilometers
Interior trim Jet Black/Dark Ash (Required and only available with (H2Q/H2R) Dark Ash seats with Jet Black interior accents.)

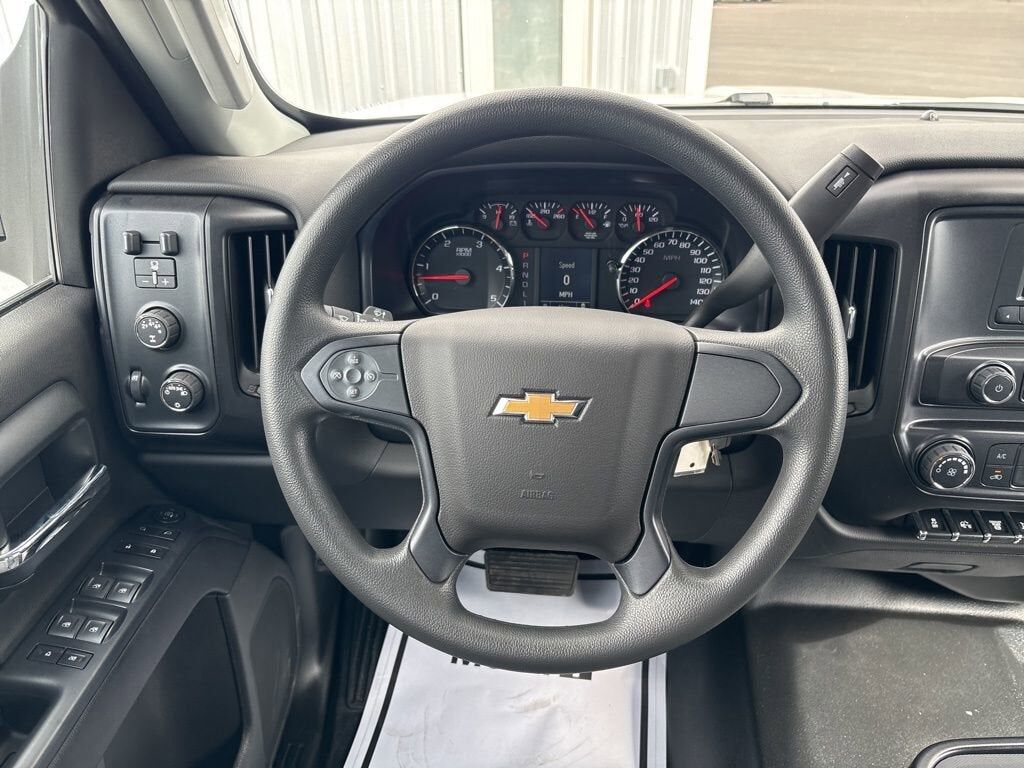

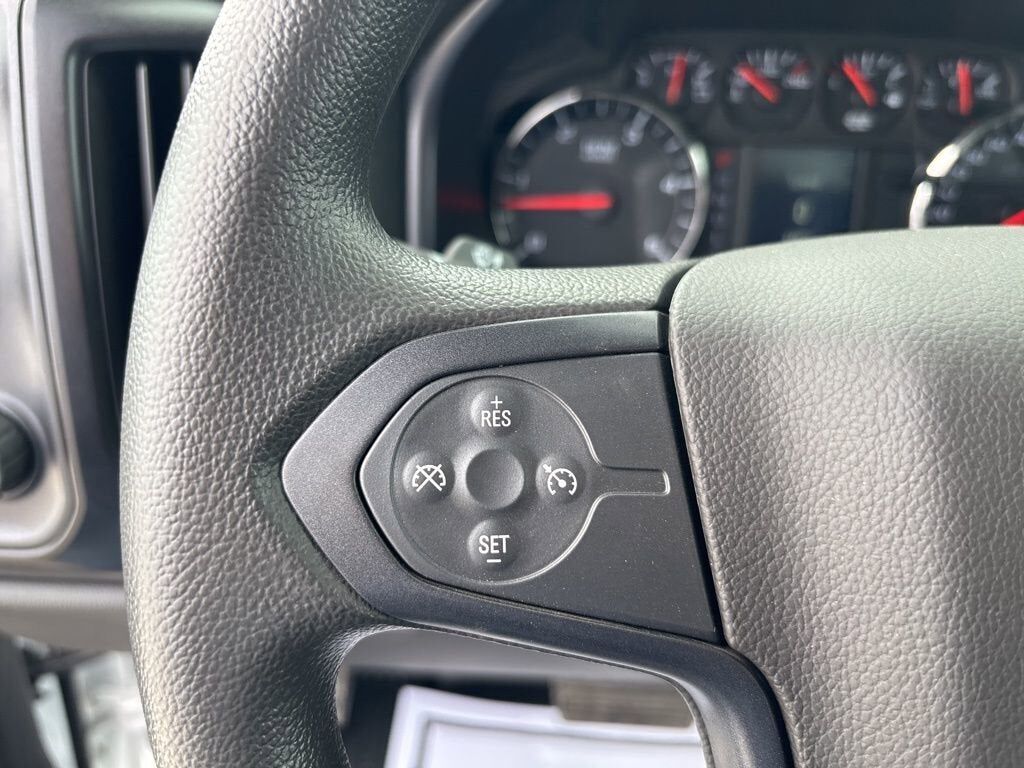

Cruise control steering wheel-mounted
Door locks power
Air conditioning single-zone
Assist handle front passenger and driver on A-pillars
Floor covering Graphite-colored rubberized-vinyl
Steering wheel urethane

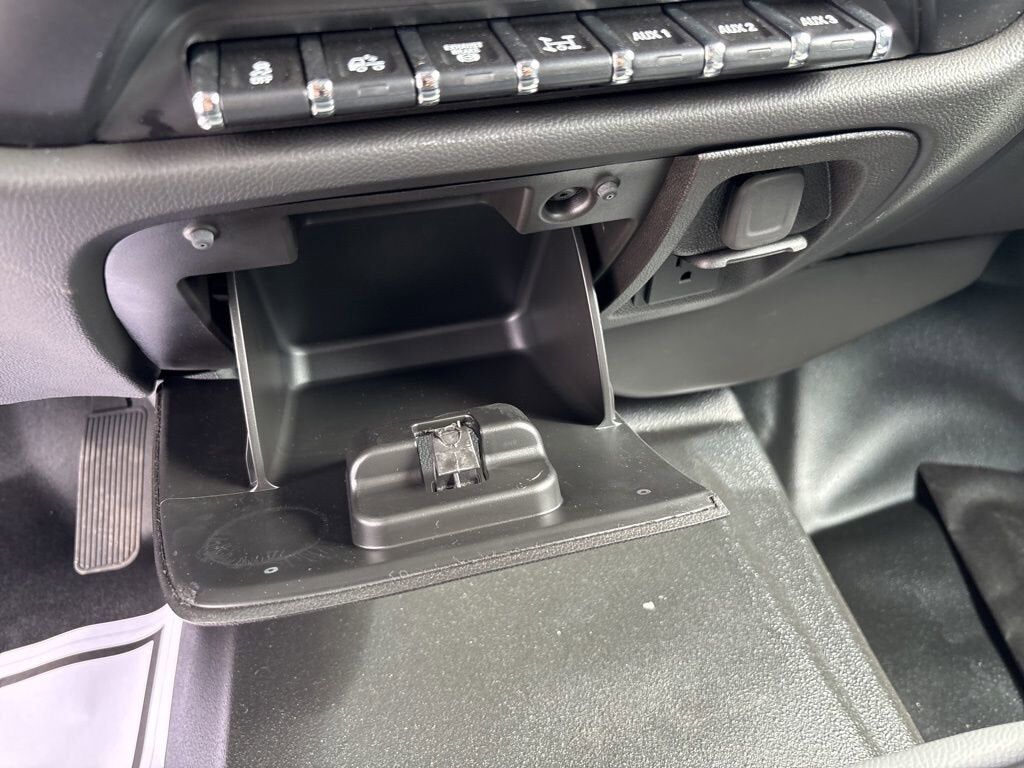

Upfitter switch kit provides up to 4-30 amp circuits to facilitate installation of aftermarket electrical accessories located on the instrument panel
Steering column manual Tilt-Wheel

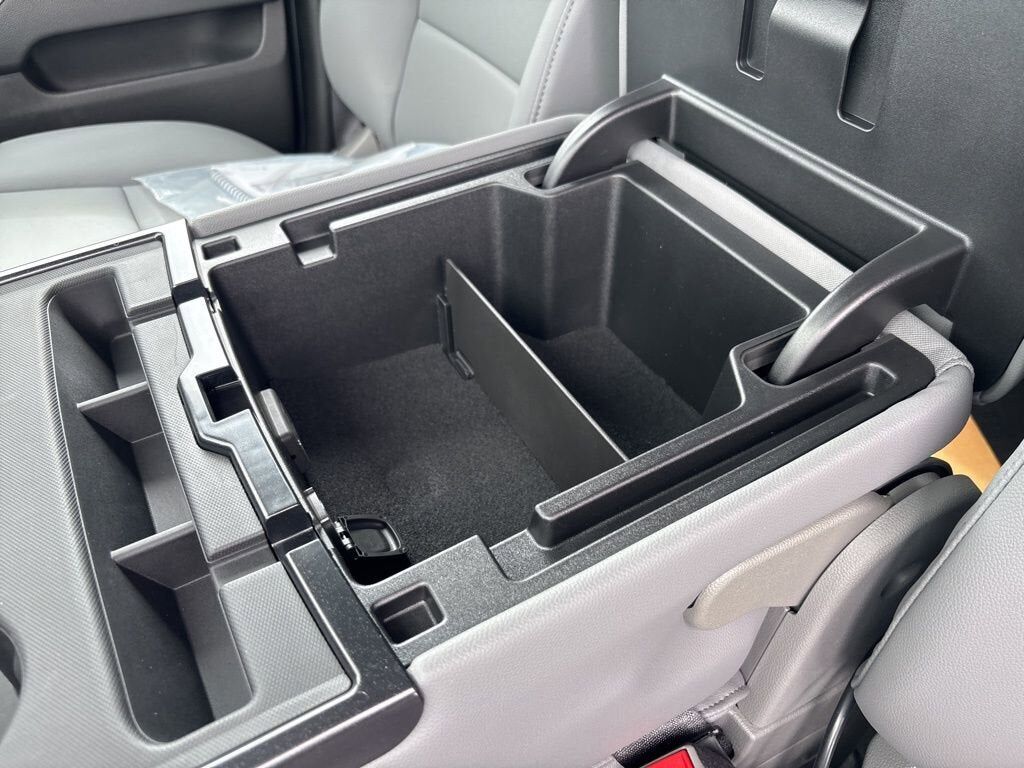

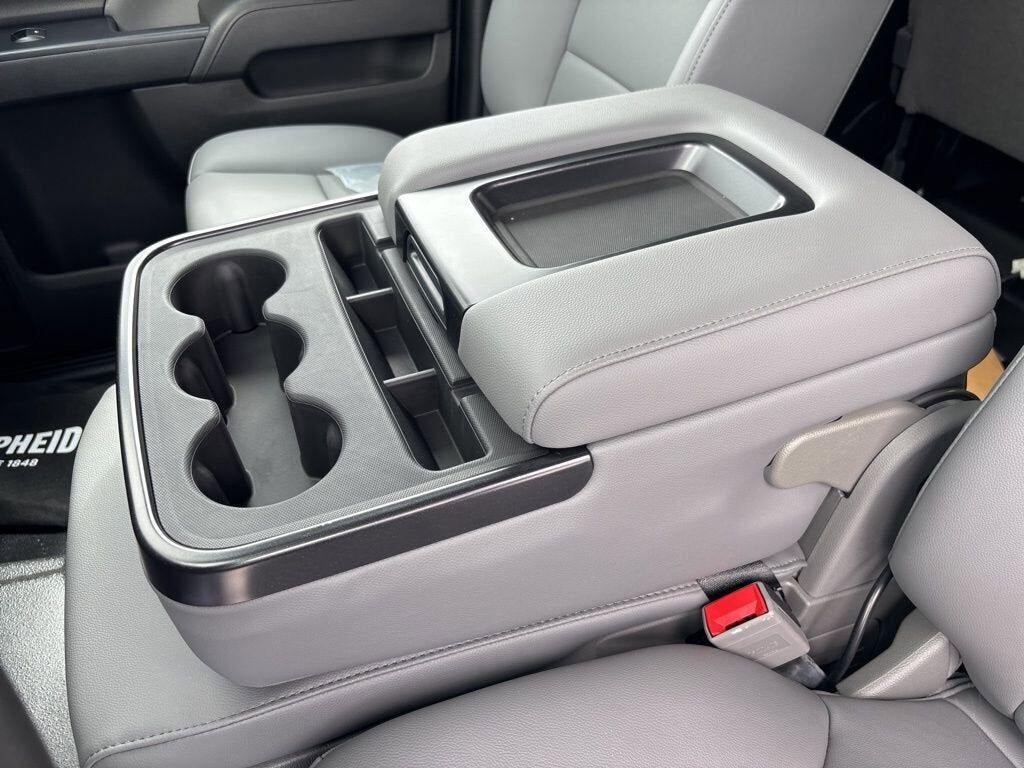

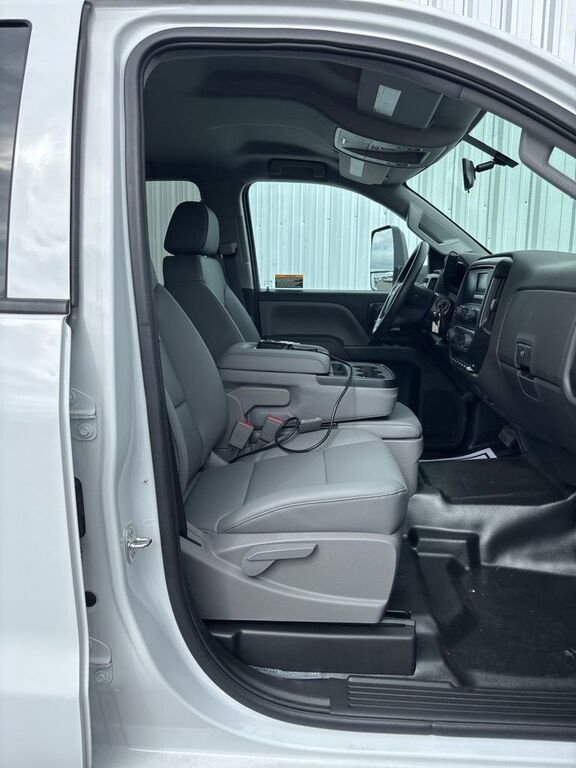

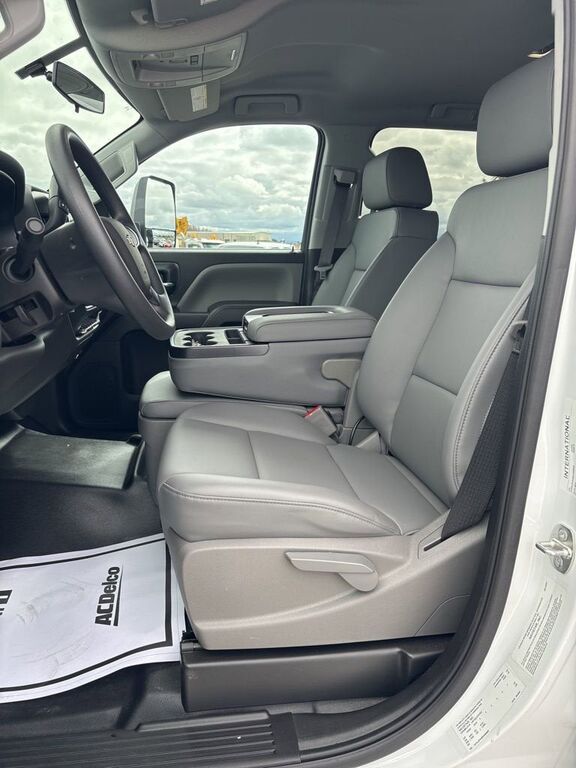

Seats front 40/20/40 split-bench 3-passenger driver and front passenger recline with outboard head restraints and center fold-down armrest with storage. Vinyl has fixed lumbar and cloth has manually adjustable driver lumbar. (STD)
Driver Information Center 3.5-inch diagonal monochromatic display provides warning messages and basic vehicle information (Included and only available with (IO3) Audio System with 4.2" diagonal color display or (IOR) Chevrolet Infotainment System with 7" diagonal color touch-screen.)
Mirror inside rearview manual day/night
Seat Belt Black
Dark Ash seats with Jet Black interior accents Vinyl seat trim
Back-up alarm calibration This calibration will allow installation of an aftermarket back-up alarm by disabling rear perimeter lighting
Power outlet 110-volt AC
Remote Keyless Entry
Front suspension 7500 lb. (3402 kg) multi-leaf includes shock absorbers
Emissions 50 state certification
Brakes hydraulic heavy duty Bosch/Meritor/Wabco system with 4-channel (ABS) (Includes (J69) driveline park brake.)
Axle Open rear axle non-locking rear
Capped Fuel Fill
Steering power (Bosch S2 8014 Plus)
Fuel tank rear only 40 gallon mounted between frame side rails and behind rear axle
Emissions USA 50 State certified
Axle to End of Frame 49" (Requires wheelbase (EM1) 199" or (FNV) 175". Not available with (G40) (GP1) or (GP8) rear air suspension.)
Incomplete vehicle
Fuel diesel B20
Axle lubricant rear synthetic oil EmGard FE -75W-90

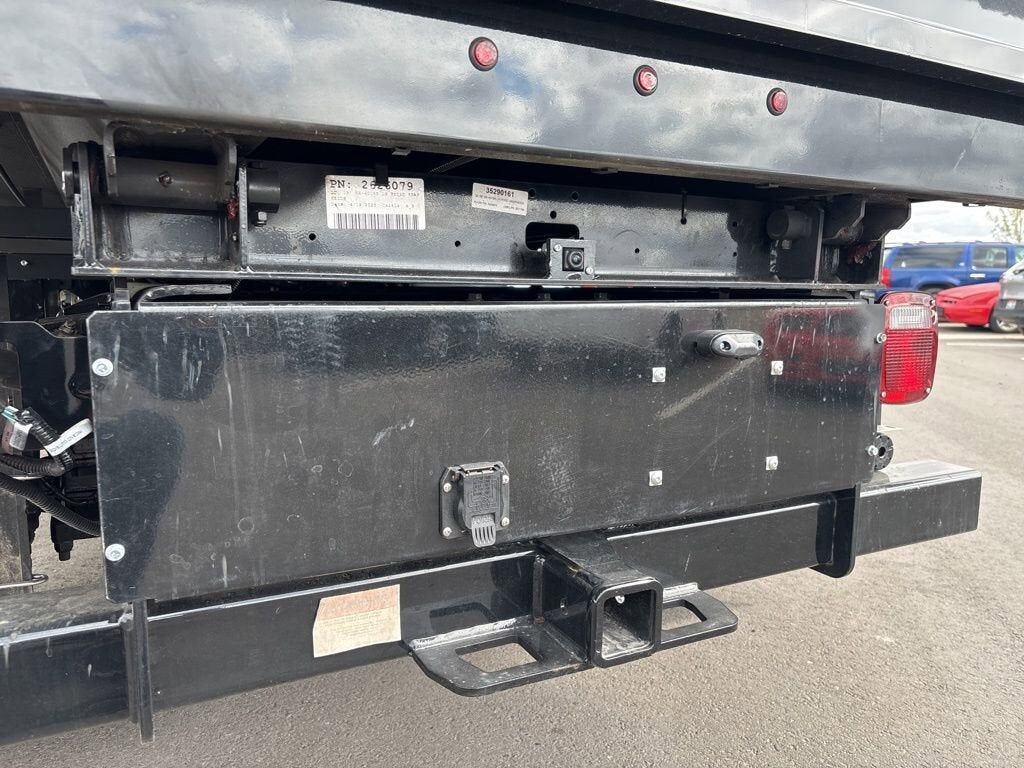

Trailering provisions trailering wire harness only trailer combined (Stop/Tail/Turn) connection socket and harness mounted at rear of frame.
Rear axle 4.30 ratio Max road speed: 75 MPH
Front axle 7500 lb. Dana Spicer 60-256 single-reduction front driving
Axle lubricant front synthetic oil EmGard FE-75W-90
Exhaust brake
Four wheel drive
Trailer brake controller integrated
Batteries heavy-duty dual 1300 cold-cranking amps includes battery box mounted to left side under cab
DPF diesel particulate filter manual regeneration customer regeneration will not be allowed until the DPF load percentage has reached 100% full and a driver information center (DIC) message has been shown
Battery top post threaded battery jump start stud (located on battery box)
Axle limited slip Dana Spicer Truetrac torque proportioning limited slip
Shock Absorbers rear
30000 lb. GCWR (13607 kg)
Alternators dual 150 amps and 220 amps each
Rear axle 15500 lb. (7031 kg) Dana Spicer S16-140 single reduction
5500 HD Series
Rear suspension 13500 lb. (6123 kg) multi-leaf vari-rate
GVWR 19500 lb. (8845 kg)
Wheelbase 199" (505.5 cm) 84" CA
Skid Plate steel frame-mounted protects the transfer case from the ground
Exhaust system straight terminates ahead of rear wheels
Recovery hooks front frame-mounted black
Front stabilizer bar
Work Truck Preferred Equipment Group includes standard equipment

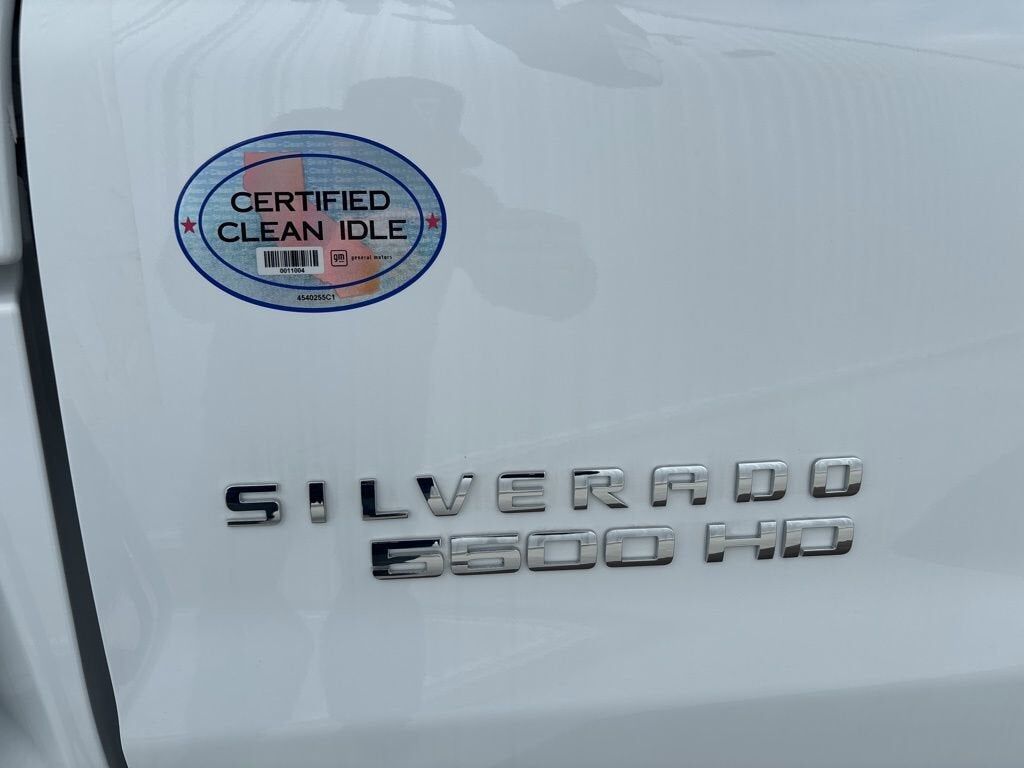

Label information clean idle door location
Ship Thru Produced in Springfield Assembly and shipped to Knapheide Flint MI and Returned to Springfield Assembly for shipping to final destination
Daytime Running Lamps with automatic exterior lamp control
Rear Vision Camera display integrated into Radio (Shipped loose in cab for upfitter installation.)
OnStar delete
Airbag deactivation switch frontal passenger-side (Included and only available with (AY0) airbags.)
Airbags Single-stage frontal airbags for driver and front outboard passenger; Seat-mounted side-impact airbags for driver and front outboard passenger; Head-curtain airbags for front and rear outboard seating positions; (Always use seat belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
Horn dual-note
Backup alarm (Includes (SFW) SEO Calibration for backup alarm.
StabiliTrak Electronic Stability Control System with Traction Control includes Electronic Trailer Sway Control and Hill Start Assist
Brake parking driveline park brake system
Traction control
