Option & Equipment
Audio system feature 4-speaker system
Audio system 4.2" diagonal color display AM/FM stereo with USB port and auxiliary jack (Requires (AE7) front 40/20/40 split-bench seat. Not available with (UE1) OnStar or (U2K) SiriusXM Radio.) (STD)
SiriusXM delete

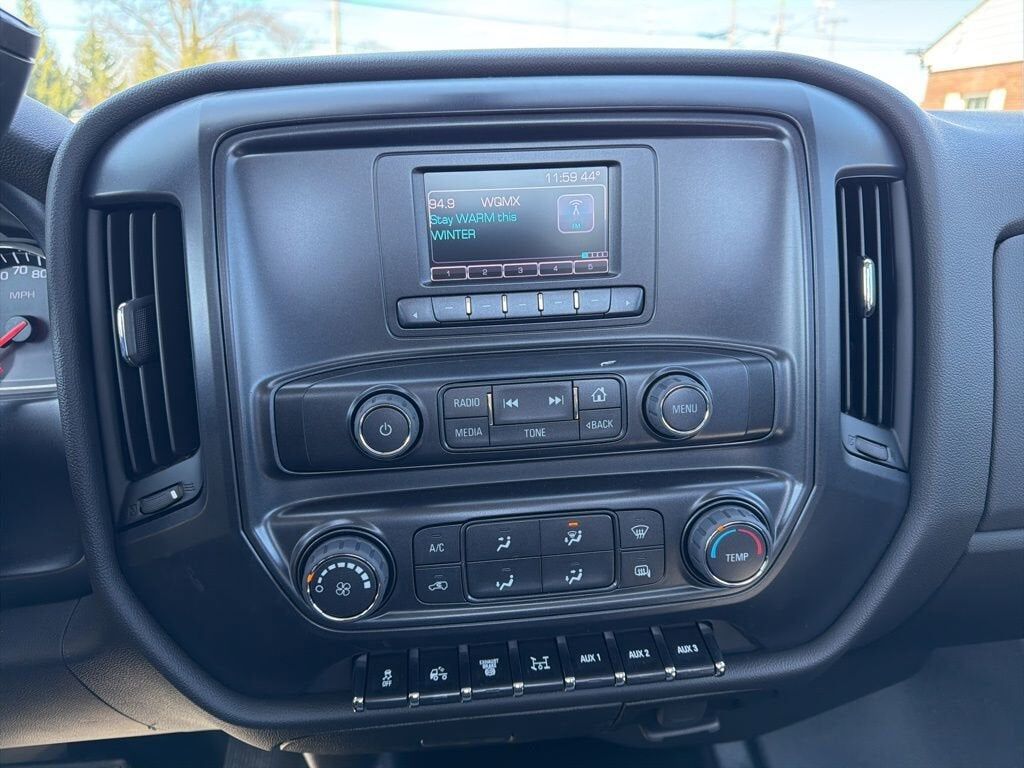

Audio system 4.2" diagonal color display AM/FM stereo with USB port and auxiliary jack (STD)
Lamps rear stop/turn/backup (1-piece assembly) with license plate light
Glass solar absorbing tinted
Grille guard screen insect protection (mounted behind grille)
Antenna fixed mast
Spare tire delete (STD)
Wheel spare delete
Door handles Black

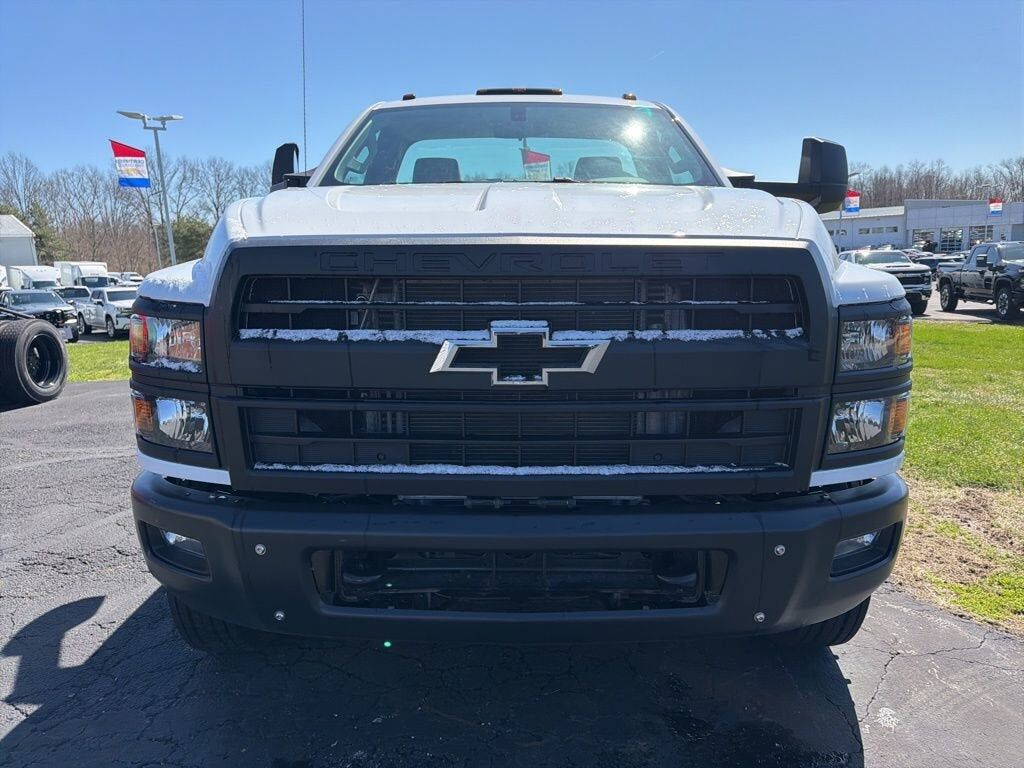

Grille base molded in color Black
Wheels 19.5" x 6.75" steel Black painted 8-holes hub piloted (STD)
Front fender extension painted body color
Lamps cargo area cab mounted with switch on center switch bank
Assist steps
Lamps Smoked Amber roof marker
Headlamps halogen projector-beam
Bumper front Black
Fog lamps front halogen
Paint solid
Tires rear 225/70R19.5G traction blackwall Goodyear Max Axle Load: 15000 lb.
Provision for cab roof-mounted lamp/beacon provides an overhead console mounted switch and electrical wiring tucked beneath the headliner for a body upfitter to connect a body-mounted warning or emergency lamp
Auxiliary harness 3' for headlamps and turn signals
Summit White
Oil seal for front hub Chicago Rawhide Nitrile for oil lubricated wheel bearings

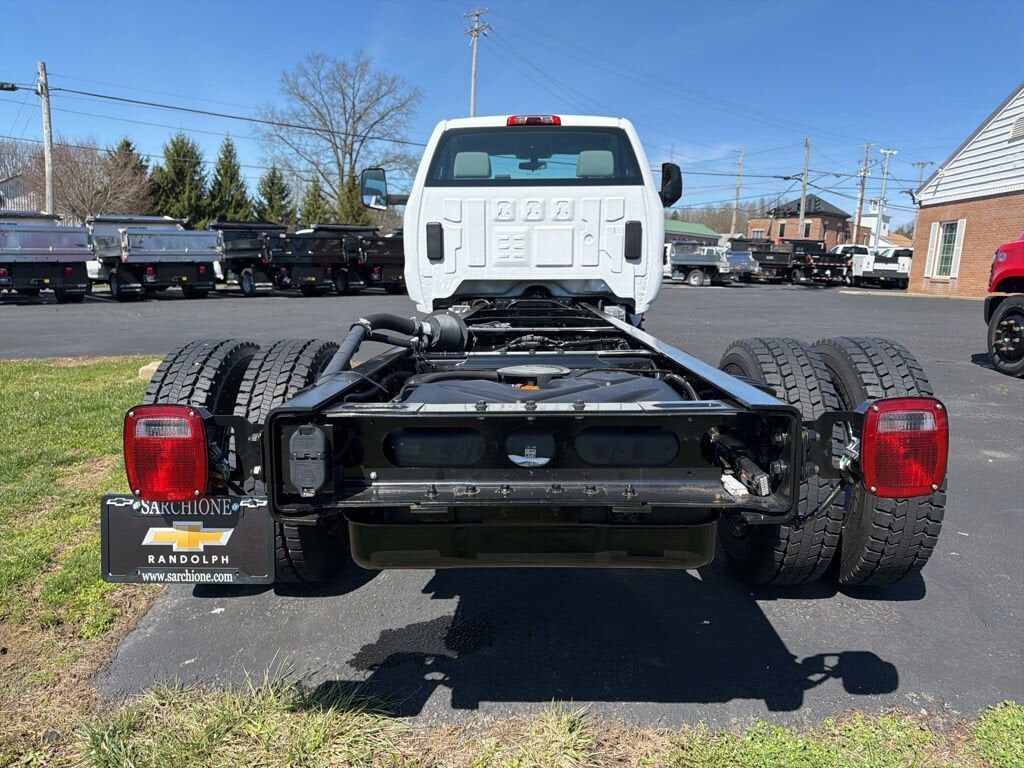

Electrical Provisions rear of frame upfitter body builder wiring includes Sealed Connectors for Tail/Amber Turn/Marker/Backup/Accessory Power/Ground and Sealed Connector for Stop/Turn
Paint Scheme Style 1
Mirrors outside black heated power-adjustable high-visibility vertical camper-style and lower convex spotter glass manual-folding. Convex glass is not heated and not power adjustable. 102" Wide Load
Oil filled front hubs synthetic oil EmGard FE-75W-90
Tires front 225/70R19.5G highway blackwall Goodyear Max Axle Load: 7940 lb.
Visors driver and front passenger vinyl
Seat trim Vinyl

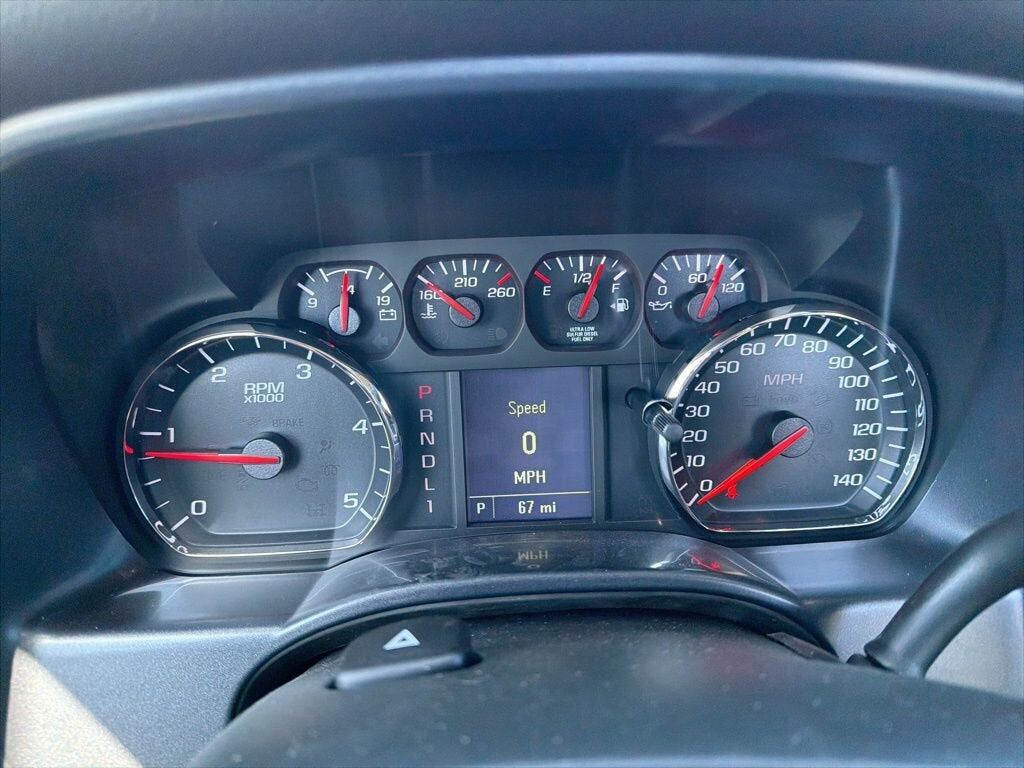

Speedometer miles/kilometers
Interior trim Jet Black/Dark Ash (Required and only available with (H2Q/H2R) Dark Ash seats with Jet Black interior accents.)

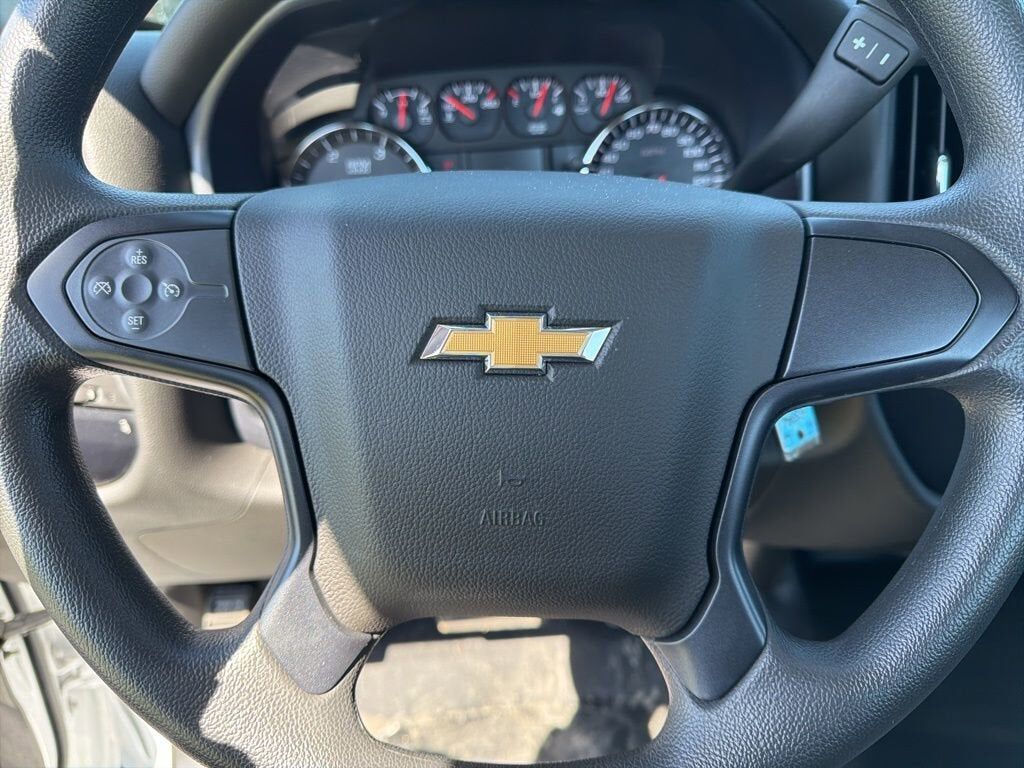

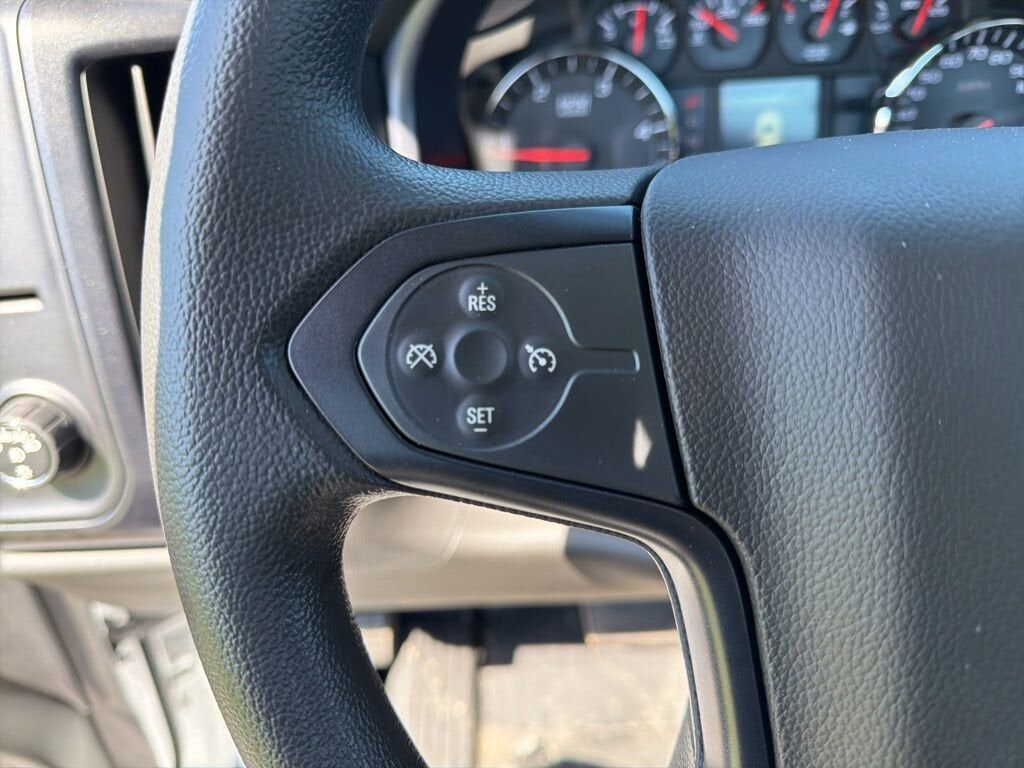

Cruise control steering wheel-mounted
Door locks power
Air conditioning single-zone
Assist handle front passenger and driver on A-pillars
Floor covering Graphite-colored rubberized-vinyl

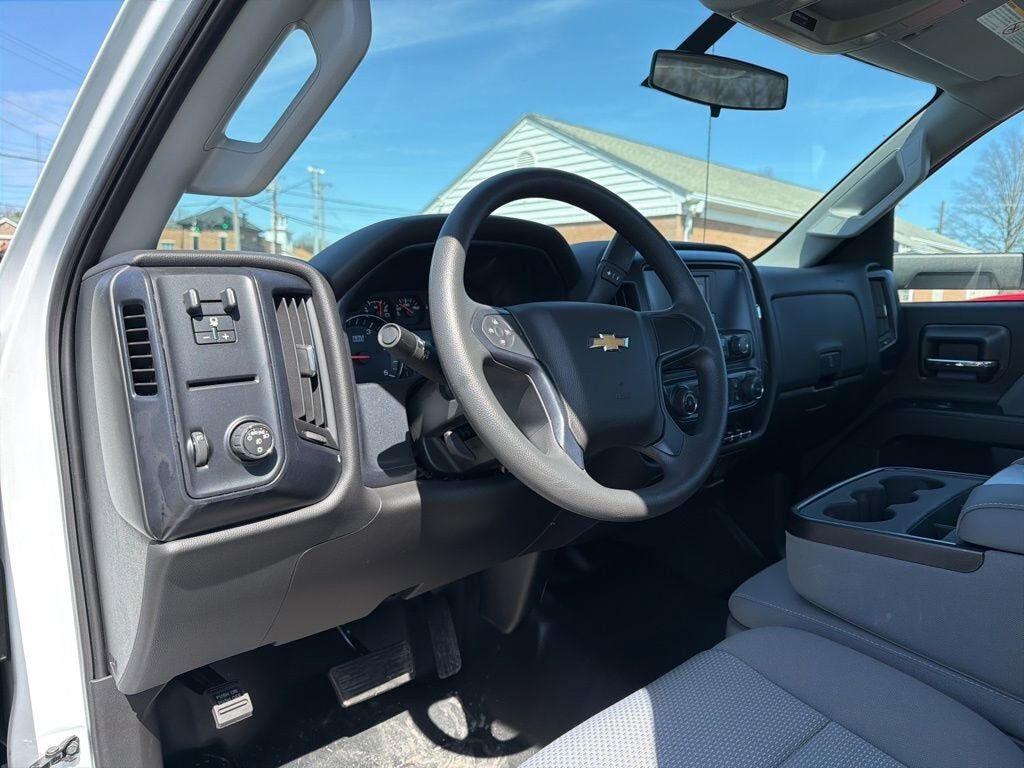

Steering wheel urethane

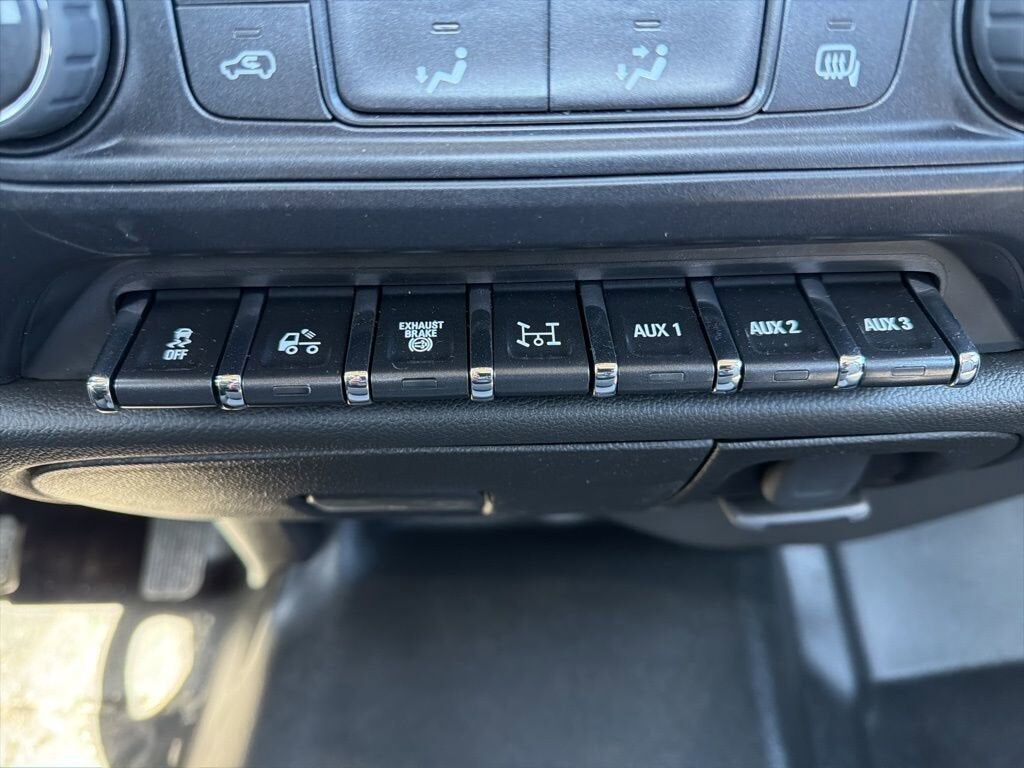

Upfitter switch kit provides up to 4-30 amp circuits to facilitate installation of aftermarket electrical accessories located on the instrument panel

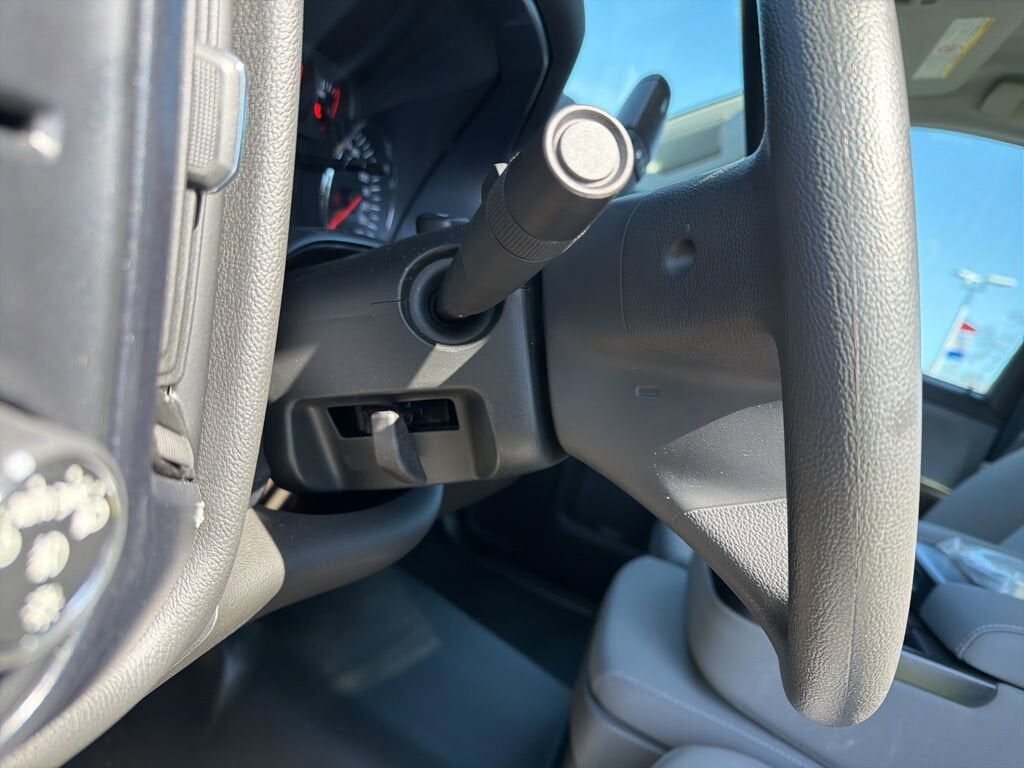

Steering column manual Tilt-Wheel

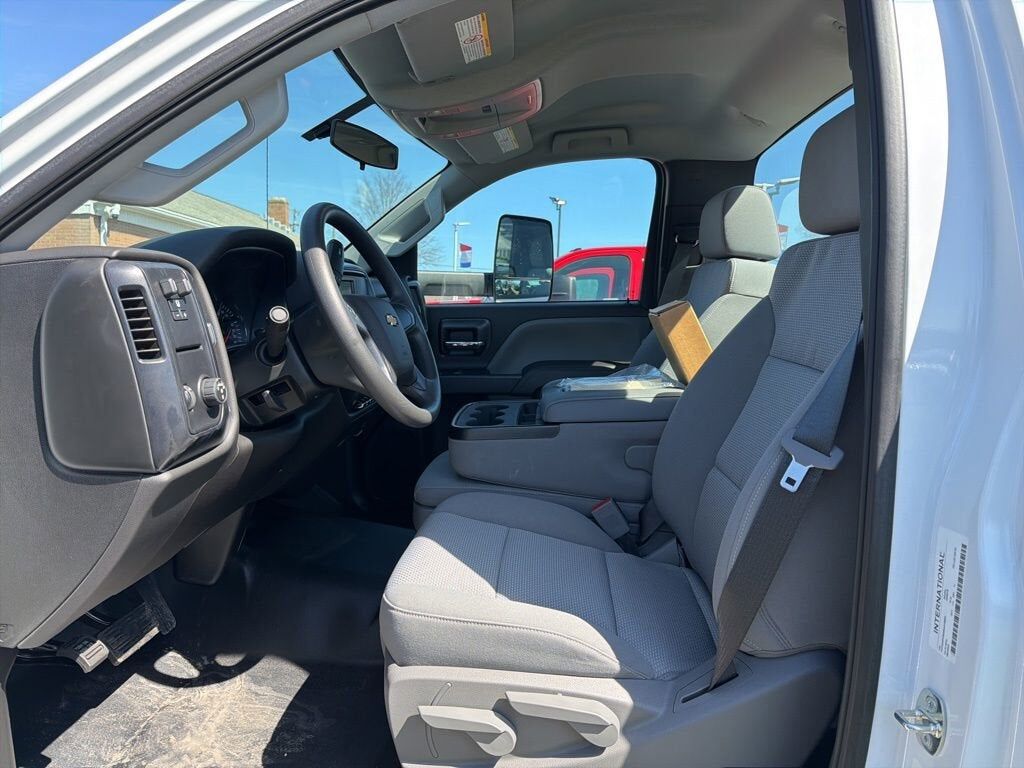

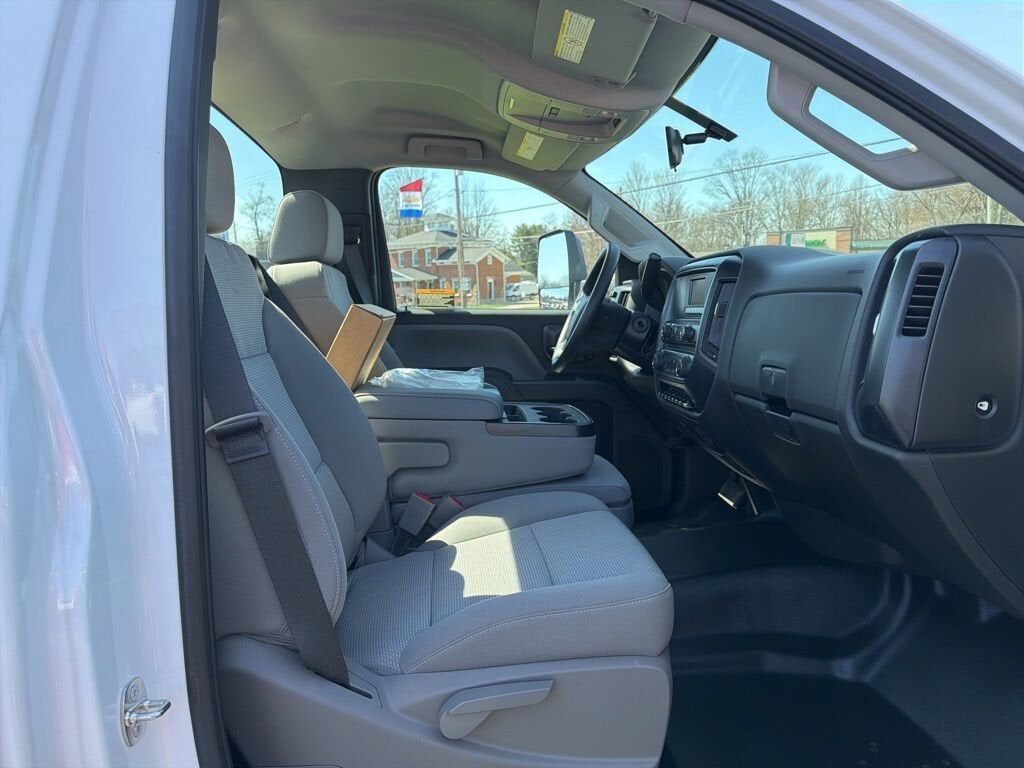

Seats front 40/20/40 split-bench 3-passenger driver and front passenger recline with outboard head restraints and center fold-down armrest with storage. Vinyl has fixed lumbar and cloth has manually adjustable driver lumbar. (STD)
Driver Information Center 3.5-inch diagonal monochromatic display provides warning messages and basic vehicle information (Included and only available with (IO3) Audio System with 4.2" diagonal color display or (IOR) Chevrolet Infotainment System with 7" diagonal color touch-screen.)
Mirror inside rearview manual day/night
Seat Belt Black
Dark Ash seats with Jet Black interior accents Cloth seat trim includes manually adjustable driver lumbar
Power outlet 110-volt AC

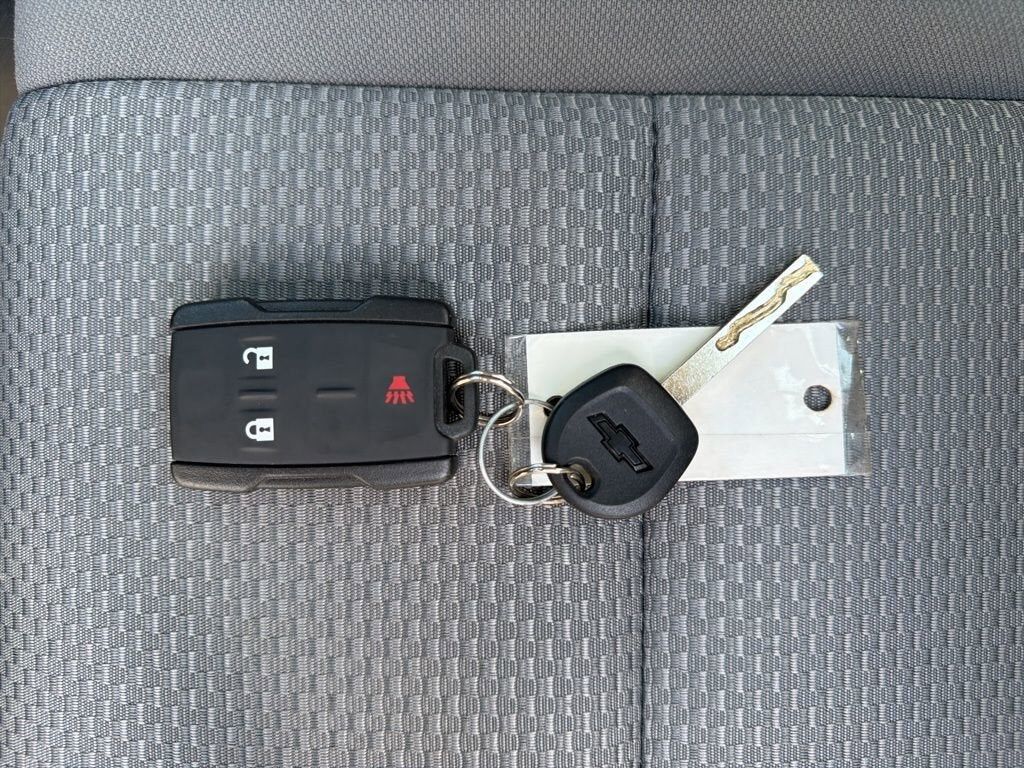

Remote Keyless Entry

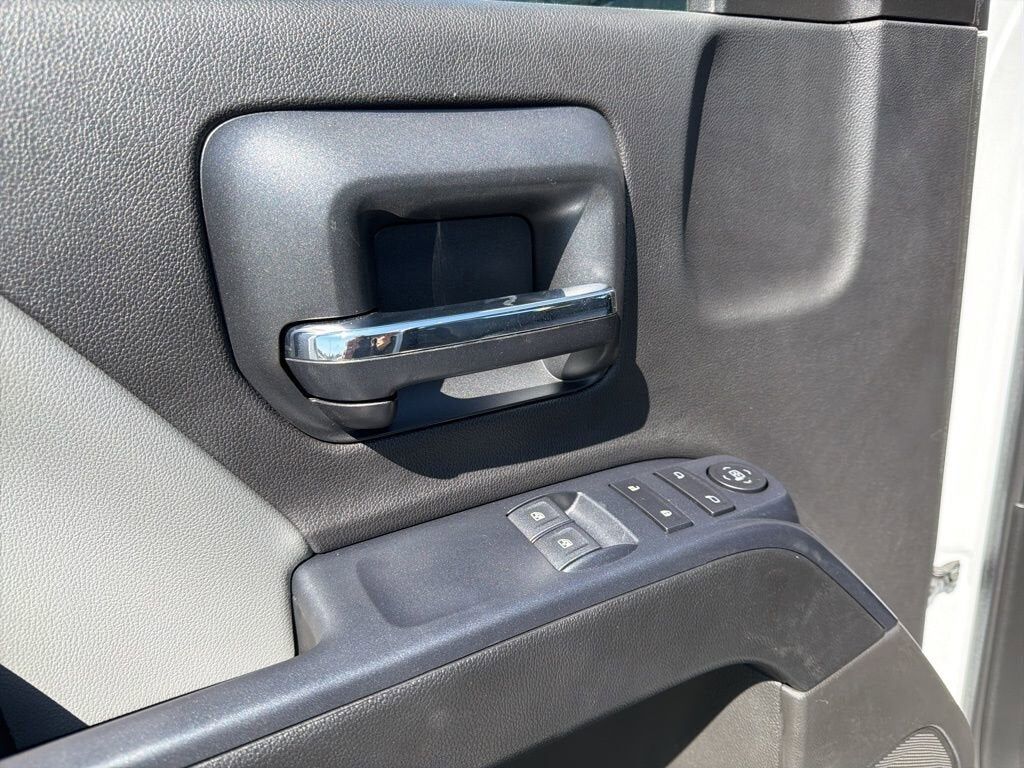

Windows power with driver express up and down and express down on all other windows
Axle to End of Frame 49" (Requires wheelbase (ED5) 201" (ED9) 165" or (ER2) 189". Not available with (G40) (GP1) or (GP8) rear air suspension.)
Emissions 50 state certification
Brakes hydraulic heavy duty Bosch/Meritor/Wabco system with 4-channel (ABS) (Includes (J69) driveline park brake.)
Axle Open rear axle non-locking rear
Capped Fuel Fill
Steering power (Bosch S2 8014 Plus)
Emissions USA 50 State certified
Rear wheel drive

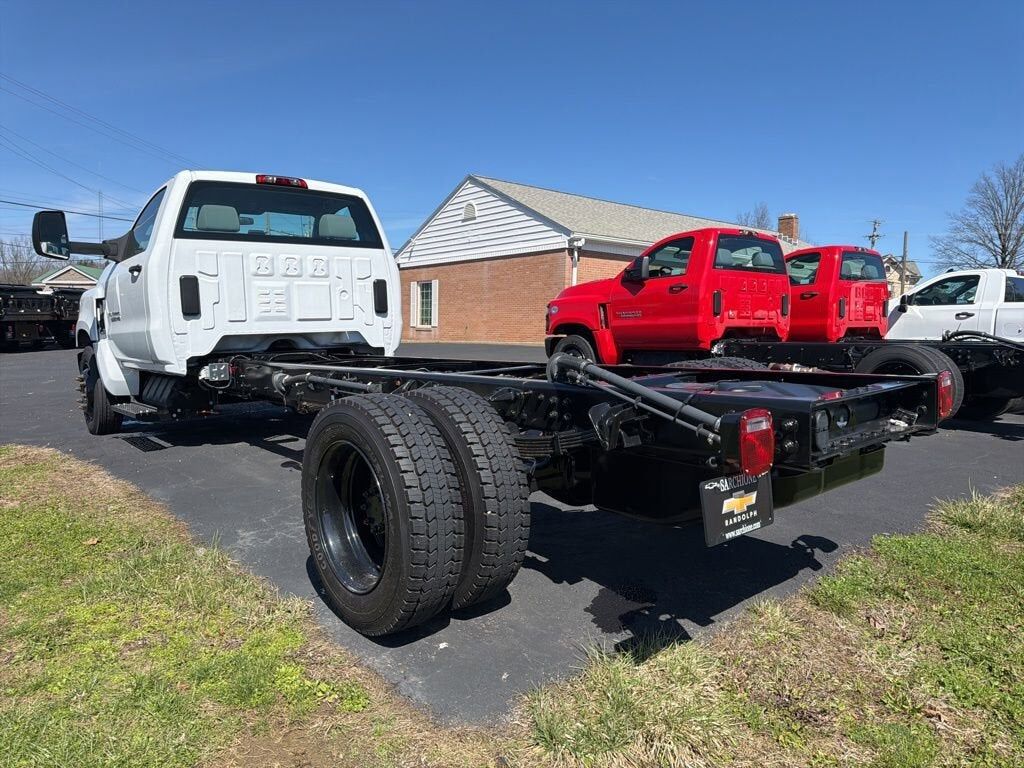

Incomplete vehicle
Fuel diesel B20
Axle lubricant rear synthetic oil EmGard FE -75W-90
Rear axle 4.10 ratio Max road speed: 79 MPH
Shock Absorbers rear (Included with (FTC) 6250 lb. front axle.)
Trailering provisions trailering wire harness only trailer combined (Stop/Tail/Turn) connection socket and harness mounted at rear of frame.
Exhaust brake
Trailer brake controller integrated
Batteries heavy-duty dual 1300 cold-cranking amps includes battery box mounted to left side under cab
Front suspension 8000 lb. (3629 kg) multi-leaf includes shock absorbers
Additional fuel 20 gallons

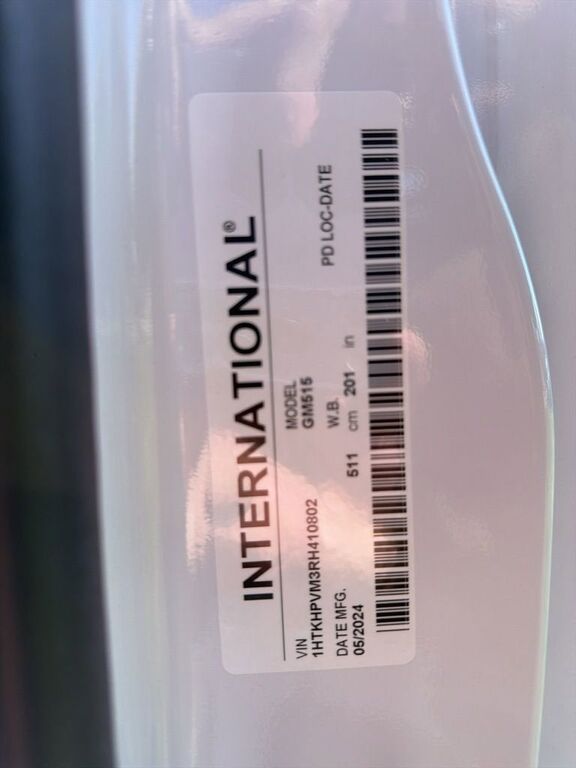

Wheelbase 201" (510.5 cm) 120" CA
Battery top post threaded battery jump start stud (located on battery box)
Axle limited slip Dana Spicer Truetrac torque proportioning limited slip
30000 lb. GCWR (13607 kg)
Fuel tank front and rear 65 gallon total
GVWR 22940 lb. (10405 kg)
Rear suspension 15500 lb. (7031 kg) multi-leaf vari-rate
Rear axle 15000 lb. (6804 kg) Dana Spicer S16-130 single reduction

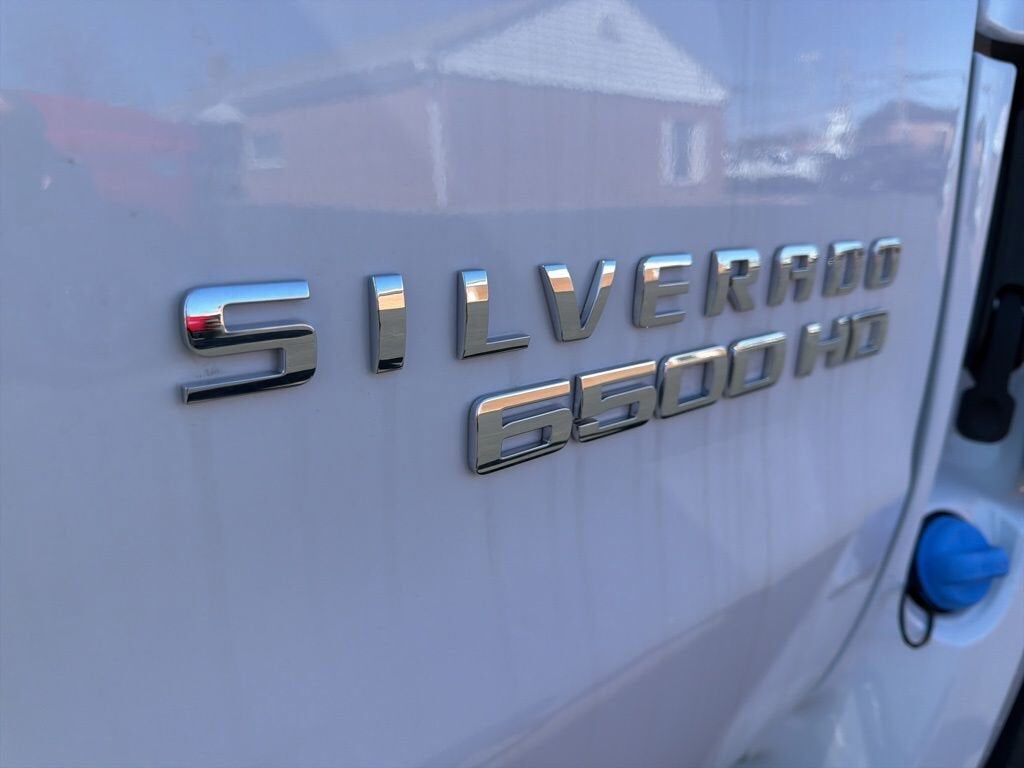

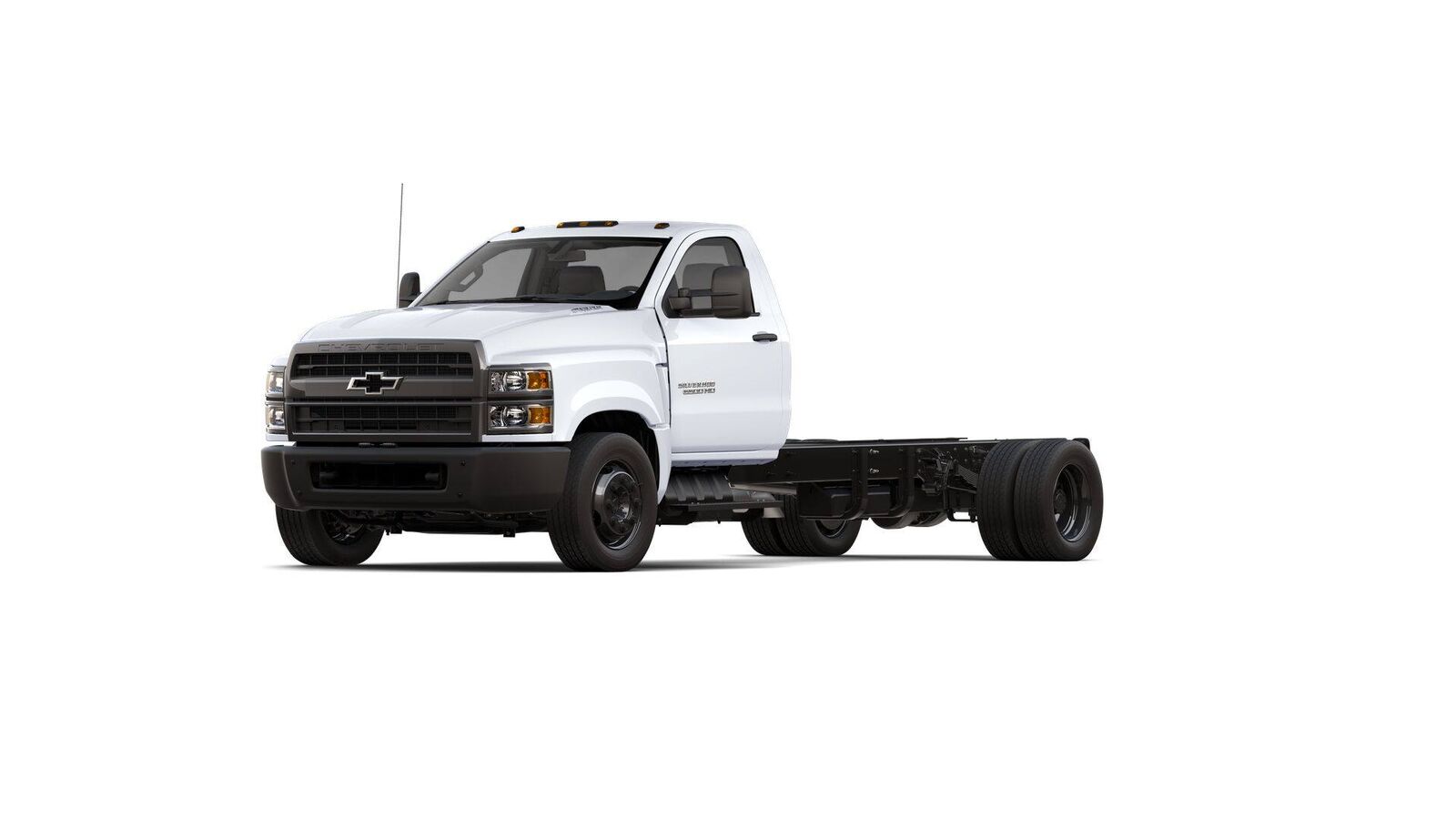

6500 HD Series
Exhaust system straight terminates ahead of rear wheels
Front axle 8000 lb. Dana/Spicer D800-N "I"-beam non-driving
Alternator 220 amps
Recovery hooks front frame-mounted black
Front stabilizer bar
Work Truck Preferred Equipment Group includes standard equipment
Snow Plow Prep Package includes (UNL) auxiliary harness for headlamps and turn signals (KW5) 220-amp alternator forward lamp wiring harness and (TRW) provision for cab roof mounted lamp/beacon
Daytime Running Lamps with automatic exterior lamp control
Airbags Single-stage frontal airbags for driver and front outboard passenger; Seat-mounted side-impact airbags for driver and front outboard passenger; Head-curtain airbags for front outboard seating positions; Includes airbag deactivation switch for front outboard passenger airbag (Always use seat belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
Rear Vision Camera display integrated into Radio (Shipped loose in cab for upfitter installation.)
OnStar delete
Airbag deactivation switch frontal passenger-side (Included and only available with (AY0) airbags.)
Horn dual-note
StabiliTrak Electronic Stability Control System with Traction Control includes Electronic Trailer Sway Control and Hill Start Assist
Brake parking driveline park brake system
Traction control
Snow Plow Prep Package
